Overview
Medium Voltage (MV) Power Cables are used in 6–35 kV distribution networks to deliver electricity from substations to industrial plants, commercial buildings, and municipal loads. XLPE insulation is commonly adopted for its excellent electrical performance, thermal endurance, and aging resistance. Options include armoured or non-armoured constructions, flame-retardant or fire-resistant designs, and comprehensive shielding systems to suit different installation environments.
Typical voltage ratings: 6/10 kV, 8.7/15 kV, 12/20 kV, 18/30 kV, 26/35 kV
Conductors: Copper or aluminum, round/sector, compacted
Insulation: XLPE (typical), EPR optional
Shielding: Conductor/insulation semi-conductive screens + metallic screen (Cu wires/tape)
Mechanical protection: Steel tape armour (STA) or steel wire armour (SWA)
Outer sheath: PVC, PE, or LSZH
Applications: Utility distribution, industrial parks, municipal infrastructure, rail transit, data centers
Standards: GB/T12706.1-2020~GB/T12706.3-2020.We also can use the lEC60502 standard for production according to the requirement of the customer.
Key Features
High dielectric strength and low dielectric loss; continuous operating temperature up to 90°C
Robust screening system to control partial discharge and enhance reliability
Optional flame-retardant and LSZH sheath for stringent fire-safety environments
Suitable for various installations: trays, ducts, direct burial, tunnels, and trenches

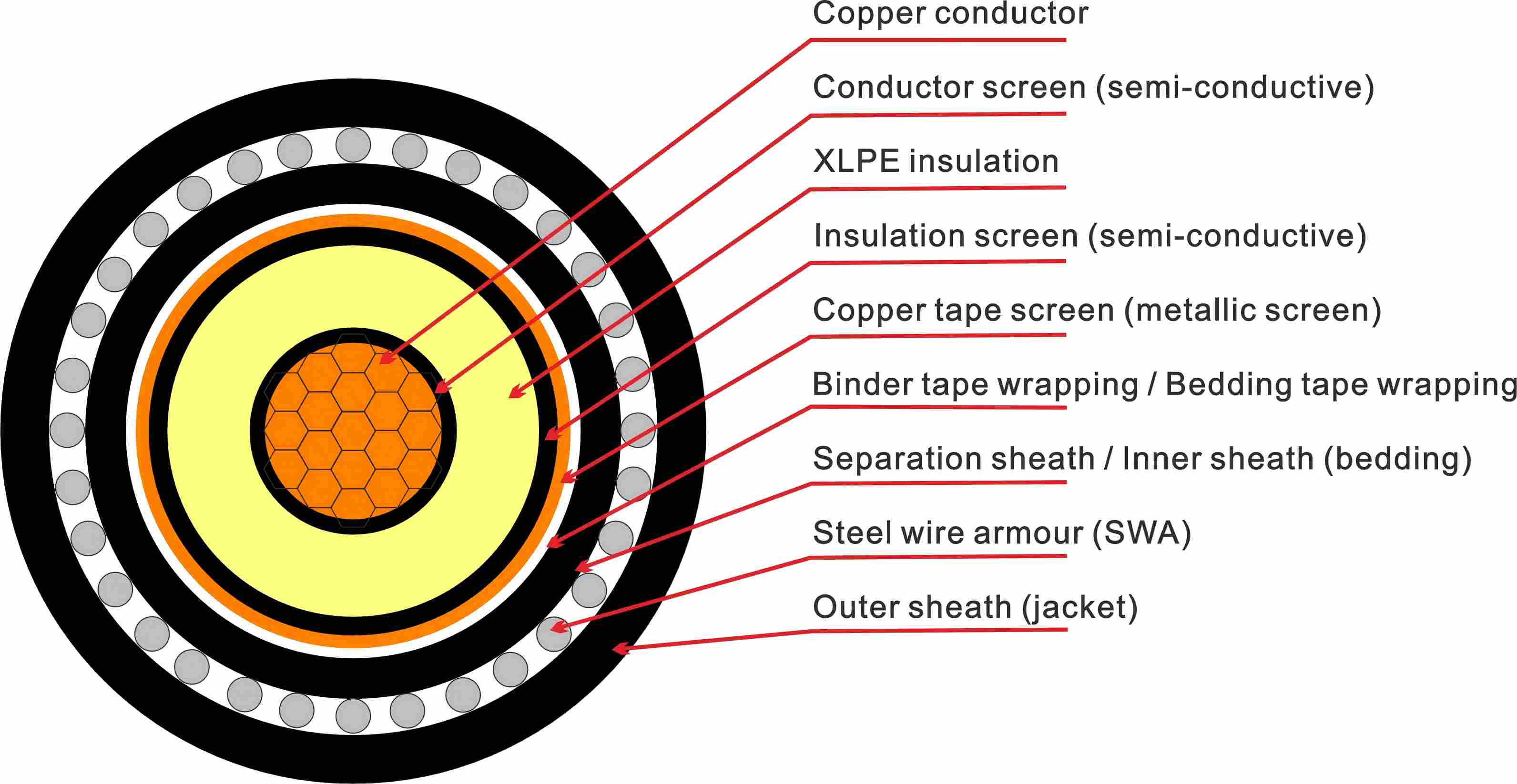

Typical Construction (Single-Core, XLPE, Shielded, Armoured)

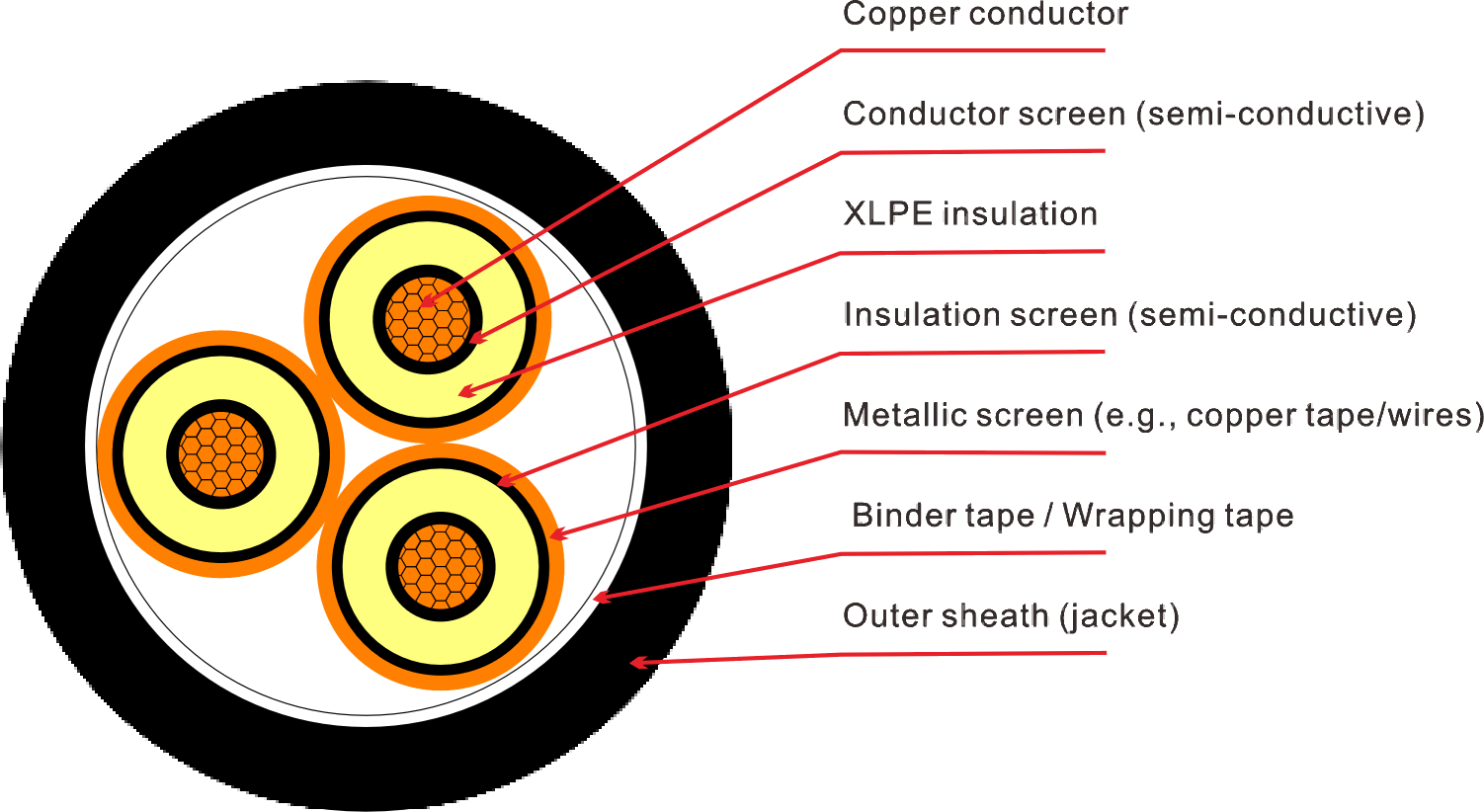

Layered from inside to outside

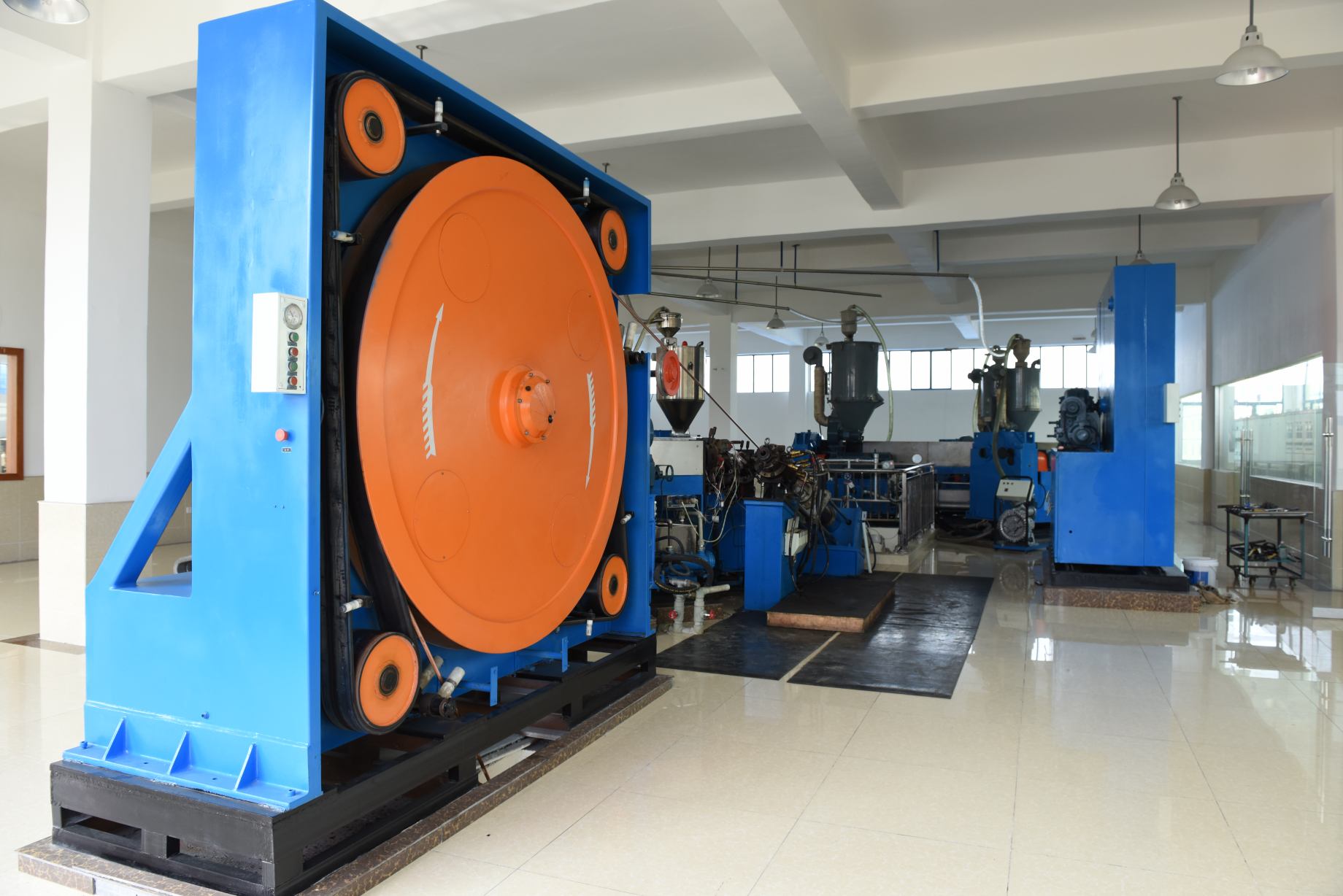

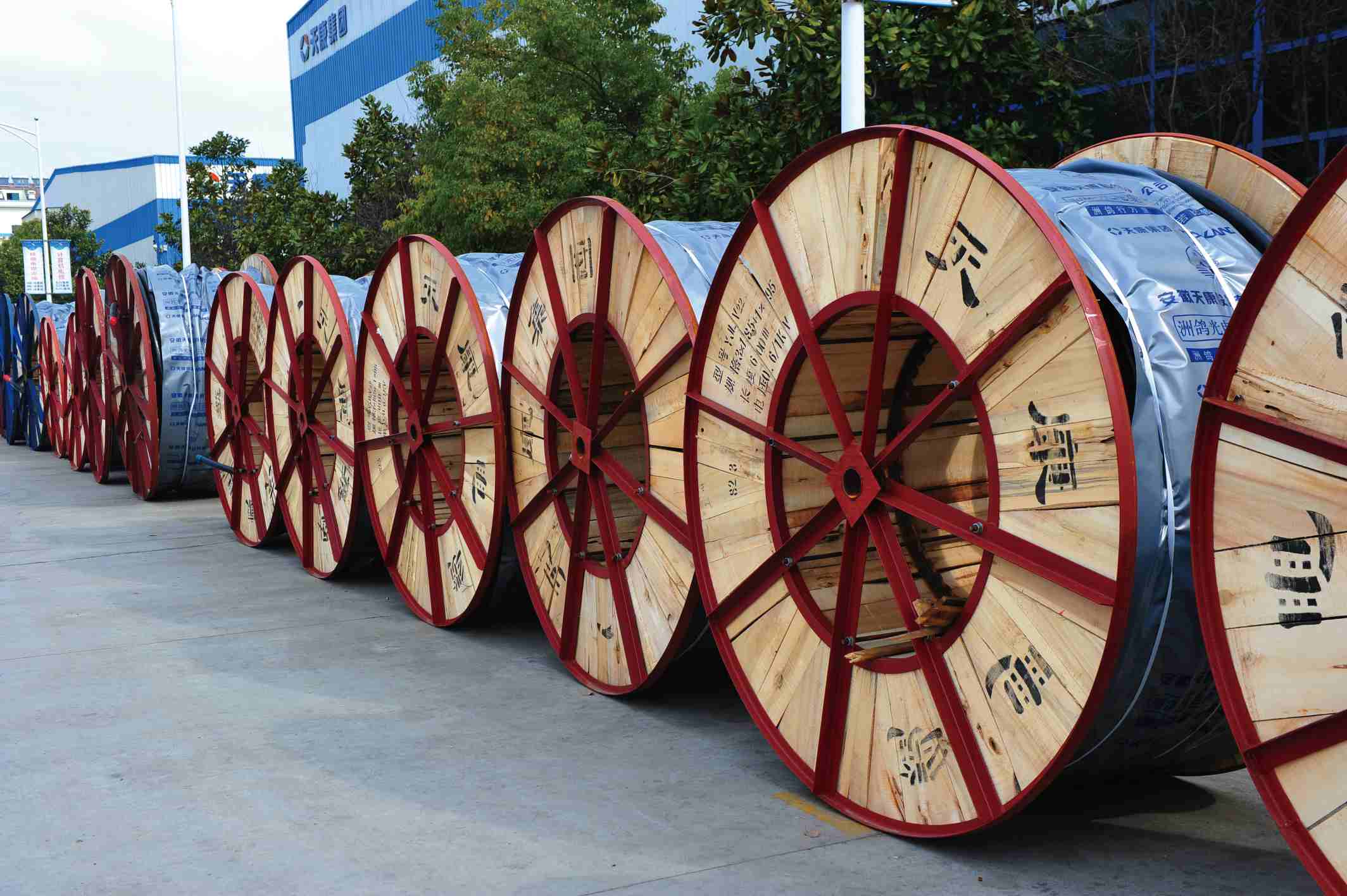

Factory photos
If you need technical support, please feel free to contact us.
