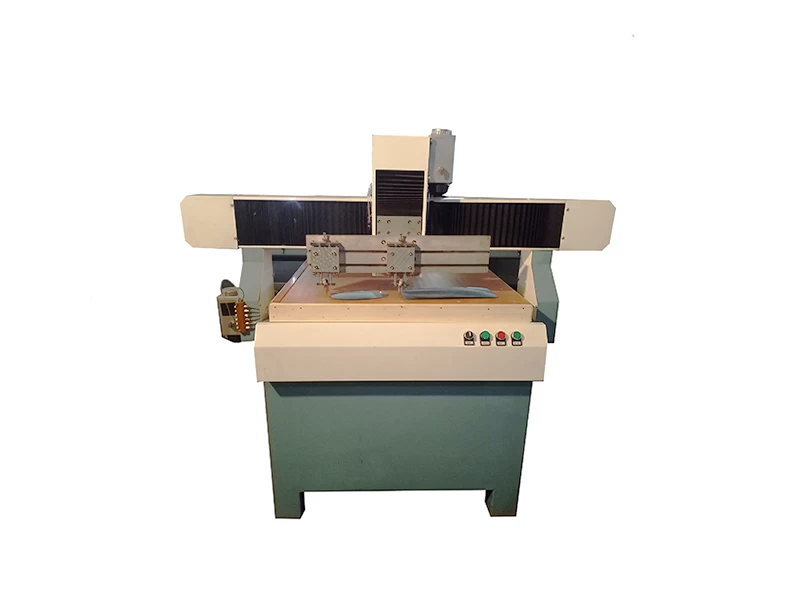

Technical parameter

Effective countertop: 580×480(mm)

Cutting Max. size: 580×480(mm) ()

Cutting thickness: 0.7 — 6(mm)

Cutting parallelism: ≤±0.10mm

Cutting diagonal: ≤±0.15mm

Cutting speed: 0 — 25m/min(adjustable)

Cutting height of arc: ≤25mm

Dimension: 1200×1200×1150(mm)

Power: 1.75kw(fans 750w, X axis 750W, Y axis 750W, Z axis200W)

Voltyge: 380V(fans)/220V/(Main engine)/50HZ

Configuration

Stepper motor and drive, motor output for two lines (one control power, the other is control signal)servo drive has 6 inpout lines, by the X, Y, Z axis output

Taiwan imported HIWIN guide rail, Tai Wan imported TBI ball screw, to ensure the high accuracy and stablility of equipment.

Epoxy resin plate table, after self milling, high smoothness, wear-resistant, waterproof, with bolowing suction device, convenient upper and lower pieces, will not scratch the galss

Computer with WINDOWS interface, Auto CAD graphics input, motion control card Shanghai Weihong Cutting, cutting all kinds of shaped glass, simple operation, convenient.

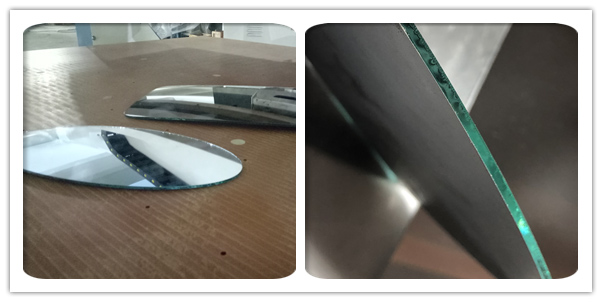

Cutting head parts with floating device and Automatic injection of lubricating oil, in order to achieve good cutting curved surface glass (sagitta ≤25mm)

Supply all parts (include computer), after install and electrify, machine can be used.

After-sales and maintenance

In order to ensure the normal operation of the machine, our company will conduct complete and detailed training to the operation staff of the customers, until fully grasp the operation.

Equipment warranty for one year (non-human factory), no maintenance costs, life-long maintenance
