Coolant Rrefractometer, Automotive Coolant Meter ATC for Battery Fluid, Celcius and Fahrenheit

Product Description

The handheld coolant refractometer is widely used in car maintenance, repair workshops, and battery servicing. This tool helps ensure proper coolant protection in cold climates and accurate assessment of lead-acid battery charge levels.

The RHA-501A model handheld antifreeze and battery fluid refractometer is an universial tool that has its temperature scale in both °C and ℉. It has two functions.

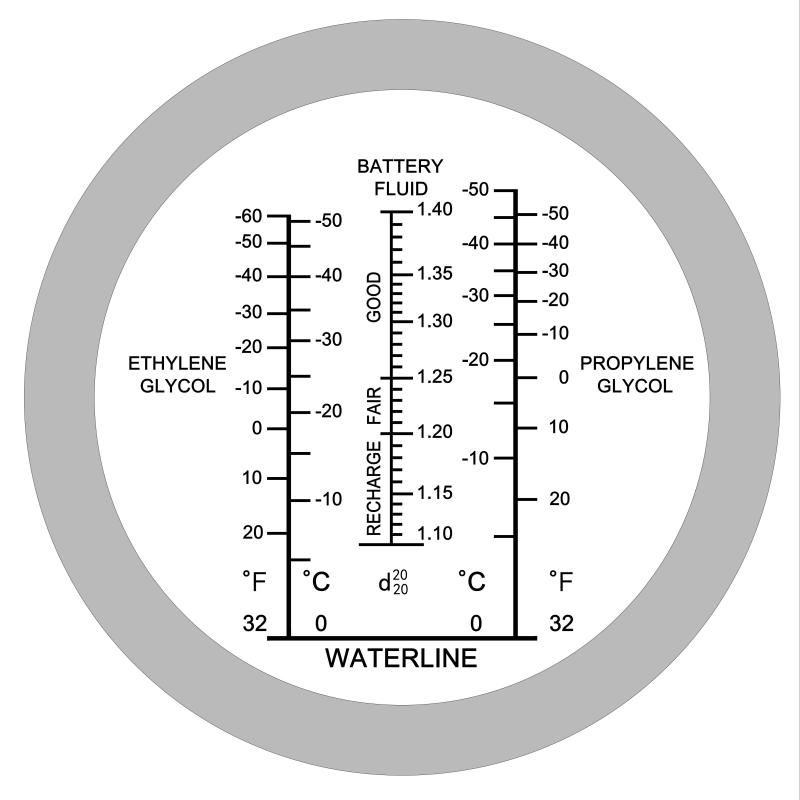

1. It measures the freezing point temperature of ethylene glycol- or propylene glycol-based automobile antifreeze in both °C and ℉. The reading indicates the temperature at which the tested solution will begin to freeze.
2. It measures the specific gravity (SG) of battery acid. Specific gravity is the density of the acid compared to water and indicates the state of charge of a lead-acid battery — higher sg means the battery is more fully charged.

Product Features

Dual-Scale Coolant & Battery Testing

 Measures coolant freezing point in both °C and °F, and battery fluid specific gravity—ideal for international use and professional diagnostics.



Automatic Temperature Compensation (ATC)

 Ensures consistent, reliable results without the need for manual adjustments in varying temperatures.



Copper Alloy Body

 Durable and thermally stable for accurate, long-lasting performance in workshop or field environments.

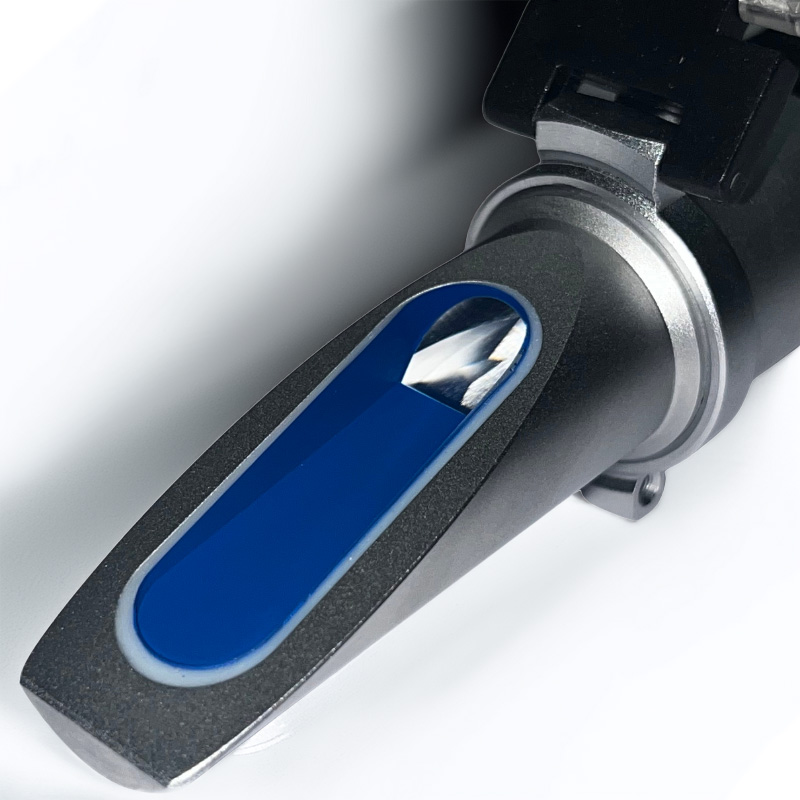

Crown Glass Prism

 Reduces refractive deviation and enhances measurement accuracy with high optical clarity.







Typical Applications

- Coolant System Diagnostics (°C & °F)

 Check freezing points of ethylene and propylene glycol coolants in both Celsius and Fahrenheit for global service use.

- Automotive Repair and Maintenance

 Ideal for routine checks on passenger vehicles, trucks, and motorcycles during seasonal or scheduled servicing.

- Fleet Vehicle Management

 Used in commercial fleet maintenance to monitor coolant and battery performance across multiple vehicles.





Product Parameters

Model	RHA-501A
Net Weight	0.24kg
Length	157mm
Diameter	29mm
Temperature Range	10℃ to 30℃ with ATC 20℃ without ATC
