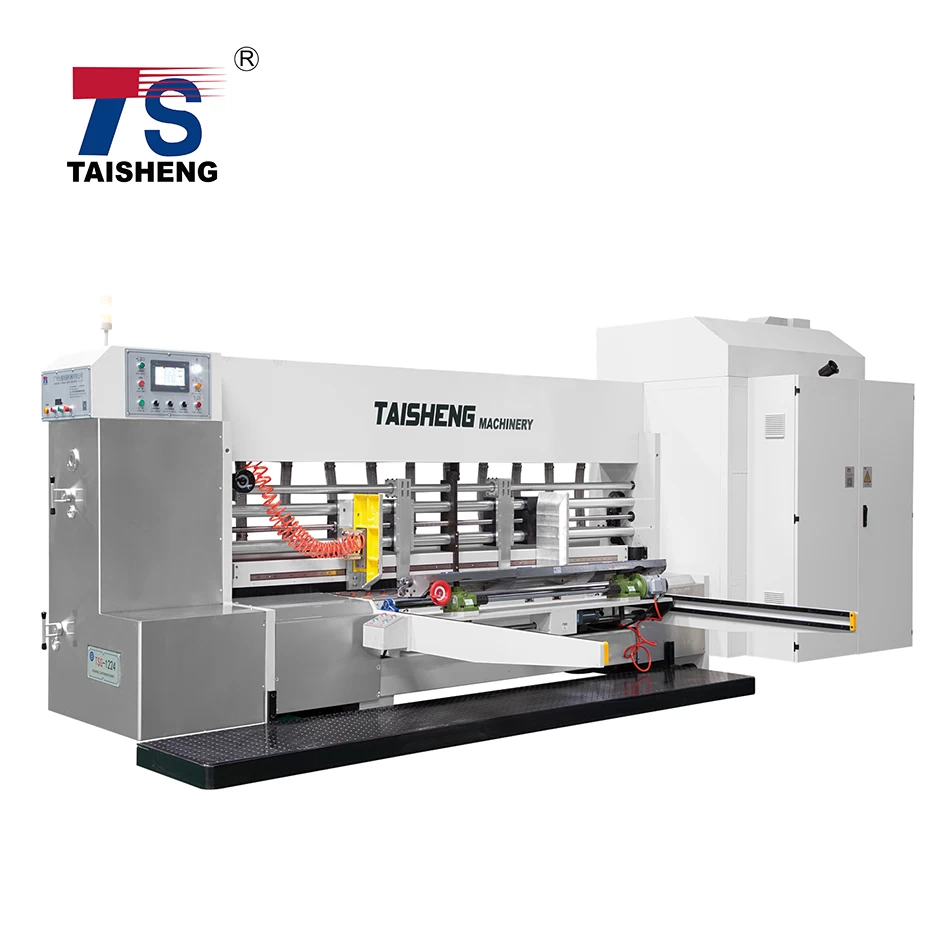

Whole Vacuum Transfer Printing Slotting Machine TSG1
The whole vacuum transfer printing slotting machine adopts advanced vacuum transfer technology. Vacuum chamber of this printing slotting machine is small size, high efficiency and good energy saving effect. The production requirements of full sheet printing can be realized.
|
Model
|
TSG1-920
|
TSG1-1224
|
TSG1-1628
|
|
Max. Machine Speed (pcs/minute)
|
250
|
200
|
150
|
|
Max. Feeding Size (mm)
|
900×2000
|
1200×2400
|
1600×2800
|
|
Jump Feed Max. Cardboard Size(mm)
|
1200×2000
|
1500×2400
|
1900×2800
|
|
Min. Cardboard Size(mm)
|
300×600
|
365×600
|
450×600
|
|
Max. Printing Size
|
900×1960
|
1200×2360
|
1600×2760
|
|
Min Slotter Blade Space（Male）(mm)
|
130×130×130×130
|
130×130×130×130
|
130×130×130×130
|
|
Min Slotter Blade Space（Female）(mm)
|
240×65×240×65
|
260×65×260×65
|
260×65×260×65
|
|
Max Slotting Deep(mm)
|
250
|
300
|
400
|

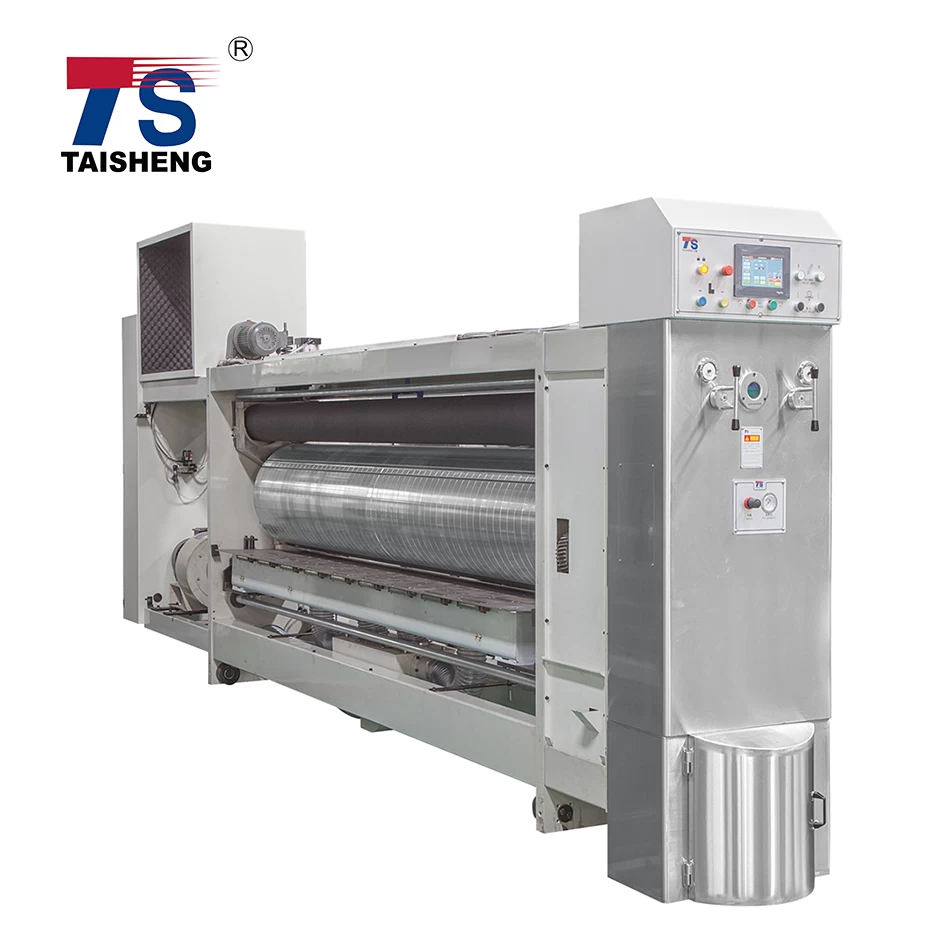

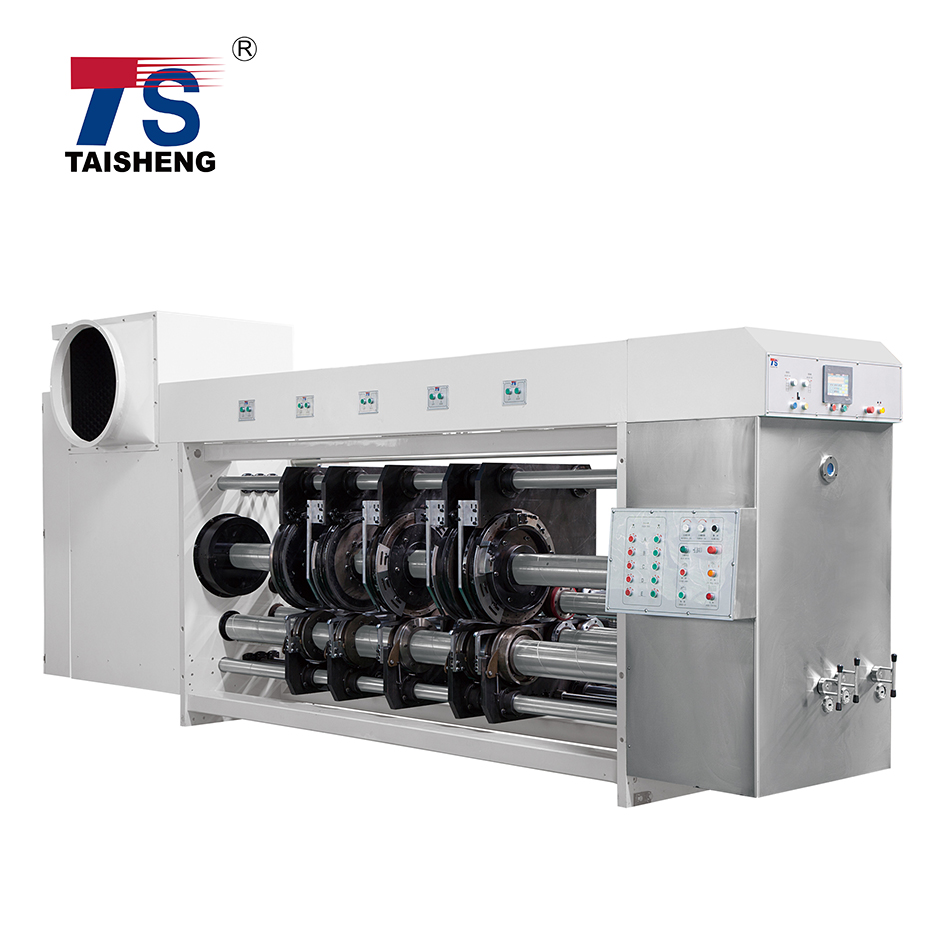

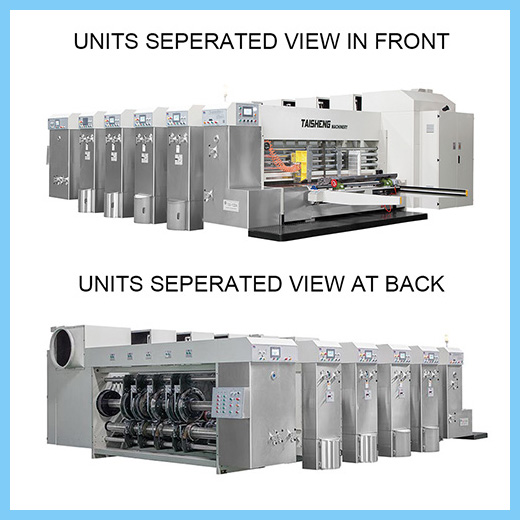

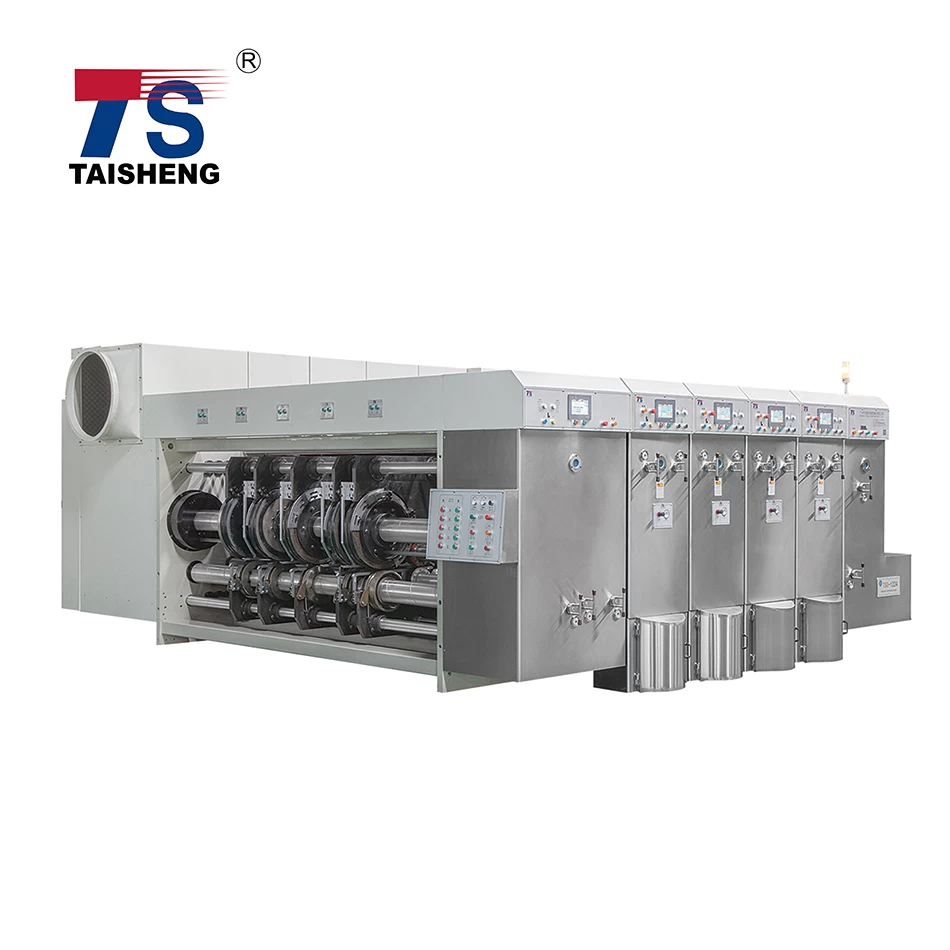

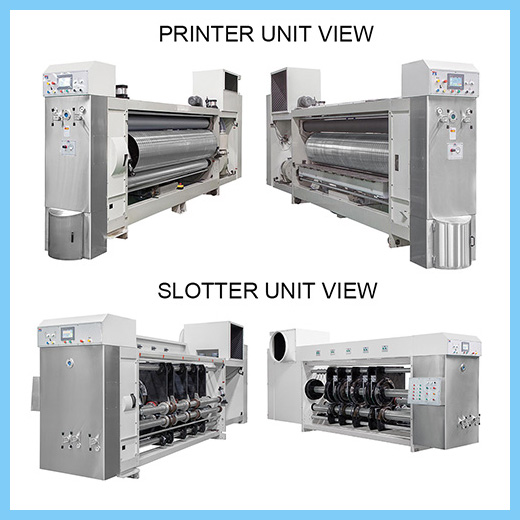

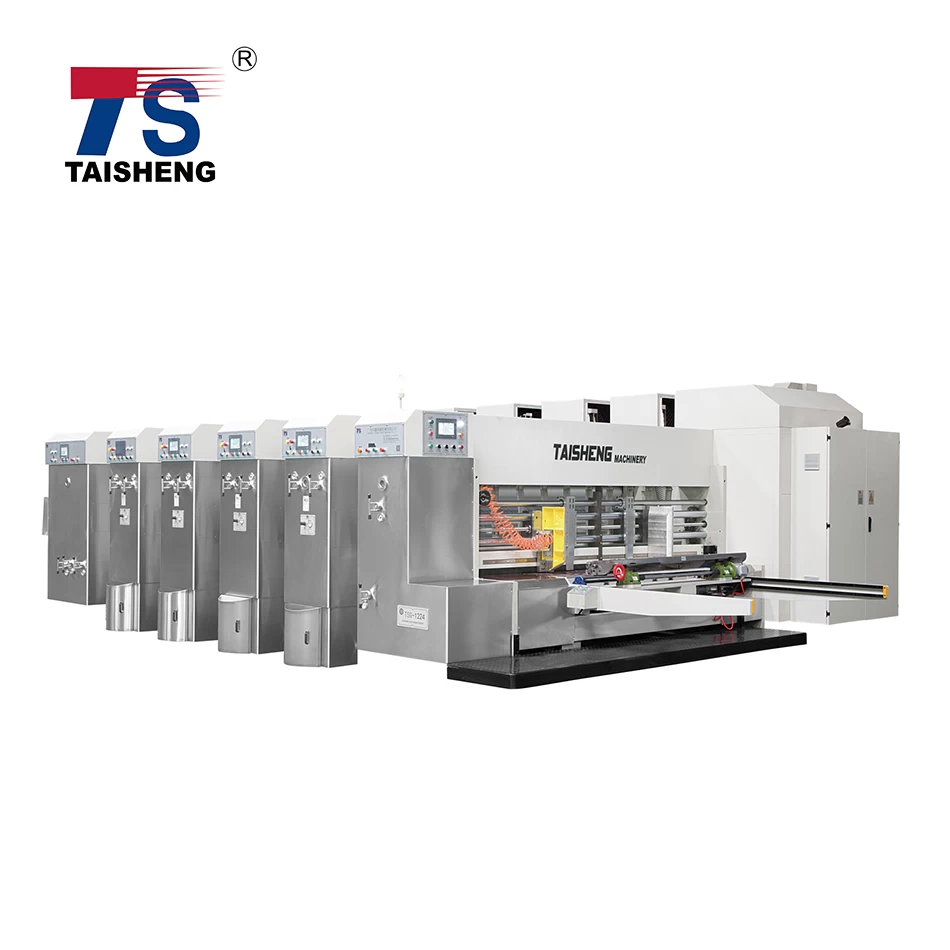

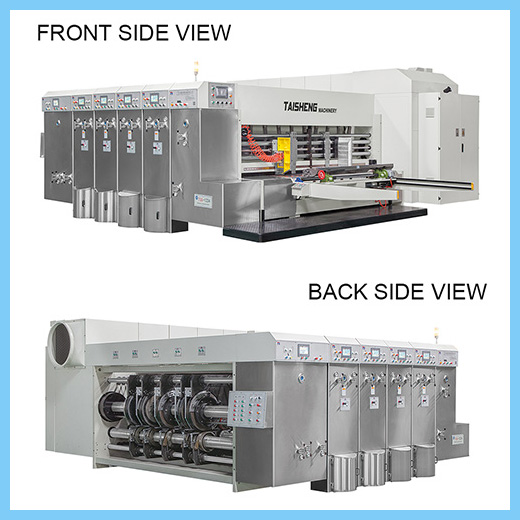

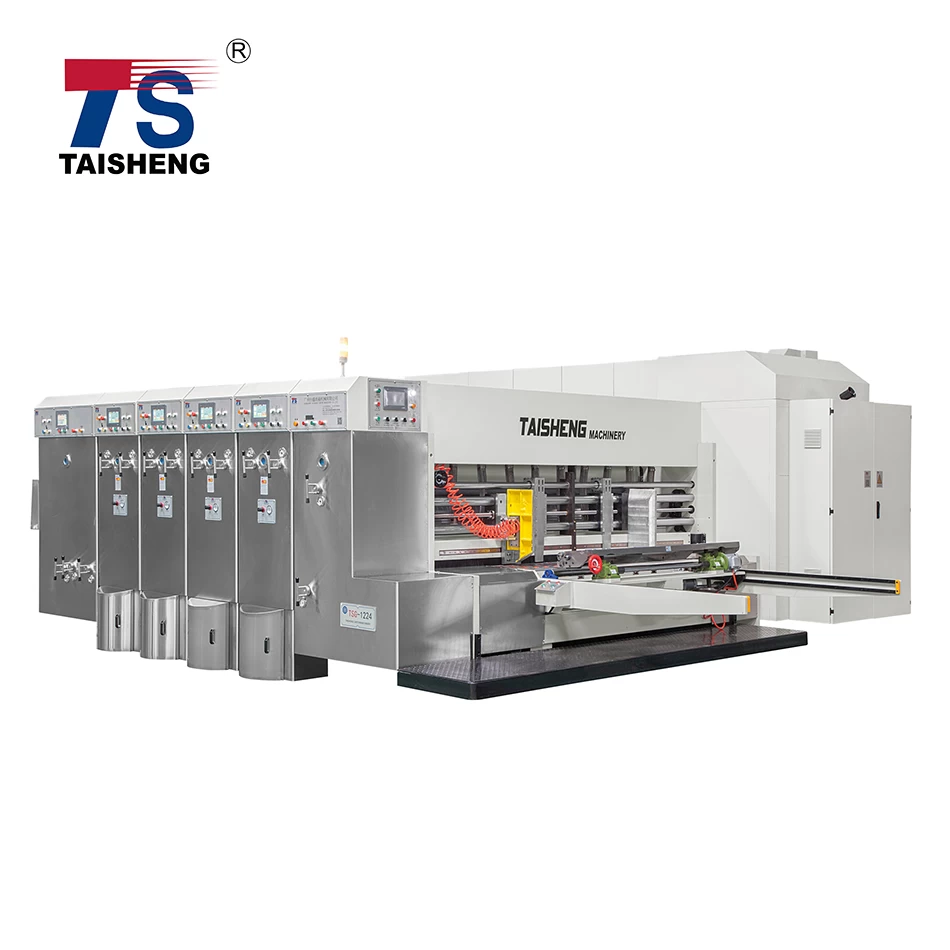

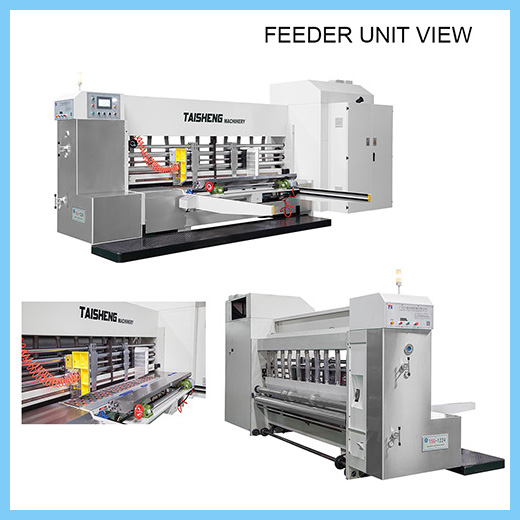

High Efficiency Vacuum Transfer Printing Slotting Machine Products Display
