TSG-2 WHOLE VACUUM TRANSFER HIGH SPEED PRINTER SLOTTER DIE CUTTER MACHINE
The whole vacuum transfer slotting machine
adopts advanced vacuum transfer printing technology, slotting die cutting in
one, high-definition full plate printing, easy to use and maintain, high
automation and high efficiency production.
|
机型 Model
|
TSG-920
|
TSG-1224
|
TSG-1424
|
TSG-1628
|
|
机械最高速度（张 / 分）
Max. Machine Speed (pcs/minute)
|
220
|
200
|
180
|
150
|
|
最大进纸尺寸
Max. Feeding Size (mm)
|
900×2000
|
1200×2400
|
1400×2400
|
1600×2800
|
|
最大隔张送纸尺寸
Jump Feed Max. Cardboard Size(mm)
|
1200×2000
|
1500×2400
|
1600×2400
|
1900×2800
|
|
最小进纸尺寸
Min. Cardboard Size(mm)
|
300×600
|
365×600
|
400×600
|
450×600
|
|
最大有效印刷面积
Max. Printing Size
|
900×1960
|
1200×2360
|
1400×2360
|
1600×2760
|
|
最小开槽间隙（正刀）(mm)
Min Slotter Blade Space（Male）(mm)
|
150×150×150×150
|
150×150×150×150
|
150×150×150×150
|
150×150×150×150
|
|
最小开槽间隙（反刀）
Min Slotter Blade Space（Female）(mm)
|
240×65×240×65
|
260×65×260×65
|
260×65×260×65
|
260×65×260×65
|
|
最大开槽深度
Max Slotting Deep(mm)
|
250
|
300
|
350
|
400
|

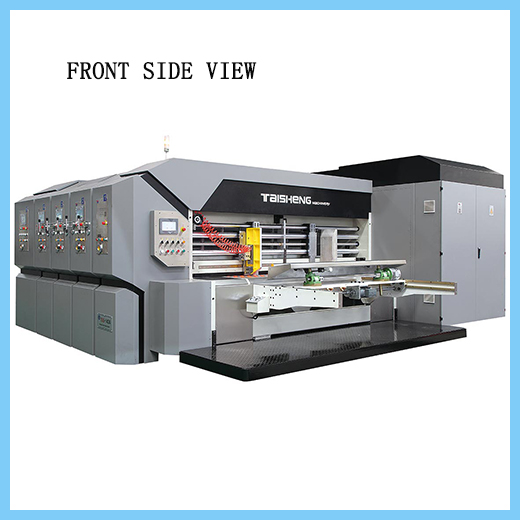

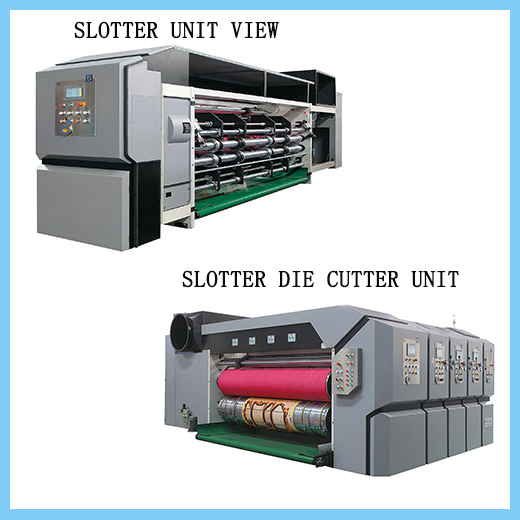

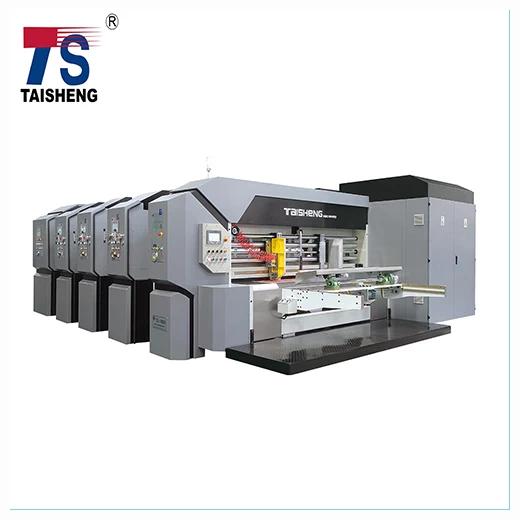

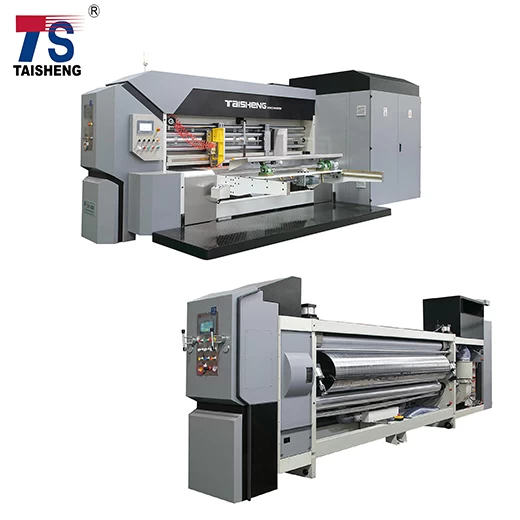

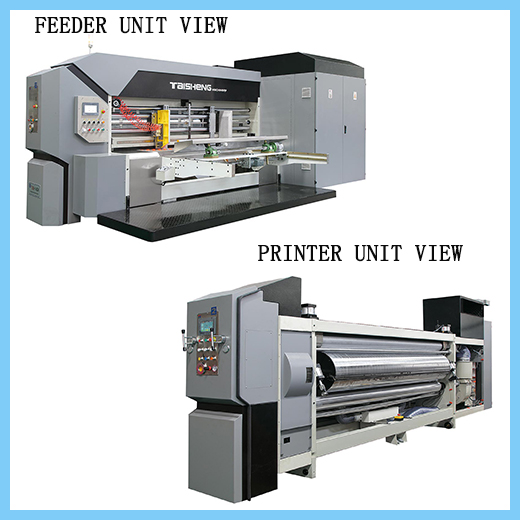

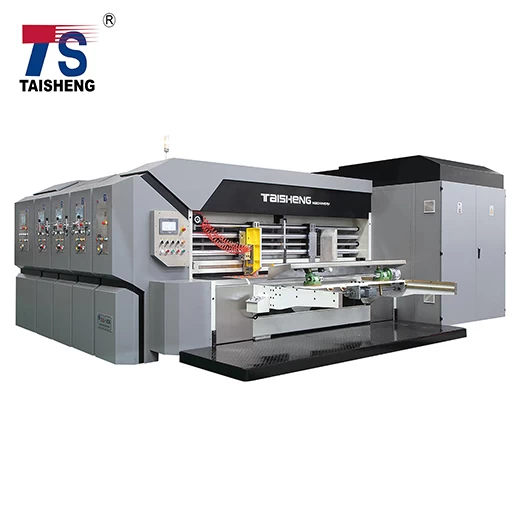

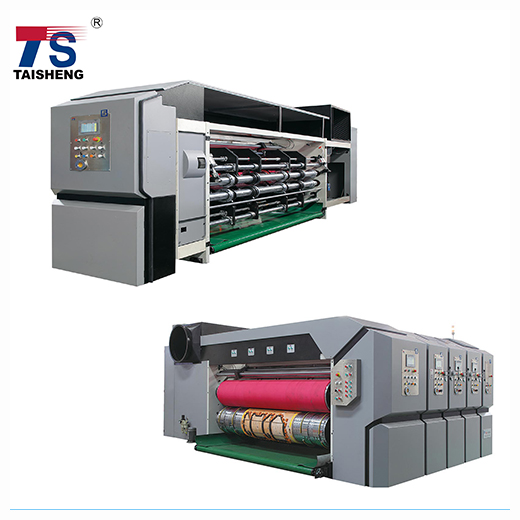

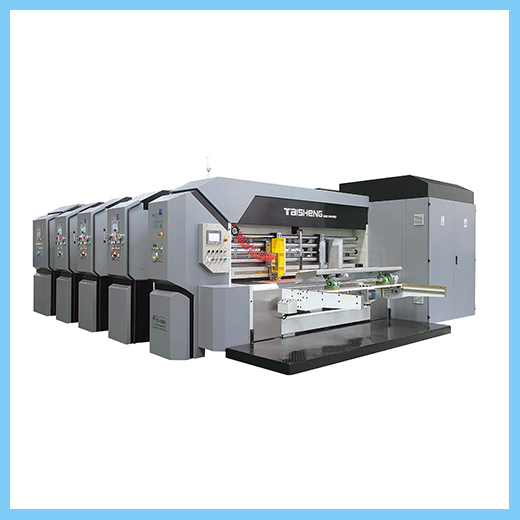

High Efficiency Vacuum Transfer Printing Slotting Machine Products Display
