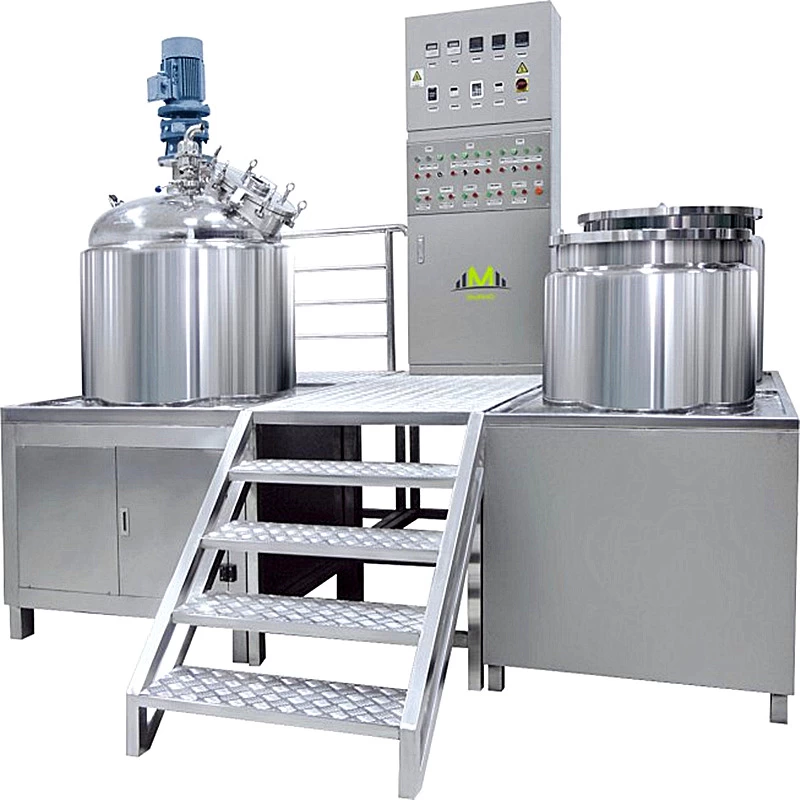

Cosmetic equipment vacuum emulsifying mixer (fixed type)

High shear homogenizing emulsifying mixer It uses the strong Vacuum Emulsifying Blender kinetic energy brought by the machine to make the material in the narrow gap of the stator and rotor, and bear the hydraulic shear of hundreds of thousands of times per minute.



 Cosmetic Equipment Vacuum Emulsifying Mixer (fixed type)

Customized And OEM Service Available



Vacuum Emulsifying Machine



Definition of vacuum emulsifier machine


Vacuum Emulsifying Mixer mainly refers to the material in a vacuum state, using a High Shear Blender to quickly and evenly distribute one phase or multiple phases in another continuous phase.

Vacuum Emulsifying Mixer Machine uses the powerful kinetic energy of the machine to force the material to withstand hundreds of thousands of hydraulic shear forces per minute in the narrow gap between the stator and rotor.With the Centrifugal extrusion impact tear and other comprehensive effects, instant uniform dispersion emulsification, through high frequency round press round, finally get no fine particles, stable high quality products.


Application and application fields


Products are mainly used in daily care products, biomedicine, food industry, paint inks, nanomaterials, petrochemical industry, printing and dyeing auxiliaries, papermaking, pesticides and fertilizers, plastics and rubber, power electronics and other fine chemical fields, especially suitable for matrix viscosity, solid content ratio high materials.

Performance and characteristics


Our company has all kinds of vacuum emulsification, homogeneous system, homogeneous internal and external circulation, stirring system is divided into one-way stirring and two-way stirring, screw belt stirring;Lifting system is divided into single cylinder and double cylinder, and according to customer requirements to produce high quality products.Three-variable mixing adopts imported frequency converter to meet different production requirements.The homogeneous structure of German technology adopts the effect of imported double-sided mechanical seal.The maximum emulsification speed can reach 4200 RPM, and the maximum shear fineness can reach 0.2-5um.


Technique Parameters:


Model

Volume(L)

Emulsifying mixer pot

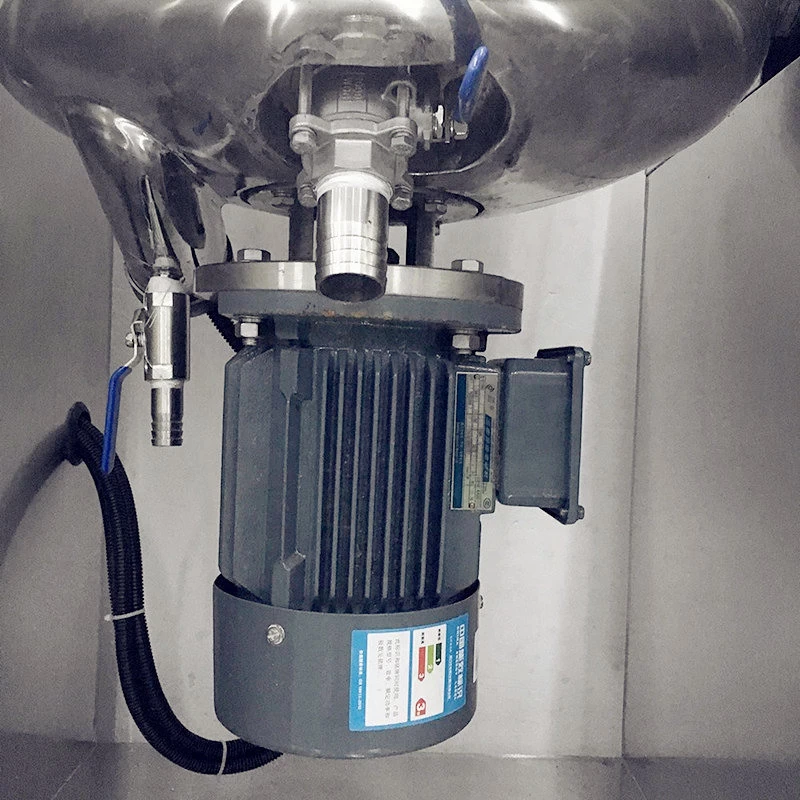

Homogenizer

Mixer Pot

Water Pot

Oil Pot

Power(KW)

Speed(RPM)

Power(KW)

Speed(RPM)

MZH-5

6

4

4

0.55

0-86

1.1

0-3500

MZH-10

10

8

8

0.55

0-86

1.1

0-3500

MZH-30

30

25

17.5

0.75

0-86

1.5

0-2900

MZH-50

50

38

25

0.75

0-86

1.5

0-2900

MZH-100

100

60

45

1.5

0-86

3

0-2900

MZH-150

150

100

75

1.5

0-86

4

0-2900

MZH-200

200

120

100

2.2

0-65

4

0-2900

MZH-250

250

160

130

2.2

0-65

4

0-2900

MZH-350

350

250

200

2.2

0-65

4

0-2900

The complete model list and machine parameters are not shown here. For more details information, please contact us now!
