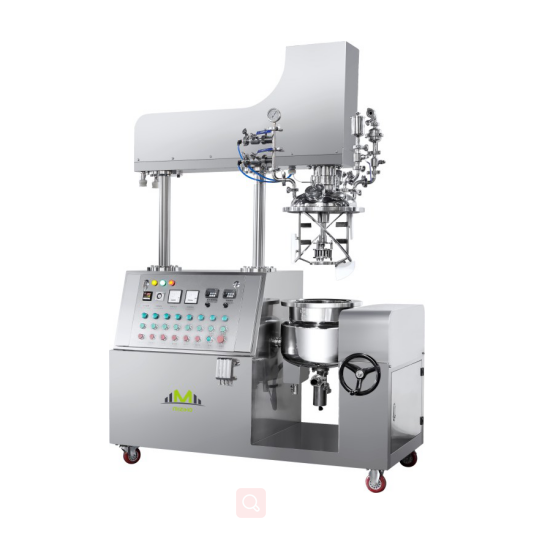

Cosmetic homogenizer Vacuum Emulsifying mixer

MZH Vacuum Emulsifying Mixer Series is composed of emulsification boiler (fluctuating cover, overturn kettle form or outside circle form), water boiler, oil water, vacuum system, heating and temperature control systems, cooling systems, electric machinery control systems. etc..



Cosmetic homogenizer Vacuum Emulsifying mixer

Customized And OEM Service Available

Emulsifying Mixer machine


Machinery Introduction:

MZH Vacuum Emulsifying Mixer Series is composed of emulsification boiler (fluctuating cover, overturn kettle form or outside circle form), water boiler, oil water, vacuum system, heating and temperature control systems, cooling systems, electric machinery control systems. etc..



 Technical Parameters:



Model

MZH-30L

MZH-50L



Main Boiler

37L

62L

Water Tank Volume

24L

40L

Oil Tank Volume

15L

25L

Main BoilerJacketMaterial &

Thickness

Inside:316L(5mm)Mid:304(5mm)



Outside:304(3mm)

Water Tank Volume & Thickness

Inside:316L(3mm)Mid:304(3mm)



Outside:304(2mm)

Oil Tank Power Volume & Thickness

Blender Material & Thickness

SUS316L(thickness : 6mm)

Platform Material & Thickness

304(thickness : 4mm)

Safty Guardrail Material & Thickness

304(thickness: 1.5mm round pipe)

Speed of Scraping Plate Blender

0-83r/min

Speed of Homogenizer

0-3040 r/min

Temperature of Emulsifying Pot

≤180 ℃

Blender Motor

0.75KW

1.1KW

Homogenizer Power

3KW

4KW

Water Tank Power

0.37KW

0.37KW

Oil Tank Power

0.37KW

0.37KW

Vacuum Pump Power

0.75KW

0.75KW

Heating Pipe Power

3KW

6KW

Vacuum of Emulsifying Pot

-0.09Mpa

Pressure of Jacket

normal pressures

Voltage

50-60Hz380V±10%-15%

Grass Weight

about 250KG

about 300KG

Overall Dimension

1.24*0.65*1.35 m

1.25*0.75*1.35M
