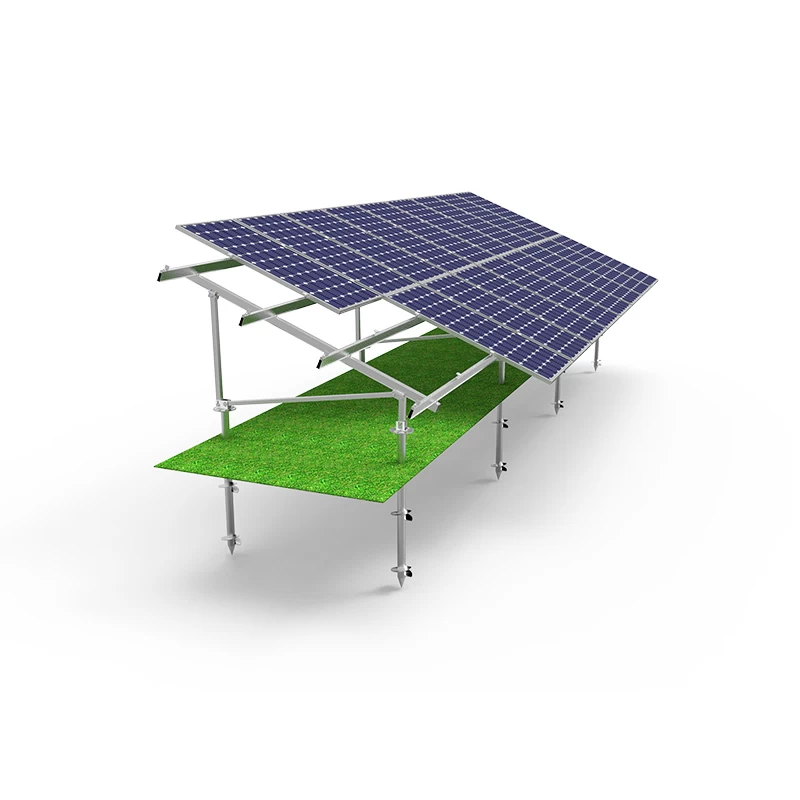

CP-KC-N Aluminum Ground Mounting System

CORIGY SOLAR CP-KC All Aluminum solar racking systems are highly flexible on design, it can be used in many types of solar installations, ground mounting, concrete roof mounting. The anodized aluminum brackets are more resistant to corrosion and durability.




CP-KC-N Aluminum Ground Mounting System

CP-KC-N Aluminum Ground Mounting System


CP-KC-N Aluminum Ground Mounting System

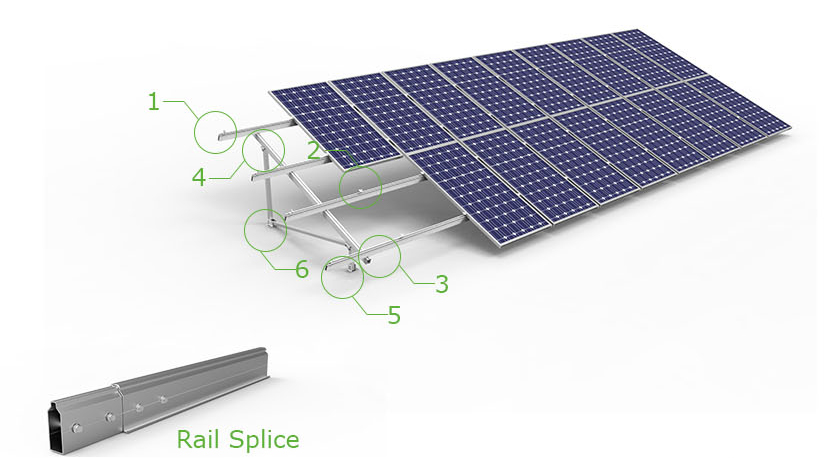

1. The unique design allows the mid clamp/end clamp to quickly enter the desired position at any position, saving a lot of installation time.

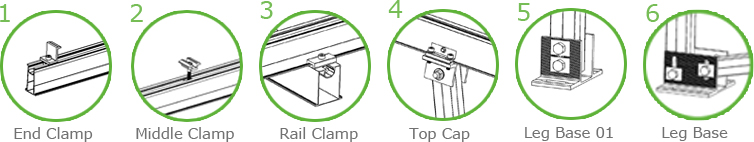

mid clamp/end clamp

Class A : Regular Rail


Class B :Hook Type Rail

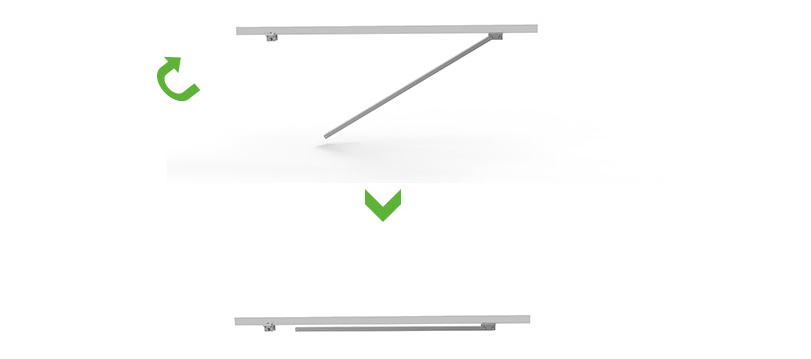

2. High Pre-assembled, saveing solar mounting installation time and labor cost. Before delivery, we will assemble and fix the parts to be positioned in advance, so that you can save a lot of solar panel support frame installation time and labor cost.

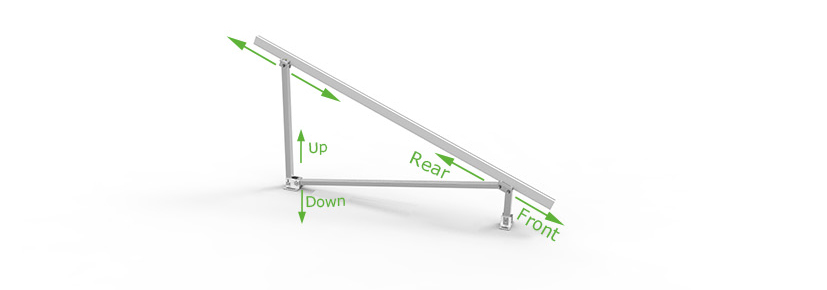

3. When the PV mounted foundation and the pv racking system are not suitable, the unique design can be adjusted in multiple directions, and the adjustment range is large.



Unique anti-slip groove


Unique anti-slip groove helps you firmly fix the position when adjusting

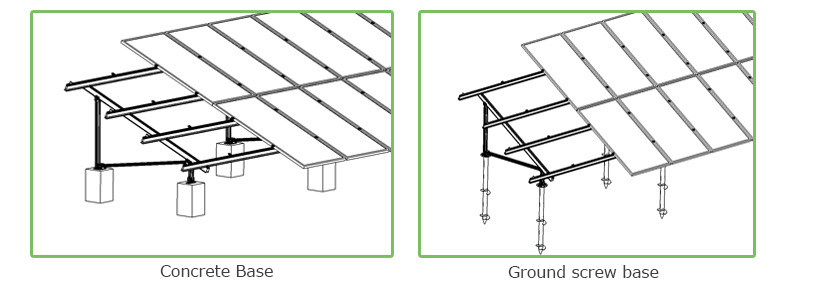

Ground screw options

The following shows the conventional size, the conventional length of the solar ground screw is 1200mm / 1600mm / 1800mm / 2000mm, and the customized length is less than or equal to 3200mm.



solar ground screw

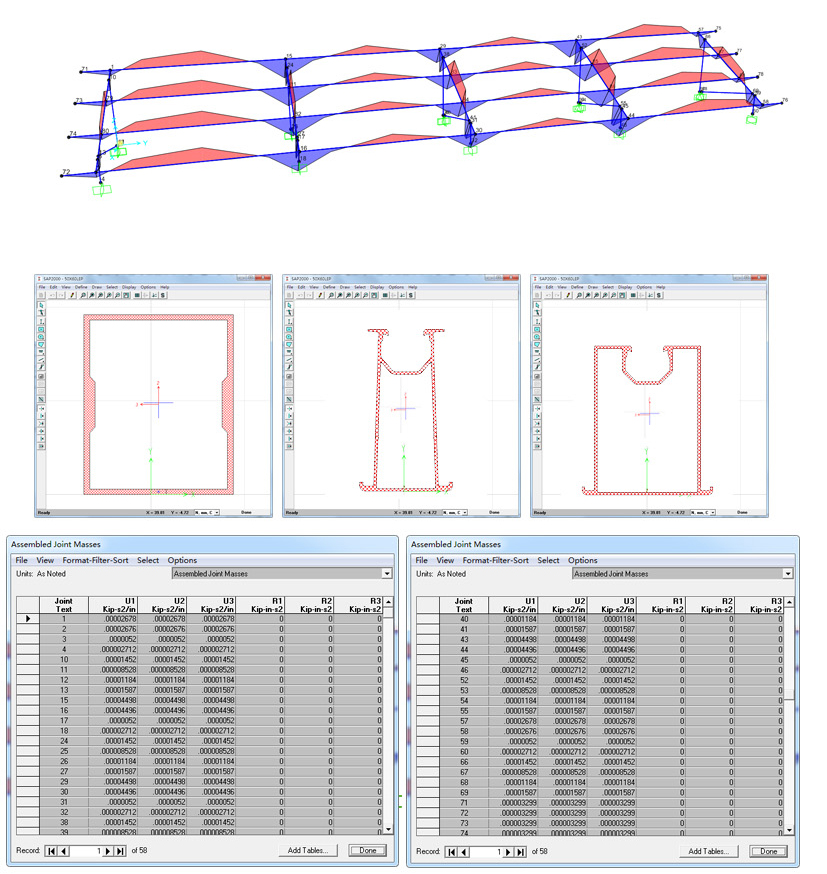

 Each solar panel racking system design provided by CORIGY SOLAR is based on careful calculation by the team of engineers

solar panel racking system

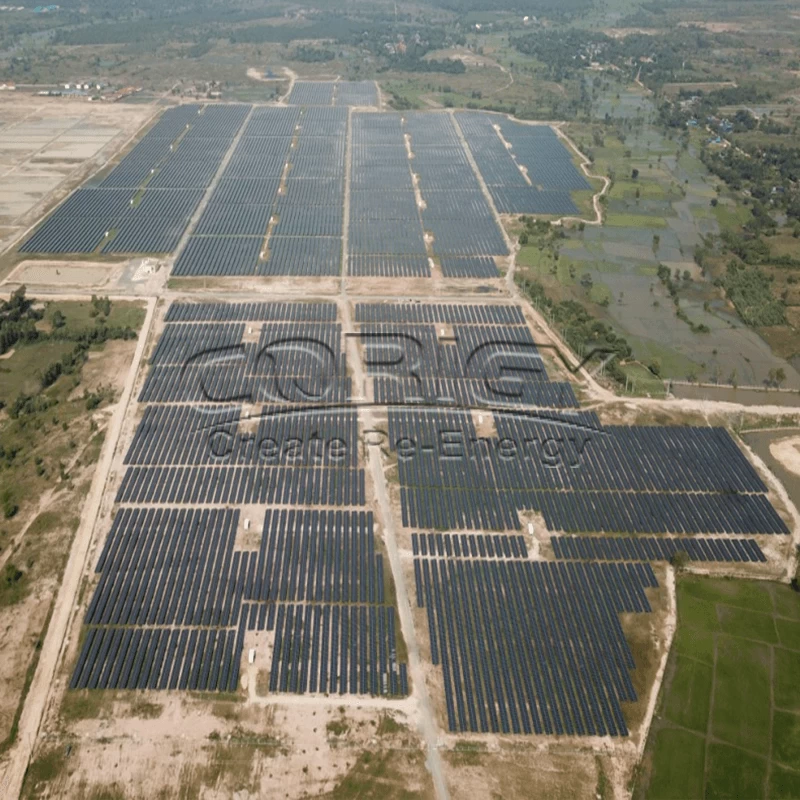

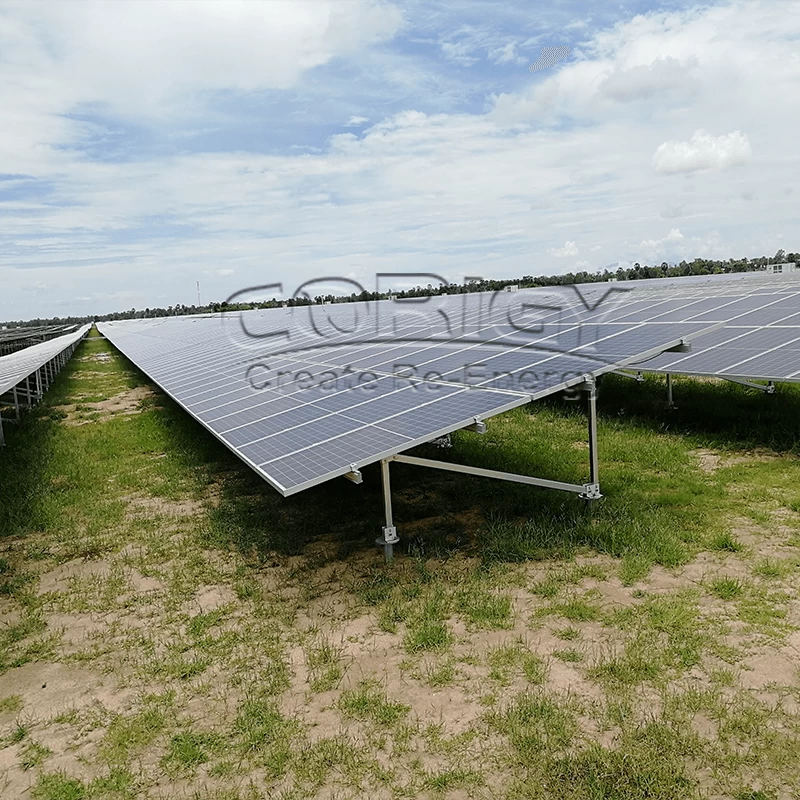

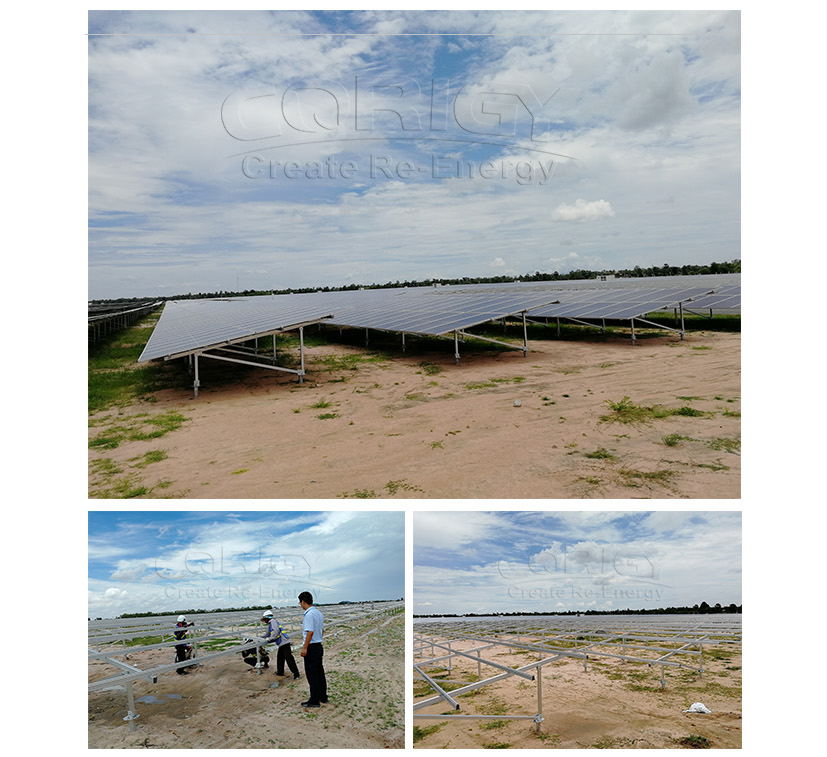

*The project above is a 80MW project of CORIGY SOLAR, using the CP-KC-N type aluminum solar panel ground mounting systems.
