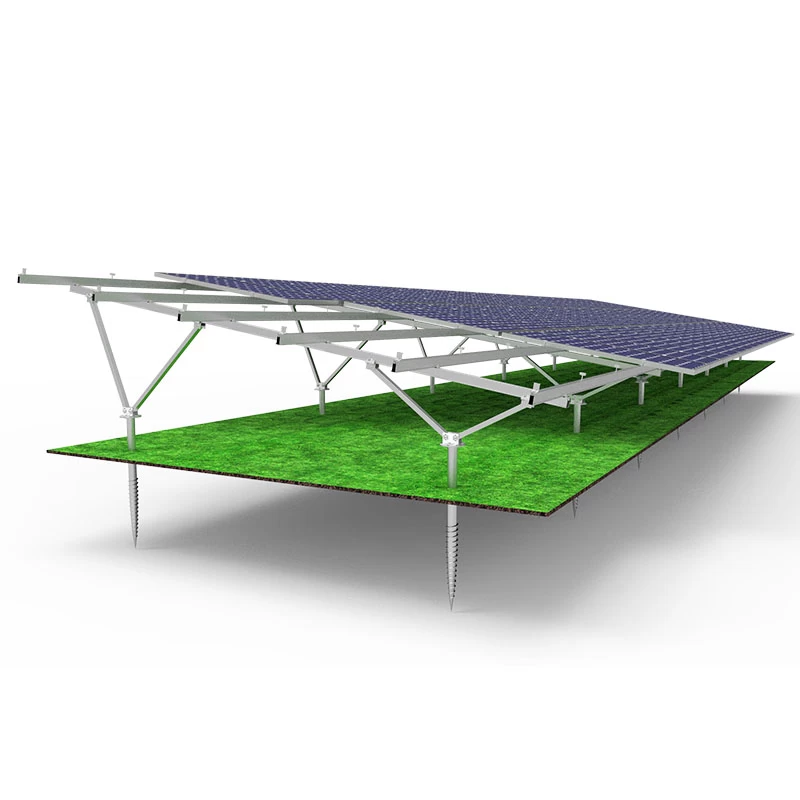

CP-KC-V Aluminum Ground Mounting System

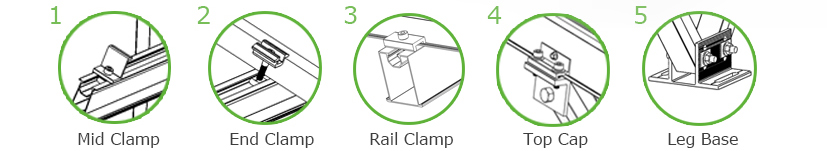

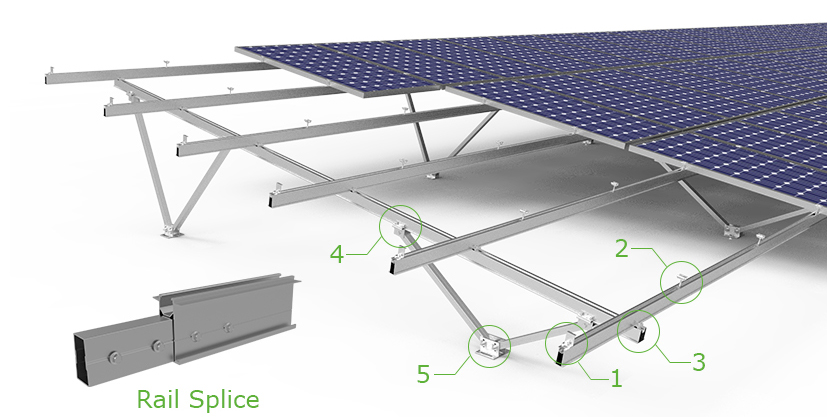

1. The unique design allows the mid clamp/end clamp to quickly enter the desired position at any position, saving a lot of installation time.
Class A : Regular Rail
Class B :Hook Type Rail

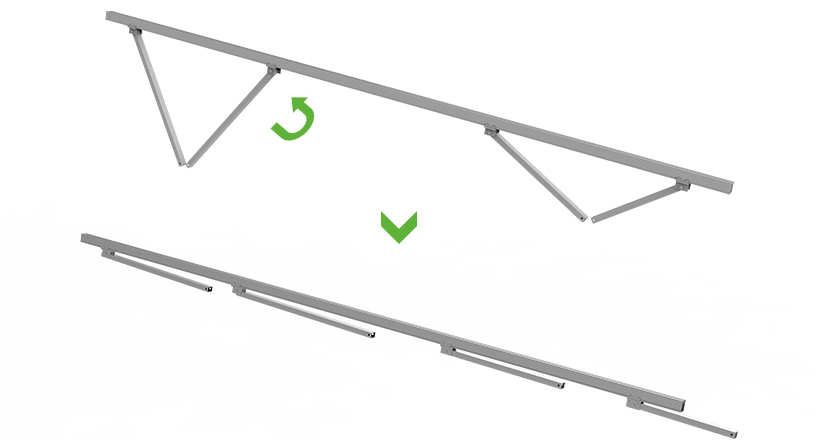

2. High Pre-assembled, saving installation time and labor cost.
Before delivery, we will assemble and fix the parts to be positioned in advance, so that you can save a lot of installation time and labor cost.
3. When the foundation and the pv racking system are not suitable, the unique design can be adjusted in multiple directions, and the adjustment range is large.
The huge adjustment range can help you better install the bracket in different terrain
Unique anti-slip groove helps you firmly fix the position when adjusting

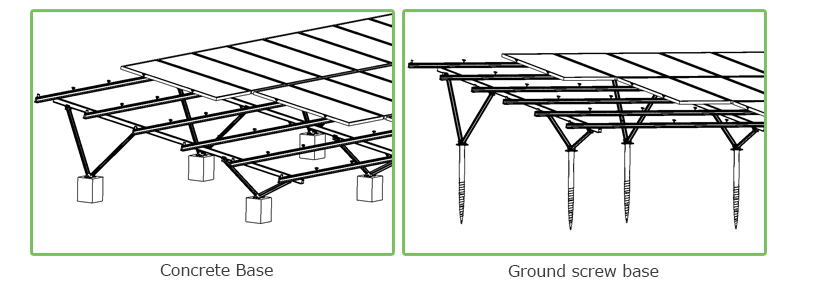

Ground screw options
The following shows the conventional size, the conventional length of the solar ground screw is 1200mm / 1600mm / 1800mm / 2000mm, and the customized length is less than or equal to 3200mm

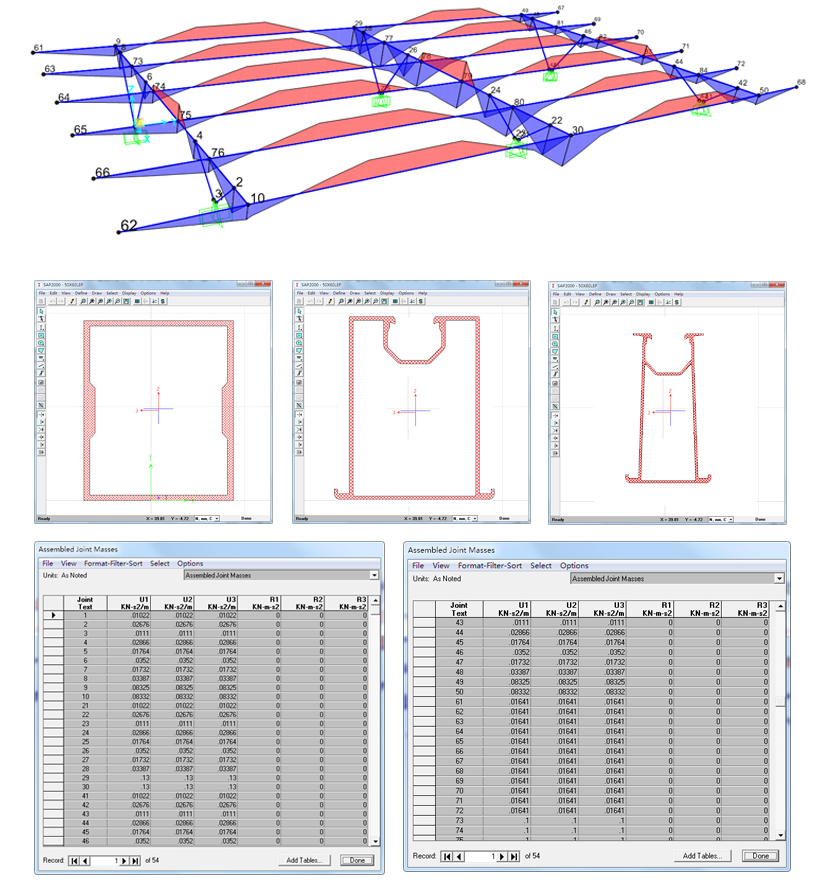

Accurate calculation
Each ground mount solar racking design provided by CORIGY SOLAR is based on careful calculation by the team of engineers.

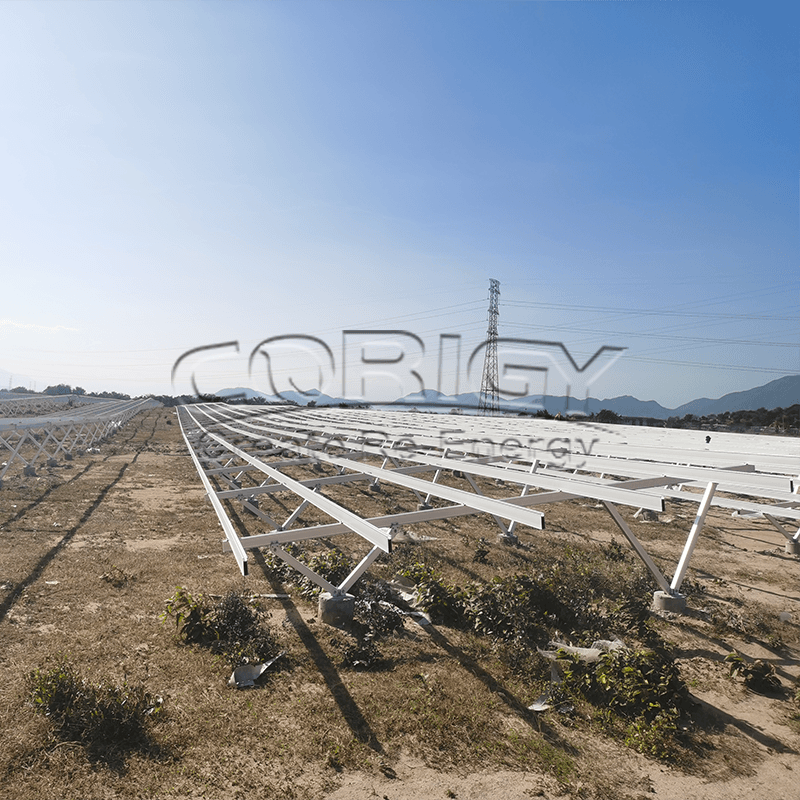

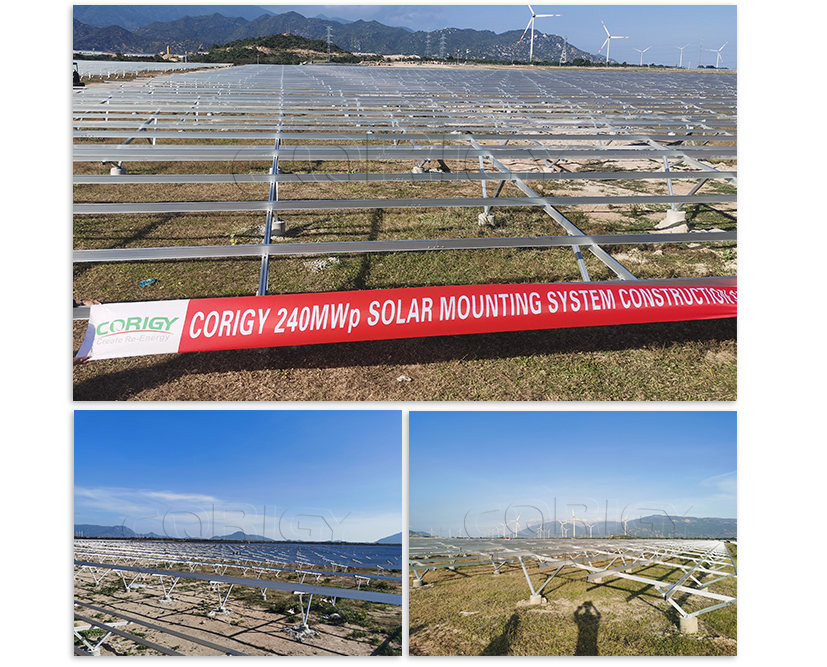

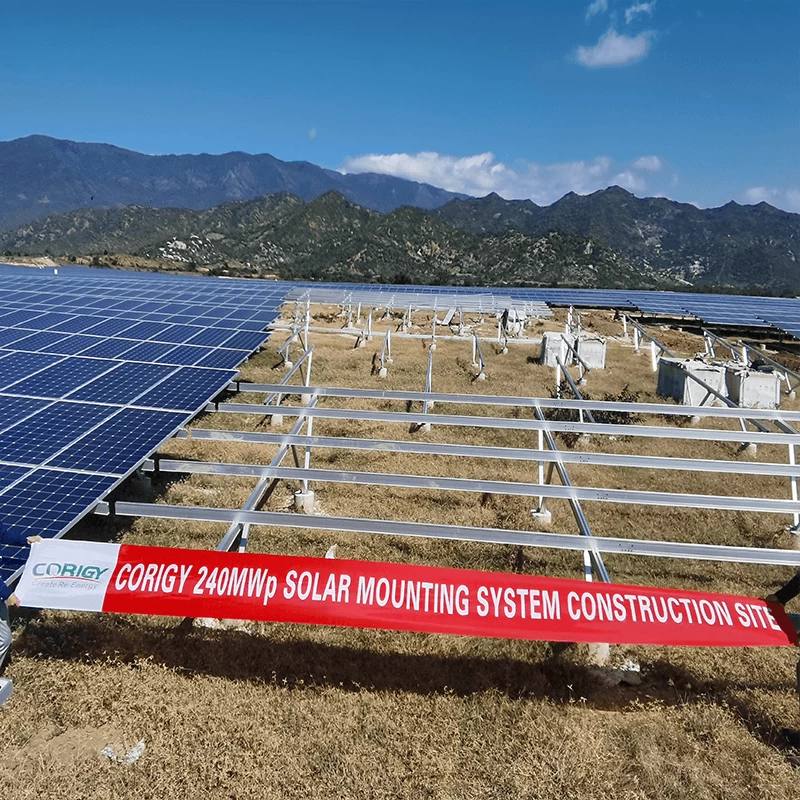

* The project above is a 240MW project of CORIGY SOLAR, using the CP-KC-V type aluminum solar ground mount systems.
