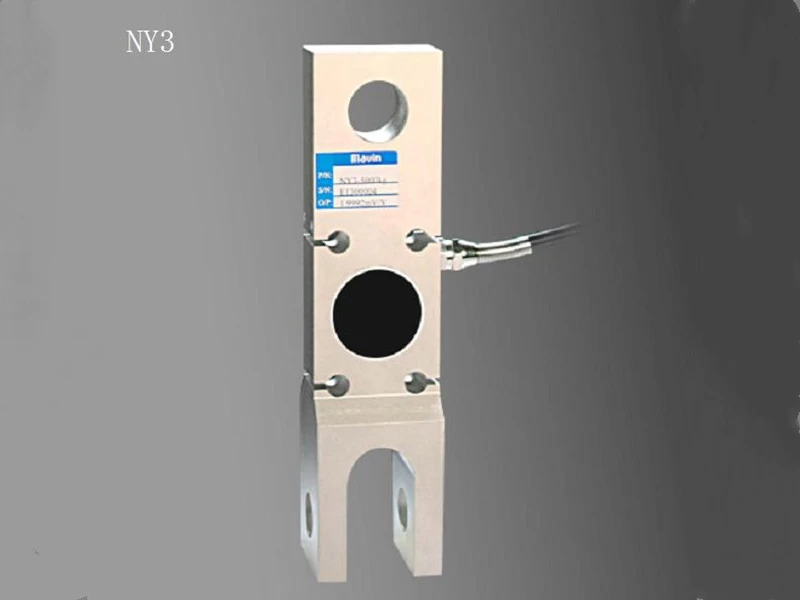

Crane type Load Cell NY3 (2-20T)
Crane type load cell NY3 is made with steel alloy material and compact design, suitable for silo tank weighing systems. The crane scale load cell precision is 0.03% R.O, with wide capacity range up to 20t.
Key Features：
Crane type shaped
Steel alloy construction
Capacity: 2-20T
Accuracy:0.03%R.O.
Protection class:IP67/PI68
Rated Output: 2.0 mV/V±0.25%
Usage & Applications：
Crane scales
Hopper scales
Batching scales
Silo tank weighing
system

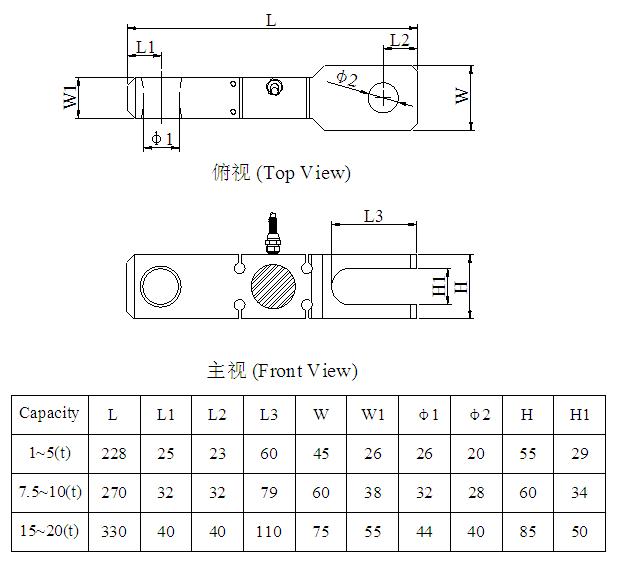

Dimension：
NY3 Specification：
|
Rated Capacities
|
2，3，5，7.5，10，20（t）
|
|
Rated Output
|
2.0 mV/V±0.25%
|
|
Zero Balance
|
±0.0200 mV/V
|
|
Non-linearity
|
0.03 %R.O.
|
|
Hysteresis
|
0.03 %R.O.
|
|
Repeatability
|
0.03 %R.O.
|
|
30mins Creep
|
0.03 %R.O.
|
|
30mins Return
|
0.03 %R.O.
|
|
Safe Overload
|
150 %R.O.
|
|
Ultimate Overload
|
200 %R.O.
|
|
Temperature Effect On Output
|
0.003 %R.O./℃
|
|
Temperature Effect On Zero
|
0.003 %R.O./℃
|
|
Input Impedance
|
390±15 Ω
|
|
Output Impedance
|
350±5 Ω
|
|
Insulation Impedance
|
≥5000 MΩ/(50VDC)
|
|
Recommended Excitation
|
5~12 VDC
|
|
Maximum Excitation
|
15 VDC
|
|
OperatingTemperatureRange
|
-20~60 ℃
|
|
Construction
|
Steel Alloy
|
|
Protection Class
|
IP67 / IP68
|
|
Cable
|
φ6×1 m
|
|
Recommended Platform Size
|
|
|
Mode of Connection
|
Red（EXC+）,Black（EXC-）,
Green（SIG+）,White（SIG-）
|
