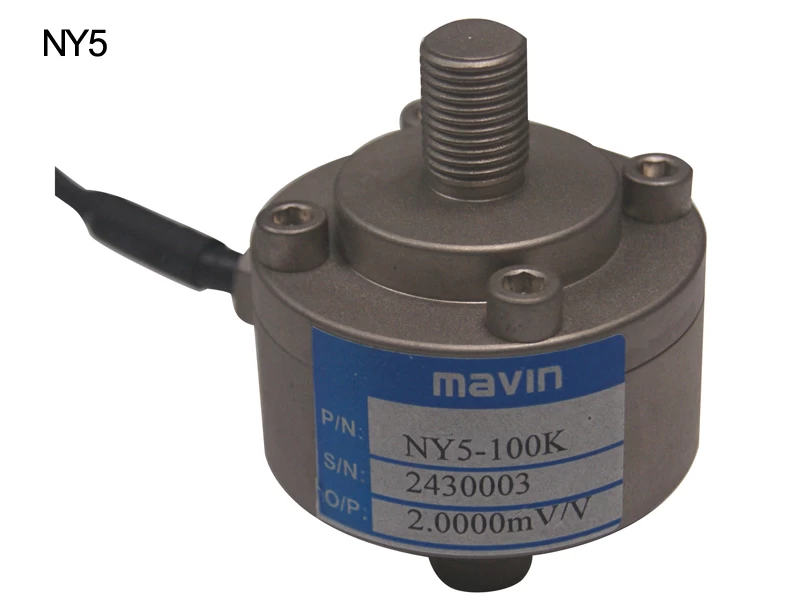

Crane type tension and compression Load Cell NY5 (50-500KG)
The NY5 is a customizable designed stud mounted load cell with wide capacity range up to 500kg, suitable for Forklift Scale load cell, Batching scale load cell, and Industrial weighing scale. The tension and compression load cell precision is 0.15% R.O.
Key Features：
Crane type shaped
Stainless
Steel / steel alloy Construction
Capacity: 50-500kg
Accuracy:0.15%R.O.
Protection class:IP67/PI68
Rated Output: 1.0 mV/V±1%
Usage & Applications：
Crane scales
Hopper scales
Batching scales
Industrial weighing
system

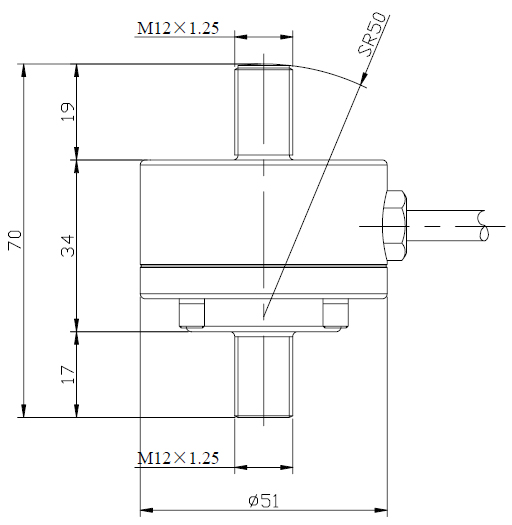

Dimension：
NY5 Specification：
|
Rated Capacities
|
50, 100, 200, 500, 1000 ( kg )
|
|
Rated Output
|
1.0 mV/V±10%
|
|
Zero Balance
|
±0.0200 mV/V
|
|
Non-linearity
|
0.15 %R.O.
|
|
Hysteresis
|
0.15 %R.O.
|
|
Repeatability
|
0.15 %R.O.
|
|
30mins Creep
|
0.15 %R.O.
|
|
30mins Return
|
0.15 %R.O.
|
|
Safe Overload
|
150 %R.O.
|
|
Ultimate Overload
|
200 %R.O.
|
|
Temperature Effect On Output
|
0.02 %R.O./℃
|
|
Temperature Effect On Zero
|
0.02 %R.O./℃
|
|
Input Impedance
|
390±15 Ω
|
|
Output Impedance
|
350±5 Ω
|
|
Insulation Impedance
|
≥5000 MΩ/(50VDC)
|
|
Recommended Excitation
|
5~12 VDC
|
|
Maximum Excitation
|
15 VDC
|
|
OperatingTemperatureRange
|
-20~60 ℃
|
|
Construction
|
Steel Alloy; Stainless Steel
|
|
Protection Class
|
IP67 / IP68
|
|
Cable
|
φ5×3m
|
|
Recommended Platform Size
|
|
|
Mode of Connection
|
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-）
|
