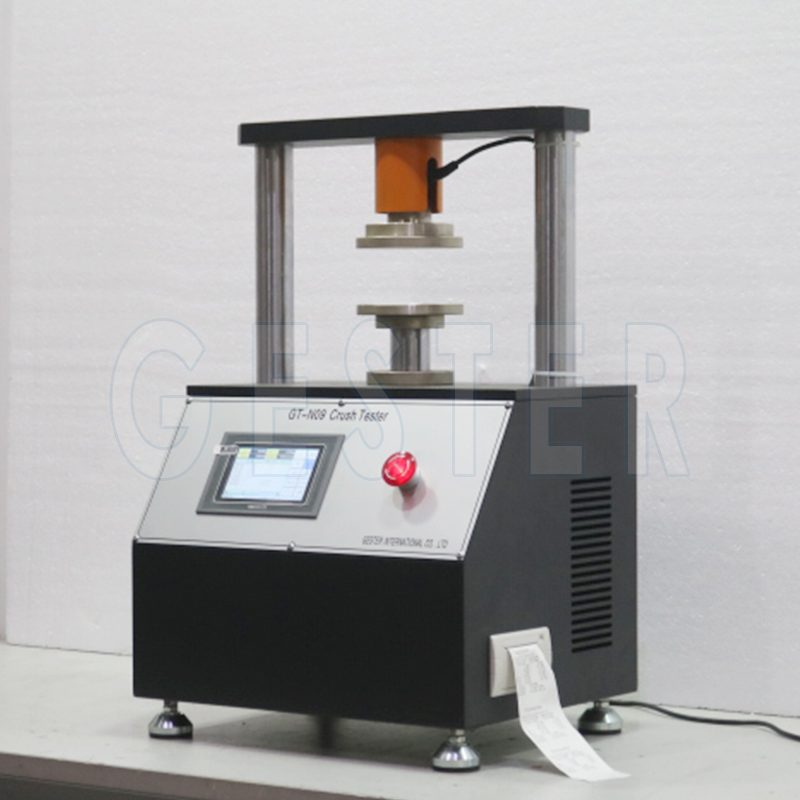

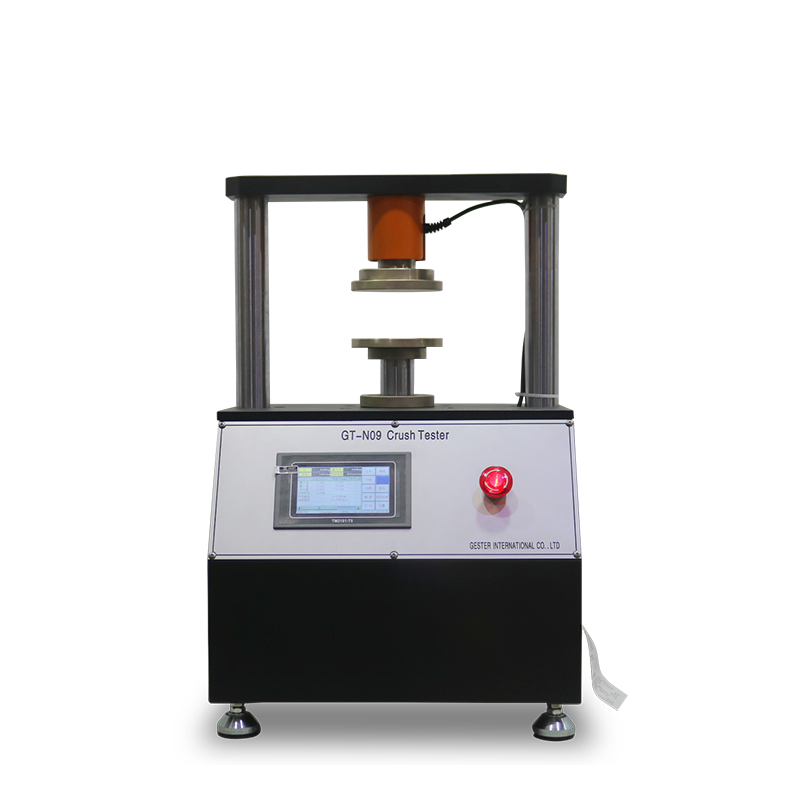

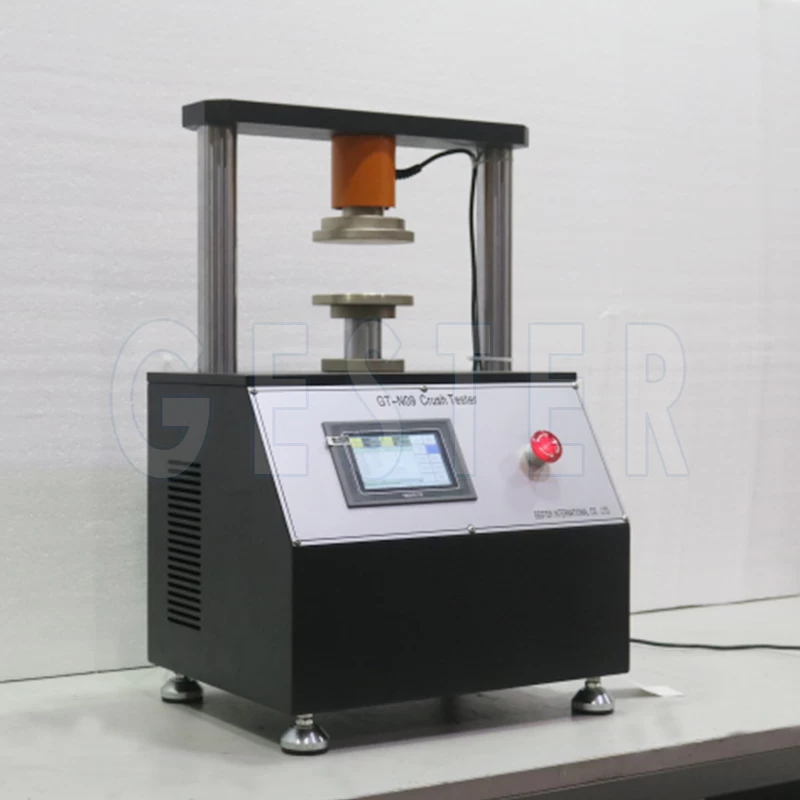

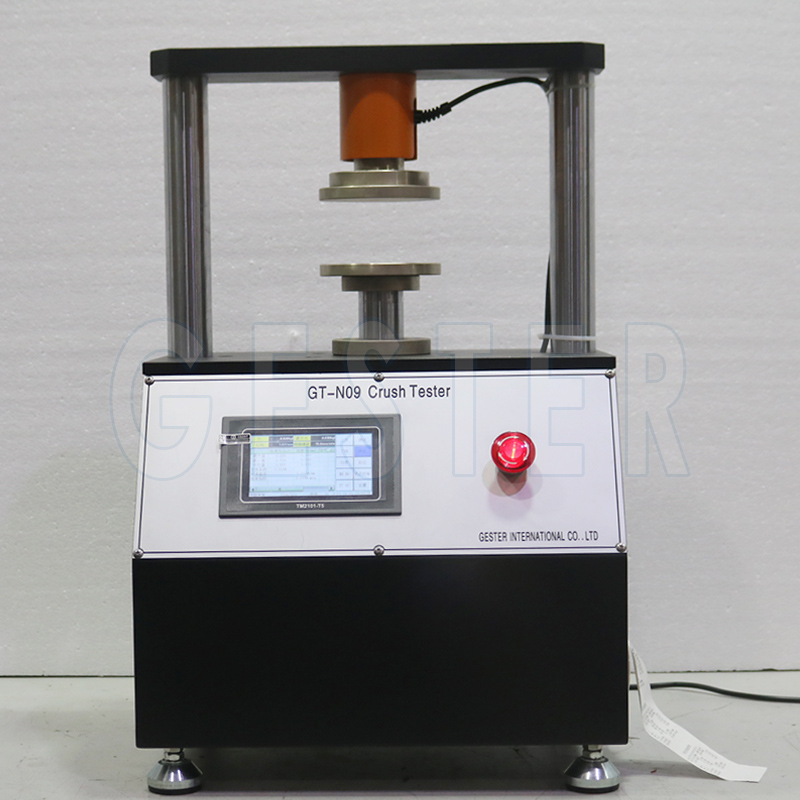

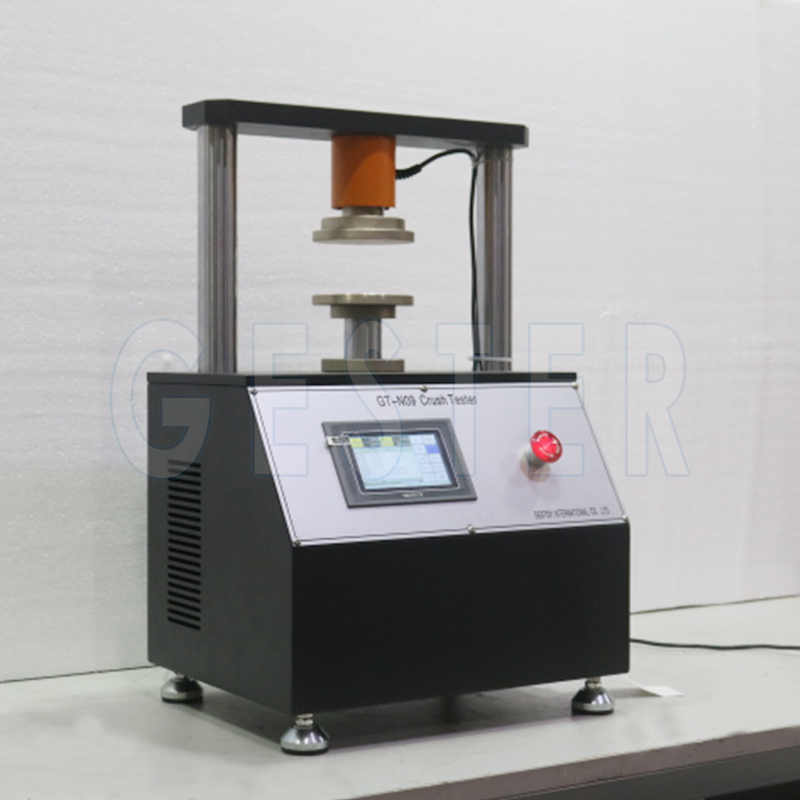

Paper Crush Tester Machine GT-N09
Product Introduction
|
Application:
Paper Crush Tester Machine is well-designed using modern mechanical design theory and human engineering design criteria and micro-process.
It is upper pressure plate fixed type, which has high precision and applies to the test of Ring Crush Test (RCT), Edge Crush Test (ECT). Flat Crush Test (FCT), Pin Adhesion Test(PAT) and Concora Medium Test(CMT) Option Testing methods.
Standards:
ISO 3035 ISO 3073 ISO 7263
TAPPI-T472 JIS-P8126 TAPPI 811 |
Feature
1.High speed return after finishing test.
2.Imported step motor with servo control adopted.
3.The test result can be measured, statistical and printed automatically and the data can be
Saved.

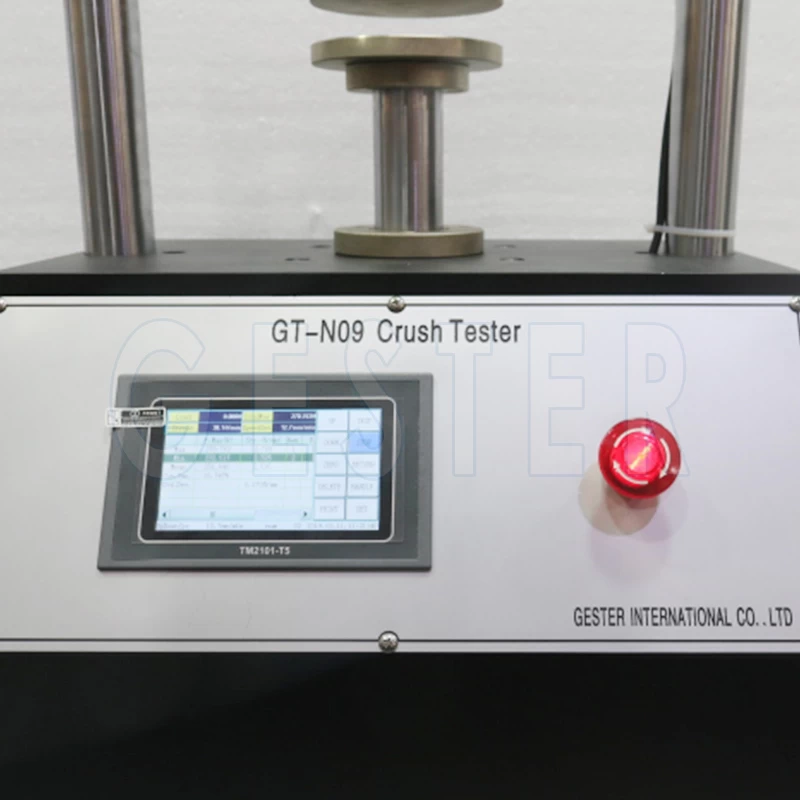

4.Blue color LCD display, which can be display the crush time and loading force real time ,GT-N09 type can display crush graph real time.
5.Thermal printer, high speed and no noise .
6.Use the modern design idea of mechanical and electrical integration, which has compact
configuration, pleasing appearance and convenient maintenance.

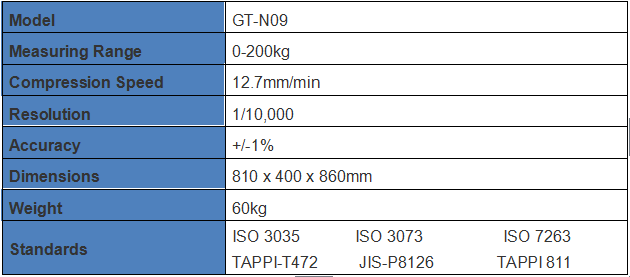

Key Specifications
