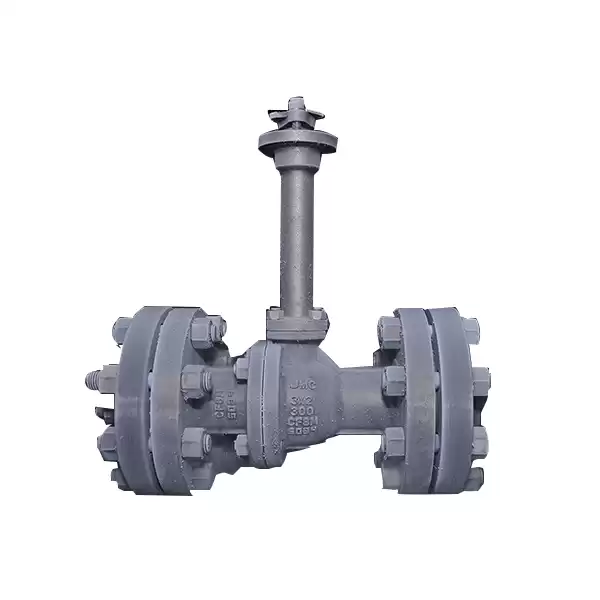

Cryogenic Ball Valve 3X2 Inch 300LB CF8M

API6D 2Pcs Reduce Bore Floating Ball Valve

3x2Inch,300LB,CF8M,F316+PCTFE,Lever

Manufacture STAVAL Factory Offers.

Feature:

Fire Safe Design, Anti Static Design, Anti Blowout Stem, Cryogenic Treatment, Ceyogentic Test

Key Specification

Type	Ball Valve
Size	1Inch
Pressure	600LB
Construction	2Pcs, Full Bore, Floating, Side Entry, Bolt Bonnet,
Connection	RTJ End
Body/Bonnet Material	A351 CF8
Ball Material	A182 F304+Ni55
Stem Material	17-4PH
Seat Material	A182 F304+Ni55
Bolt/Nut	B8/8
Design Standard	API6D
Face to Face Dimension	ASME B16.10
End Connection	ASMEB 16.5
Fire Safe	API607
Inspection & Test Std.	API598
Temperature Range	-40℃~+300℃
Medium	Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL

Inspection Report Issued By STAVAL
