Cup Lock Scaffolding Standard / Vertical

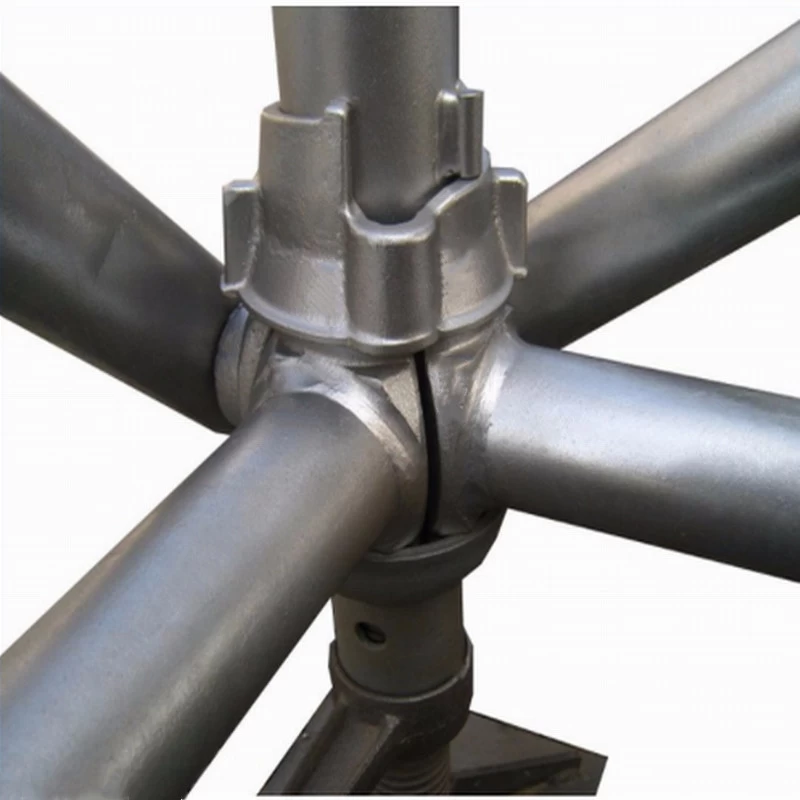

Cup Lock Scaffolding Vertical and Horizontal members are fabricated by ø48.3x3.25mm (1.90" O.D x 10 gauge) high strength steel tubes. It is a fully Hot Dip Galvanized multi-purpose steel scaffold system suitable for providing general access and supporting vertical loads. The key feature is its bowl locking point which allows up to 4 horizontals to be connected to a vertical in a single fastening action-making it probably the fastest and safest system available.


Cup Lock Scaffolding Components: Standard, Ledger, Diagonal Brace, Side Bracket, Plank, Toe Board, Stair.



Advantages of Cuplock Scaffolding:

* Easy to erect and dismantle. Just a simple locking cup at each node point on the standards enables connection of the ends of up to four members in one locking action without nuts and bolts or wedges.

* Versatile. Best suitable for access or formwork support.

* Timely tested and Proven design with safety accessories. Cuplock System has a proven performance history on an extensive number of sites, meeting the requirements of the various statutory bodies.

* Quick fastening of horizontals. Only 4 horizontals can be fastened at one time with firm clamping action of top cup making the joint rigid.

* Quick/Fast/Solid erection and dismantling results in time and labour saving.

* Widely and Versatile use in construction, demolition or maintenance projects for any type of structure i.e. straight or curved.

* Lightweight but high loads carrying capacity.

* Low maintenance.

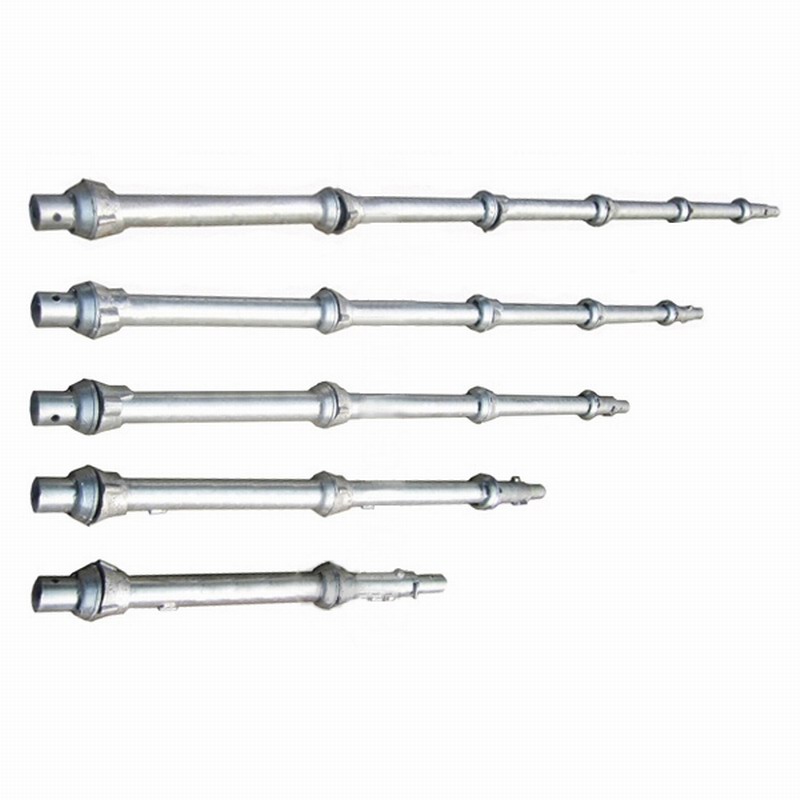

Cup Lock Scaffolding Standard / Vertical (Spigoted)


Product Details:

Code Description Material Size Weight (kg) Weight (lbs)
CS.S.300 3.00M Standard Ø48.3x3.25mm; Q235-Q355 3000mm (9'10") 15.47  34.11
CS.S.250 2.50M Standard 2500mm (8'2") 13.02  28.71
CS.S.200 2.00M Standard 2000mm (6'7") 10.58  23.33
CS.S.150 1.50M Standard 1500mm (4'11") 8.14  17.95
CS.S.100 1.00M Standard 1000mm (3'3") 5.69  12.55
CS.S.050 0.50M Standard 500mm (1'8") 3.25  7.17
CS.S.031 0.31M Standard 305mm (1') 2.55  5.62





Features:

Tube Dimension: O.D 48.3x3.25mm. Other tube thickness 4.0mm/3.5mm/3.0mm is also available by request.

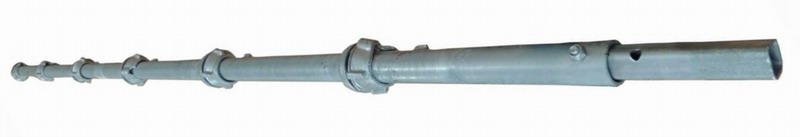

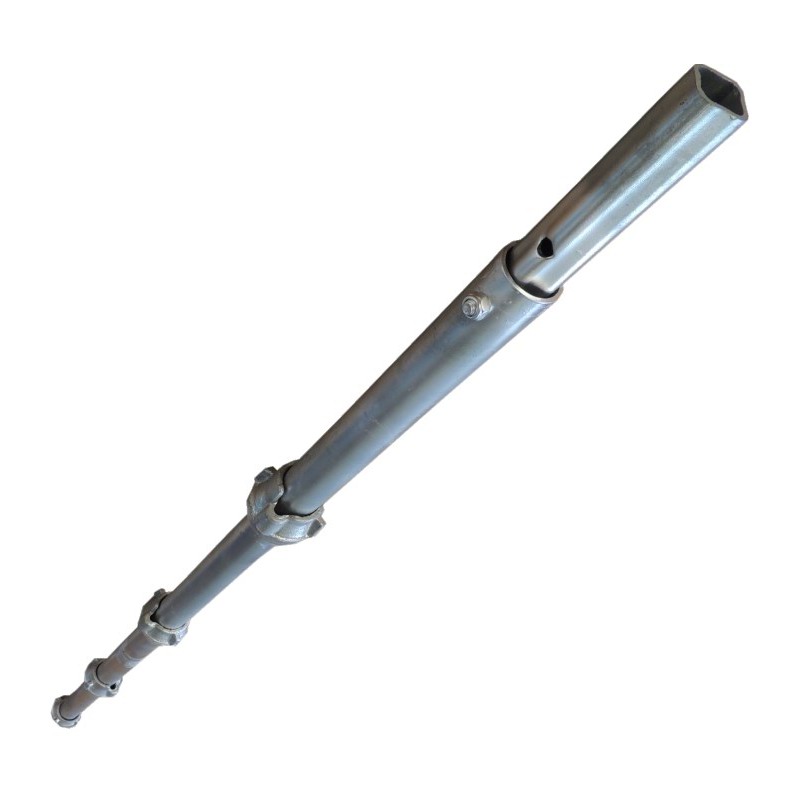

Spigot Size: O.D 38x3x300mm or SHS30x30x3x300mm

Steel Tube Grade: Q235-Q355

Cup Distance: 500mm

Surface Finishing: Hot dip Galvanized; Powder Coated, Painted


Quality Standard: EN12810 / BS1139

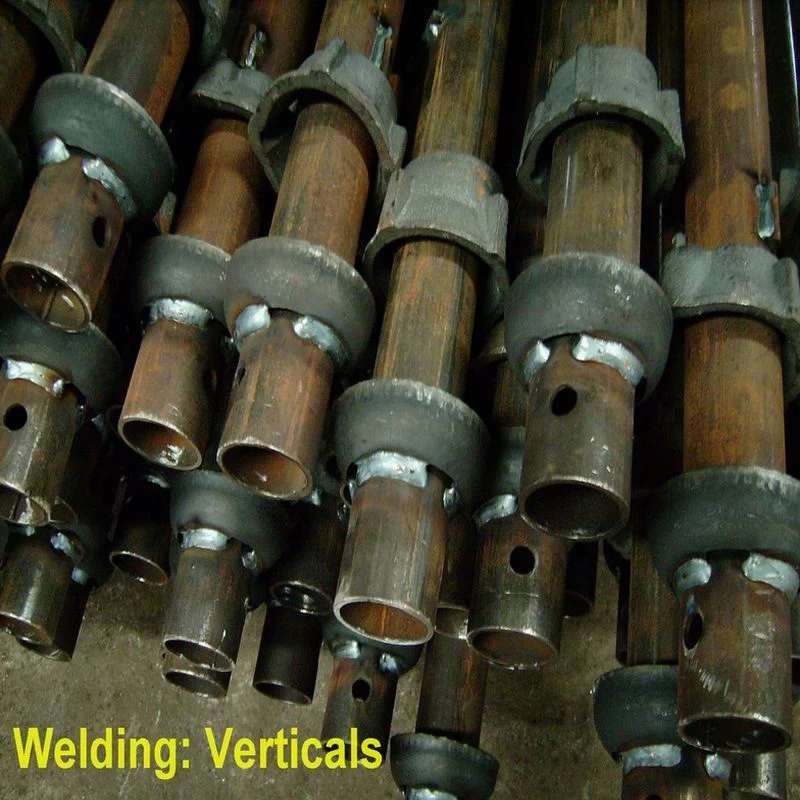

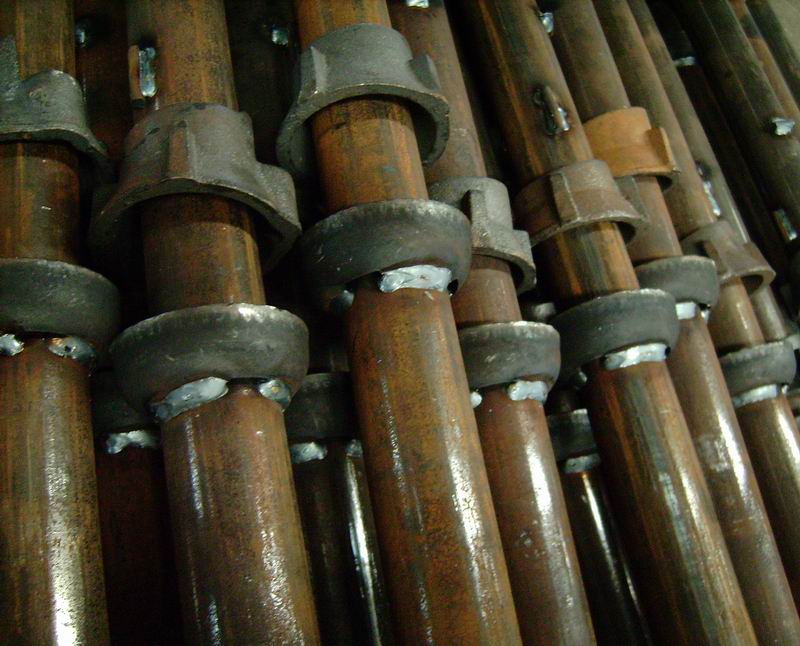

Welding Process: CO2/Mixture gas Shielding Welding

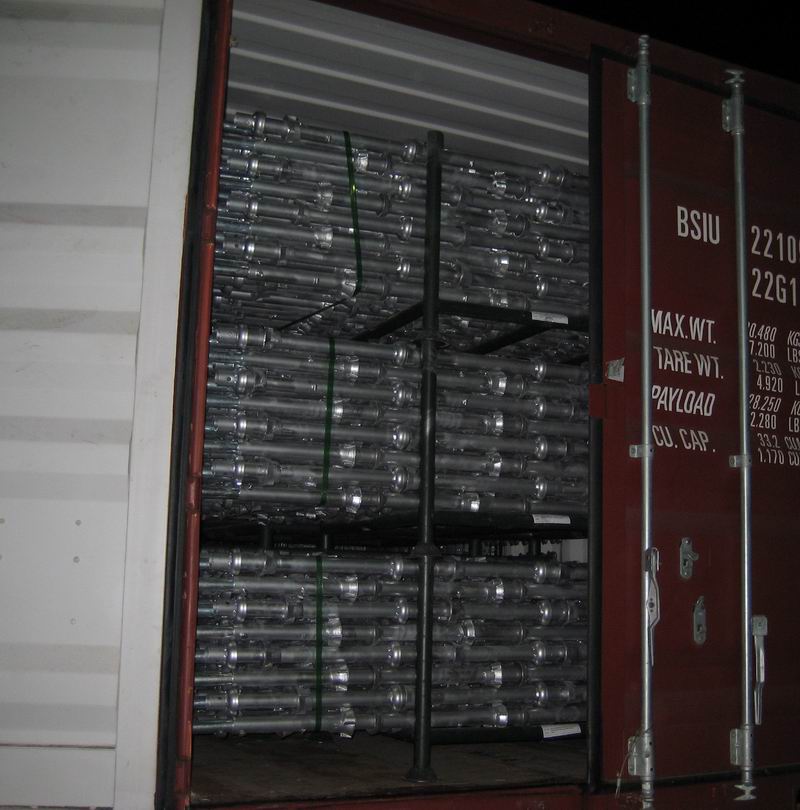

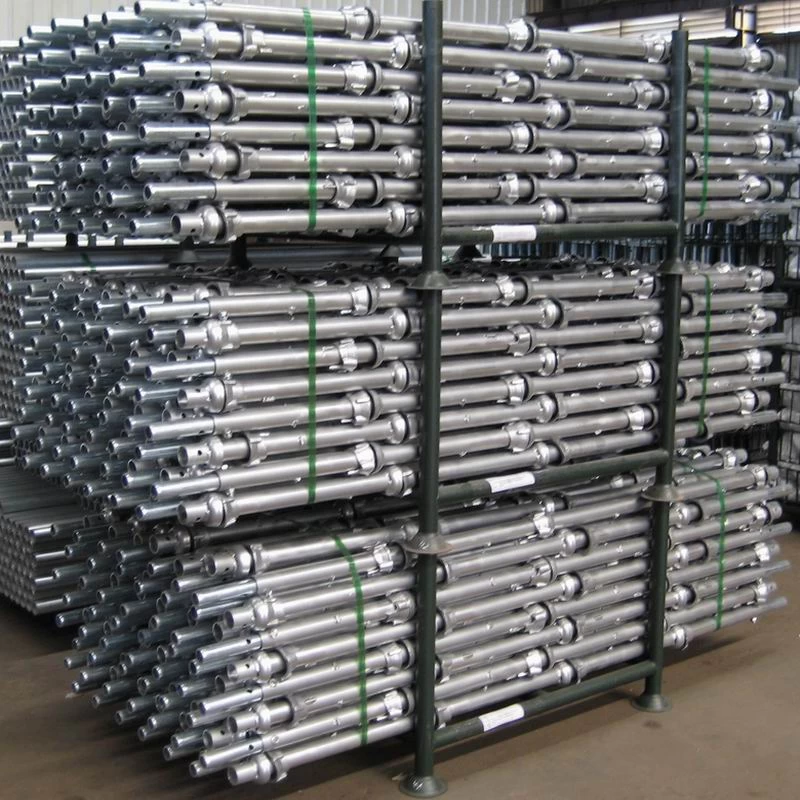

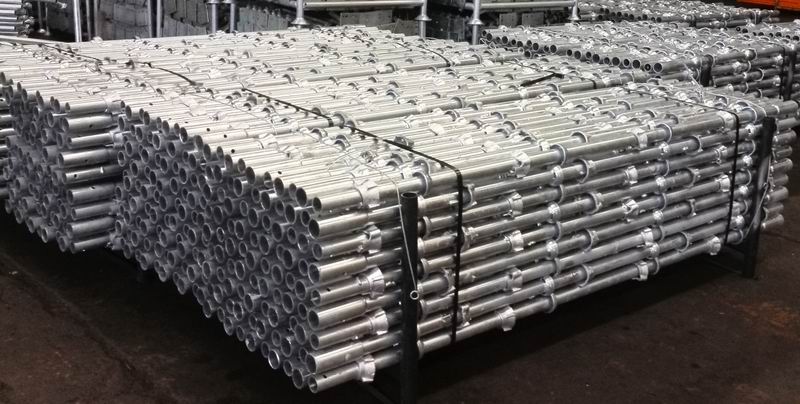

Packing and Loading: Steel Racks
