Curing UV Glue UV LED Spot Curing System

The effect of press polish, UV Glue UV LED Spot Curing System, is better than mercury lamp. Simple operation and high efficiency.

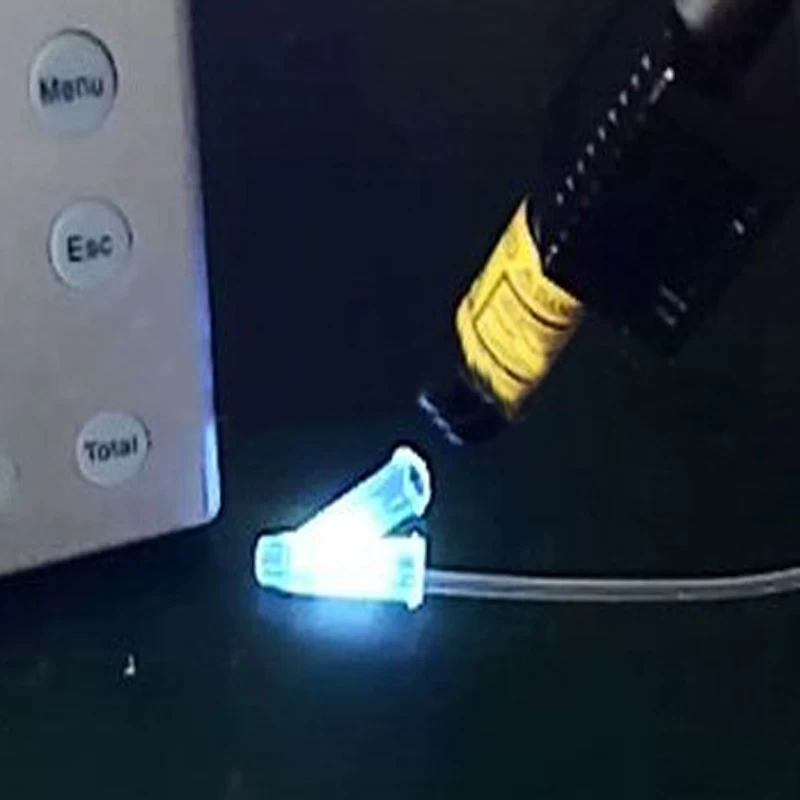

UV Glue UV LED Spot Curing System could be used for curing UV glue like DELO, LOCTITE, DYMAX and other brand UV adhesive.UV LED curing system contains two parts: Controller and Irradiation Head.


Product Parameters of UV LED Spot Curing Machine:

Condition

New

Type

UV curing machine

Automatic Grade

Automatic

Place of Origin

Guangdong, China (Mainland)

Brand Name

UV-LED CURING

Model Number

UV-LED CURING-4

Voltage

220V

Power(W)

10w~2000w

Dimension(L*W*H)

340*240*170mm

Weight

10kg

Certification

ISO

Warranty

1 Year

After-sales Service Provided

Engineers available to service machinery overseas

Wavelength

365nm~405nm

Cooling Method

Air Cooling or Water Cooling





Spot UV Glue Curing LED Facility

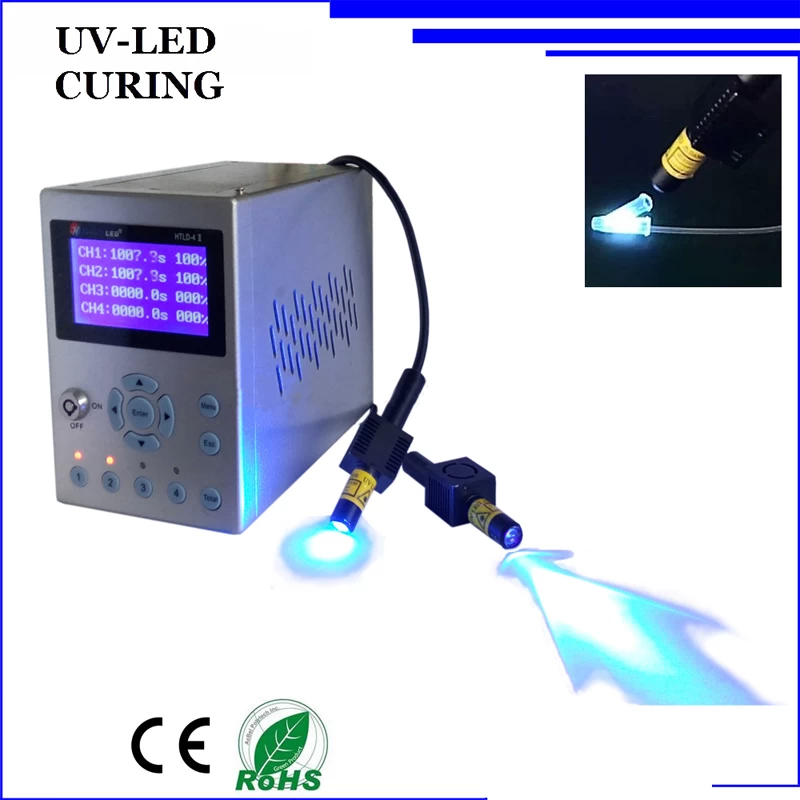

controller specifications of Spot UV Curing System :

Type

        UV-LED CURING-4Ⅱ

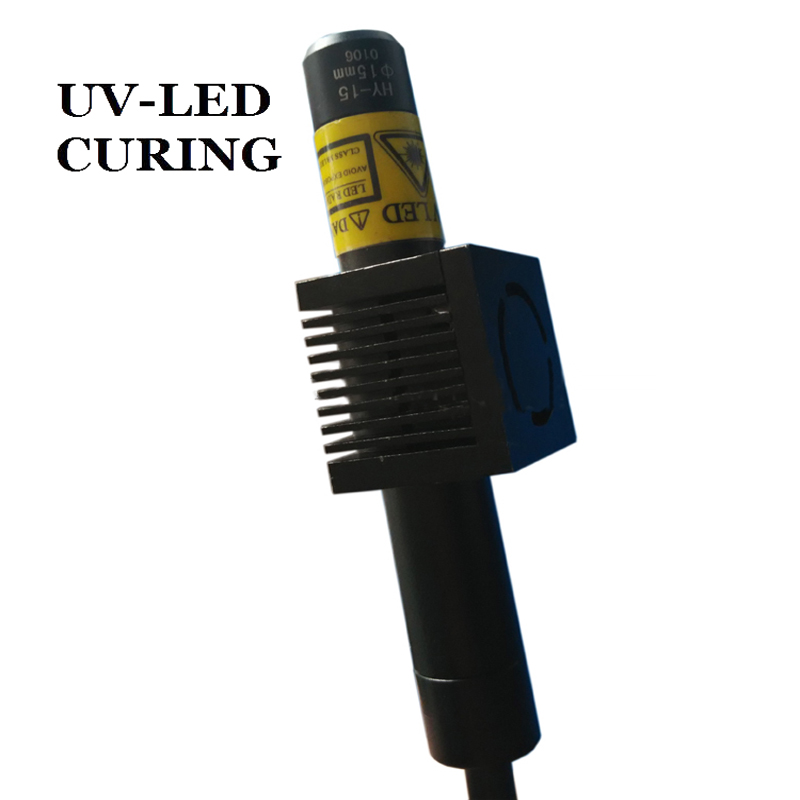

UV radiation heads

        Four(4 LED)

The size of controller

   L185*W100*H125mm

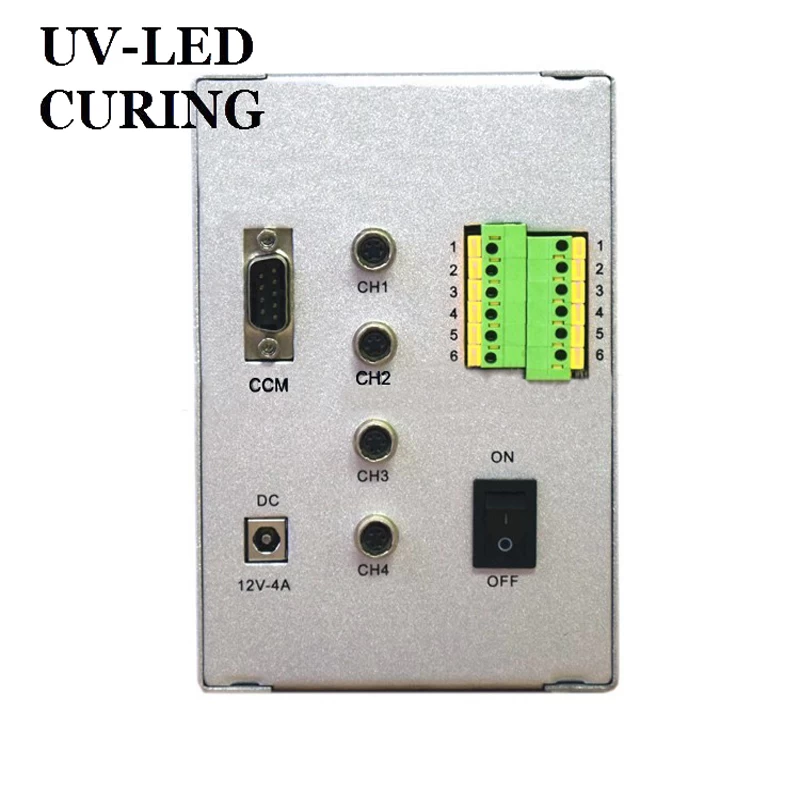

Terminal I/O

Input

   Pedal switch & serial RS-232

   communication signals

Output

serial RS-232 communication signals

Cooling method of controller

Semiconductor cooling

Power supply voltage

AC100~240V±10%(50/60HZ)

Power consumed

20W

Ambient temperature and

humidity

Ambient temperature:-10℃—50℃

Relative humidity:25%—85%RH



Dimming/Exposure control

Digital Debugging,Manual exposure

control,Foot control or timing control

(0.1~9999S)

Setting operation

Using the operating switch is set,Power key parameter switch,RS-232

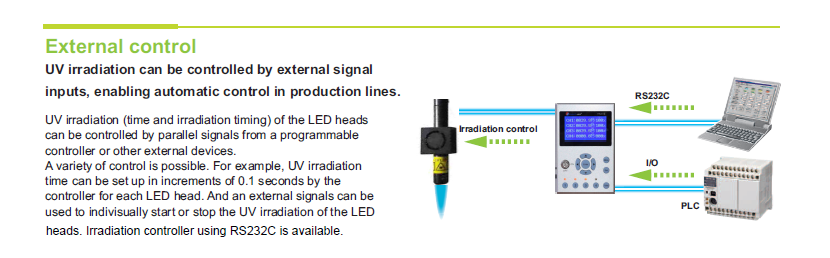

External Control





External input

Enter irradiation alone

Irradiation stop input,

Interlocking,All lights

illuminated input,Query

switch





External output

READY signal,Error

signal,Warning Output,Busy output(Various skinhead),+5VOutput (indicator used)


Irradiation Description of UV Glue Curing UV LED Falicity :



365nm

Spot diameter

φ3mm

φ4mm

φ6mm

φ8mm

φ10mm

Peak Irradiance

(m w/cm²)

13000

7300

3250

1800

1200

Irradiation distance

10mm

12mm

20mm

25mm

30mm



395nm

Spot diameter

φ3mm

φ4mm

φ6mm

φ8mm

φ10mm

Peak Irradiance
(mw/cm²)

15000

8400

3750

2100

1400



Irradiation distance

10mm

12mm

20mm

25mm

30mm



Spot diameter

φ3mm

φ4mm

φ6mm

φ8mm

φ10mm

405nm

Peak Irradiance
(mw/cm²)

15000

8400

3750

2100

1400

Irradiation distance

10mm

12mm

20mm

25mm

30mm

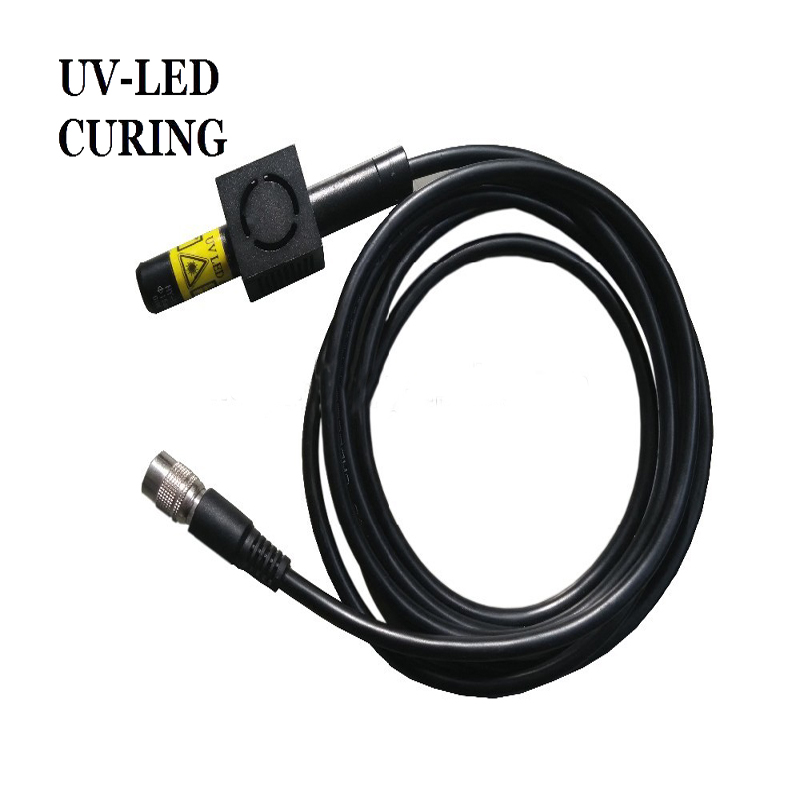

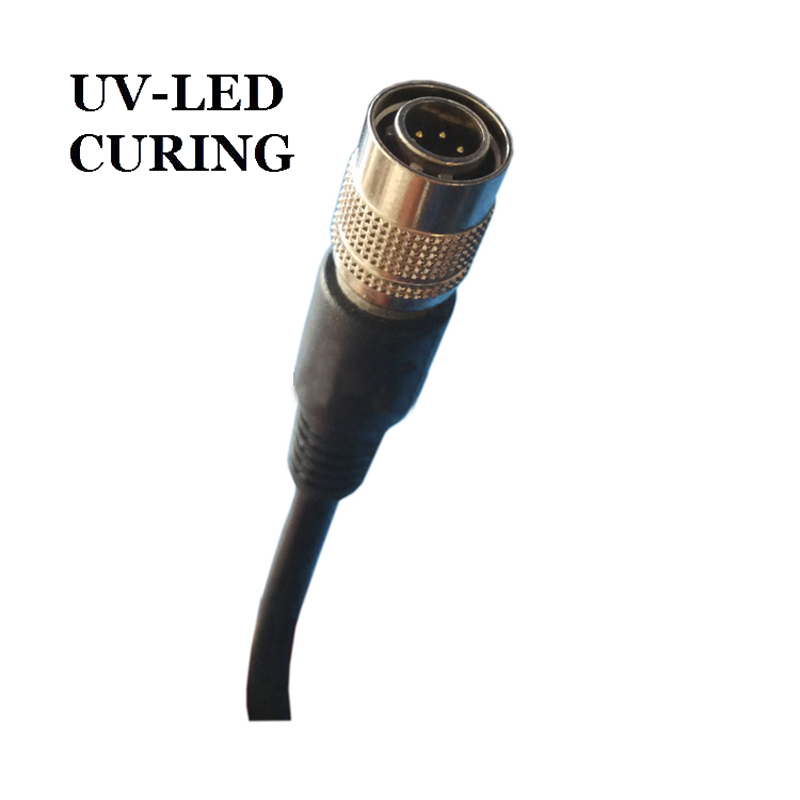

Cable length

2m, 5m optional

Source

3B rating  LED Products

Light presumed life

25,000 hours (Bald internal LED temperature at 50 ° C)

Temperature / humidity range

-10 ~ + 50 ° C, 25 ~ 85% RH (25 ° C under non-condensing)

Cooling

Fan cooling, natural cooling
