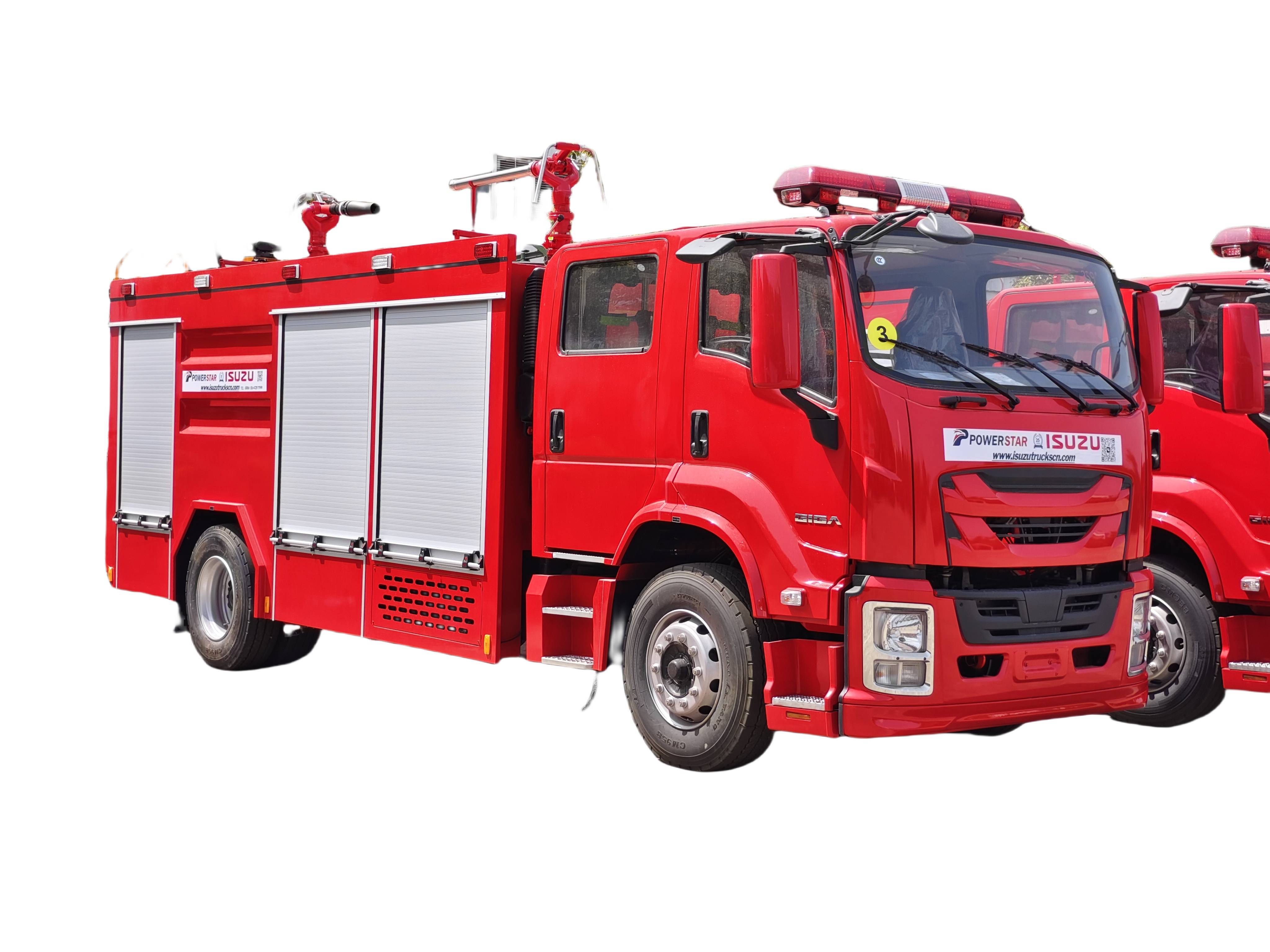

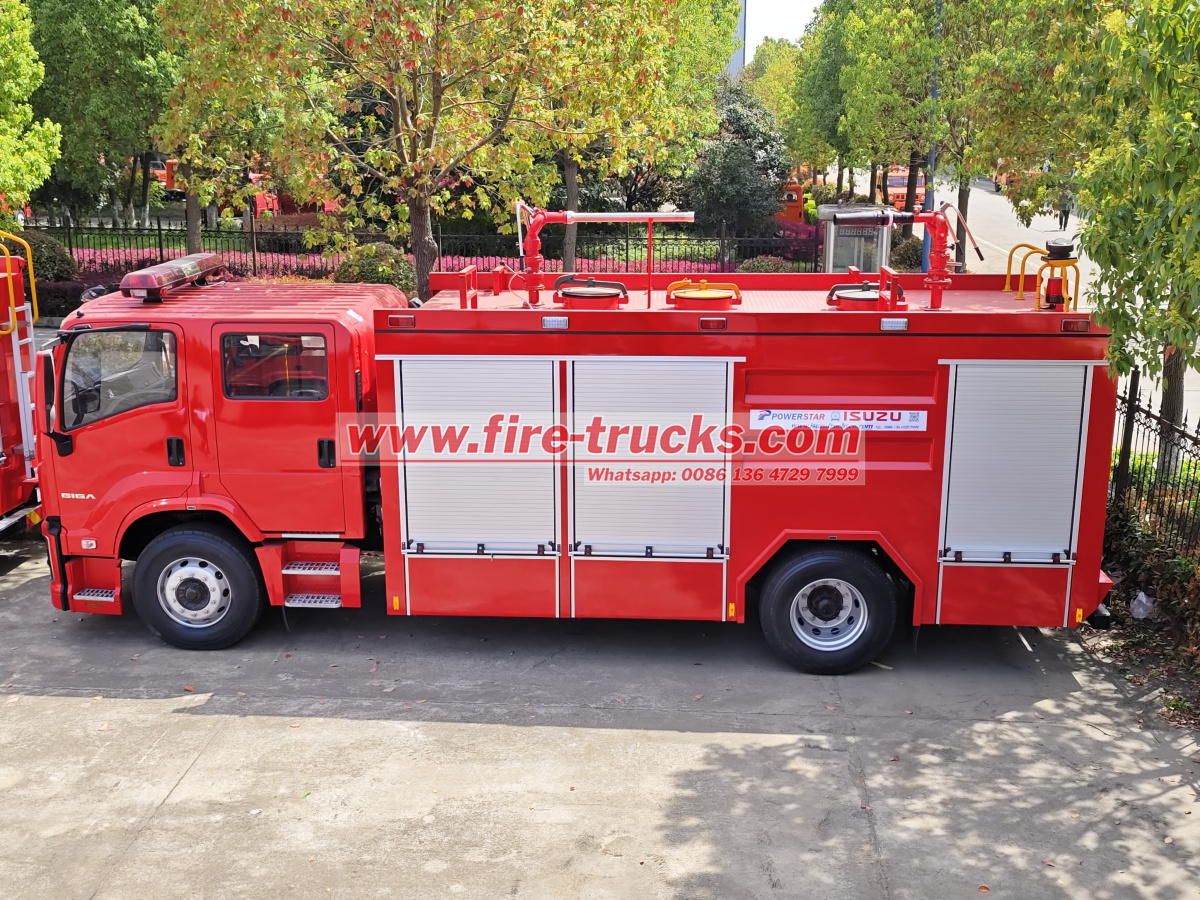

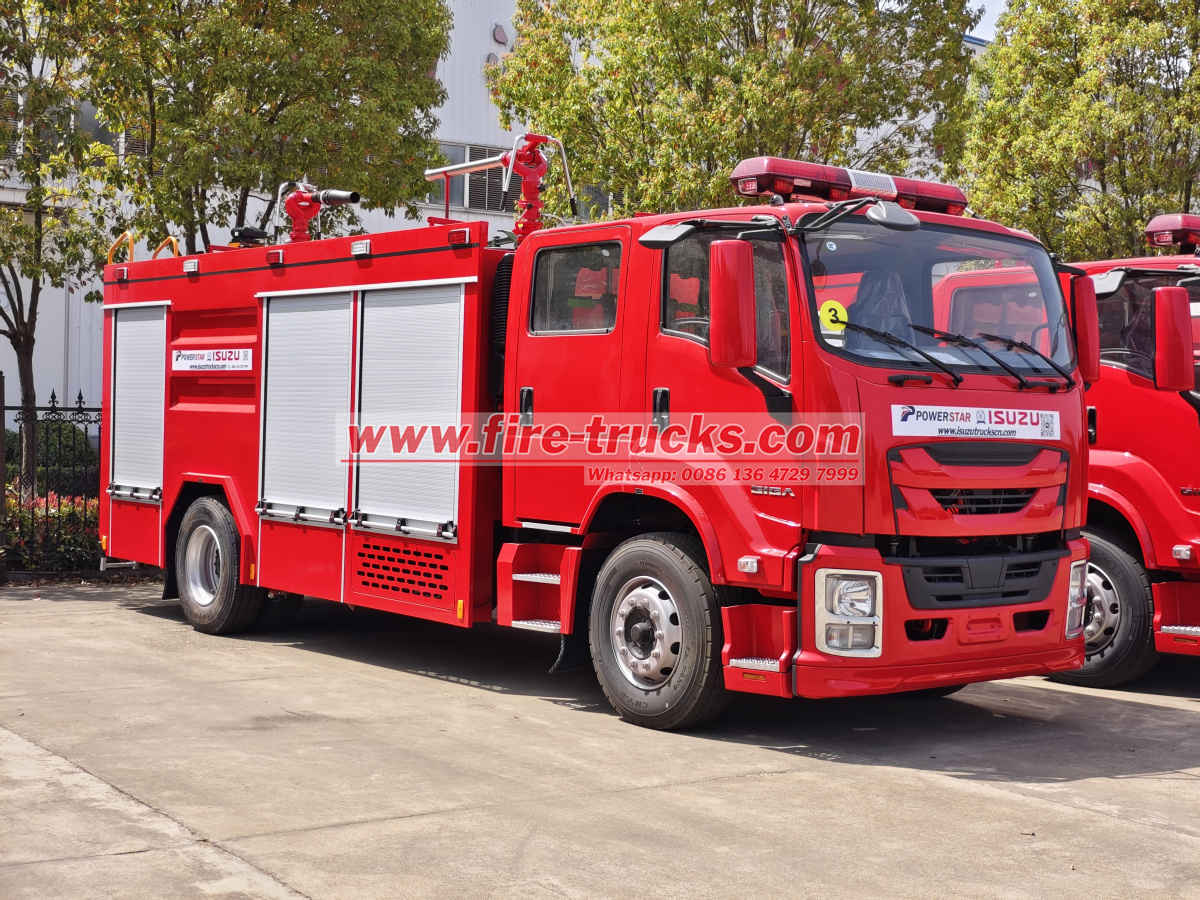

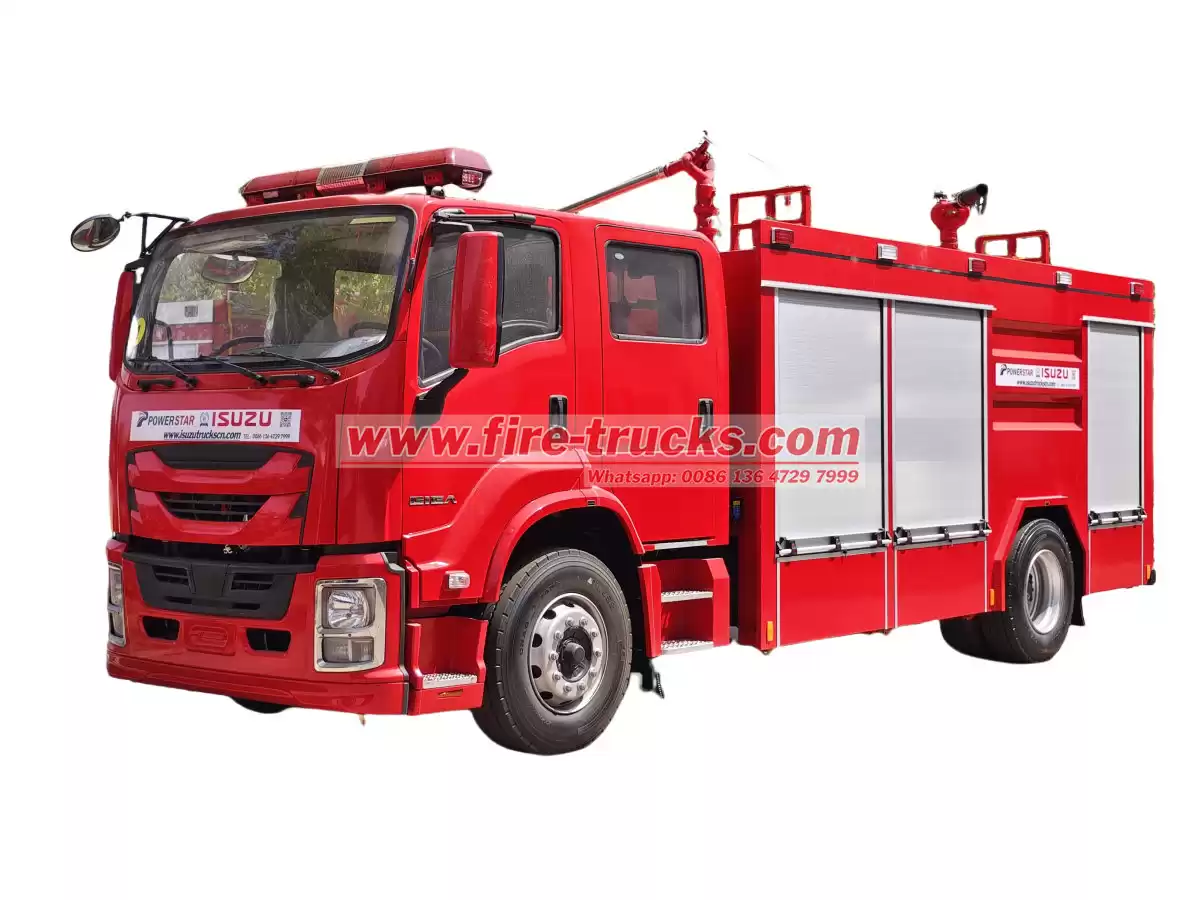

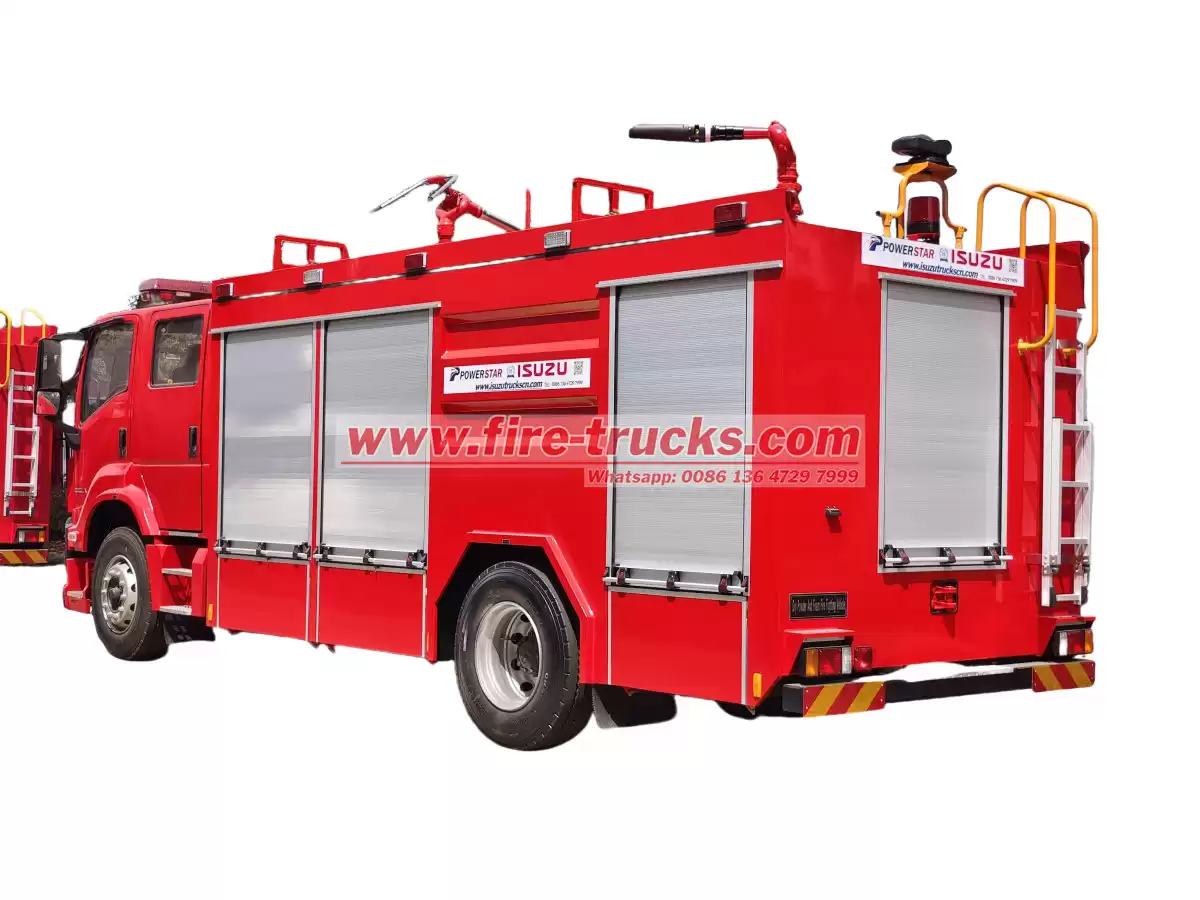

Custom Isuzu Powder Fire Engine Trucks, also named Isuzu GIGA dry powder fire resuce truck or Isuzu emergency powder water foam fire vehicle, Using the Isuzu GIGA 205 horsepower 4x2 chassis as the basis, the double-row cab is first modified to meet the firefighters' carrying needs. A power take-off (PTO) and a drive shaft are installed to transmit the chassis engine power to the fire pump system. Water tank (3m³) and foam tank (2m³): Welded with carbon steel or stainless steel, the interior is treated with anti-corrosion, and the tank strength must pass the pressure test. Dry powder system (1000kg): An independent steel tank is equipped with a high-pressure nitrogen drive device, and the dry powder injection pipeline is designed in parallel with the fire pump. The fire pump is installed at the rear of the chassis, and the fire extinguishing function is realized while moving through the sandwich power take-off.
In Moldova, known as the "European wine cellar", the long vineyards and ancient wineries are welcoming a special guardian - Custom Isuzu Powder Fire Engine Trucks (also known as Isuzu dry powder and foam combined fire trucks or multifunctional dry powder fire trucks) customized by POWERSTAR TRUCKS, a well-known Chinese fire truck manufacturer. This special vehicle, which combines the wisdom of oriental manufacturing with the disaster prevention needs of Eastern Europe, is about to inject new momentum into the fire prevention and control system of this agricultural country.
Customized firefighting weapon: Decoding Isuzu dry powder fire trucks
This model is based on the Isuzu GIGA 205 horsepower 4x2 chassis, equipped with a 3 cubic meter water tank, a 2 cubic meter foam tank and a 1,000 kg dry powder fire extinguishing system, forming a "three-in-one" composite fire extinguishing capability. Its modular design can quickly switch between water mist, foam and dry powder spraying modes, which is especially suitable for villages and wine cellars in Moldova, which are mainly brick-and-wood structures and prone to re-ignition. The local fire department affectionately calls it "The Fire Magician".
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu fire truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
Advantage:
1: ISUZU GIGA brand chassis, perfect performance, ISUZU engine, super powerful, reliable performance

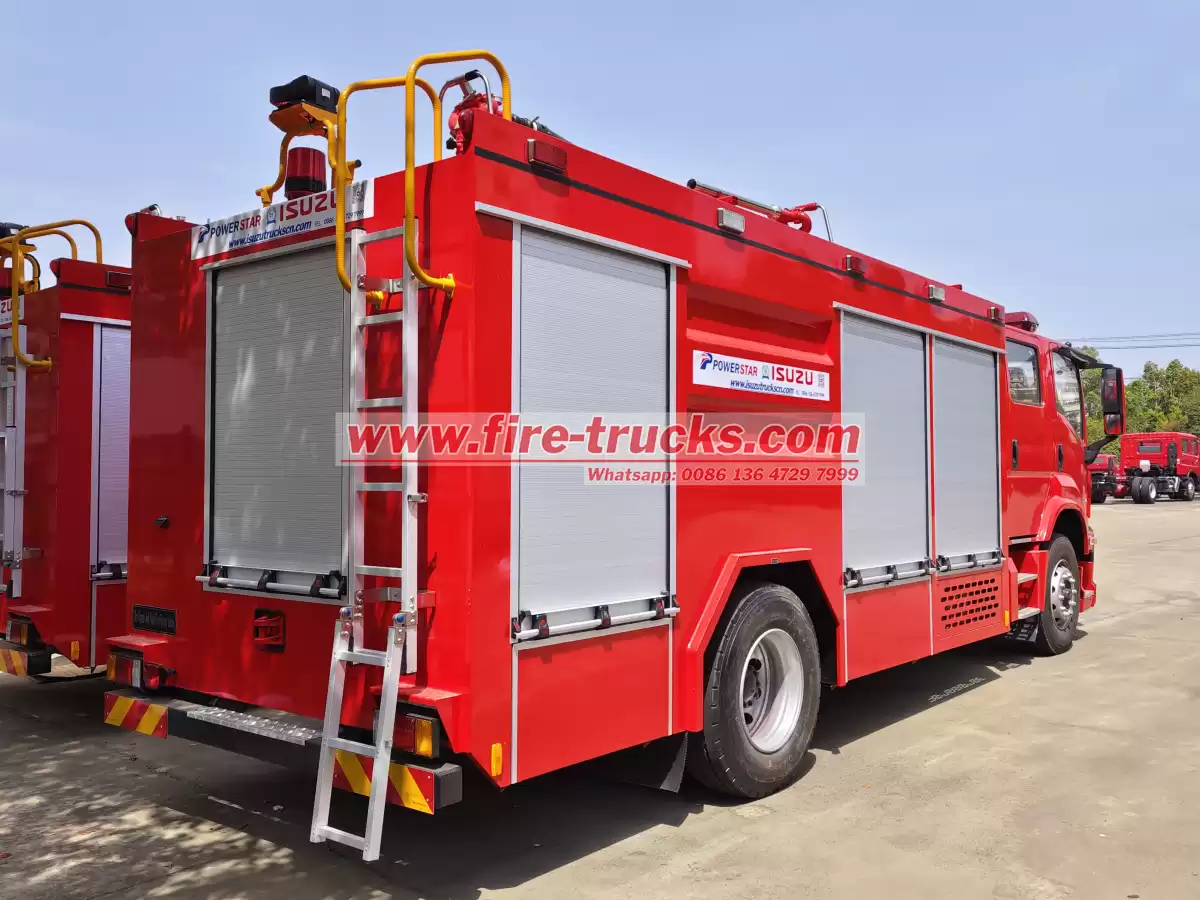

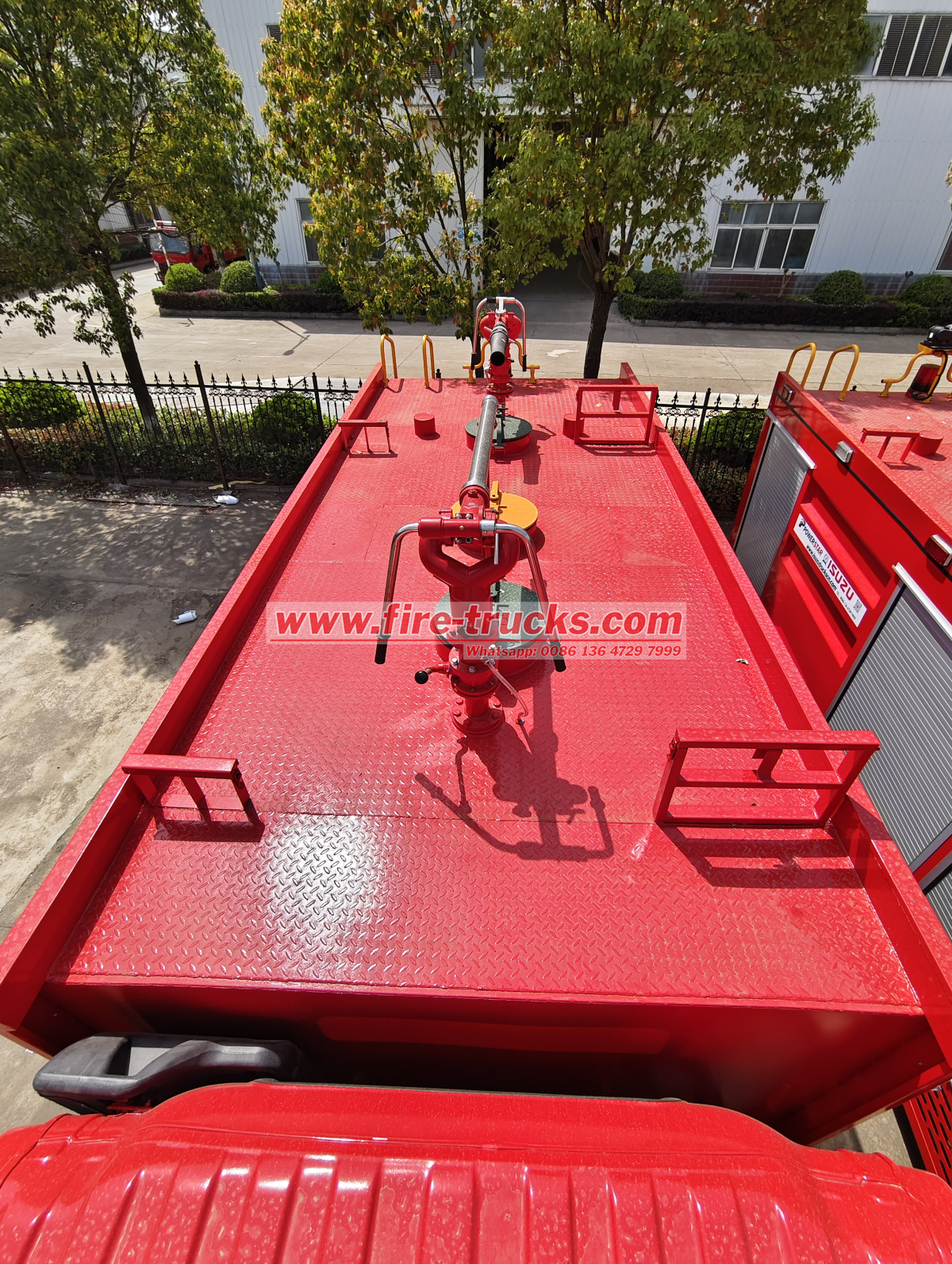

2: The main frame structure is welded by high quality square tube. Roof is non-slip and can walk.
3: Aluminum alloy rolling shutters are arranged on both sides of the equipment box, and there are lights inside.
4: Long row of warning lights installed on the top of the cab; power 100W; one light above the rear of the vehicle.
5: Crew room; equipment box and pump room set lighting.
6: Drive type:4x2,4x4,6x4,6x6,8x4.
Technical Specification:
|
ISUZU GIGA brand Water foam dry powder combination fire truck
|
|
Vehicle Parameters
|
| |
Vehicle Brand
|
POWERSTAR
|
|
Chassis Brand
|
ISUZU GIGA
|
|
Overall Dimension(mm)
|
7925×2505×3450
|
|
GVW/Curb Weight(kg)
|
15000/8650
|
|
Chassis Parameters
|
|
Cab
|
Cab Seat
|
2+4
|
|
Air Conditioner
|
Equipped
|
|
Engine
|
Fuel Type
|
diesel
|
|
Engie Model
|
ISUZU 4HK1
|
|
Engine Brand
|
ISUZU
|
|
Power(kw/hp)
|
205
|
|
Displacement(L)
|
5200
|
|
Emission Standard
|
Euro6
|
|
Chassis
|
Drive Type
|
4*2
|
|
Transmission
|
6speed, Manual
|
|
Wheelbase(mm)
|
4600
|
|
Tire Specification
|
10.00R20
|
|
Tire No.(pcs)
|
6+1
|
|
Max Speed(km/h)
|
95
|
|
Paint
|
Metallic paint
|
|
Fire Truck Water Tank Structure Parameters
|
|
Water Tank Volume
|
4000L
|
Tank Material
|
Carbon Steel
|
|
Foam Tank Volume
|
2000L
|
Tank Material
|
Carbon Steel
|
|
Dry Powder Volume
|
1 ton
|
Nitrogen Cylinder
|
70L/pcs,in total 3pcs
|
|
Tank Thickness
|
4/3/3mm
|
Fire pump
|
CB10/60
|
|

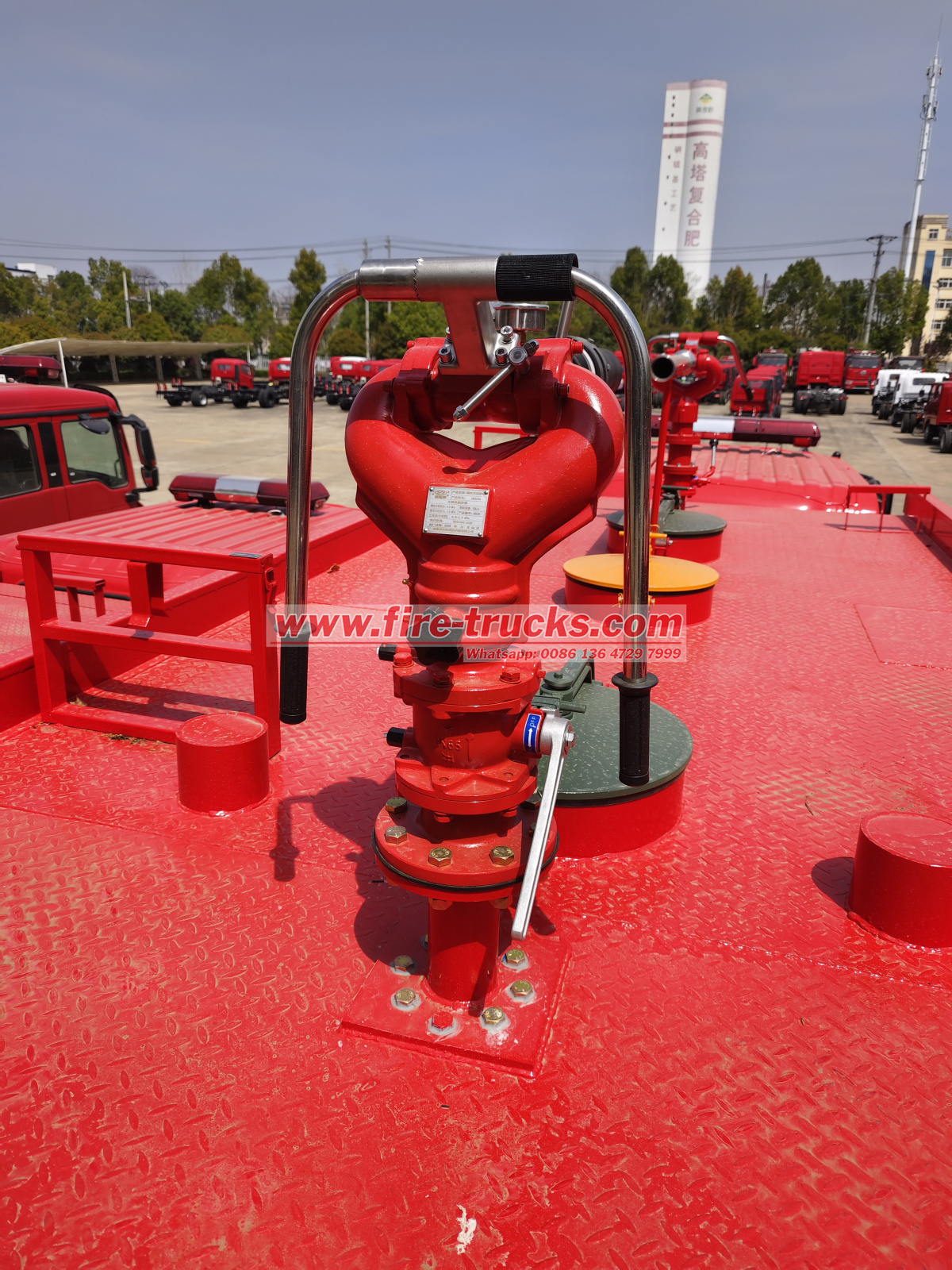

Fire monitor
|
PL48
|
Color and Logo
|
Optional
|
|
Standard configuration
|

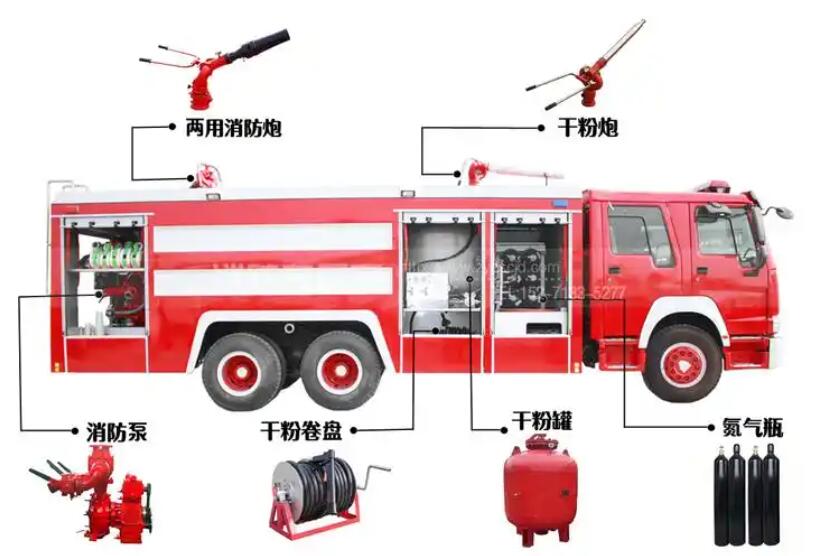

Chassis,sub frame, van body, national standard equipment box, 25 units national standard fire-fighting equipment, fire pump(CB10/60according to the capacity), fire canon (PL48 according to the capacity),fire power take off, sliding gate, row type lights, reel,common tools, rear climbing ladder, water tank, foam tank, dry powder tank, nitrogen system
|
Sunflower processing plant escort
As the main producer of sunflower oil in Europe, the dry powder spraying function of this vehicle can effectively deal with grease fires and avoid the spread of oil pollution caused by traditional water fire extinguishing.
Danube Delta Emergency
For reed wetland fires, 3-cubic-meter water tanks combined with a remote spray system can achieve a three-dimensional tactic of "cutting off the fire with water and extinguishing open flames with dry powder".
Potential for development of derivative models
POWERSTAR TRUCKS can be expanded based on this platform:
"Shepherd" Plateau Edition: Add turbocharging to adapt to the hilly terrain in northern Moldova
"Dionysus" Cold Chain Edition: Integrated refrigeration unit for chemical transportation in wineries
"Sunflower" Detection Edition: Add infrared thermal imager for agricultural storage fire warning
This cooperation marks the first time that China's special vehicle manufacturing has deeply connected with the agricultural firefighting needs of Eastern Europe. As an official from the Ministry of Emergency Situations of Moldova said: "These red steel horses will protect our land like grapevines." In the future, the two sides also plan to jointly develop a six-wheel drive firefighting vehicle model adapted to the Carpathian Mountains, continuing the "Belt and Road" emergency equipment cooperation. A new chapter.
