Custom MIS-M1 Pocket Mini PC Support Bluetooth 4.2/5.2
Product Introduction
Custom MIS-WT8 Pocket Mini PC, a compact powerhouse designed to redefine your computing experience. Packed with advanced features and cutting-edge technology, this mini PC offers unparalleled portability without compromising on performance. Embrace the future of computing with the Custom MIS-M1 Pocket Mini PC. Whether you're a professional on the move or a tech enthusiast seeking a compact yet powerful solution, this mini PC is designed to meet your demands. Elevate your computing experience—anytime, anywhere.

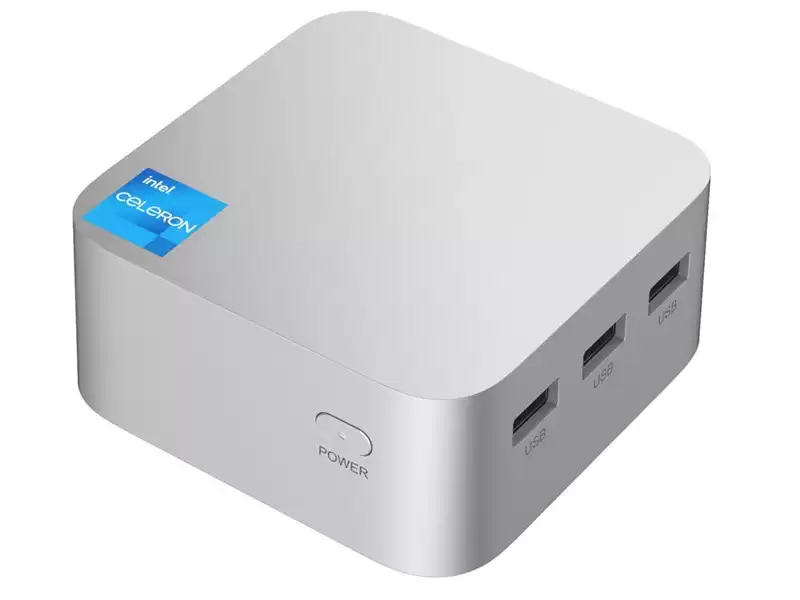

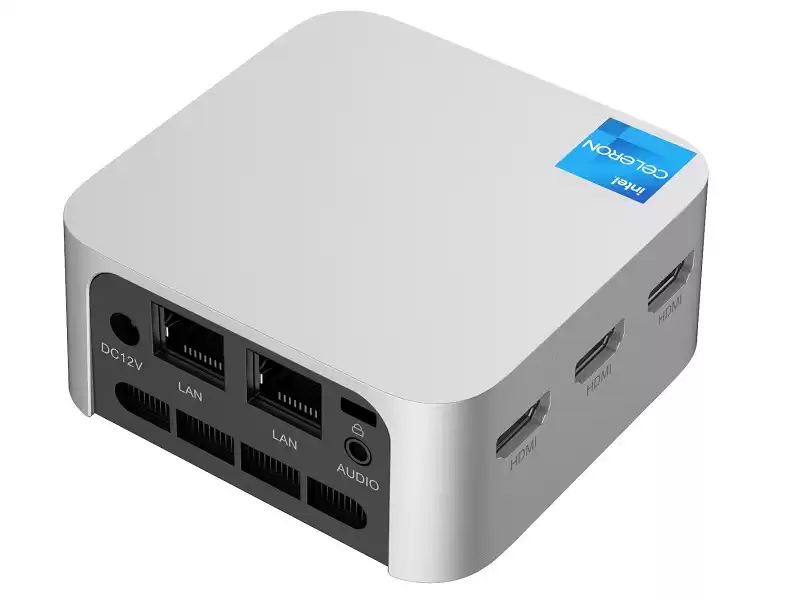

| Product Appearance |
| Typology |
Point |
Standard Configuration |
Optional |
| Product pattern |
Product form |
MINI PC |
|
| Characterisation |
Pocket Mini PC |
Optional |
| Exterior Dimensions |
89.4mm x 89.4mm x 43.5mm |
|
| Housing Material |
All Plastic |
|
| Weights |
Net weight203.7g |
|
| System Hardware Configuration |
| Typology |
Point |
Standard Configuration |
Optional |
| CPU |
Typology |
Intel Jasper Lake N5100; N5105; N5095
N95;N100 |
Optional |
| Main frequency |
1.1GHz ( N5100) ; 2.0GHz ( N5105、N5095)；
1.7GHz(N95);1.8GHz(N100) |
|
| Core frequency |
2.8GHz ( N5100) ;2.9GHz( N5105、N5095)
3.4GHz(N95、N100); |
|
| Power wastage |
6W (N5100、N100)、10W( N5105)、15W（N5095、N95) |
|
| Memory |
Typology |
LPDDR4X SMD (On-Board) |
|
| Capacity |
8GB ; Max 16GB |
Optional |
| Storage |
EMMC |
None |
|
| SSD |
M.2 2242 NGFF/NVMe，Max 2TB |
Optional |
| 2.5" HDD/SSD |
None |
Optional |
| TF card |
None |
|
| RTC |
BIOS Support |
Real-time clock, timed boot |
|
| Auto-open |
BIOS Support |
Supports automatic power-on function after power-on |
|
| TPM |
CPU Integrated TPM |
Supports TPM 2.0 |
|
| Triple screen output |
Video output |
Support 3 HDMI display at the same time |
|
| LED |
Status indicator |
Switch-on light is white |
|
| Network connection |
| Typology |
Point |
Standard Configuration |
Optional |
| WIFI |
Typology |
intel 7265/ 3165/ RTL8821CE slot |
Optional |
| Protocols |
|
|
| Bluetooth |
Typology |
intel 7265/ 3165/ RTL8821CE onboard |
Optional |
| Protocols |
Support Bluetooth 4.2/5.2 |
|
| 3G |
Built-in |
None |
|
| 4G |
Built-in |
None |
|
| Ethernet |
LAN1 |
10M/100M/1000M adaptive |
|
| Interface |
| Typology |
Point |
Standard Configuration |
Optional |
| USB |
USB2.0 |
None |
|
| USB |
USB3.0 |
USB3.1 Type-A x3 |
|
| TF |
Expanded External Storage |
None |
|
| HDMI |
Audio and video outputs |
HDMI 2.0 Type A x3 |
|
| VGA |
Video output |
None |
|
| RJ45 |
Gigabit Ethernet |
RJ45 x2 |
|
| type_c |
Data transmission |
None |
|
| POWER switch |
Power button |
x1 |
|
| DC IN |
Power Input |
5.5/2.1mm DC Jack x1 |
|
| Audio-in/out |
Audio Input/Output |
3.5mm Phone Jack x1 （2-in-1 interface） |
|
| Antenna1 |
FPC Antenna |
WiFi 2.4+BT x1 |
|
| Antenna2 |
FPC Antenna |
WIFI 5.0 |
|
| Software Configuration |
| Typology |
Point |
Standard Configuration |
Optional |
| Operating system |
Operating system version |
Win11 Home/Win11 pro/Win11 IOT/ Ubuntu |
|
| Applicable environment |
| Typology |
Point |
Standard Configuration |
Optional |
| Environment |
Operating temperature |
0~40℃ |
|
| Storage temperature |
-20~60℃ |
|
| Humidity level |
90% @ 40 °C (condensationless) |
|
| Accessories |
| Typology |
Point |
Standard Configuration |
Optional |
| Power adapter |
Wall Plug-in / Desktop |
Input 100~240V 50/60Hz Output 12V/2.5A DC header 5.5*2.1mm |
|
| Infrared remote |
Unsupported |
|
| VISA Wall Mount |
Support |
|
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity (MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing (outer shell)as you wish, prices will be varied according to the quantity and specification.
