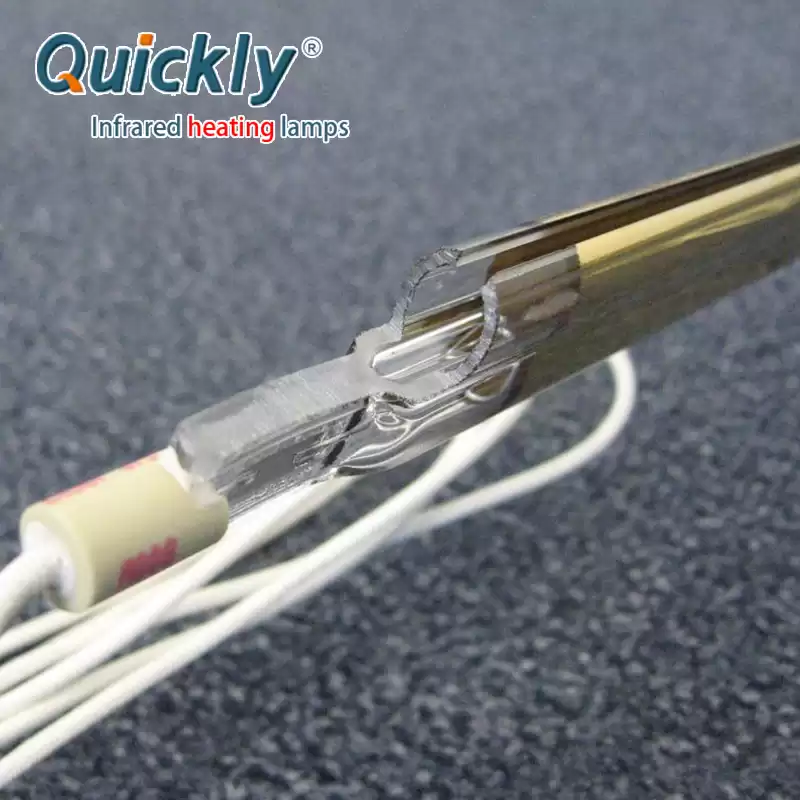

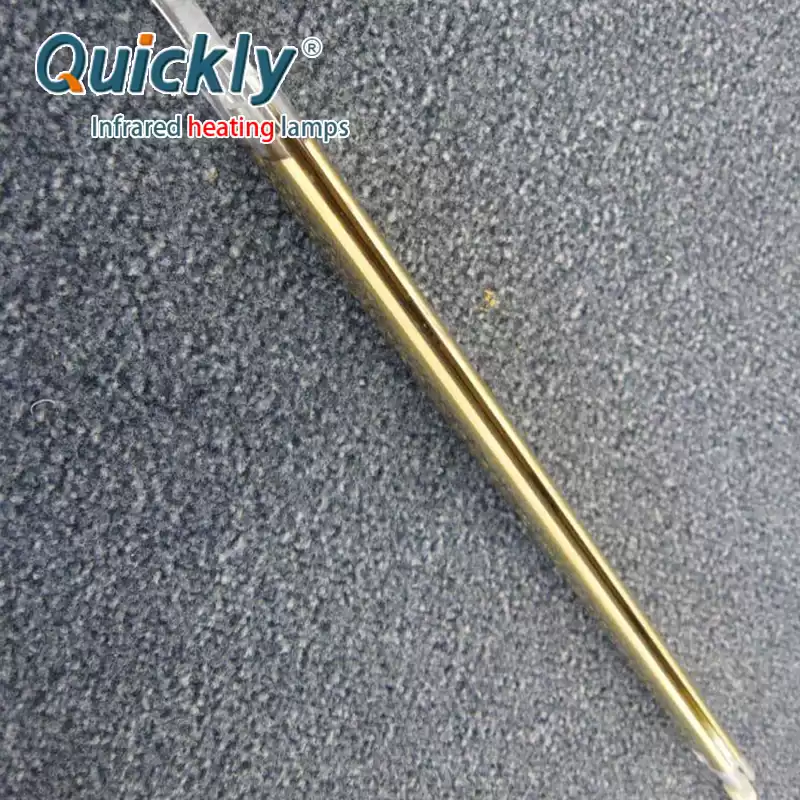

Custom Special Shape Lamps Tube Gold/White Plated Quartz Infrared Heating Emitters For Industry

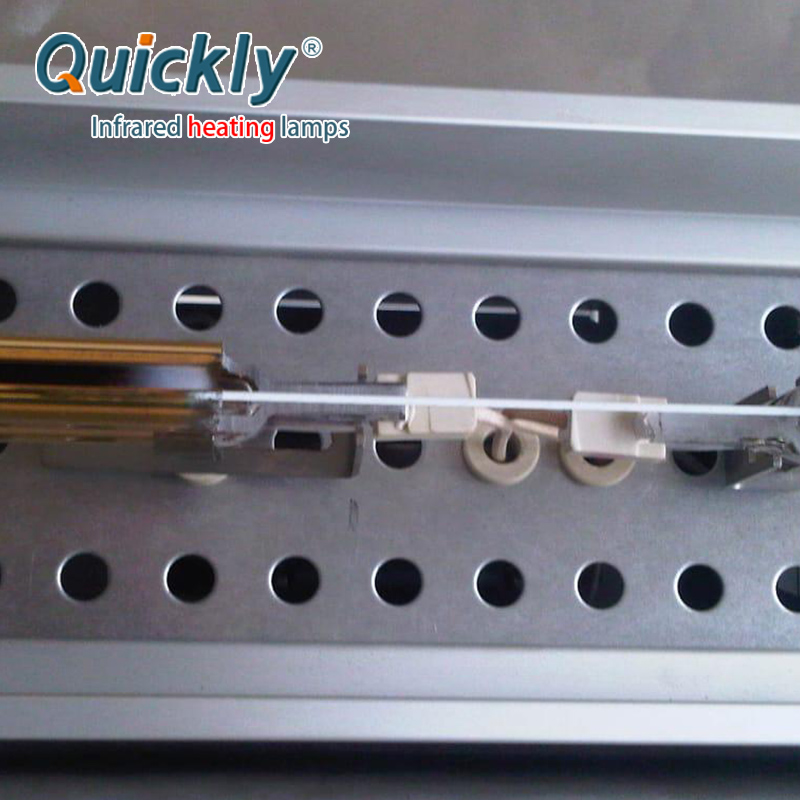

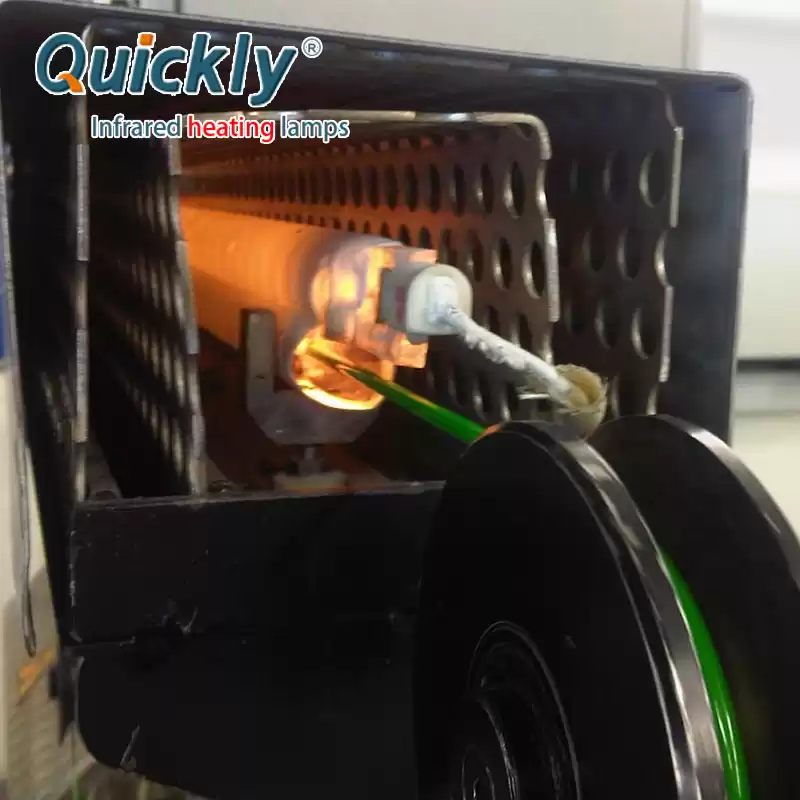

Actual Operation Diagram：
Advantages of special infrared emitters:
※ Directed heating of edges, corners, rims and small surfaces
※ High power on a small area
※ Shut on and off within seconds
※ Automation of complex processes
※ Saves energy because heat is generated only where it is needed.
Quick Details
| Tube Diameter |
33*15mm |
| Total Length |
1100mm |
| Heating Length |
1000mm |
Max Power
|
3000w |
| Connection Type |
lead wire at one or two sides |
| Tube Coating |
gold coating,white coating |
| IR wavelength |
0.75-1.4um |
| Average working life |
5000 hours |
| Response time |
1 second |

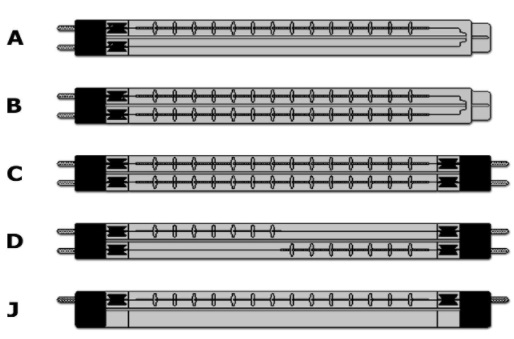

Filament contstruction of twin tube heaters
Twin tube IR emitters with different filament configuration can be made single side cable conneciton or two sides, and different heating channels. this allows an extraordinary flexibility both in term of heated area modularity and cables position. In the picture below there are some of the most common filament configuration.

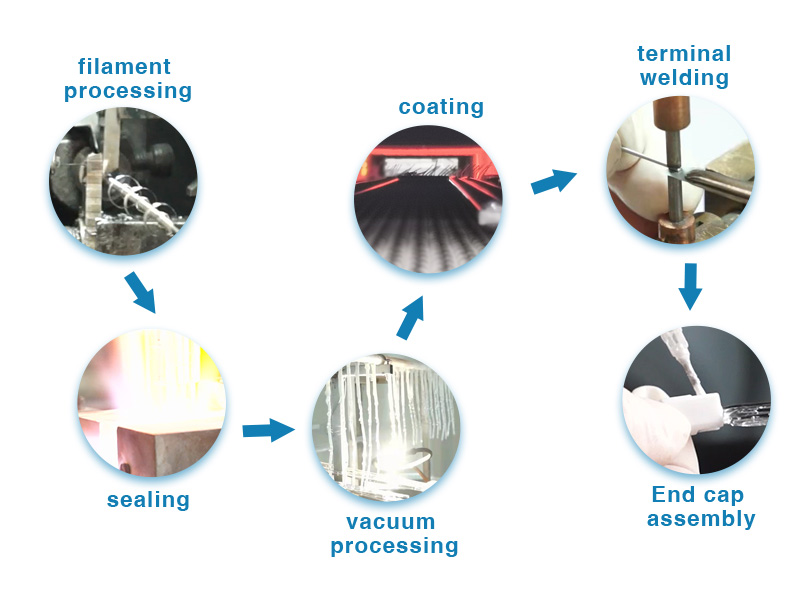

The main processing steps of vaccum infrared emitters

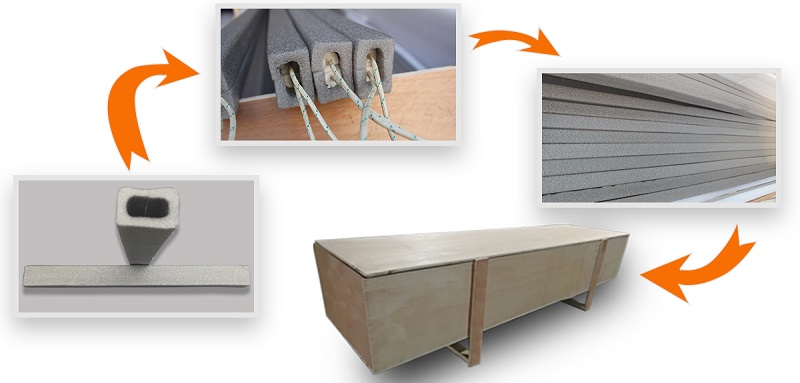

Safe package to protect lamps from being broken during shipping
FAQ
1. how to place the order?
Let us know your required lamp specifications including lamp type,diameter, length, power, voltage,reflector...then we send you the
quotation,after payment,production will be started, after finished, they will be shipped to your side.
2. could you supply clamps for lamp installing ?
Yes, we will provide mounting clamps/clips for clients, and the corresponding clamps quantity with purchased lamps are supplied freely by us.
3. Have an unusual design?
Send us a drawing, sketch, or sample and we'll be happy to quote it.
We specialize in small runs and custom designs, but can be highly competitive on large orders as well.
4.How does your factory do quality control
" quality is priority", we always and keep paying more attention to QC from the material purchasing to the lamps' packing. Our product have gained CE, ROHS, ISO9001.
5. Why coating on quartz tube surface
QUICKLY offers infrared emitters which coated with gold and white reflector , they can emit heat directly to the product. A gold or white coating on the infrared emitters reflects the infrared radiation. Consequently the infrared radiation impinging on the product is virtually doubled, increasing the effectiveness of the heat output.
The reflection efficiency of gold coating is higher than white coating, while for the emitters with high watt density or the surface temperature of the tube above 800°C , we suggest to use ceramic coating as reflector because the temperature resistance is up to 1000°C .
In addition to 180° (half-tube) coating, we also manufacture 270° coating or other customer specified degrees.
