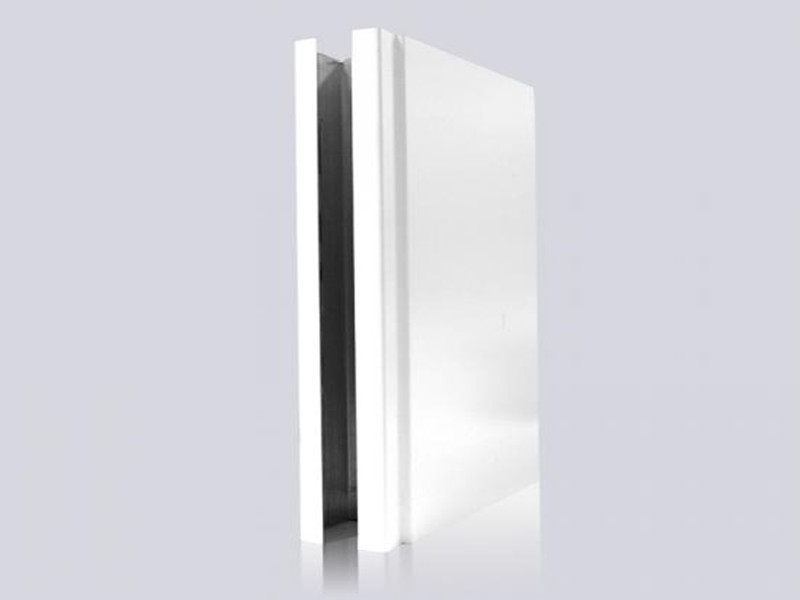

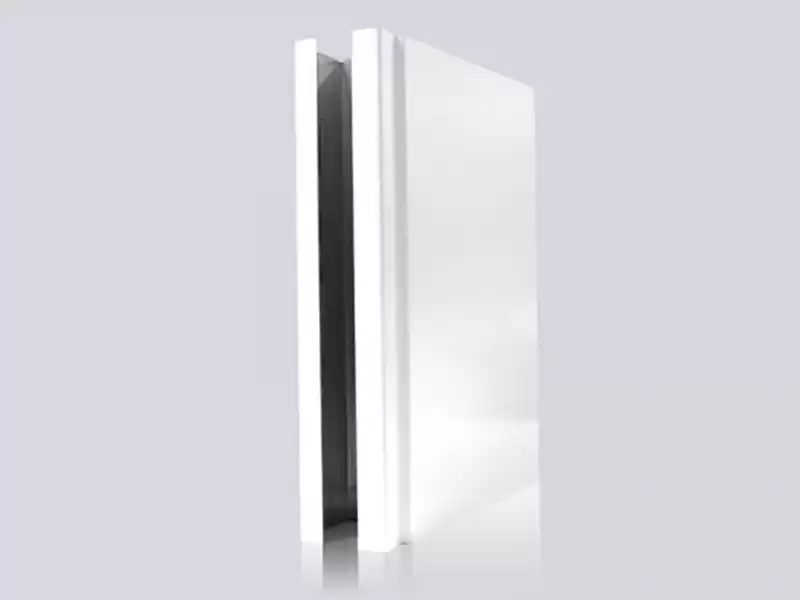

Customization High Strength Modular Clean Room Sandwich Wall Panel for Biological Factory

The product is a customizable modular sandwich wall panel system, which is directly spliced on site, doesn't require aluminum profiles, has a large overall strength, matches the cleanroom door and window system, and is perfectly connected with the sandwich wall panel, which can be applied to the biological clean room.



Customization High Strength Modular Clean Room Sandwich Wall Panel for  Biological Factory


Product Description:

Product Name

Customization High Strength Modular Clean Room Sandwich Wall Panel for  Biological Factory

Width
950mm, 1150mm
Max Length
6000mm

Wall Thickness

50mm, 75mm, 100mm, 150mm

Steel Facer Thickness
0.4-0.8mm

Outer Plate Material

PPGI, Al-mg-Mn Alloy Steel, SS Steel, Ti-Zn Steel, HPL, VCM

Coating

PE, PVDF, HDP

Core Material

PU, Rock Wool, Magnesium Board, Paper Honey Comb, Aluminium Honey Comb, Plaster, EPS, etc.

Frame Thickness
0.6-0.8mm

Application

Pharmaceutical Clean Room, Electronic Clean Room, Food Rlean Room, etc.


Product Advantages:

1.The overall strength of hardwall modular cleanroom is quite high and the product quality is stable.

2.Factory accepts customization.

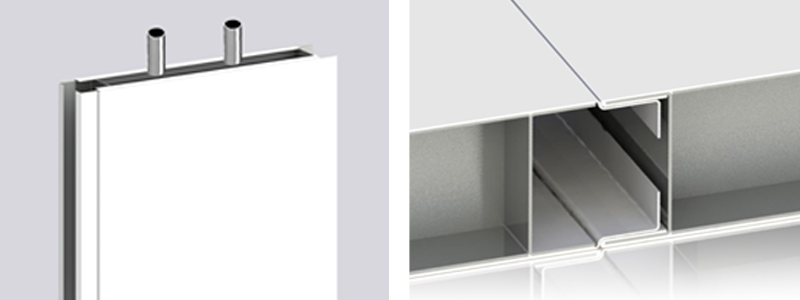

3.Reserved space in the tongue and groove for easy access to PVC pipe.

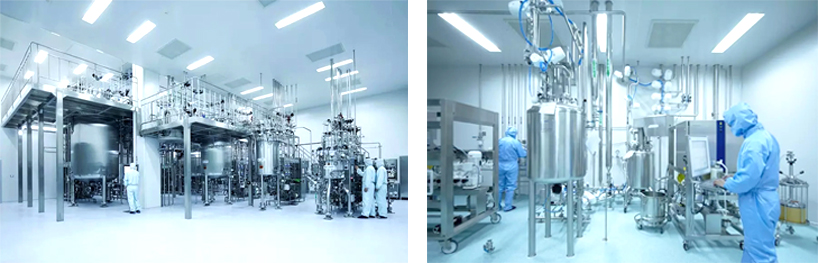

Biological Clean Room Wall Panels

4.The hardwall cleanroom does not need to be connected with the aluminum profile, the clean room wall is inserted into the wall, and the internal space is reserved, which can be directly used as a threading pipe, which is convenient and practical.

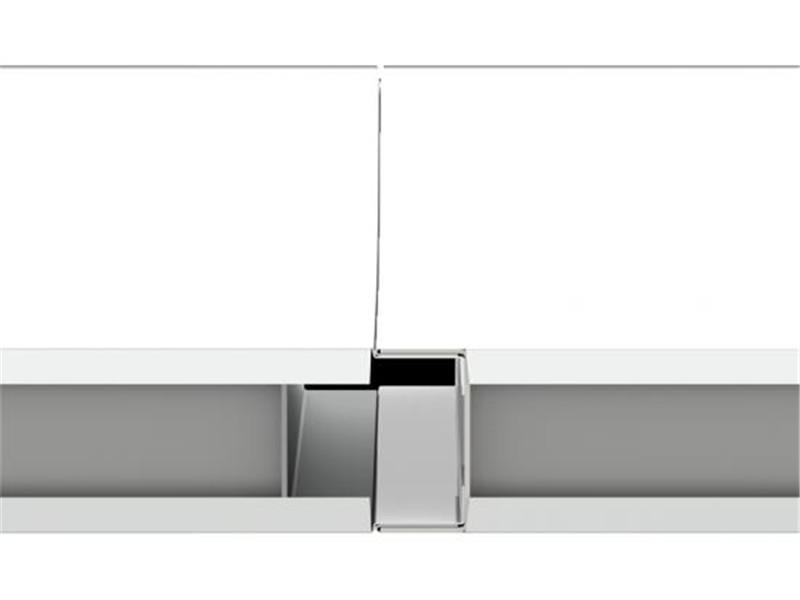

5.Male and Female connection type, Closed seam, suitable in Biology laboratory.

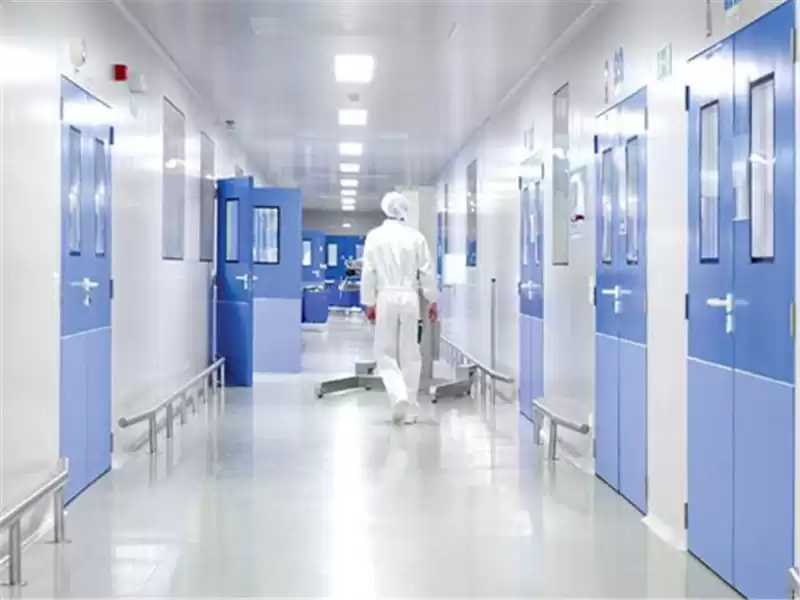

Biological Cleanroom Partition Wall Systems
