Modular Cleanroom Sandwich Wall Panels For Pharmaceutical Clean Room

The modular cleanroom sandwich wall panel system is made of aluminum profiles, various surface steel, factory prefabrication, on-site splicing, modular installation is convenient and fast, mainly used in operating clean room, can be customized according to your different needs.



Modular Cleanroom Sandwich Wall Panels For Pharmaceutical Clean Room


Product Description:

Product Name

Modular Cleanroom Sandwich Wall Panels For Pharmaceutical Clean Room

Width
980mm,1180mm
Max Length
7500mm

Wall Thickness

50mm, 75mm, 100mm, 150mm

Steel Facer Thickness
0.4-0.8mm

Outer Plate Material

PPGI, Al-mg-Mn Alloy Steel, SS Steel, Ti-Zn Steel, HPL, VCM

Coating

PE, PVDF, HDP

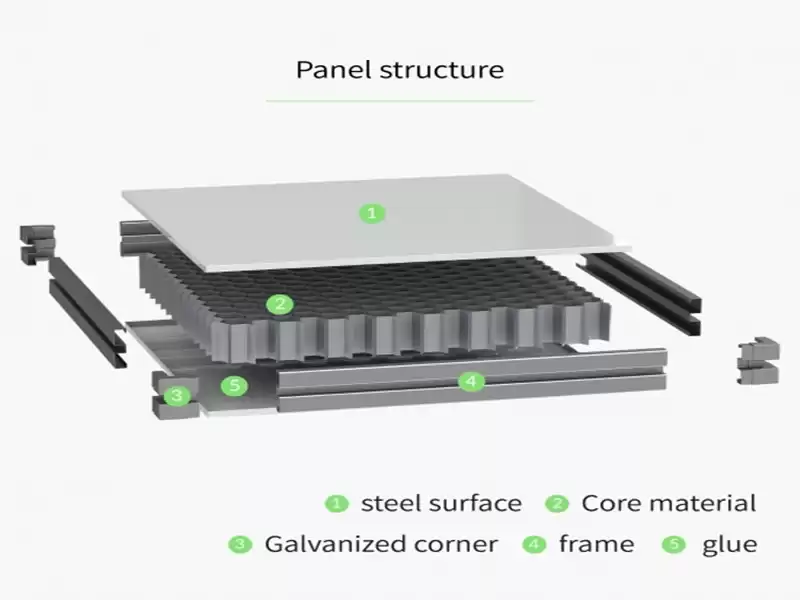

Core Material

PU, Rock Wool, Magnesium Board, Paper Honey Comb, Aluminium Honey Comb, Plaster, EPS, etc.

Frame Thickness
0.6-0.8mm

Application

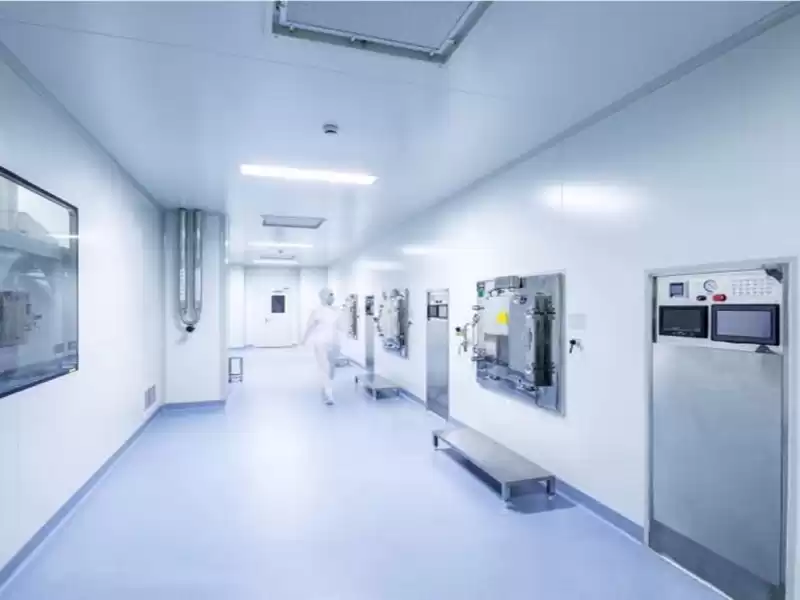

Pharmaceutical Clean Room, Electronic Clean Room, Food Clean Room, etc.


Product Advantages:

1.Core material fire rating can be viewed.

2.The cleanroom sandwich wall panel system is used with aluminum profiles, modular installation, convenient and fast, non-standard sandwich panels can be customized.

3.Factory accepts customization.

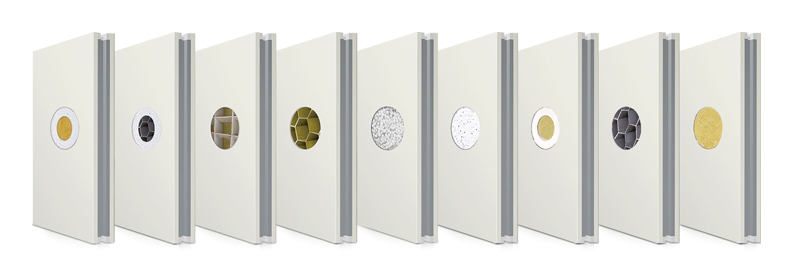

Clean Room Sandwich Wall Panel

4.Diversified core material for different environments, fire protection, insulation, noise reduction, moisture resistance.

5.The factory offers 6 different steel to provide customers with more services.

6.The cleanroom wall panel, strength, flatness and aesthetics of the cleanroom board are greatly improved, and the product quality is more stable.

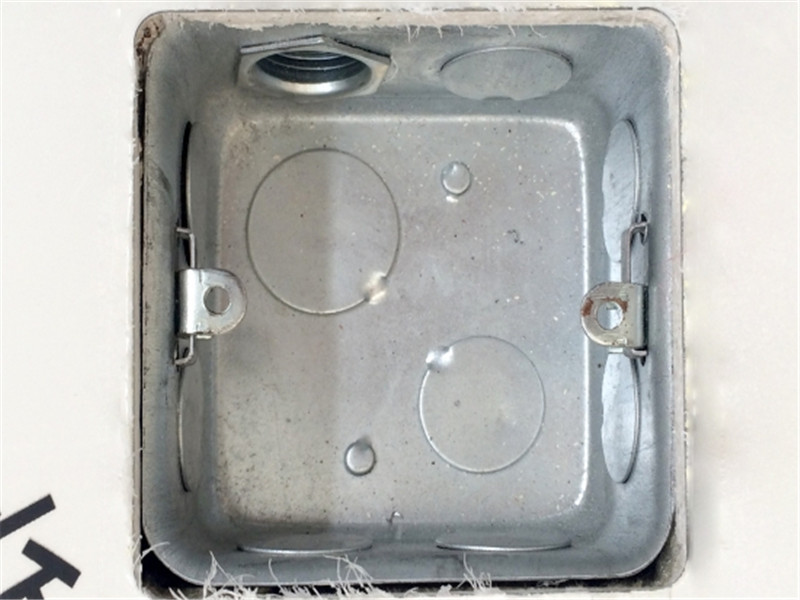

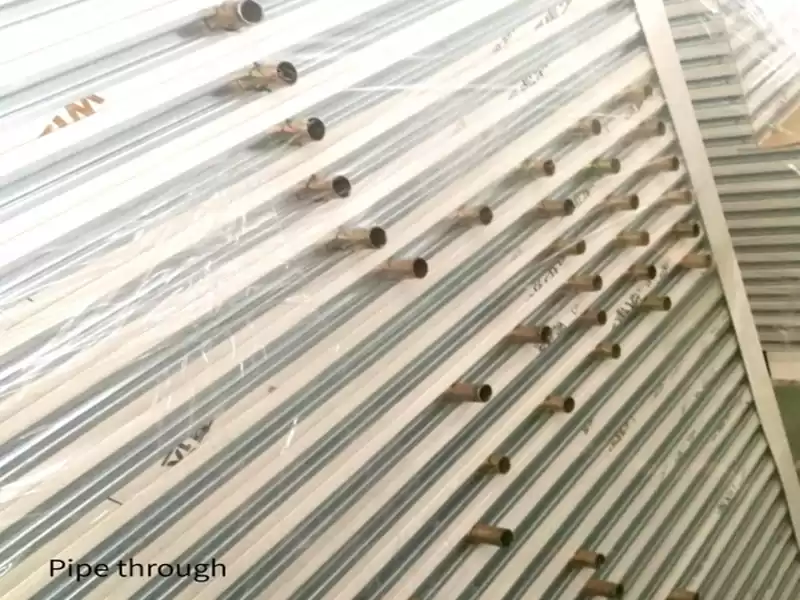

7.The hole reinforcement reservation and the line pipeline box are pre-assembled into the interior of the board in the factory, effectively reducing the secondary pollution during use, especially in the operating room.

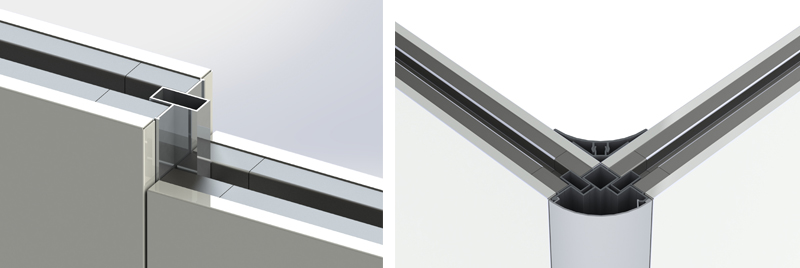

50mm Rock Wool Sandwich Panel for Cleanroom



Production Technology:

1.Self-developed and researched No.1 Automatic production line for cleanroom sandwich wall partition systems.

2.High-efficiency production line increases production capacity by 6 to 8 times.

3.Accurately measure and control sheet metal forming, gluing, core filling, composite molding and finished palletizing.

Cleanroom Sandwich Panel for Partition
