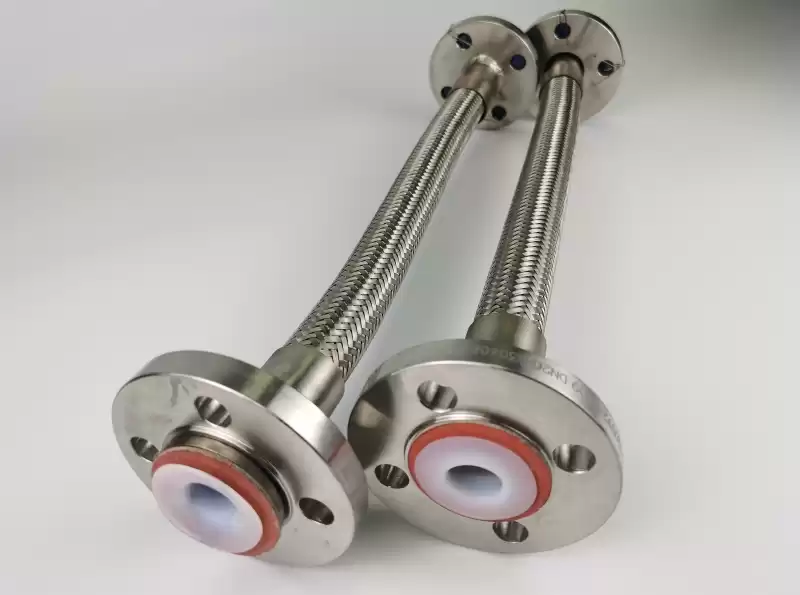

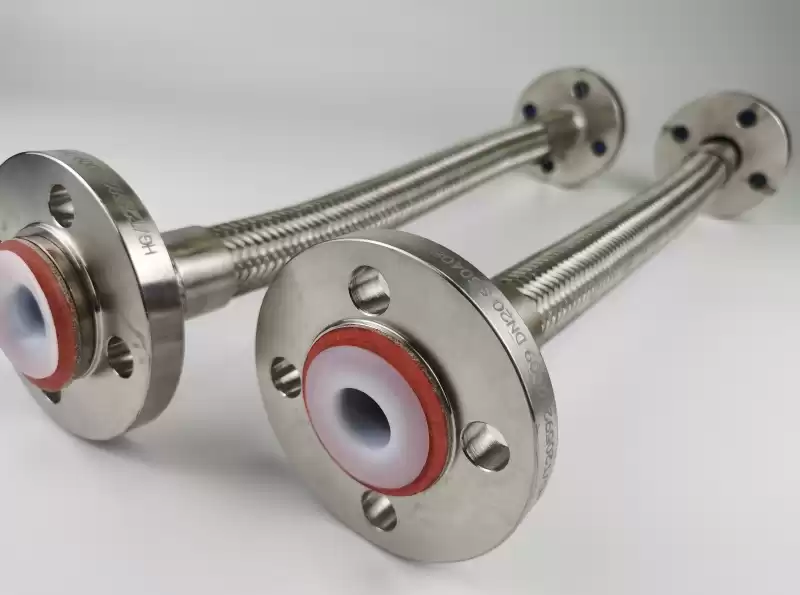

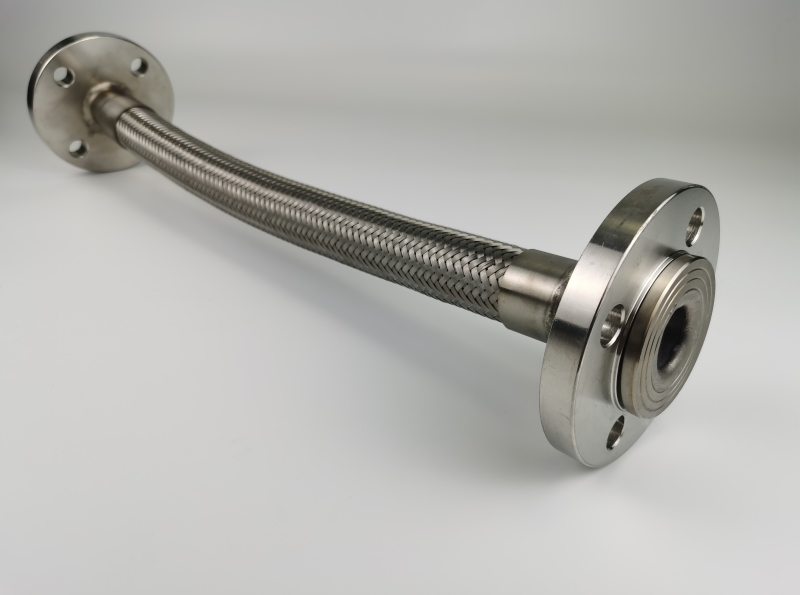

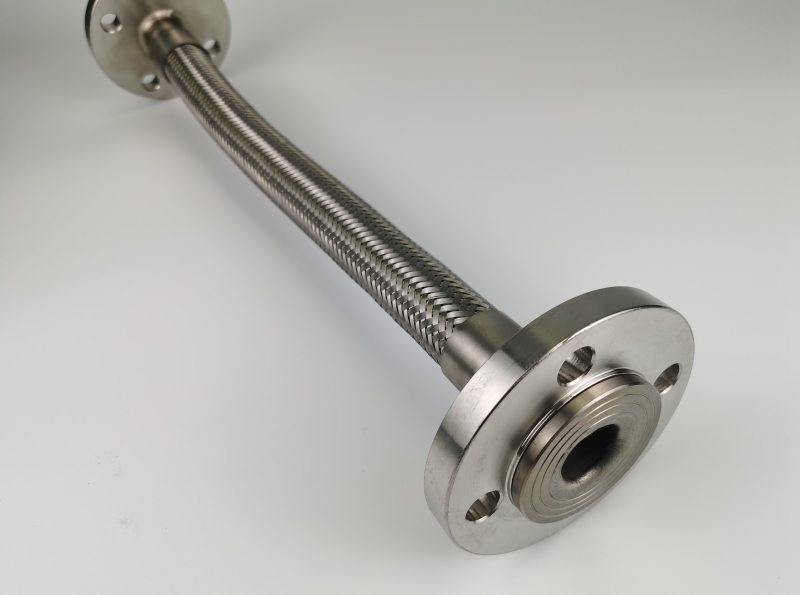

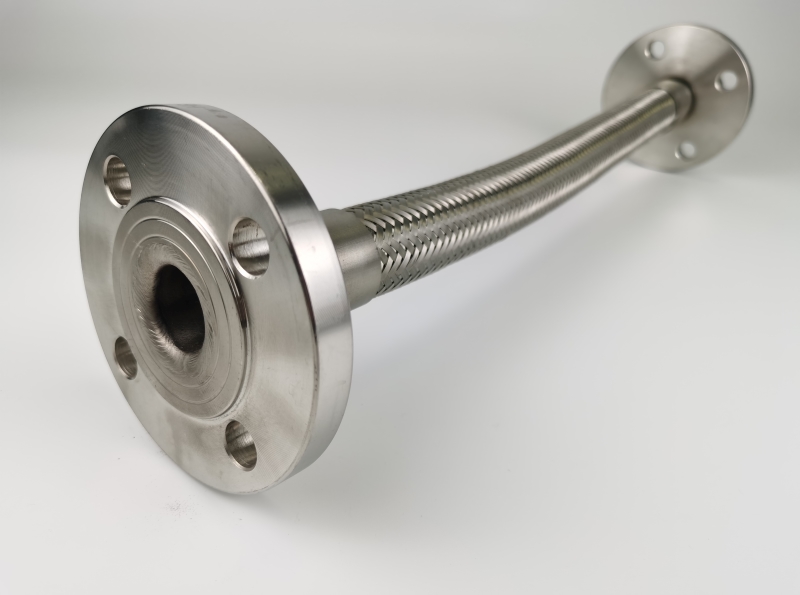

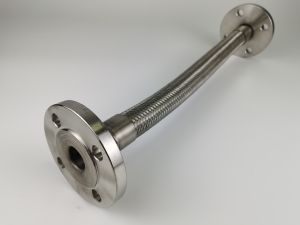

Customized Braided Flange Flexible Hose

Feature can offer Customized Braided flange Flexible Metal Hose maintain the high quality of all types and sizes, delivery on-time and non-standard custom long-term steady supply reliable qualified and stable supplier.



Customized Braided Flange Flexible Hose


Feature Hose can customizable all types and sizes braided flexible metal hoses for the super fundermentals. Costomized with specific design, such as I.D, O.D, Lenth, Connects, Material, Printed Tag, Package, etc. Any buyer's requirements what you wanted can be Designed and manufactured.


The Braided flanged Flexible Metal Hoses are important soft connections in industrial pipelines, the flanges connectors are flat welding flanges and loose sleeve flanges. Flat welding flanges are generally used in short pipe connections, while loose sleeve flanges are used in long pipe connections to make up for the defect of mismatch between the flange holes at both ends caused by the long pipe distance. Flange material is generally: carbon steel, cast steel, stainless steel.


Metal Corrugated Hose are generally made of 304, 316, 316L stainless steel, with good pressure resistance, high and low temperature resistance, corrosion resistance and fatigue resistance. The suitable medium of metal hose is water, hot water, steam, gas, air, petroleum, chemicals and so on. According to the different medium can choose different grades of stainless steel corrugated hose.


Construction of Flexible Metal Hose Assemblies:

Joint: Flange

  • Flange material  is generally: carbon steel, cast steel, stainless steel.

  • Both ends of connectors are movable flange connection and fixed flange connection

Inner Core: Corrugated Stainless Steel

  • Flexible metal hose materials are available in 304, 321 and 316L stainless steel.

  • Annular corrugated/ spiral corrugated option available upon requirement.

  • Stainless steel bellows formed into corrugations parallel to one another.

Outer Core: Braided Stainless Steel Layers

  • Braided Flexible Metal Hose with single or double braided layers.

  • The material of the layers are generally the same as that of the corrugated bellows, included 304, 321 and 316L stainless steel.

  • The braided layers plays the role of strengthening and shielding.



Customized Braided Flange Flexible Hose features:

1.The hose body is thin-walled stainless steel pipe body hydraulic, with strong flexibility, scalability, bending and ability to strengthen the protection of woven net sleeve, so that it has a higher bearing capacity.

2.Suitable for all kinds of complex, bad indoor and outdoor environment.

3.The product is not only suitable for supporting with rotary joint, but also widely used in a variety of fluid medium conveying soft connection.


All proesses Certificated by ISO9001, all products 100% qualified before shipping.


Installation:

Flexible Metal Hose can be installed horizontally, vertically or diagonally, ideally vertically, and should be avoided near wheels, with a baffle if necessary.


Product Standards:

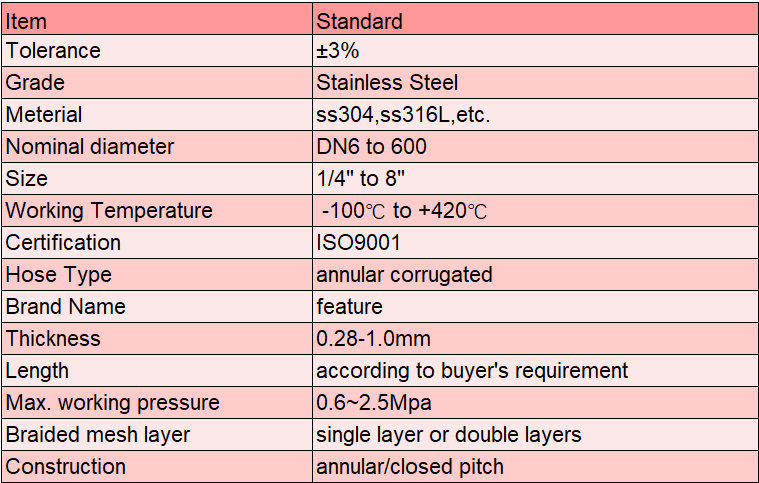

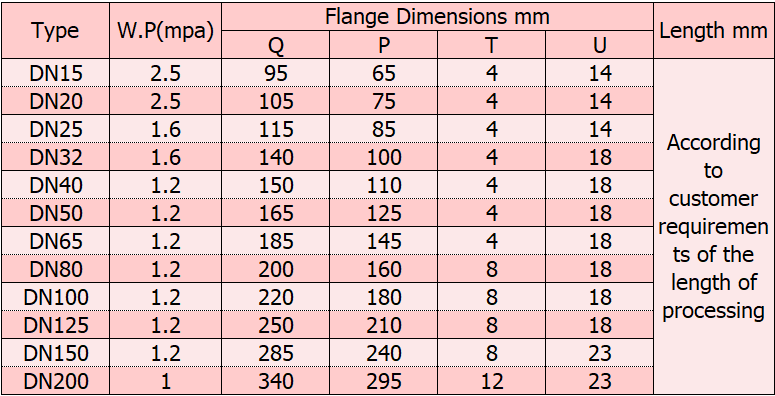

Flange Flexible Metal Hose Performance Parameters As Below:



Custom Service:

1.Costomized with specific design, such as I.D, O.D, Lenth, Connects, Material, Printed Tag, Package, etc.

2.OEM/ODM service can provide what you wanted and custom design printed to your specification.

3.Purchas a free sample order for test quality before place on full order.
