220v ac to 385v dc power supply 400w
Description:
This K18-UP400S series switching power supplies is suitable for use in telecommunications, networking, test and measurement, IT applications, general electronics, low profile systems, automation, POS, motor based machinery and non patient contact medical equipment.
Features:
1, 385V 1.04A switching power supply;
2, 220V AC to 385V DC power supply with wide range of AC input voltage;
3, It have short circuit, over load, over voltage protection;
4, 385V 1.04A power supply widely used to the stage lights,beauty products and other equipments etc;
5. This model includes filters, low output noise.
|
parameter
|
|
Item No.
|
K18-UP400S
|
|
CH1
|
|
Output
|
Output Voltage
|
+385V
|
|
Rated Current
|
1.04A
|
|
Current Range
|
0-1.04A
|
|
Rated power
|
400.4W
|
|
Ripple
|
3Vp-p
|
|
Adjustable output range
|
------
|
|
Output Accuracy
|
±2%
|
|
Line Regulation
|
±1%
|
|
Load Regulation
|
±1%
|
|
Set up,Rise,Keep up time
|
500ms,50ms,20ms
|
|
Input
|
Input Voltage range
|
90-264V AC
|
|
Input current
|
2A @ 220V AC
|
|
Input frequency
|
47-63 Hz
|
|
Efficiency
|
>95% @ 220V AC;>92% @ 110V AC
|
|
Power factory
|
>0.99@110V;>0.95@220V
|
|
Inrush current
|
Cold start15A/115V，30A/230V
|
|
Leakage Current
|
<0.35mA@240V AC
|
|
Protection
|
Over load
|
110~200%,Hiccup,automatic recovery
|
|
Output overvoltage
|
------
|
|
Over Temp.
|
Cover temp.>95℃，output closed,automatic recovery
|
|
Environment
|
Working Temp.,Humidity
|
-20~50℃，10~90% RH，No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃，10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety&EMC Standards
|
Safety standards
|
GB4943,EN60950-1
|
|
Pressure
|
I/P-FG:1.5KVAC
|
|
Insulation resistance
|
I/P-FG:500VDC / 100M Ohms
|
|
EMC standards
|
MEET EN55022 CLASS B，EN61000-3-2
|
|
Others
|
Demension
|
127*82*40mm
|
|
Weight
|
0.5Kg
|
|
Note
|
1. 1. All parameters 220V AC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. 2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. 3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. 4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output from 0% to 100% load change load measured
|

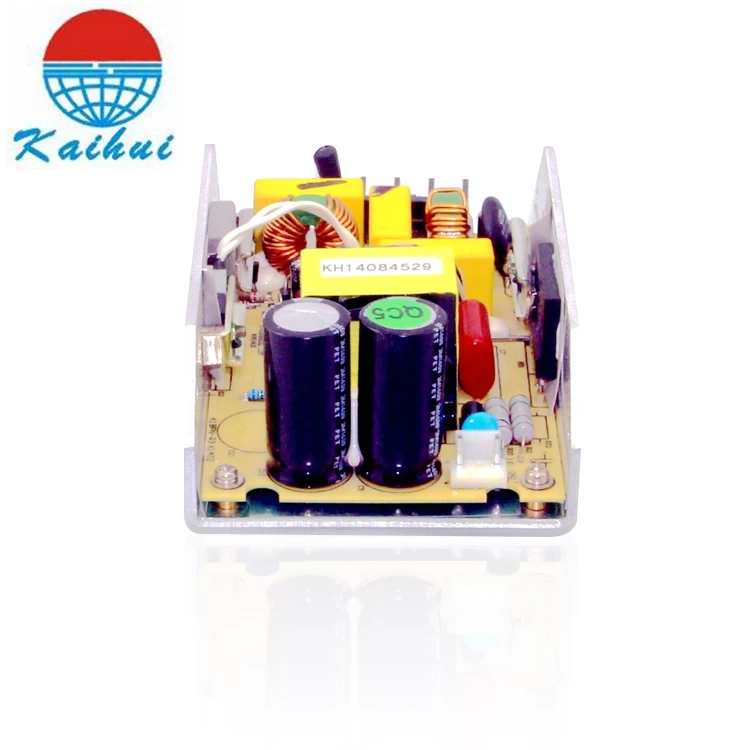

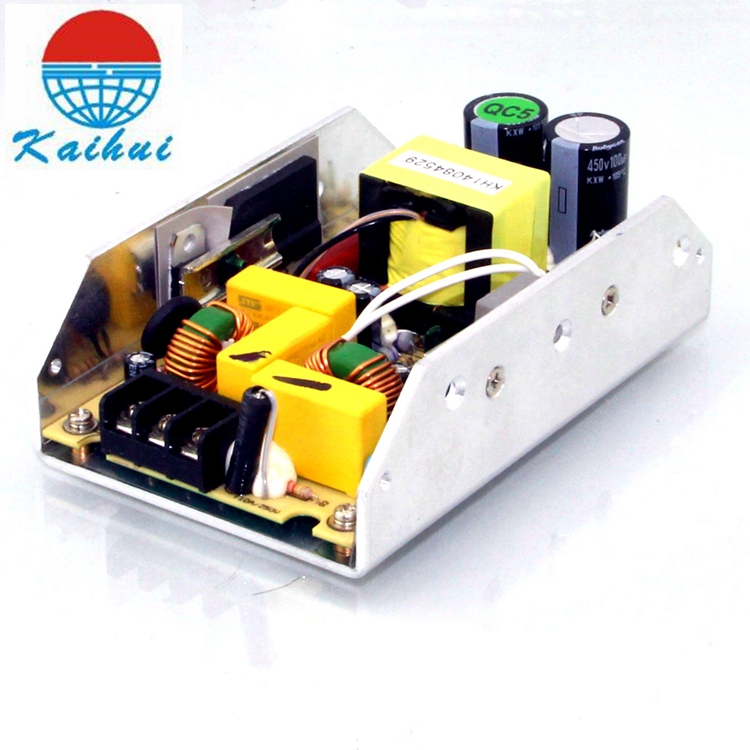

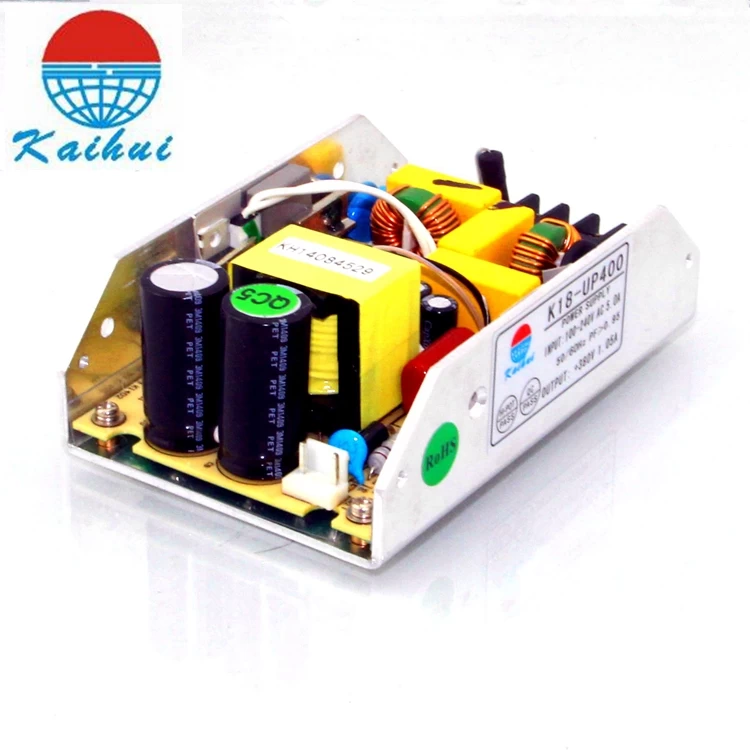

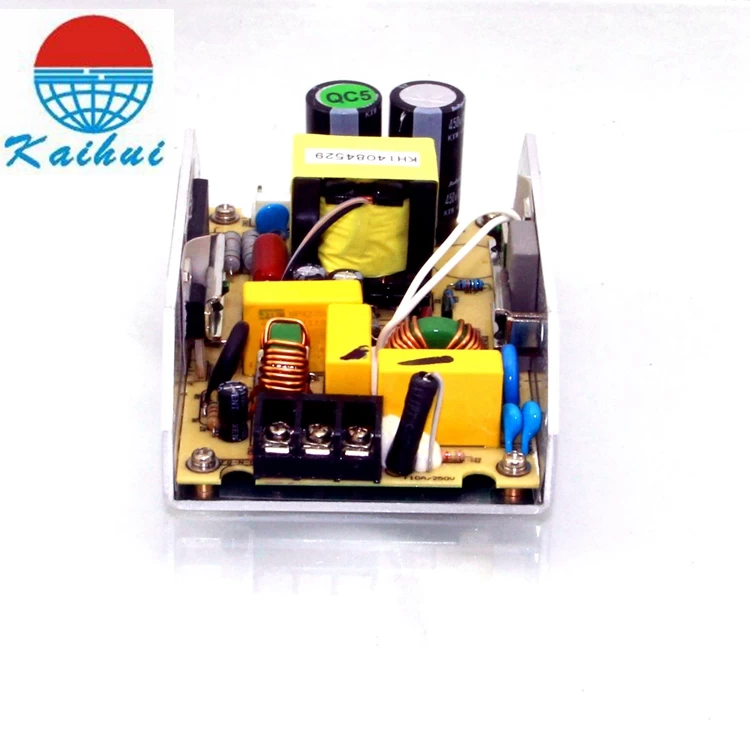

Product picture:
FAQ
Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you accept OEM/ODM for the switching power supply ?
A2: Yes. we do.
Q3:How about the quality?
A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%
Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)
Real Power= Input Voltage x Input Current x Power Factor (W)
