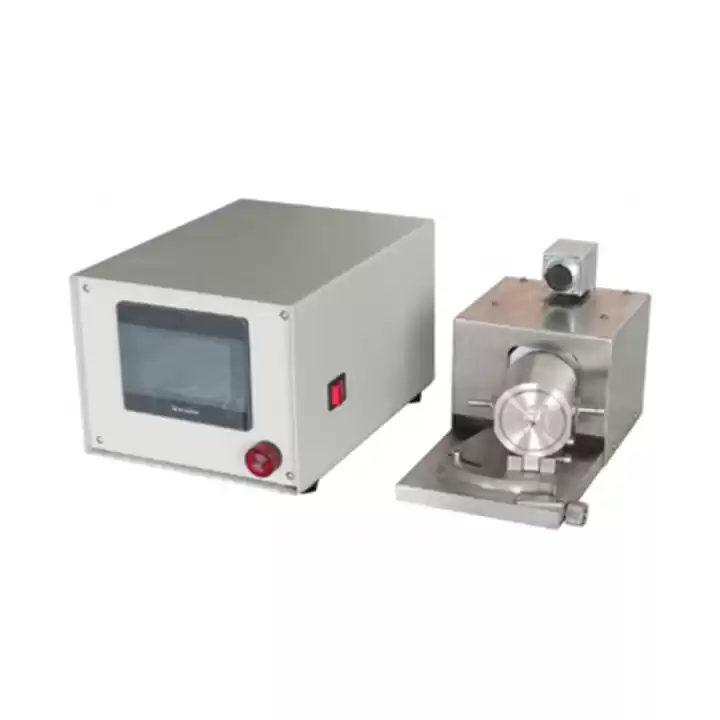

Cylinder Cell Battery Electrolyte Injection machine With Filling Pump System and Electronic Control Box
TMAX-JLB-10 Electrolyte Filling pump system includes an electronic control box, a stepper motor, and A high-precision rotating fluid reciprocating pump made by special ceramic. It is used for multiple high precision spraying/lithium battery liquid injection system
|
Model
|
Electrolyte Filling Pump System TMAX-JLB-10
|
|
Warranty
|
Two years limited and lifetime support
|
|
Type
|
Rotating reciprocating positive displacement special ceramic injection pump
|
|
Speed
|
1-800 rpm, According to system configuration and fluid characteristics
For battery industry, 60-200rpm is best
|
|
Stroke number
|
1-9999times, According to system configuration and fluid characteristics
|
|
Filling range
|
0-2.4ml adjustable
|
|
Filling accuracy
|
Within 3‰
|
|
Source voltage
|
AC110-240V, 50/60HZ Single phase
|
|
Power
|
200W
|
|
Dimension (L*W*H)
|
Controller box : 340*300*145mm
Filling device : 250*200*160mm
|
