Cylindrical Cell Battery Pack Assembly Plant For 14500 18650 21700 26650 32650 Cylindrical Cell

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164



  • Warranty Two years limited warranty with lifetime technical support
  • Certificate CE, IOS, ROHS, SGS, UL Certificate

Cylindrical Cell Battery Pack Assembly Plant For 14500 18650 21700 26650 32650 Cylindrical Cell

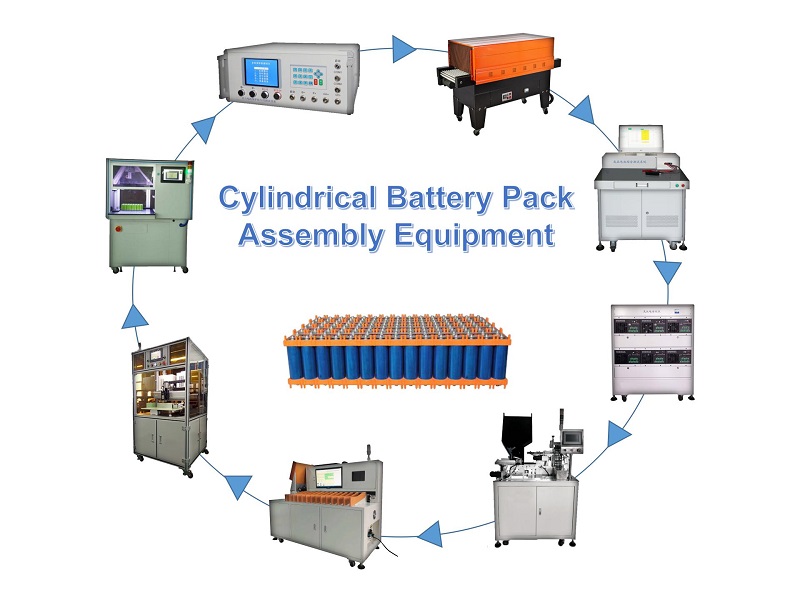

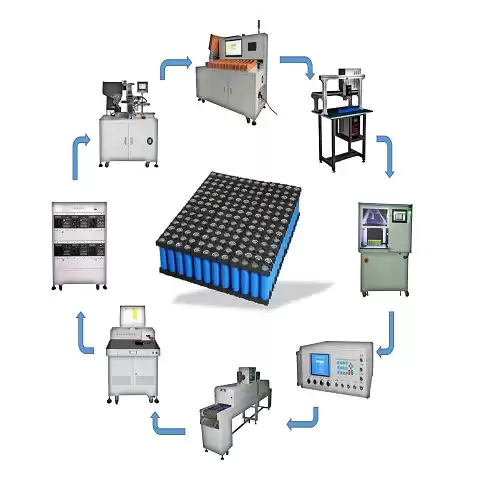

Pack Process

The lithium battery pack consists of cylindrical cells, battery protection board, connecting nickel sheet, leading out nickel sheet, green paper accessories, insulating paper, wire or plug wire, PVC outer package or shell, output (including connector), key switch, power indicator, EVA, highland barley paper, plastic support and other auxiliary materials

Process Characteristics :

1.Adopt qualified lithium battery

2. Low internal resistance and good consistency

3. The structure of the battery adopts ventilation design, and the space between the two adjacent batteries is not less than 2mm. This structure requires the use of plastic bracket to fix the battery.

4. Pack battery factory uses slotted nickel strips in spot welding, the size of nickel strip meets the requirements of high current discharge, the nickel strip material ensures low internal resistance, the spot welding machine ensures stable operation, and the welding needle ensures quality.

5. Different batches of batteries are made into typical finished products and life tests are carried out. When the experience of lithium battery pack design specification is summarized, the battery finished products are tested to get the actual cycle life.





Important process:

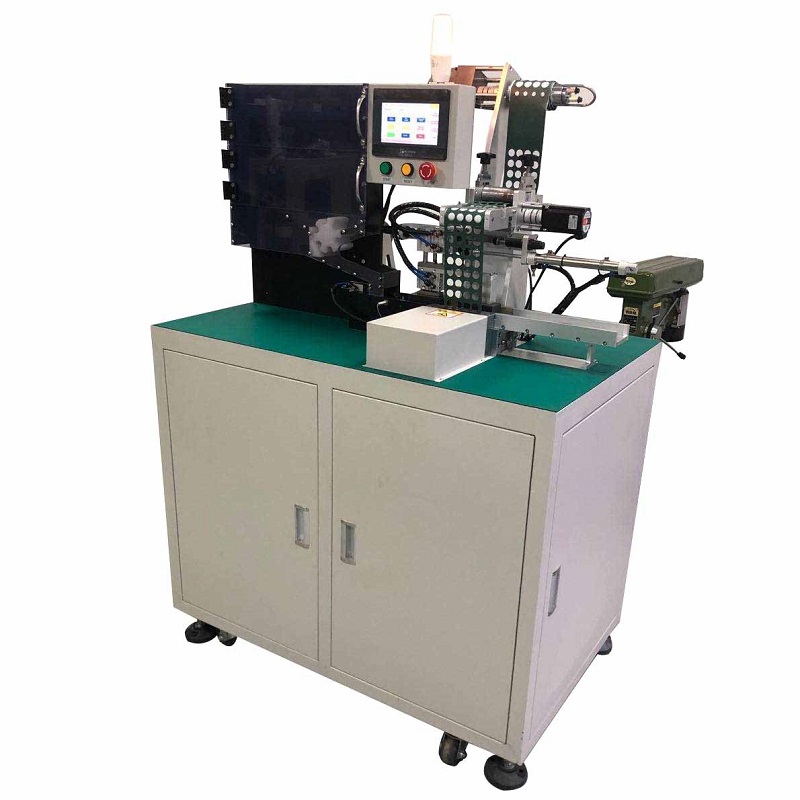

Lithium Battery Highland Barley Paper Machine

Highland barley paper has good insulation, water resistance and wear resistance. When the lithium battery is working, the positive pole of the battery should be prevented from colliding with the positive pole, causing short circuit or preventing dust from entering the gap.


First of all, the cells should be separated and paired before assembly, in order to ensure that there are no defective products.

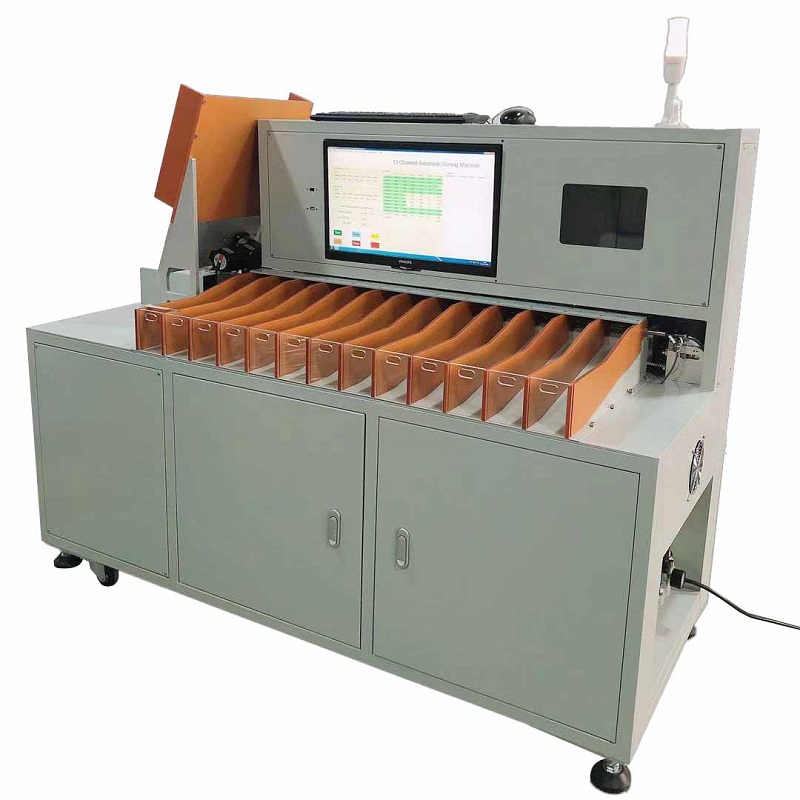

The lithium battery sorter can be set to multiple gears through the upper and lower limits of internal resistance. The resistance is adjustable, and the adjustment mode is diversified and fast. It is equipped with imported voltage internal resistance tester, integrated PC, high-end drive, all electric motor configuration; Process detection signal comprehensive and bid farewell to a single industrial machine.


Our company manufactures various types of Li ion battery equipment. We welcome your contacts from any place of world.




For lithium battery spot welder, the thickness and material of welding workpiece have great influence on welding parameters. The welding electrode head of different materials and structures should be selected according to the thickness, sheet and material of the battery.

If the distance between the welding electrode tips is too large, the welding power will increase, and the required energy will increase accordingly. Generally, the distance between the two electrode tips is adjusted to 3mm, and the clamp of lithium battery needs to be paved with nickel sheet.

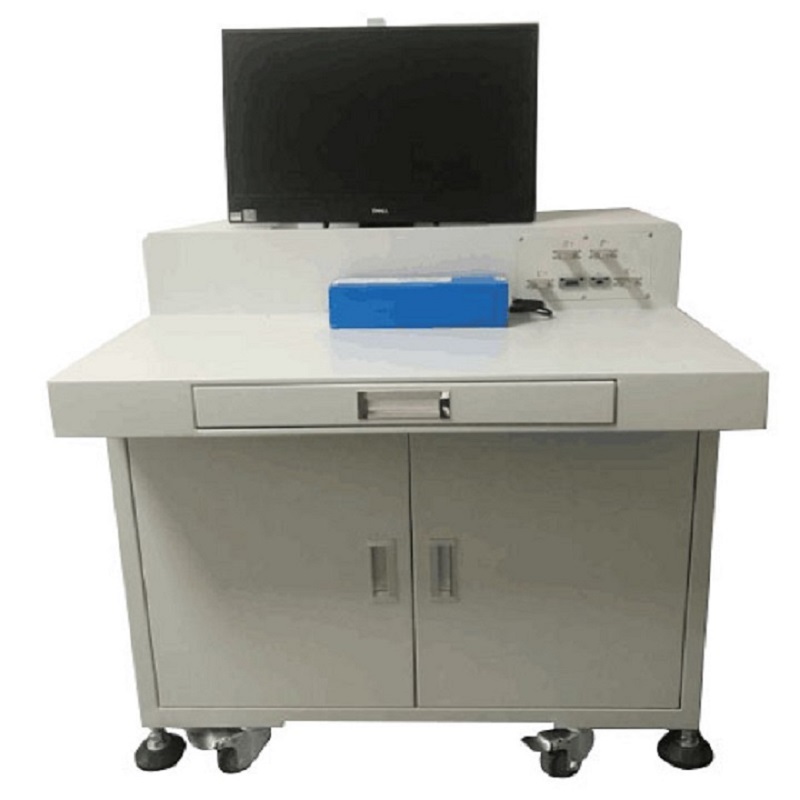

Lithium Battery Comprehensive Tester

The integrated tester can measure the open circuit voltage, internal resistance, charging and discharging performance, battery capacity, especially the function of lithium battery, overcharge protection, over discharge protection, over current protection, short circuit protection, etc., and measure the corresponding values.

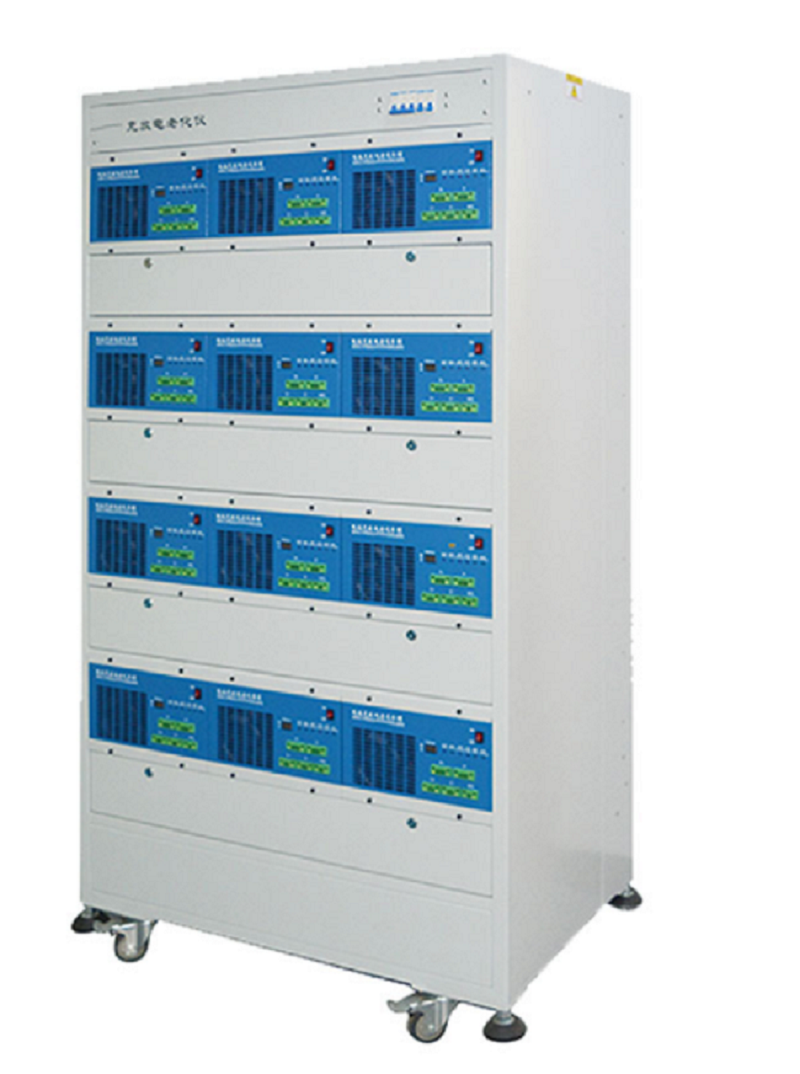

Battery Aging Cabinet is used to simulate how long the battery pack can be fully charged.




 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
