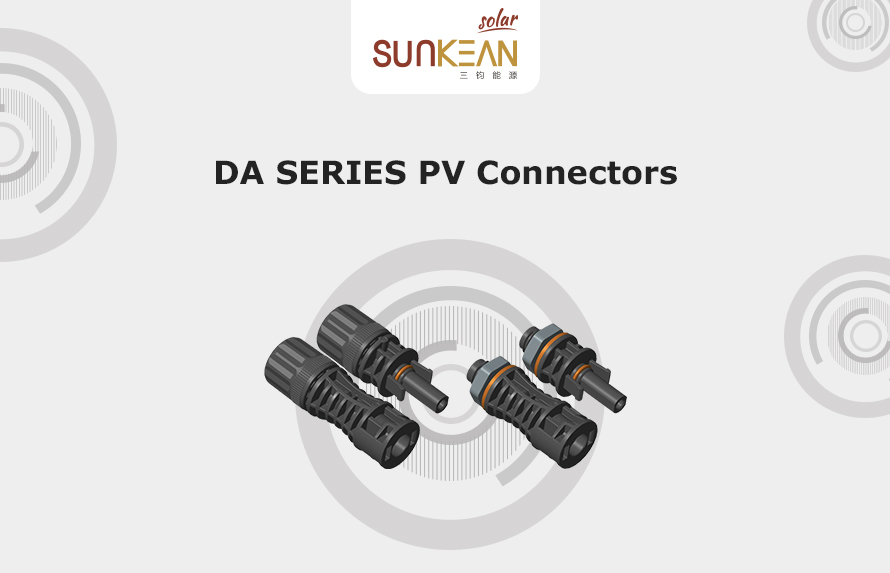

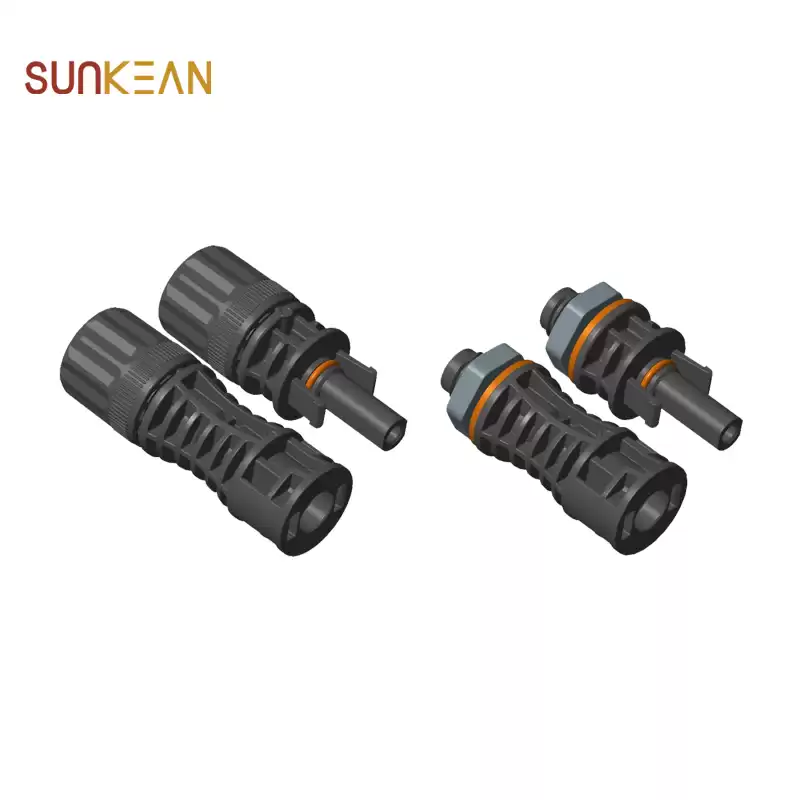

DA SERIES Solar PV connectors
*Low contact resistance & high rated current (80A Max).
*600N tensile strength both cable & panel connector .
*RoHS,REACH,HALOGEN-FREE compliant , long-term resistance.
Product Characteristics:
|
Model No.
|
SKE-DA
|
Standard
|
IEC 62852 & UL6703
|
Rated Voltage
|
TÜV /UL 1500V DC
|
Rated Current
|
* 40A Max ( 14AWG/2.5mm²）
* 45A Max ( 12AWG/4.0mm²）
* 55A Max ( 10AWG/6.0mm²）
* 80A Max ( 8AWG/10.0mm²)
|
|
Contact Resistance
|
0.25mΏ TYP
|
Operation Temp
|
-40°C-+85°C
|
|
Protection Degree
|
IP68 mated & IP2X unmated
|

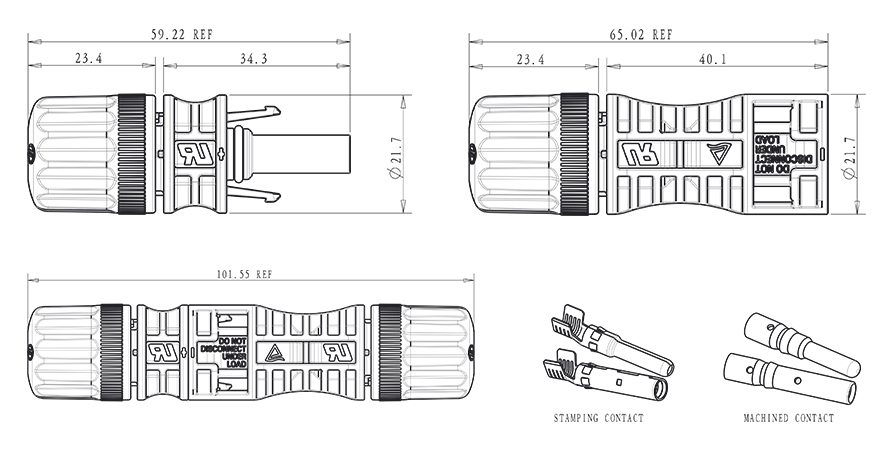

Contact Style
|

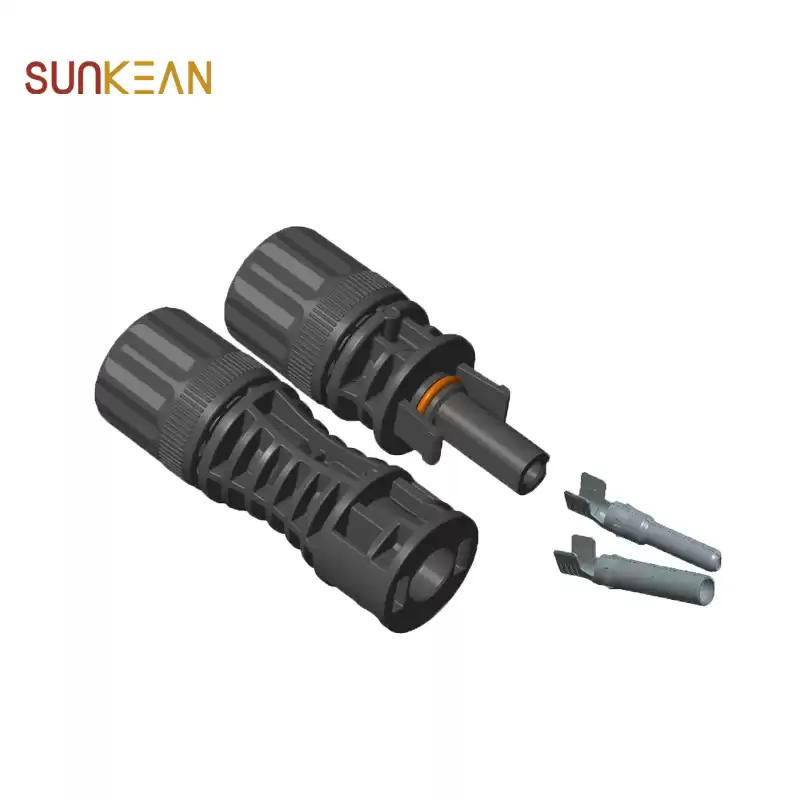

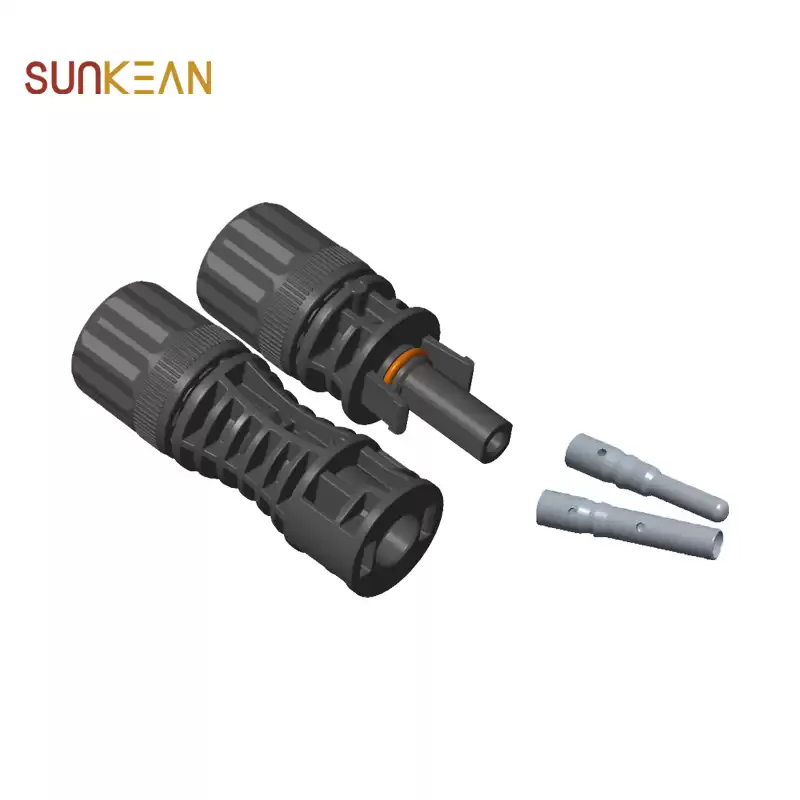

Stamping formed /Machined
|
|
Flame Class
|
UL94 V-0
|
Safety Class
|
II
|
Packing & Delivery:
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Application Scenario:
Global Exhibitions:
Company Profile:
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover half cut cells pv module, solar cables, solar extension cables , PV connectors, Single phase inverters, rooftop solar mounting etc solar products .
SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
FAQ:
Q: How could i get the sample ?
A: We have different kinds of XLPE insulation pv solar cable,photovoltaic cable,xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
