DA58T CNC Hydraulic Press Brake

DA58T CNC Hydraulic Press Brake,

2D graphic touch screen programming mode 15" high-resolution TFT true color display bending process calculation,The deflection compensation control,The servo and the inverter control mode,Advanced Y axis control algorithm,can control closed loop valve,also can open loop control valve,The USB interface.

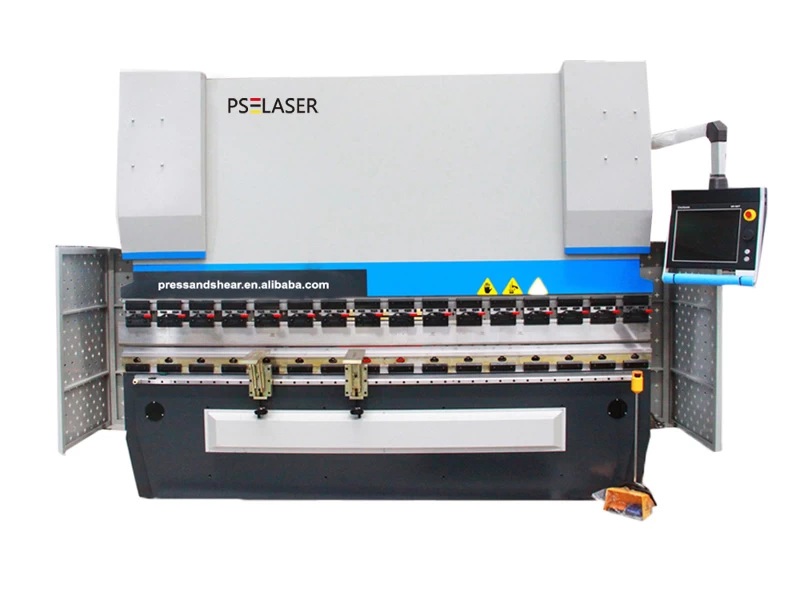

Product Item: DA58T Hydraulic Press Brake


1. Main Features:

1. New industry design combined with modern aesthetic concept, high-quality production technology, simple appearance.

2. Latest high-frequency responding hydraulic control technology, faster, more efficient and high precision

3. Heat treatment of the rack, rigidity optimization verification on entire machine and the application of hydraulic compensation structure jointly ensure the bending precision of MB8 series Press Brakes.

4. Optimal ratio of parameters and top-level core configuration ensure stable performance, and easy operation.

5.MB8 standard 2 shafts back gauge system, as to complex shape work pieces ,4 or 5 shafts back gauge system and corresponding dies are available for your option.

6. Press Brake using fully closed-loop electro-hydraulic servo control technology, slider position signals can be feedback to NC system by bilateral gratings, then NC system adjusts the amount of fuel tank by changing the synchronous valve opening size, hereby controlling the slider(Y1,Y2)running on the same frequency, maintaining the parallel state of the worktable.

7. According to state of sheet metal on the Press Brake, CNC system can automatically control the table deflection compensation yielding uniform length of all work piece angles.

8. The use of hydraulic deflection compensation gives access to uniform full length work pieces. Hydraulic deflection compensation consists of a set of oil cylinders under the worktable, which can make the table occurs relative movement and form an ideal convex curve, ensuring the relative position relations with slider keep unchanged. Compensation values are subject to plate thickness and properties of material to be cut.


2. Main Configuration:

● Adopting Holland DELEM DA58T CNC controller

● Grating ruler controls depth of Y1 and Y2 axis(Y 1 / Y 2-axis 0.01mm)

● Servo motor drive and control X axis(X-axis 0.01mm), manually adjusts R axis, stop finger can be easily moved along the cylindrical guide.

● HIWIN ball screw and linear guide rail accuracy of 0.01mm

● Front supporter can be moved along the linear guide rail in the worktable direction

● Germany Rexroth closed-loop electro-hydraulic servo synchronously controls the system

● Germany EMB oil tube connectors

● Germany Siemens main motor

● France Schneider Electrics

● Hydraulic and electrical overload protection

● Upper are mechanical fast pinching dies. Lower are double-V quick changing dies


3. Safety Standards:

1.EN 12622:2009 + A1:2013

2.EN ISO 12100:2010

3.EN 60204-1:2006+A1:2009

● Front finger protection device ( safety light curtain )

● South Korea KACON pedal switch ( 4 security grade )

● Back metal safeguard, CE standard

● Safety relay monitors completed with pedal switch, safety protection devices

● Safety standard(2006/42/EC)


4. Holland Delem DA58T Controller:

● 2D touch graphic programming

● 15’’ high resolution TDT color display

● Bending process calculation

● Deflection crowning control

● Servo and converter control model

● Advanced Y axis control algorithm, which can control the closed-loop valve, also can control the open-loop valve.

● USB interface

● Profile-58TL off-line programming software

5.CNC Hydraulic Press Brake Technical Parameters:

Models
Nomal
Pressure
(Kn)
Length
 of Table
 (mm)
Distance Between
 Housing (mm)
Throat
Depth
(mm)
Stroke
(mm)
Open Hight
 (mm)
Main Motor
 (Kw)
Weight (t)
Overall
Dimensions
(L*W*H) (mm)
63/2500 630 2500 2000 320 150 380 5.5 5 2875*1650*2350
63/3200 630 3200 2700 320 150 380 5.5 5.5 3800*1650*2450
100/3200 1000 3200 2700 400 180 440 7.5 7.5 3810*1750*2530
125/3200 1250 3200 2700 400 180 440 7.5 8.2 3820*1800*2530
125/4000 1250 4000 3200 400 180 440 7.5 9 4600*1800*2580
160/3200 1600 3200 2700 400 180 450 11 10.8 3830*1870*2560
160/4000 1600 4000 3200 400 180 450 11 11.5 4610*1920*2700
200/3200 2000 3200 2700 400 180 450 11 12.5 3900*1920*2560
200/4000 2000 4000 3200 400 180 450 11 13.8 4620*1950*2700
200/6000 2000 6000 4800 400 180 480 11 18.5 6080*1950*2900
250/3200 2500 3200 2700 400 200 480 15 15 3900*2150*2950
250/4000 2500 4000 3200 400 200 480 15 16.5 4080*2150*3000
250/5000 2500 5000 4000 400 250 560 15 17.5 5080*2200*3250
250/6000 2500 6000 4800 400 250 560 15 20 6080*2200*3400
300/4000 3000 4000 3200 400 250 560 22 19 4080*2200*3200
300/5000 3000 5000 4000 400 250 560 22 21 5100*2200*3300
300/6000 3000 6000 4800 400 250 560 22 24 6200*2200*3500
400/4000 4000 4000 3200 400 320 630 30 25 4100*2400*3500
400/5000 4000 5000 4000 500 320 630 30 28 5200*2600*3700
400/6000 4000 6000 4800 500 320 630 30 38 6200*2650*4800
500/4000 5000 4000 3200 600 320 630 37 40 4200*2800*4600
500/5000 5000 5000 4000 600 320 630 37 45 5200*2800*4900
500/6000 5000 6000 4800 600 320 630 37 50 6200*2800*5200
600/5000 6000 5000 4000 600 320 630 45 58 5200*3000*5300
600/6000 6000 6000 4800 600 320 630 45 63 6200*3000*5600
800/5000 8000 5000 4000 700 350 800 55 75 5200*3500*5600
800/6000 8000 6000 4800 700 350 800 55 85 6200*3500*5800

6.CNC Hydraulic Servo Precision Press Brake Standard/Optional Configuration List:

No Accessory Name Model / Manufacturer
Configuration
1 CNC System
DA66T Controller ‐ Holland DELEM
Standard
2 Electrics
Germany Schneider Electric / Travel switch & Limit switch
3 Main Motor
Siemens ‐Germany
4

Back gauge, synchronous belt,

synchronous wheel

Taiwan : positioning control / Guaranteed precision

5 Servo Motor

Estun : positioning control / Guaranteed precision

6 Servo Drive

Estun : positioning control / Guaranteed precision

6 Pedal Switch
South Korea KACON
7 Hydraulic System
Bosch Rexroth ‐ Germany
8 Sealing Ring
Sealing Ring
9 Oil Tube Connector
EMB ‐ Germany
10 Front Safeguard
Produced by DURMA CNC
11 Oil Tube Connector
Produced by DURMA CNC
12 Back Safeguard
Produced by DURMA CNC
13 Die
One set of standard dies
14 Backgauge

Ball Screw and Polished Rod, Linear Guide

Rail‐Taiwan, HIWIN


15 Clamp
Quick Clamp ‐ China
16 Deflection Crowning
Hydraulic Crowning
17 Grating Ruler FAGOR ‐ Spain
18 Standard Axes
3+1(Y1、Y2、X、V)

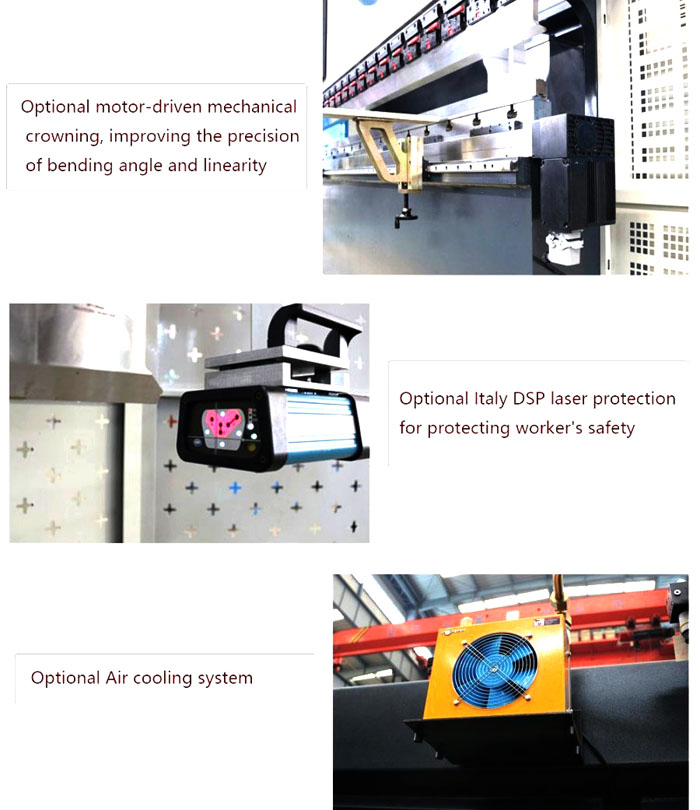

19 Laser Protection
DSP- Italy
Optional
20 Quick Clamp
KYOKKO ‐ Japan
21 Front Photoelectric Protection
LNTECH-Shandong
22 Back Photoelectric Protection
LNTECH-Shandong
23 Optional Axis
R、Z1、Z2
24 Upper Die Hydraulic Clamping Tools
WILA ‐ Holland
25 Lower Die Hydraulic Clamping Tools
WILA ‐ Holland
26 Safety Standard
CE   □CSA   NR-12   □OSHA

7.Optional Configuration:
