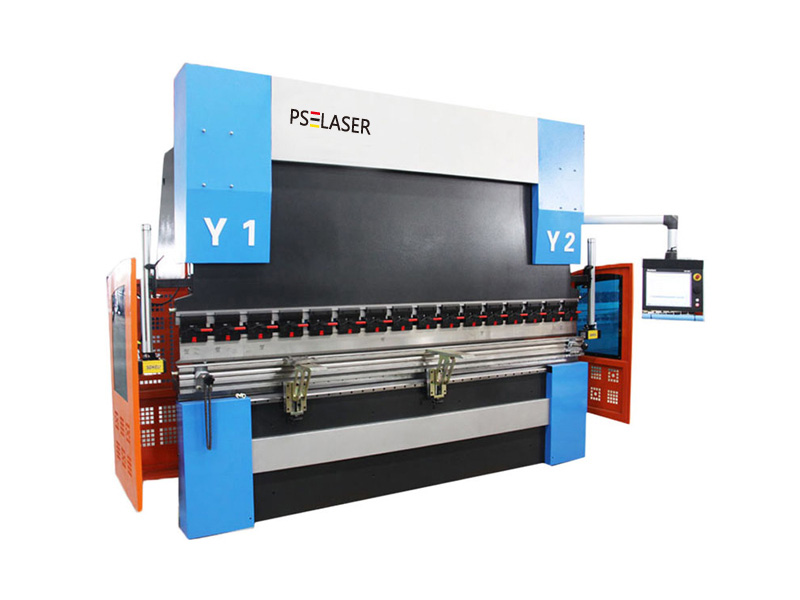

DA66T CNC Synchronized Hydrualic Press Brake

DA66T CNC Hydraulic Press Brake,

17"high resolution color TFT,Full Windows application suite,Delem Modusys compatibility(module scalability and adaptivity) ,USB,peripheral interfacing;User specific application support within the controllers multitasking environment,Sensor Bending & correction interface.



Product Item: DA66T CNC Synchronized Hydrualic Press Brake


1.Main Features:

1.Latest industry design integrated with the concept of modern aesthetic, high‐quality fabrication technology with simple and elegant appearance.

2.Latest high‐frequency responding hydraulic control technology, higher speed, more efficient, higher precision.

3.Heat treatment of the rack, rigidity optimization verification of entire machine, research and application of hydraulic compensation mechanism jointly guarantee bending precision of MB8 series Press Brakes.

4.Optimal ratio of parameters and top‐level core configuration ensure stable performance, easy operation.

5.MB8 standard 2 axis backgauge system, as to complex shape work pieces, 4 or 5 axes back gauge system and corresponding dies are available for bending complicated work pieces.

6.Press Brake using closed‐loop electro‐hydraulic servo control technology, slider position signals can be feedback to CNC controller by bilateral gratings, then controller adjusts the amount of fuel tank by changing the synchronous valve opening size, hereby, to control the slider (Y1,Y2) running with same frequency, maintaining the parallel state of the worktable.

7.As for different plate, CNC controller can automatically control the table deflection compensation resulting in uniform length of all workpiece angles.

8.The use of hydraulic deflection crowning gives access to uniform full length work pieces. Hydraulic deflection crowning consists of a set of oil cylinders, which can make the table occurs relative movement and form an ideal convex curve, ensuring the relative position relationship with slider keep unchanged. Compensation values are subject to plate thickness and properties of material to be cut.


2. Main Configuration:

●Netherlands DELEM DA66T CNC controller

●Grating ruler controls depth of Y1 and Y2 axis(Y1 / Y2‐axis 0.01mm )

●Servo motor drive and control X,R axis(X,R‐axis 0.05mm ), Automatically adjusts R axis movement up and down.

●Maintain the accuracy of HIWIN ball screw and linear guide 0.01mm

●Front carrier position can be adjusted along the linear guide rail in the worktable direction

●Use Germany Rexroth closed‐loop electro‐hydraulic servo synchronous control system

●Germany EMB oil tube connector

●Germany Siemens main motor

●France Schneider Electrics

●Hydraulic and electrical overload protection

●Upper are mechanical fast pinching dies. Lower are double‐V replaceable dies


3. Safety Standard:

1.EN 12622:2009 + A1:2013

2.EN ISO 12100:2010

3.EN 60204‐1:2006+A1:2009

●Front protection device for protecting finger

●South Korea KACON Pedal switch ( 4 safety grade )

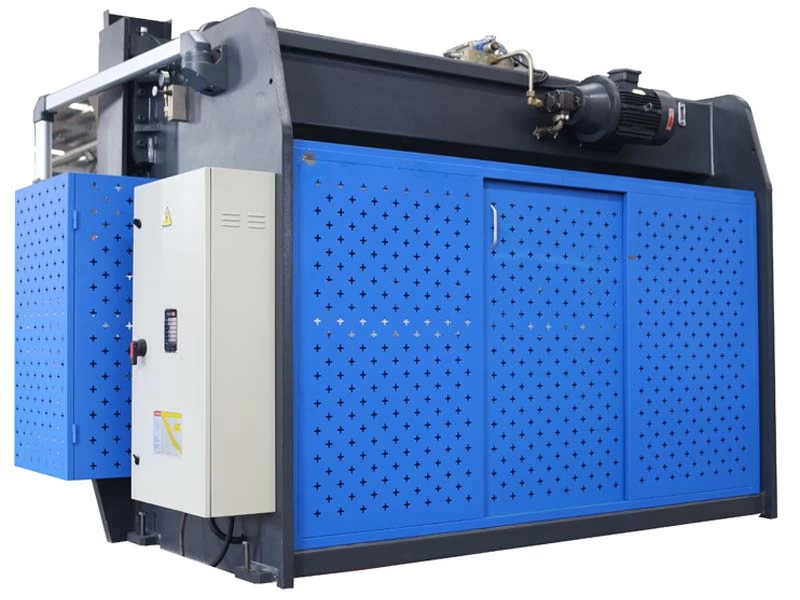

●Rear metal safeguards and CE standard

●Safety relay monitors completed with pedal switch, safety protection

●Safety standards ( 2006 / 42 / EC )


4. Netherlands Delem DA66T Controller:

●2D Touch Graphics programming, automatically calculates the bending process and detects collision

●3D product figure analog display, multi‐workstation dies real‐time demonstrates real bending operation

●17”high‐resolution TFT color screen

●Full set Windows application package, maximize the operation stability, support instant shutdown

●Can compatible with DELEM modular structure

●USB Peripheral interface

●Users application programs under multitasks condition

●Angle‐detecting sensor interface

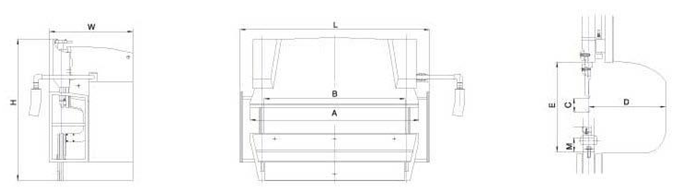

5.CNC Press Brake Technical Parameters:

Models
Nomal
Pressure
(Kn)
Length
 of Table
 (mm)
Distance Between
 Housing (mm)
Throat
Depth
(mm)
Stroke
(mm)
Open Hight
 (mm)
Main Motor
 (Kw)
Weight (t)
Overall
Dimensions
(L*W*H) (mm)
63/2500 630 2500 2000 320 150 380 5.5 5 2875*1650*2350
63/3200 630 3200 2700 320 150 380 5.5 5.5 3800*1650*2450
100/3200 1000 3200 2700 400 180 440 7.5 7.5 3810*1750*2530
125/3200 1250 3200 2700 400 180 440 7.5 8.2 3820*1800*2530
125/4000 1250 4000 3200 400 180 440 7.5 9 4600*1800*2580
160/3200 1600 3200 2700 400 180 450 11 10.8 3830*1870*2560
160/4000 1600 4000 3200 400 180 450 11 11.5 4610*1920*2700
200/3200 2000 3200 2700 400 180 450 11 12.5 3900*1920*2560
200/4000 2000 4000 3200 400 180 450 11 13.8 4620*1950*2700
200/6000 2000 6000 4800 400 180 480 11 18.5 6080*1950*2900
250/3200 2500 3200 2700 400 200 480 15 15 3900*2150*2950
250/4000 2500 4000 3200 400 200 480 15 16.5 4080*2150*3000
250/5000 2500 5000 4000 400 250 560 15 17.5 5080*2200*3250
250/6000 2500 6000 4800 400 250 560 15 20 6080*2200*3400
300/4000 3000 4000 3200 400 250 560 22 19 4080*2200*3200
300/5000 3000 5000 4000 400 250 560 22 21 5100*2200*3300
300/6000 3000 6000 4800 400 250 560 22 24 6200*2200*3500
400/4000 4000 4000 3200 400 320 630 30 25 4100*2400*3500
400/5000 4000 5000 4000 500 320 630 30 28 5200*2600*3700
400/6000 4000 6000 4800 500 320 630 30 38 6200*2650*4800
500/4000 5000 4000 3200 600 320 630 37 40 4200*2800*4600
500/5000 5000 5000 4000 600 320 630 37 45 5200*2800*4900
500/6000 5000 6000 4800 600 320 630 37 50 6200*2800*5200
600/5000 6000 5000 4000 600 320 630 45 58 5200*3000*5300
600/6000 6000 6000 4800 600 320 630 45 63 6200*3000*5600
800/5000 8000 5000 4000 700 350 800 55 75 5200*3500*5600
800/6000 8000 6000 4800 700 350 800 55 85 6200*3500*5800

6.DA66T Press Brake Standard/Optional Configuration List:

No Accessory Name Model / Manufacturer
Configuration
1 CNC System
DA66T Controller ‐ Holland DELEM
Standard
2 Electrics
Germany Schneider Electric / Travel switch & Limit switch
3 Main Motor
Siemens ‐Germany
4

Back gauge, synchronous belt,

synchronous wheel

Taiwan, China positioning control / Guaranteed precision

5 Servo Motor

Estun positioning controlGuaranteed precision

6 Servo Drive

Estun positioning control / Guaranteed precision

6 Pedal Switch
South Korea KACON
7 Hydraulic System
Bosch Rexroth ‐ Germany
8 Sealing Ring
Sealing Ring
9 Oil Tube Connector
EMB ‐ Germany
10 Front Safeguard
Produced by DURMA CNC
11 Oil Tube Connector
Produced by DURMA CNC
12 Back Safeguard
Produced by DURMA CNC
13 Die
One set of standard dies
14 Backgauge

Ball Screw and Polished Rod, Linear Guide

Rail‐Taiwan, HIWIN


15 Clamp
Quick Clamp ‐ China
16 Deflection Crowning
Hydraulic Crowning
17 Grating Ruler FAGOR ‐ Spain
18 Standard Axes
3+1(Y1、Y2、X、V)
19 Laser Protection
DSP- Italy
Optional
20 Quick Clamp
KYOKKO ‐ Japan
21 Front Photoelectric Protection
LNTECH-Shandong
22 Back Photoelectric Protection
LNTECH-Shandong
23 Optional Axis
R1、R2、Z1、Z2、X1、X2
24 Upper Die Hydraulic Clamping Tools
WILA ‐ Holland
25 Lower Die Hydraulic Clamping Tools
WILA ‐ Holland
26 Safety Standard
CE   □CSA   NR-12   □OSHA

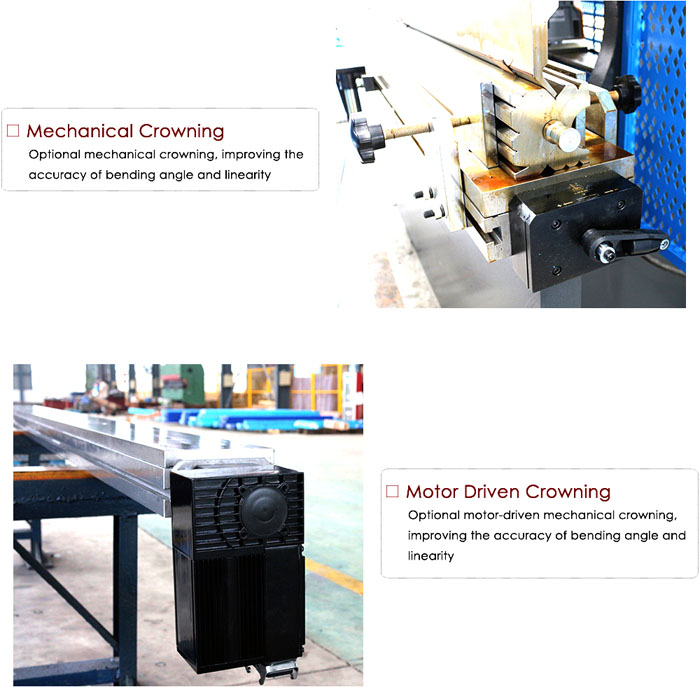

7.Optional Configuration:
