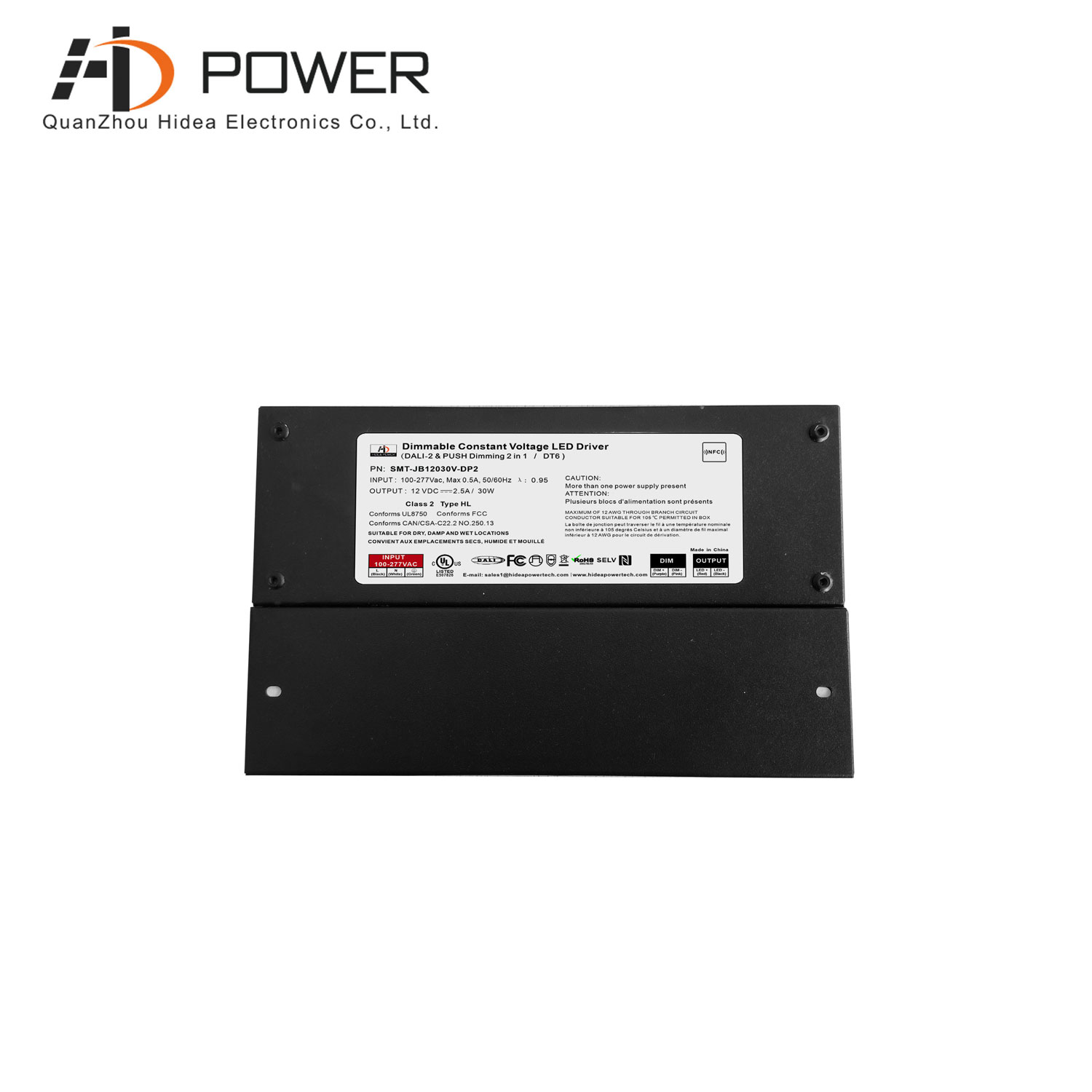

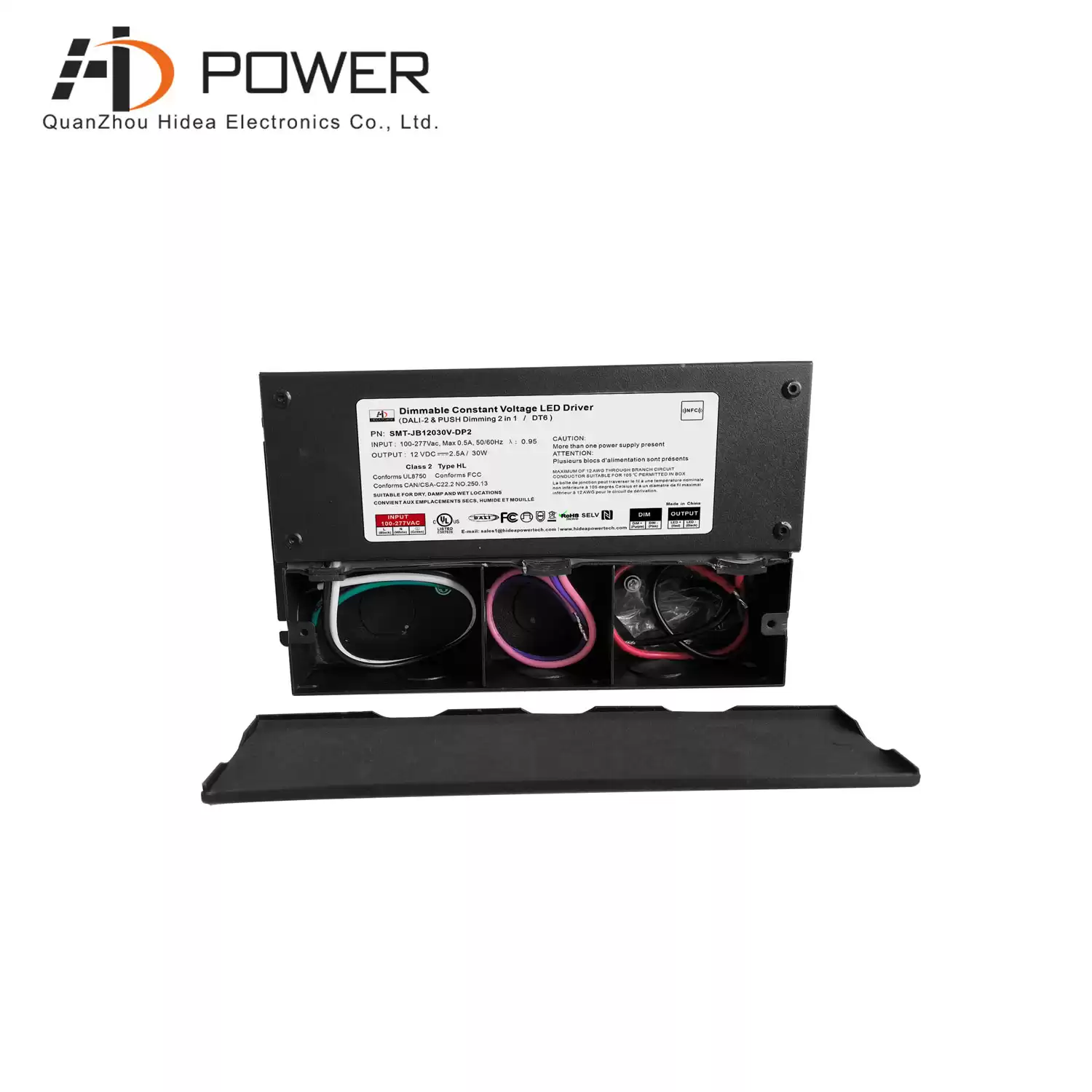

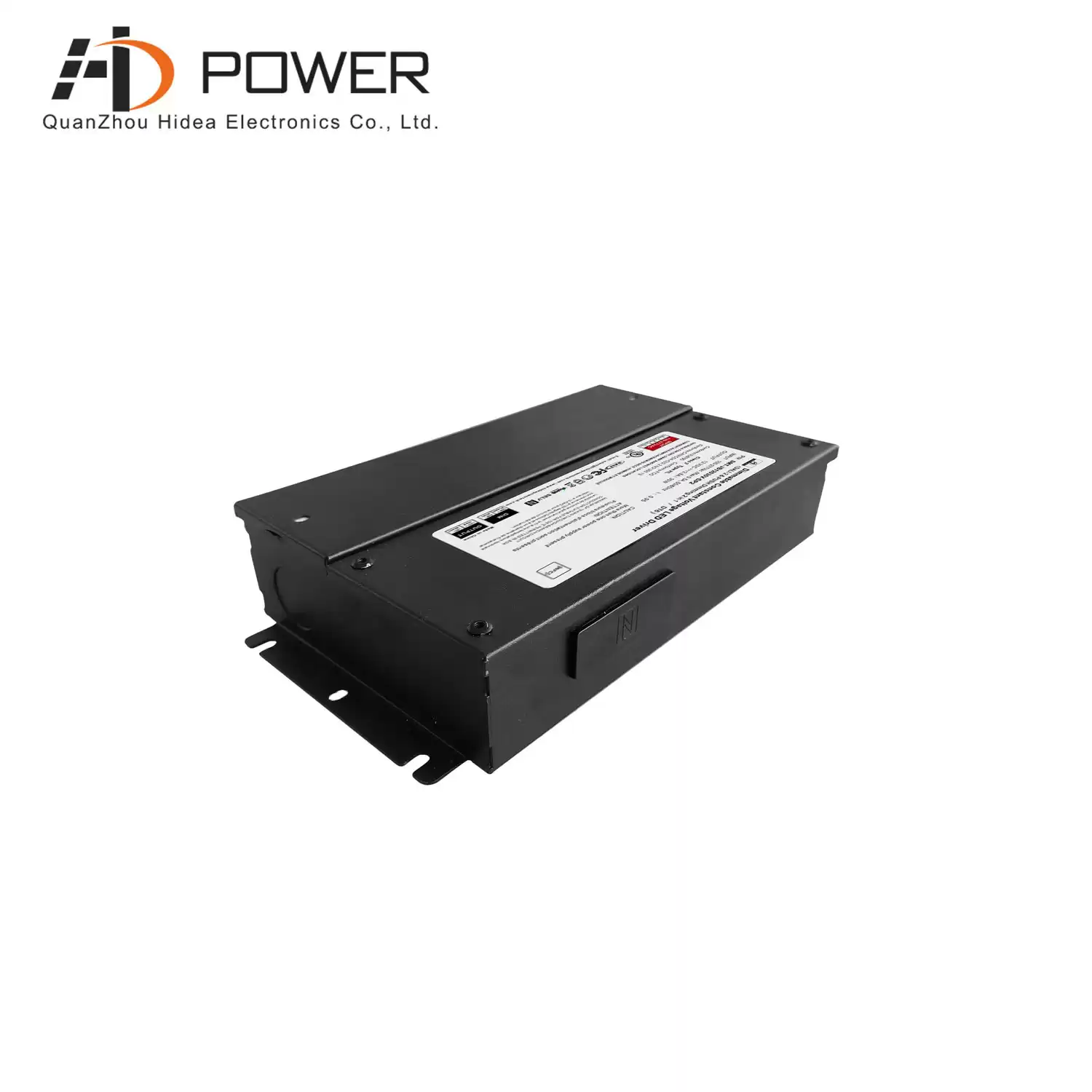

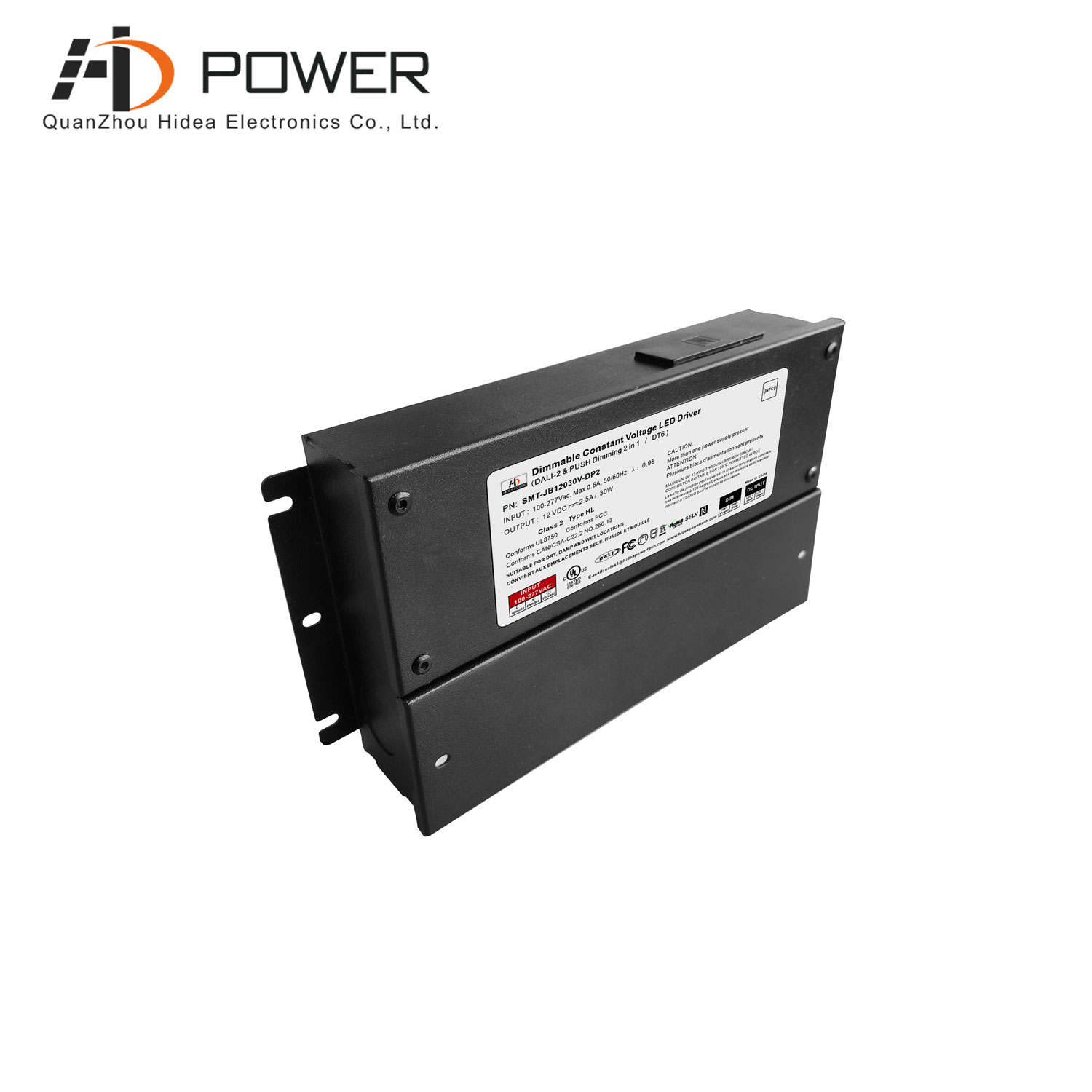

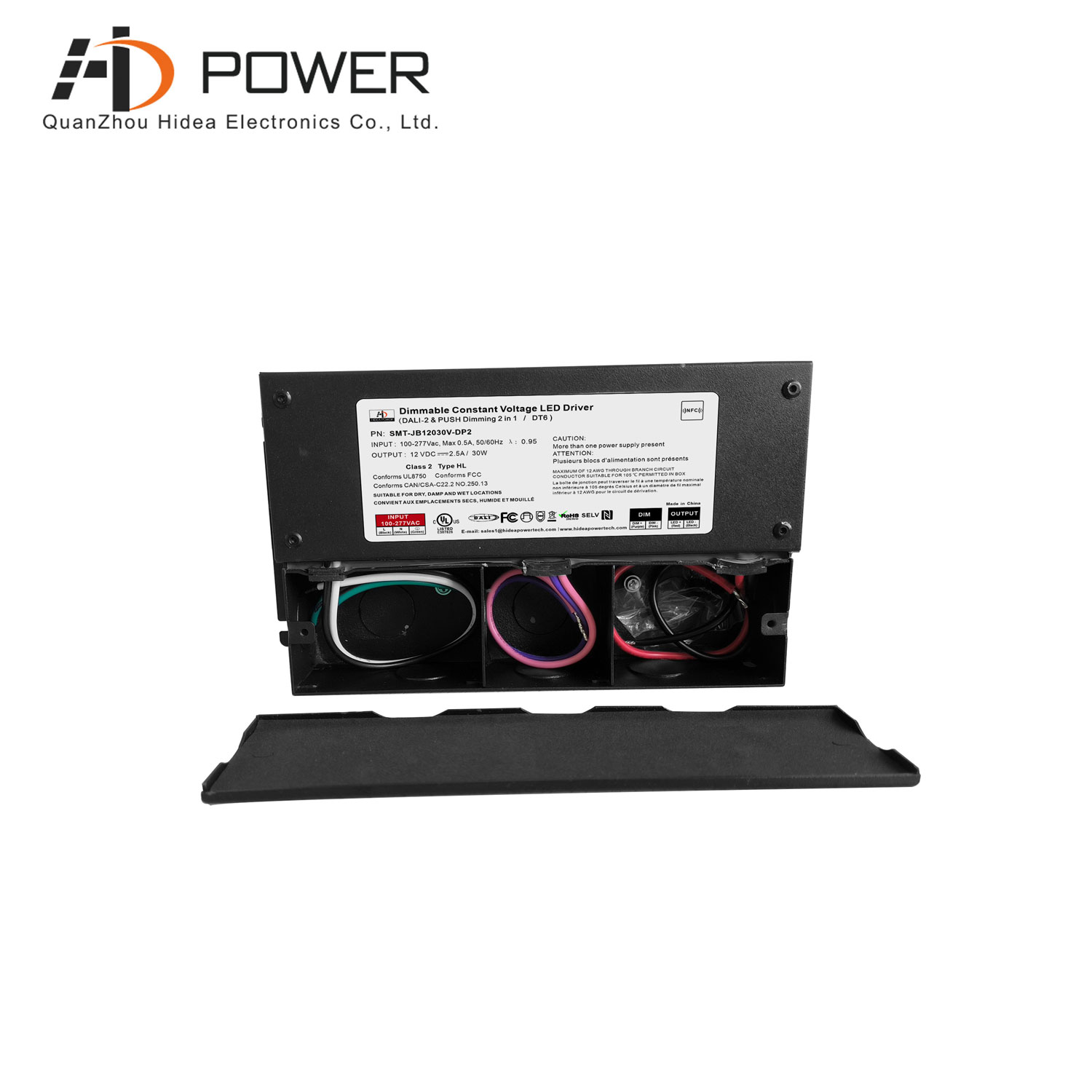

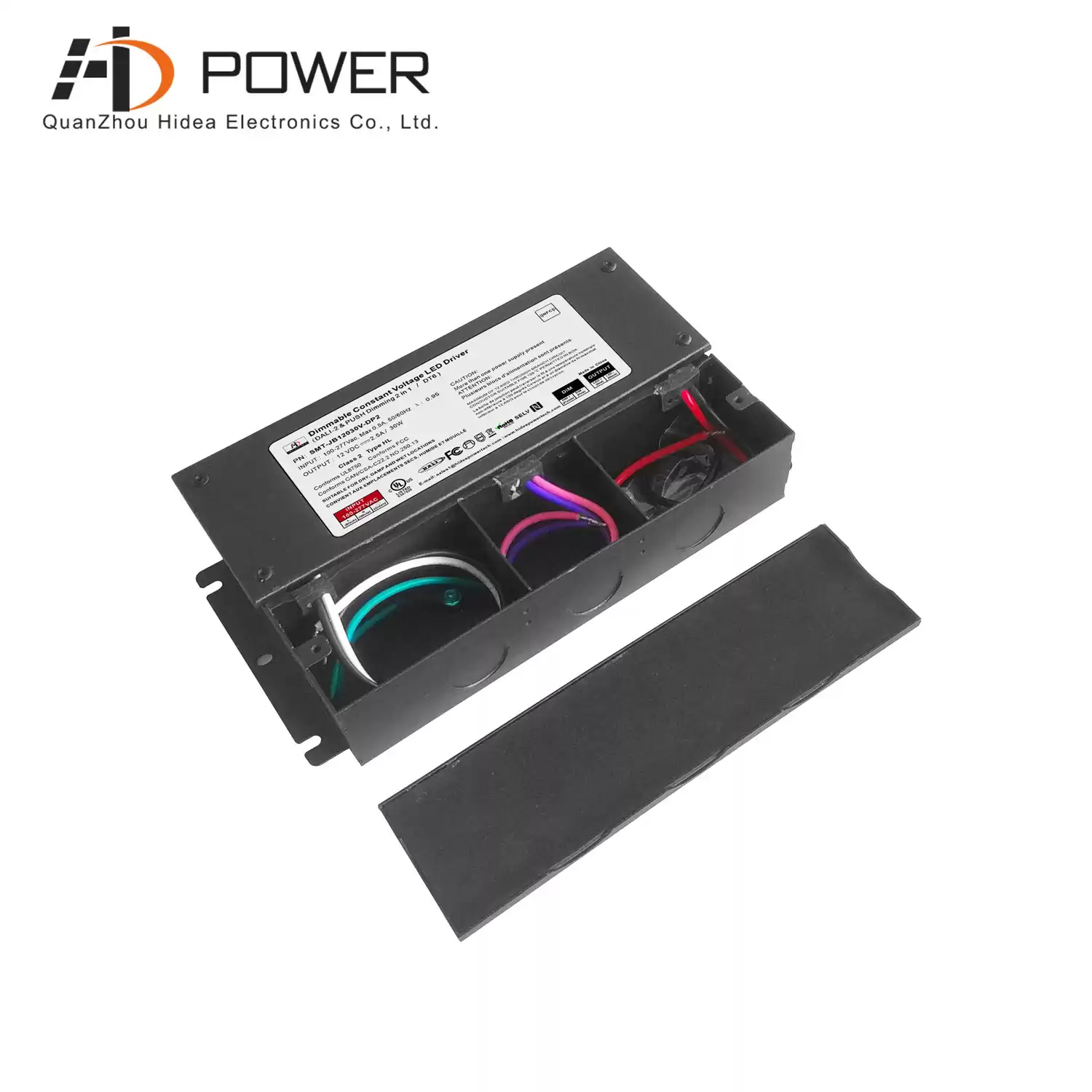

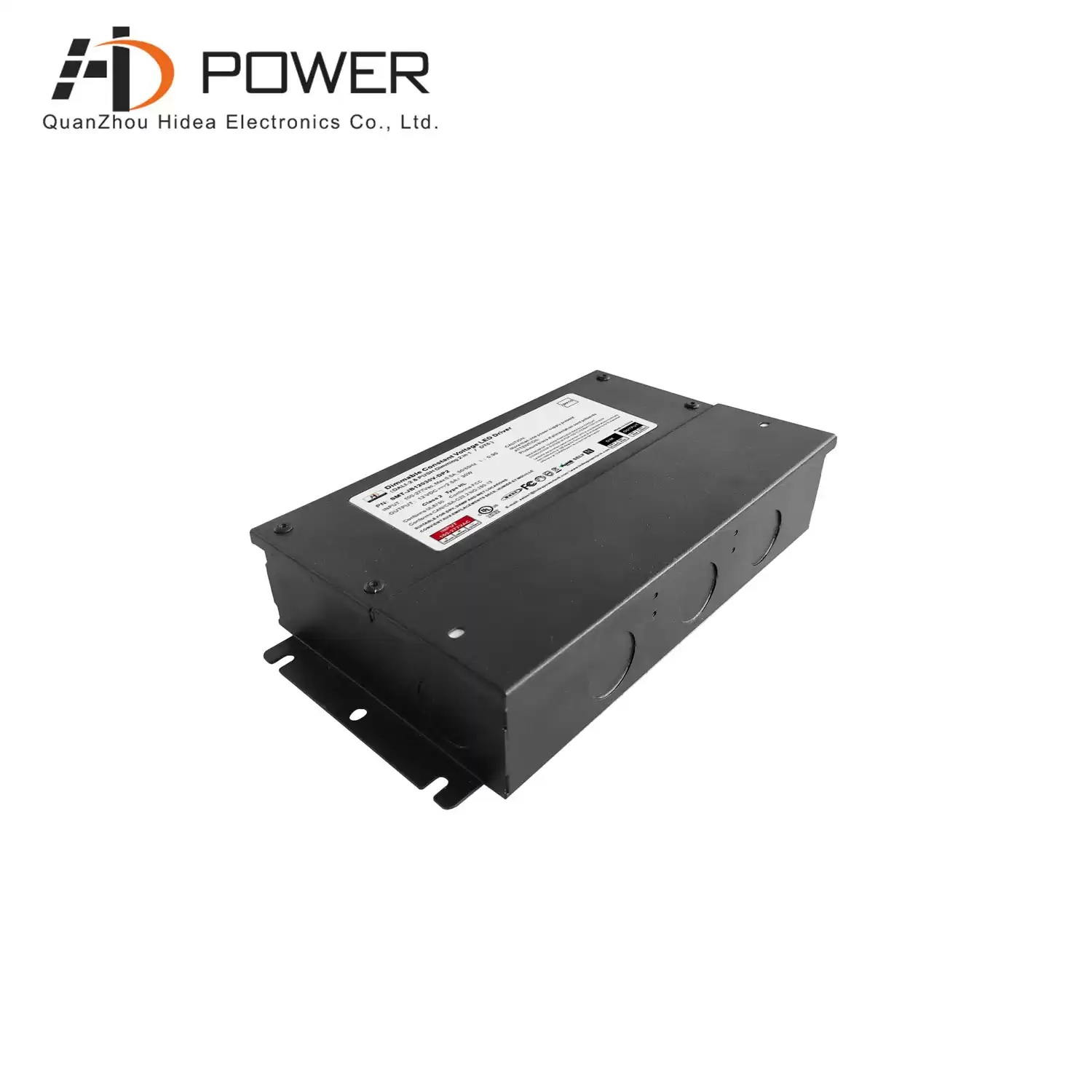

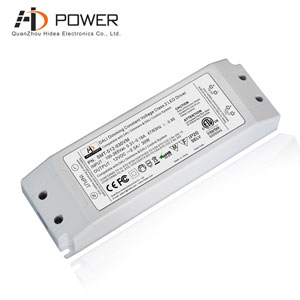

Model
|
SMT-JB12030V-DP2
|
SMT-JB24030V-DP2
|
SMT-JB36030V-DP2
|
SMT-JB48030V-DP2
|
|
Certificate
|
UL/cUL/ FCC/ SELV / CE
|
|
Output
|
DC Voltage
|
12V
|
24V
|
36V
|
48V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
2.5A
|
1.25A
|
0.833A
|
0.625A
|
|
Rated power
|
30W
|
|
Load Regulation
|
±2%
|
±1%
|
±1%
|
±1%
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47 - 63Hz
|
|
Power Factor (Typ.) @ full load
|
PF≥0.98@120VAC PF≥0.95@230VAC PF≥0.90@277VAC
|
|
Efficiency(Typ.) @ full load
|
82%@120VAC/60Hz
84%@230VAC/50Hz
84%@277VAC/60Hz
|
82%@120VAC/60Hz
84%@230VAC/50Hz
84%@277VAC/60Hz
|
82%@120VAC/60Hz
84%@230VAC/50Hz
84%@277VAC/60Hz
|
82%@120VAC/60Hz
84%@230VAC/50Hz
84%@277VAC/60Hz
|
|
No load power≤1.0W
|
≤0.75W@120VAC/60Hz
≤0.64W@230VAC/50Hz
≤0.67W@277VAC/60Hz
|
≤0.85W@120VAC/60Hz
≤0.69W@230VAC/50Hz
≤0.73W@277VAC/60Hz
|
≤0.87W@120VAC/60Hz
≤0.75W@230VAC/50Hz
≤0.78W@277VAC/60Hz
|
≤0.88W@120VAC/60Hz
≤0.73W@230VAC/50Hz
≤0.74W@277VAC/60Hz
|
|
Standby power≤0.6W
|
≤0.33W@120VAC/60Hz
≤0.43W@230VAC/50Hz
≤0.49W@277VAC/60Hz
|
≤0.33W@120VAC/60Hz
≤0.44W@230VAC/50Hz
≤0.52W@277VAC/60Hz
|
≤0.39W@120VAC/60Hz
≤0.45W@230VAC/50Hz
≤0.55W@277VAC/60Hz
|
≤0.33W@120VAC/60Hz
≤0.44W@230VAC/50Hz
≤0.55W@277VAC/60Hz
|
|
AC Current (Max.)
|
0.42A
|
|
Surge current
|
9.2A,180us@50%Ipeak@120VAC; 22.8A,126us@50%Ipeak@230VAC; 20.4A,200us@50%Ipeak@277VAC
|
|
Leagkage current
|
<0.5mA
|
|
Protection
|
Over Load
|
≤120% ,hiccup mode, recover automatically after fault condition is removed
|
|
Over temperature
|
Ambient temp. over 55℃±10℃, output will be off; recovers automatically after temp. drops.
|
|
Over Load
|
≤120% ,hiccup mode, recover automatically after fault condition is removed
|
|
Environment
|
Working TEMP.
|
-40 ~ +70℃ (see below derating curve)
|
|
Working Humidity
|
20 ~ 95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40 ~ +80℃,10 ~ 95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0 ~ 50℃)
|
|
Vibration
|
10 ~ 500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety & EMC
|
Safety standards
|
EN61347-1 EN61347-2-13(EU) & UL8750(US) & UL1310
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (EU)
I/P-O/P:1.80KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (US)
|
|
Isolation resistance
|
I/P-O/P:100MΩ/ 500VDC/ 25℃/ 70%RH
|
|
EMC Emission
|
EN55015 EN61000-3-2-3(EU)≥50% Load & FCC Part 15 B (US)
|
|
Others
|
Net Weight
|
0.23Kg
|
|
Dimension
|
181*103.5*41.7mm(L*W*H)
|
|
Packing
|
250*190*135mm 20pcs /CTN
|
|
Notes
|
1.All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature.
2.Under low input voltage, reduced output is required to ensure a long life.
|
