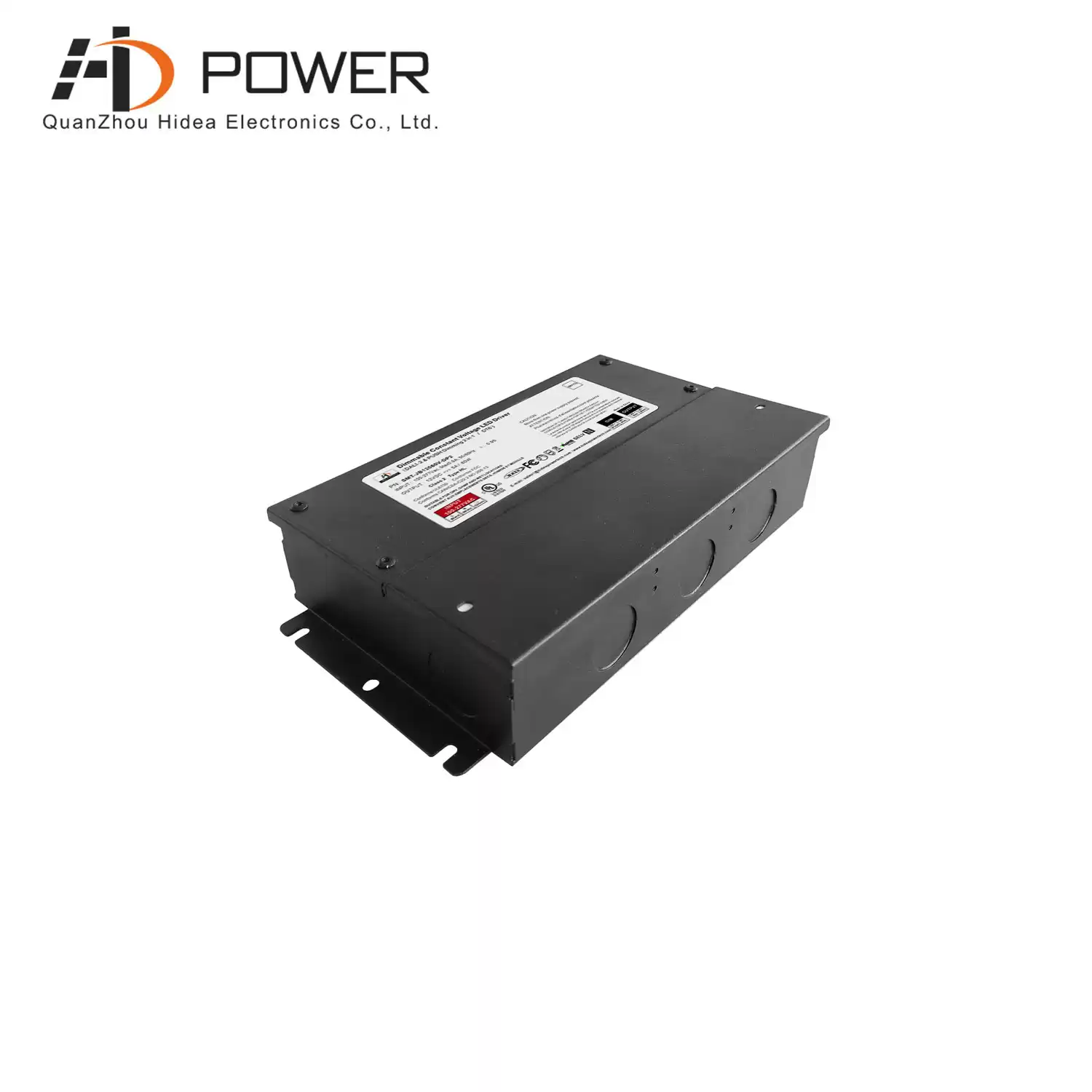

DALI-2 & PUSH dimmable electronic dimmable transformer 12v 60W led power supplies
277vac 60W DALI-2 & PUSH dimmable led driver 0-100% dimming range, with short circuit, overload, overtemperature protection design, built-in NFC function, can set the address code and fine tune the output voltage through the NFC should program
Specification
|
Model
|
SMT-JB12060V-DP2
|
SMT-JB24060V-DP2
|
SMT-JB36060V-DP2
|
SMT-JB48060-DP2
|
|
Certificate
|
UL/cUL/ FCC/ SELV / CE
|
|
Output
|
DC Voltage
|
12V
|
24V
|
36V
|
48V
|
|
Voltage range(adjust by NFC)
|
12-13.5V
|
24-26V
|
36-38V
|
48-50V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
5A
|
2.5A
|
1.67A
|
1.25A
|
|
Rated power
|
60W
|
|
Load Regulation
|
±2%
|
±1%
|
±1%
|
±1%
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47 - 63Hz
|
|
Power Factor (Typ.) @ full load
|
PF≥0.98@120VAC PF≥0.95@230VAC PF≥0.92@277VAC
|
|
Efficiency(Typ.) @ full load
|
86%@120VAC 88%@230V/277VAC
|
86%@120VAC
88%@230V/277VAC
|
86%@120VAC
88%@230V/277VAC
|
86%@120VAC
88%@230V/277VAC
|
|
AC Current (Max.)
|
0.8A
|
|
Total harmonic value
|
≤15%
|
|
Surge current
|
20A, 50%, 220us @120VAC; 45A, 50% , 175us @230VAC 37A, 50% ,302us @277VAC
|
|
Leagkage current
|
<0.5mA
|
|
Protection
|
Over Load
|
≤120% ,hiccup mode, recover automatically after fault condition is removed
|
|
Over temperature
|
Ambient temp. over 55℃±10℃, output will be off; recovers automatically after temp. drops.
|
|
Over Load
|
≤120% ,hiccup mode, recover automatically after fault condition is removed
|
|
Environment
|
Working TEMP.
|
-40 ~ +70℃ (see below derating curve)
|
|
Working Humidity
|
20 ~ 95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40 ~ +80℃,10 ~ 95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0 ~ 50℃)
|
|
Vibration
|
10 ~ 500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety & EMC
|
Safety standards
|
EN61347-1 EN61347-2-13(EU) & UL8750(US) & UL1310
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (EU)
I/P-O/P:1.80KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (US)
|
|
Isolation resistance
|
I/P-O/P:100MΩ/ 500VDC/ 25℃/ 70%RH
|
|
EMC Emission
|
EN55015 EN61000-3-2-3(EU)≥50% Load & FCC Part 15 B (US)
|
|
Others
|
Net Weight
|
0.375Kg
|
|
Dimension
|
202.5*114.2*40mm (L*W*H)
|
|
Packing
|
280*210*160mm 20pcs /CTN
|
|
Notes
|
1.All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature.
2.Under low input voltage, reduced output is required to ensure a long life.
|
