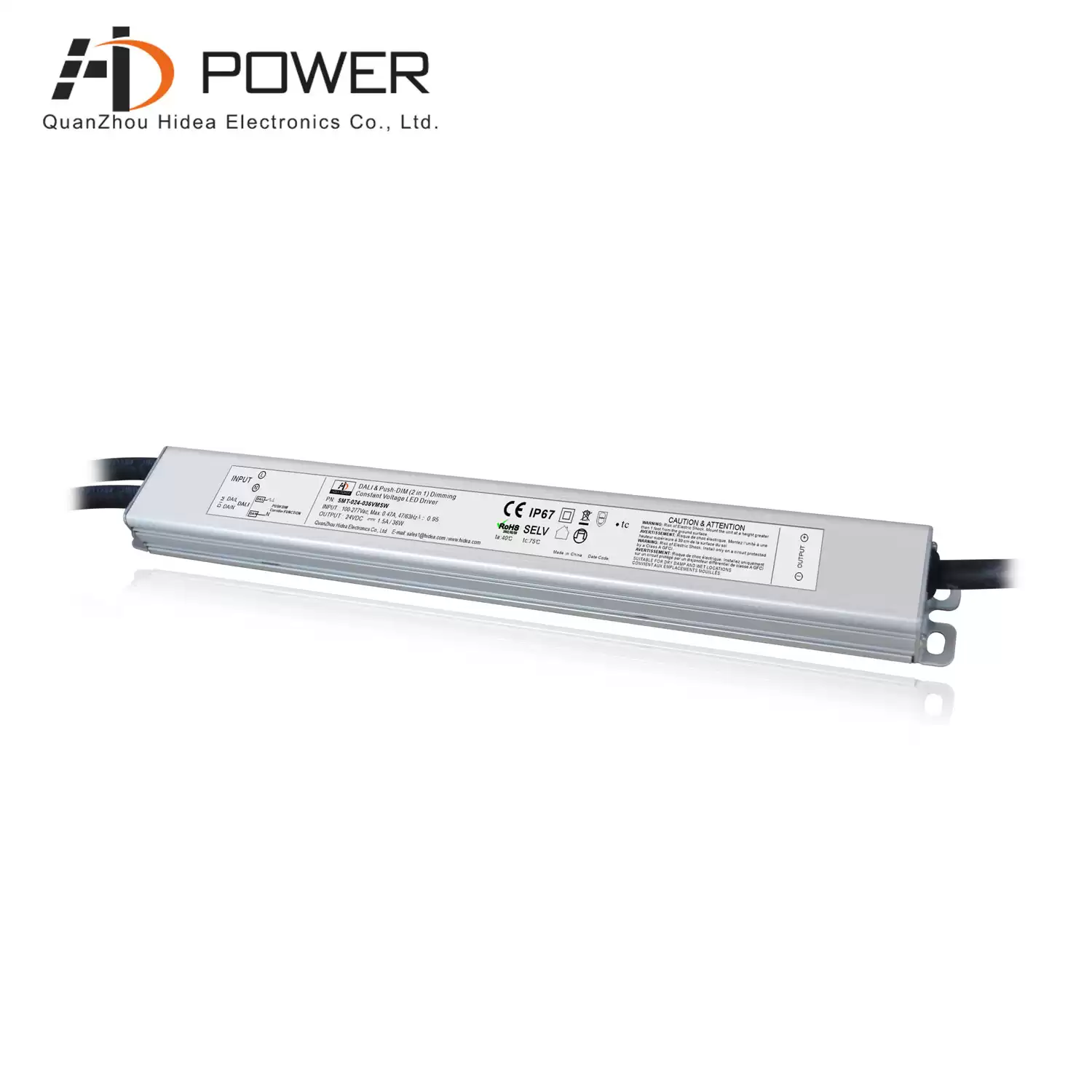

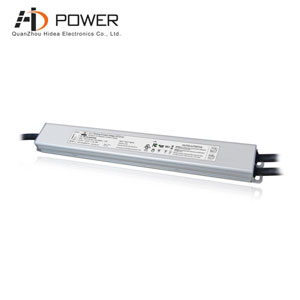

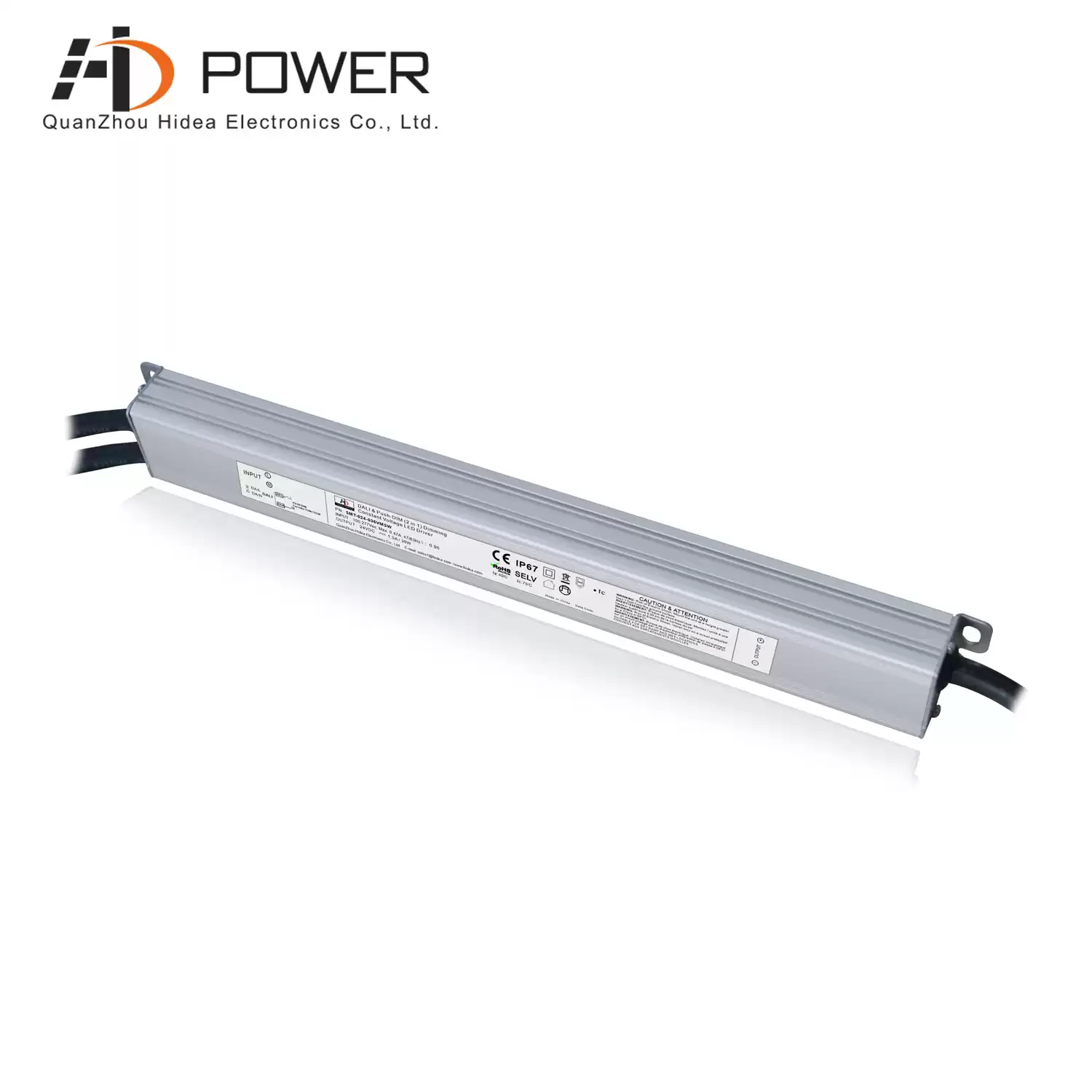

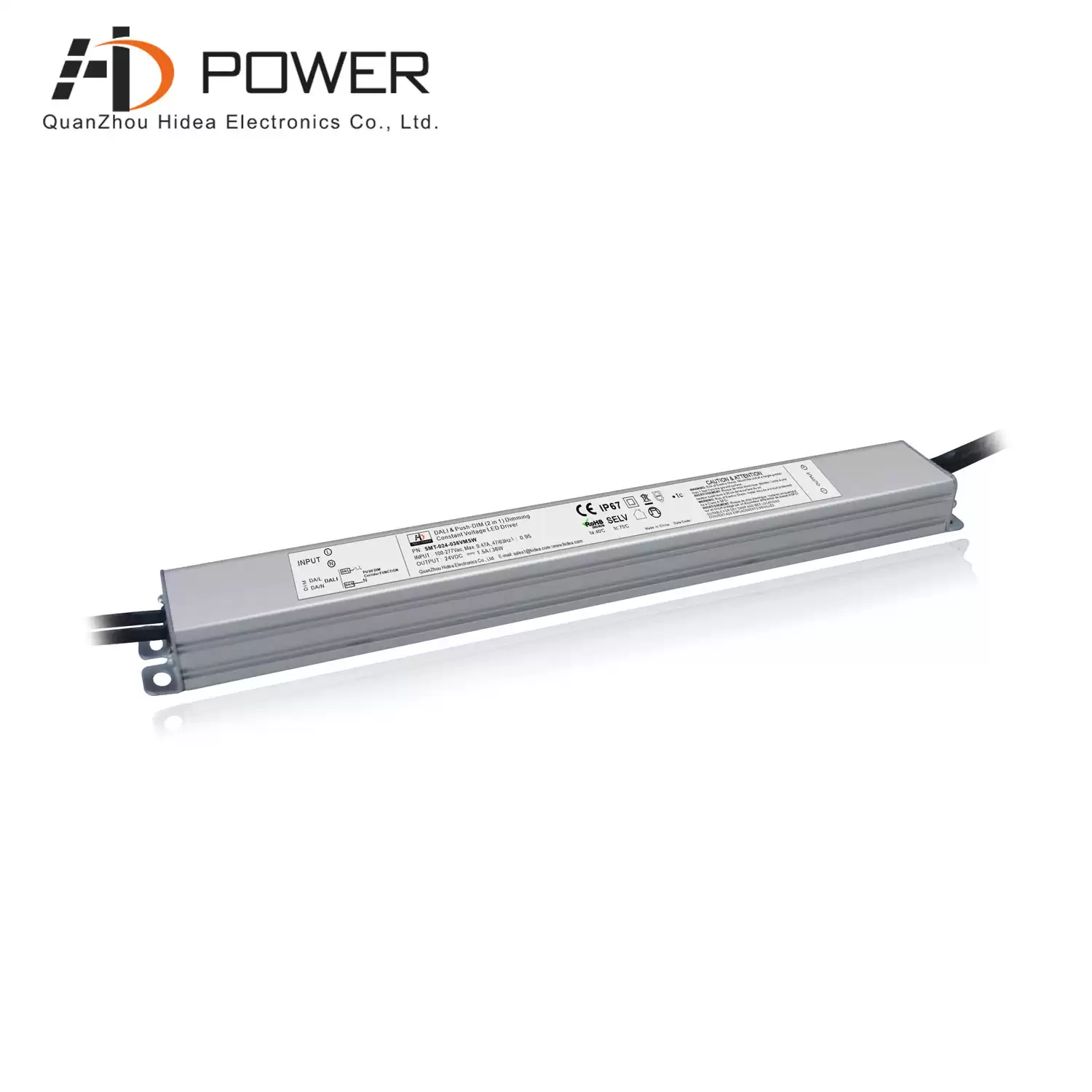

DALI dimmable 24 volt dimmable led driver 36 watt constant voltage led power supply for led lighting

UL cUL DALI dimming led driver 36w for linear lighting fixtures carries


  • Dimming ModeDALI Dimming
  • Working ModeConstnat Voltage LED Driver
  • Input Voltage100-277Vac
  • Output Power(Watt)36W
  • Output Voltage12/24Vdc
  • Shape & SizeSlim Size
  • Output Current
  • Size260*32*20MM
  • Weight350g
  • CertificationCE
  • Warranty7 Years

DALI dimmable 24 volt dimmable led driver 36 watt constant voltage led power supply for led lighting


Slim size DALI dimmable constant voltage led power supply 36W allows for precise, individual control of each connected LED fixture


  Specification

model SMT-012-036VMSW SMT-024-036VMSW
Output DC Voltage 12VDC 24VDC
Voltage Tolerance ±0.5V ±0.5V
Rated current 3.0Amp 1.5Amp
Rated power 36W 36W
Voltage Regulation ±0.5%
Load Regulation ±2%
Input Voltage Range 100-277VAC
Frequency Range 47~63HZ
Power Factor(Typ.)@ full load 0.98@120VAC 0.98@120VAC
Efficiency(Typ.)@ full load(Typ.) >82% >82%
AC Current(Max.) 0.45A@100VAC
THD(Typ. ) @ full load 10%@120VAC 10%@120VAC
Inrush Current(Typ.) 4.64A (twidth=460us) @120VAC ;  33.2A (twidth=116us) @230VAC ;12.4A (twidth=430us) @277VAC ;
Leakage current <0.5mA
Protection Short Circuit shut down o/p voltage, re-power on to recover after fault condition removed
Over Load ≤120%  Hiccup mode ,recovers automatically after fault condition is removed
Protection Class I
Over temperature 100℃±10℃ shut down o/p voltage, automatically recover after cooling
Environment Working TEMP. -40~+60℃ (see below derating curve)
Working Humidity 20~95%RH,non-condensing
Storage TEM.,Humidity -40~+80℃,10~95%RH
TEMP.coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC Safety standards EN61347-1    EN61347-2-13  (EU)  and  UL8750  (US)
Withstand voltage I/P-O/P:3.75KVAC  (EU)  and  I/P-O/P:1.88KVAC  (US)
Isolation resistance I/P-O/P:100M Ohms/500VDC/25℃/70%RH
EMC EMISSION Compliance to EN55015, EN61000-3-2 (≥60%load) (EU) and FCC Part 15 (US)
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry
Others Weight 0.35Kg
Size 260*32*20mm(L*W*H)
packing 290*270*160mm/30PCS/CTN    G.W.:11KG/CTN
Notes 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
