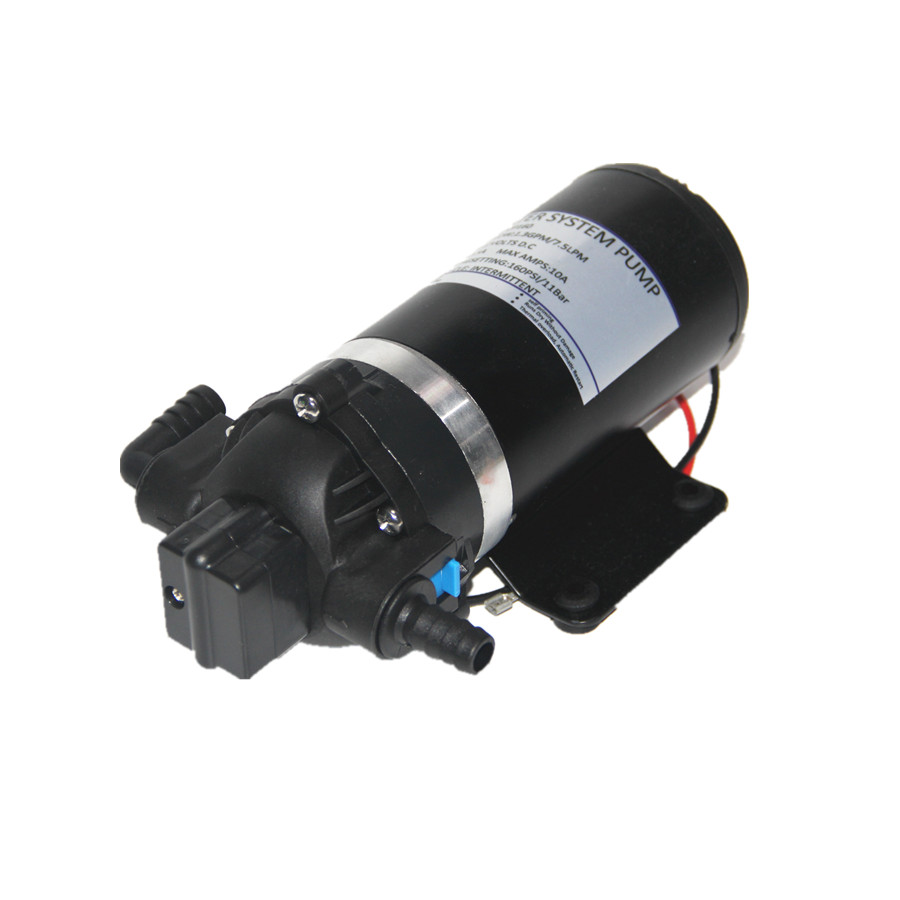

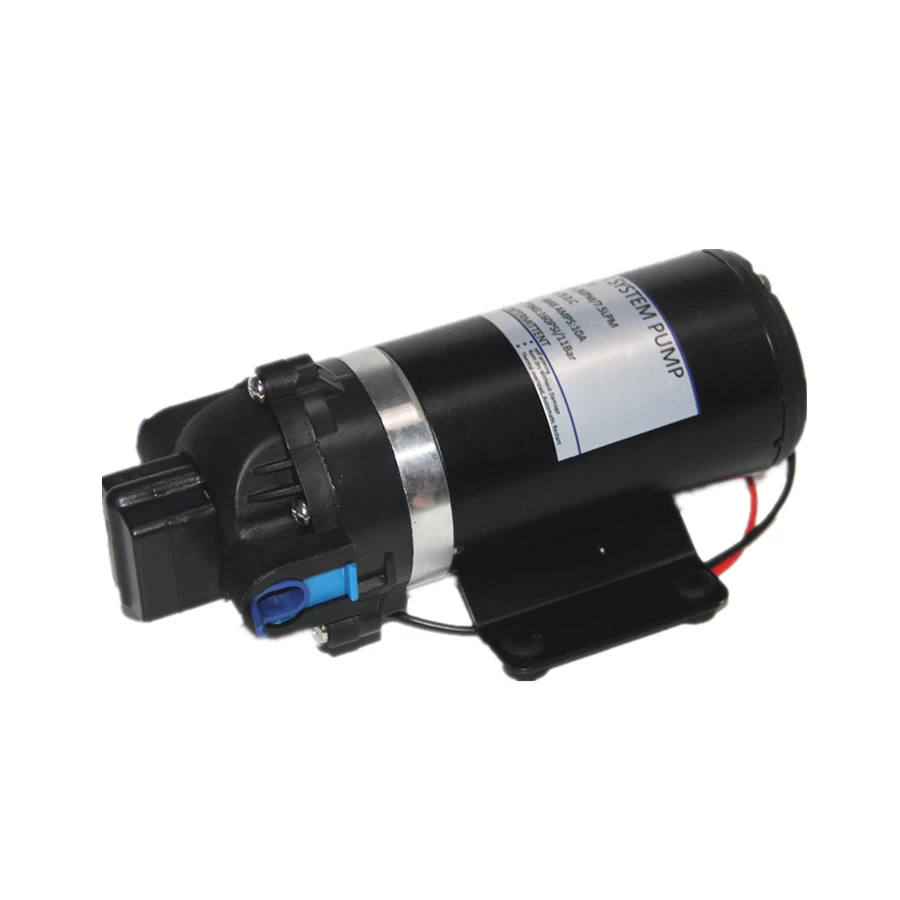

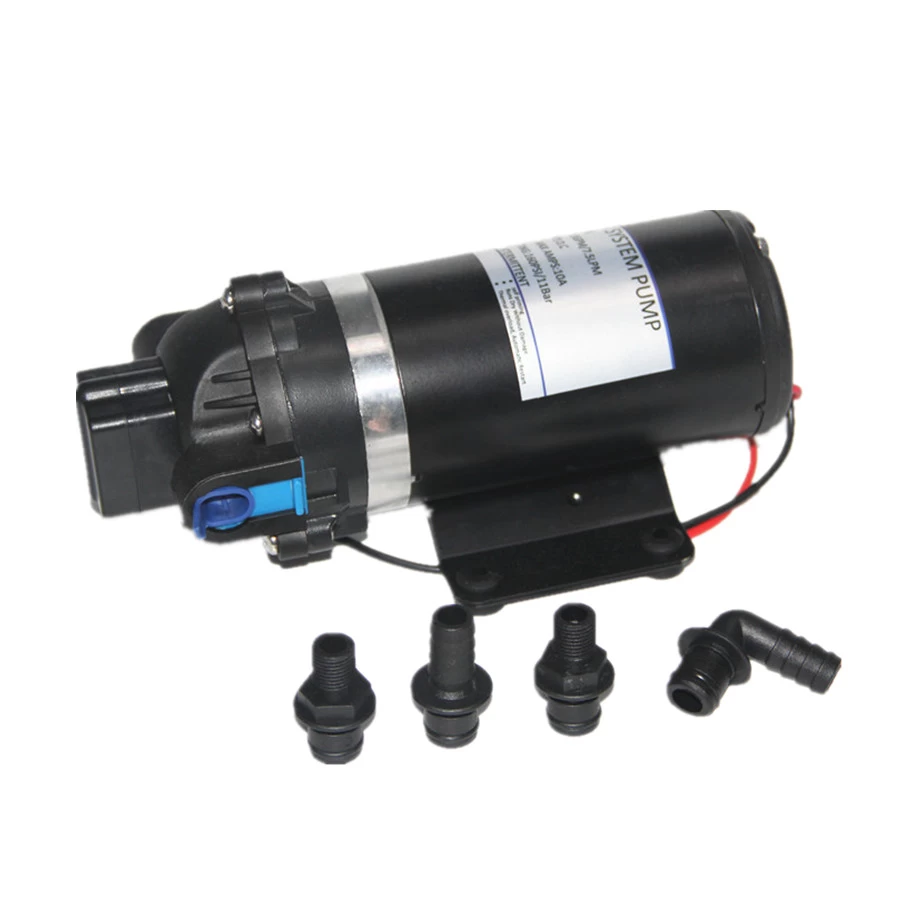

DC 12V 24V High Pressure 7LPM Diaphragm Car Wash Pump
Whaleflo DP high pressure wash pump, which is ideal for carpet cleaning, car washing,Outdoor shower,industrial chemical liquids,Sanitary industry , sea water transfer,fresh water transfer.DP series designed basing on three diaphragm.Pump pressure vary from60PSi-160PSi with self-priming ability.
DC pressure wash pump chamber material made of Santoprene.The inside check value is EPDM(Ethylene Propylene Diene Monomer) and Viton use widely for liquid PH value vary from4-11PH value.
Pump working duty: working intermittent
Shaft made of Stainless steelwith Best heavy duty manufacturer
Pump pressure vary from 60PSi to 160PSIcontrolled by Bypass& pressure switch
Anti airlock designmake motor with long life span and tight sealed well
superior rubberfeet with low noise.

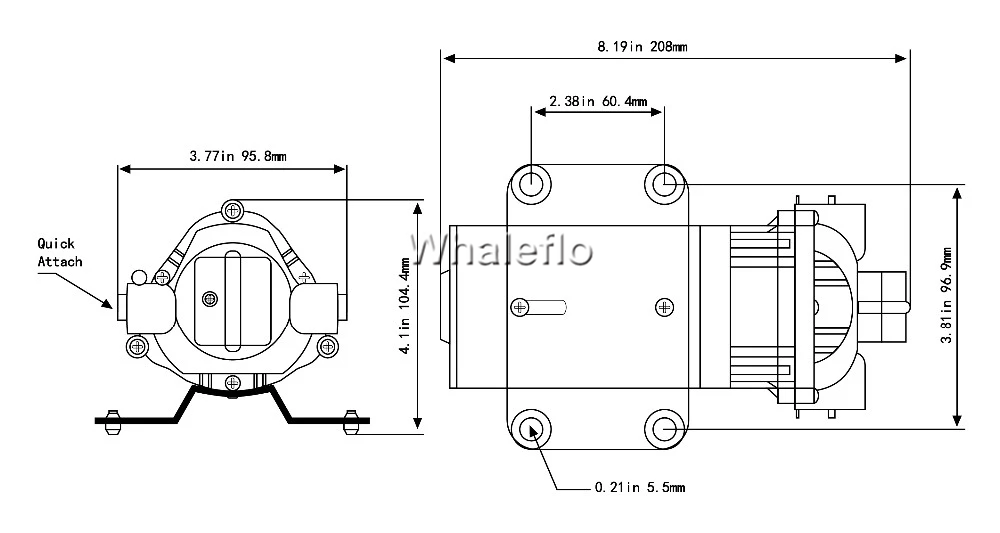

Pump detail install size drawing & manual are available
Mini& Flexible,light weight
Performance
self priming,can run dry in short time
Application
suit for all equipment which need to strenthern the water pressure,such as :large scale spreyer,high pressure car wash,water purifier increasing pressure and road roller.
This kind of automatic diaphragm pump with pressure switch,can start automatic when turn on the water-tap/nozzle,stops when turn off.
Typical Applications
Agricultural Spraying
General Industrial
Automotive
Marine/RV
Water Treatment/Ro
Beverage/Food Service
Distillation Equipment

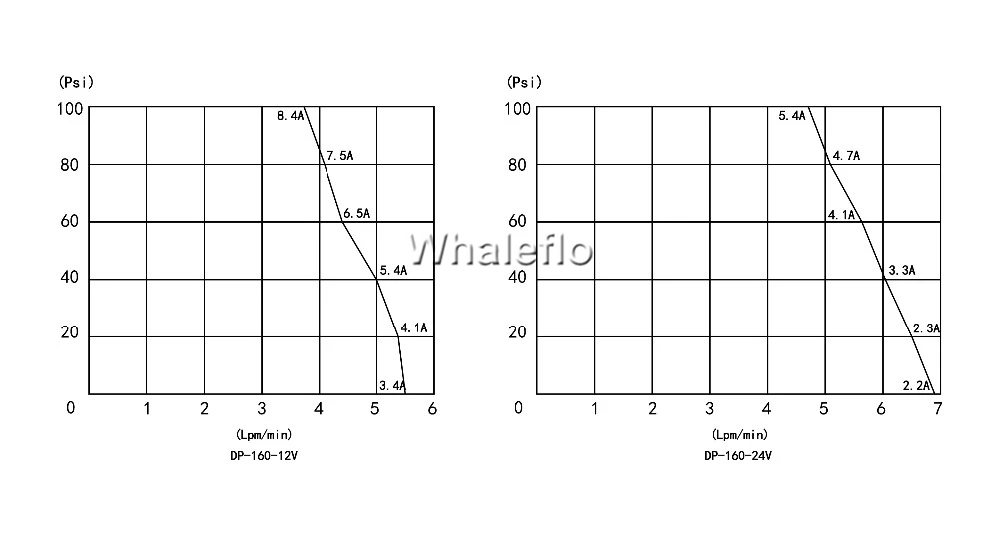

Technical data
|
model
|
reted voltage(V)
|
maximum flow(LPM/GPM)
|
rated current(A)
|
lift(m)
|
pressure(psi/bar)
|
packing size
|
N.W/G.W(KG)
|
|
DP-160-12V
|
12
|
7.0/1.8
|
10.0
|
95
|
160/11
|
285*140*120
|
2.42/2.72
|
|
DP-160-24V
|
24
|
7.0/1.8
|
6.5
|
95
|
160/11
|
285*140*120
|
2.42/2.72
|
