Linear DC Solenoids provide high force for short stroke applications and are ideal for applications that require long life and high reliability. The series is constructed with a low friction system bobbin which ensures a long life of 25 million actuations.

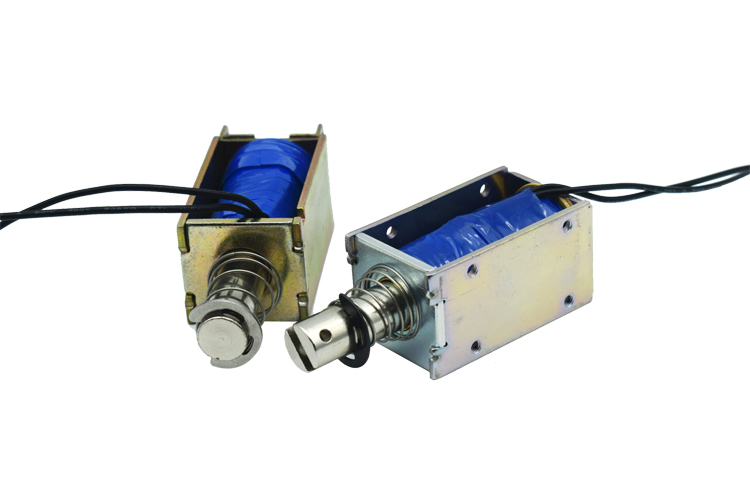

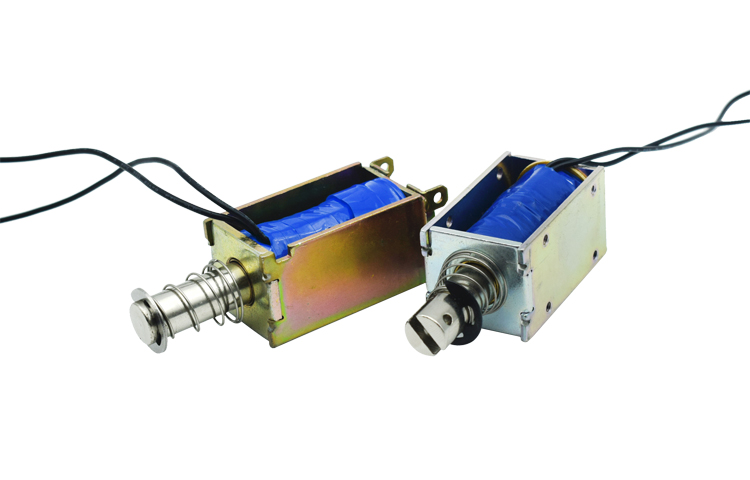

Open frame solenoids are available in two frame styles: the C Frame [or U Frame] style, in which the coil is enclosed on one side; and the D Frame [or Box Frame] style where the coil is enclosed on two sides. Open frame linear solenoids are generally secured by mounting screws through a panel in the application and threaded into the solenoid’s frame.

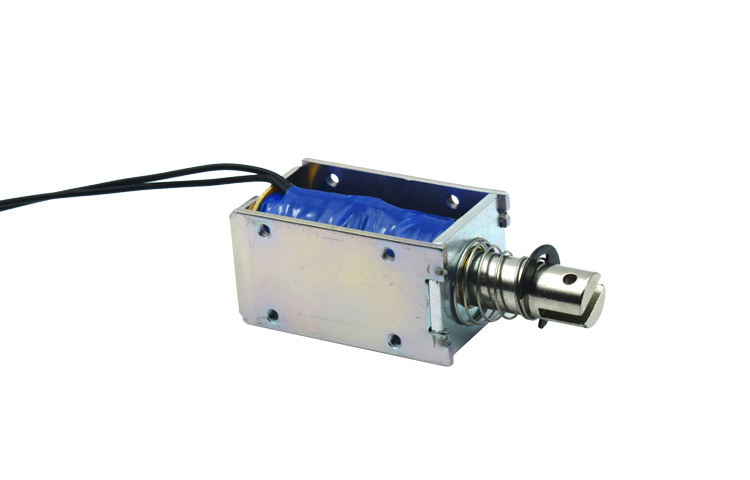

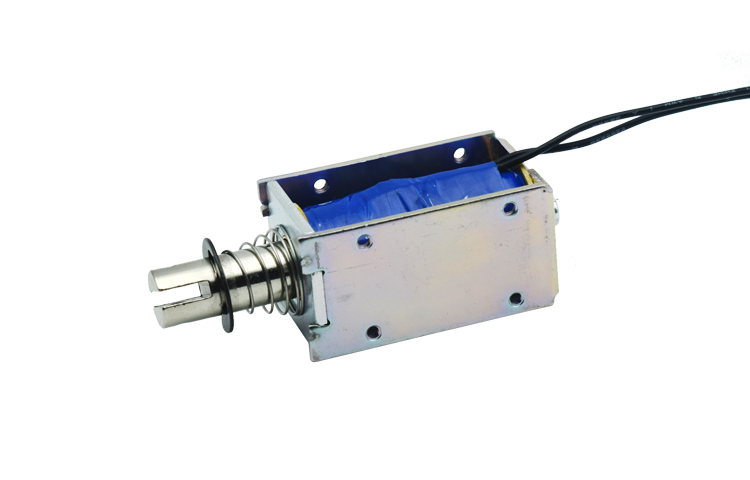

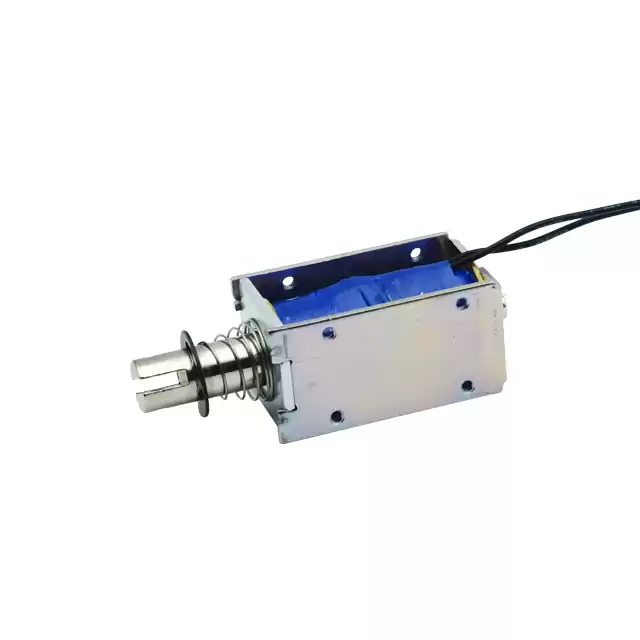

Product Description
|

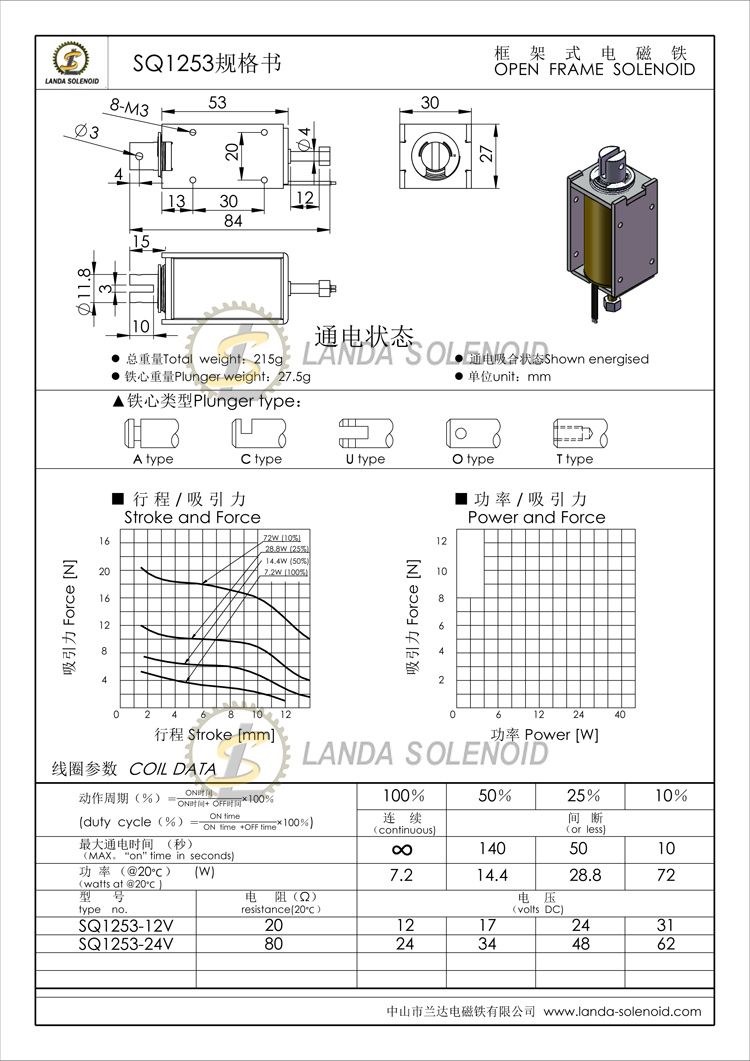

Specifications
|
|
Brand
|
Landa
|
Product Name
|
open frame push pull solenoid
|
|
Model
|
SQ1253
|
Rated Voltage
|
DC 12v 24v
|
|
Power
|
7.2-72w
|
Force
|
0-20N
|
|
Stroke
|
0-12mm
|
Duty Cycle
|
10-100%
|
|
Cable Length
|
200mm
|
Material
|
Metal, Electronic Parts
|
|
Action Form
|
Push pull type
|
Weight(N.W.)
|
0.215kg
|
|
Install Style
|
Screw
|
Thread Size & Deepth(mm)
|
M3,2
|
|
Hi-Pot Test
|
AC 600V 50/60Hz 2s
|
Insulation Class
|
B
|
|
Packaging Details
|
|
Body Size
|
53*30*27(mm)
|
Carton Box Size(Standard)
|
350*310*180(mm), accepted custom
|
Product Feature
1. Push-pull type, linear motion, plunger spring reset, DC solenoid electromagnet.
2. DC Solenoid electromagnets are mainly used in vending machines, transportation equipment, office equipment, household appliances, machinery, etc.
3. The solenoid works externally by pushing and pulling the plunger, and when energized, it works by pushing and pulling the plunger to connect the object.
4. Open frame structure with mounting holes, accepted custom as you needed.
