Dc 24V Solenoid Electromagnet XH1620 Permanent Electromagnet

Our XH1620 permanent electromagnet has low power and good waterproof performance. It is widely used for holding of ferromagnetic workpieces during machining or assembly, safety mechanisms, selector devices in textiles machinery, door latching holdback devices and etc.



Product Description

Specifications
Brand Landa Product Name permanent electromagnet
Model  XH1620 Rated Voltage DC 24v
Power  10.5w Force  20N (Min)
Waterproof Class  IP65 Duty Cycle  10%
Cable Length 200mm Material Metal, Electronic Parts
Action Form Holding type Weight(N.W.)  0.03kg
Install Style Screw Thread Size & Deepth(mm)  M3,6
Hi-Pot Test AC 600V 50/60Hz 2s Insulation Class B
Packaging Details
Body Size  D16*H20(mm) Carton Box Size(Standard) 350*310*180(mm), accepted custom

Product Feature

permanent electromagnet

1.Holding type, round shape, mini size, IP65 waterproof, DC solenoid electromagnet.

2.The electromagnet need to be energised to develop suction force, widely used for holding of ferromagnetic workpieces during machining or assembly, safety mechanisms, selector devices in textiles machinery, door latching holdback devices and etc.

3.Energised-on-holding, and release deenergised. We also offer an optional spring loaded ejector pin to overcome residual magnetism, as well as optional armature plates as a magnetic counterpart for optimum performance.

4.Also offer custom shape and energise to release circular electromagnet

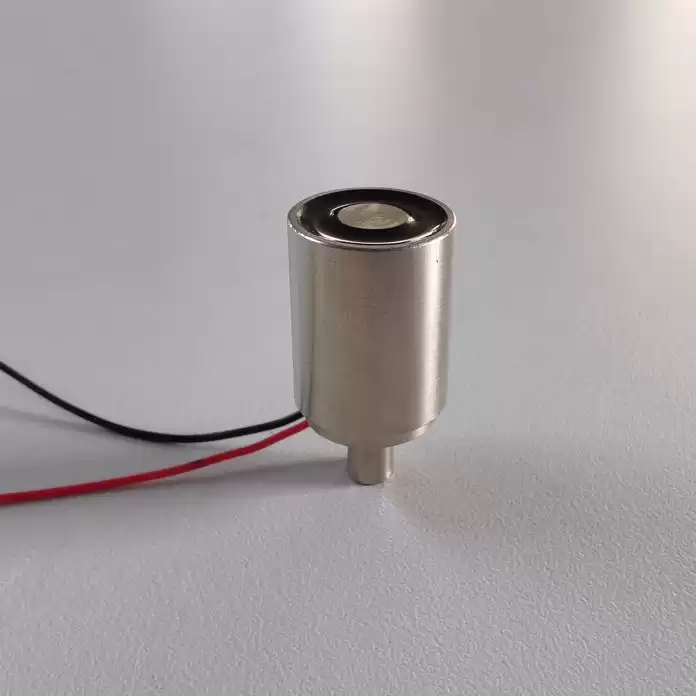

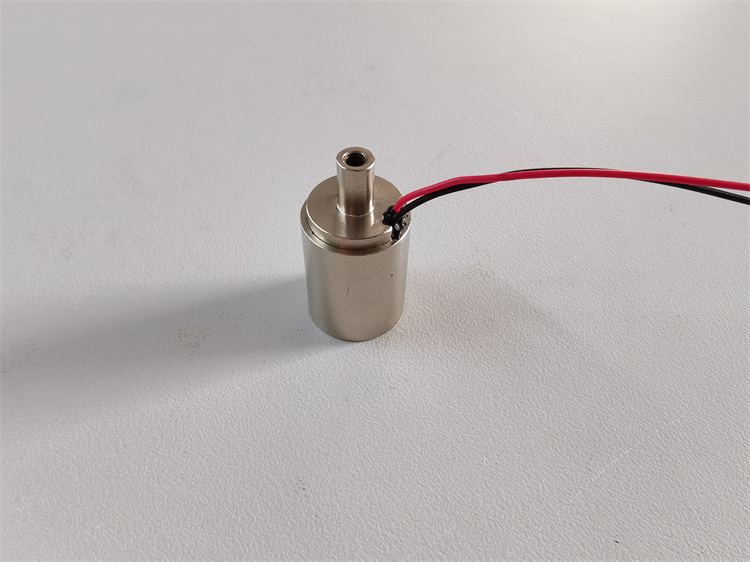

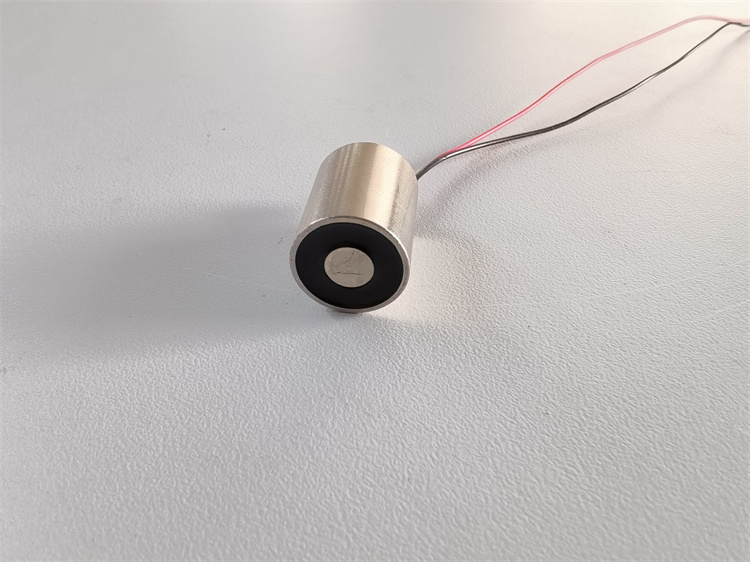

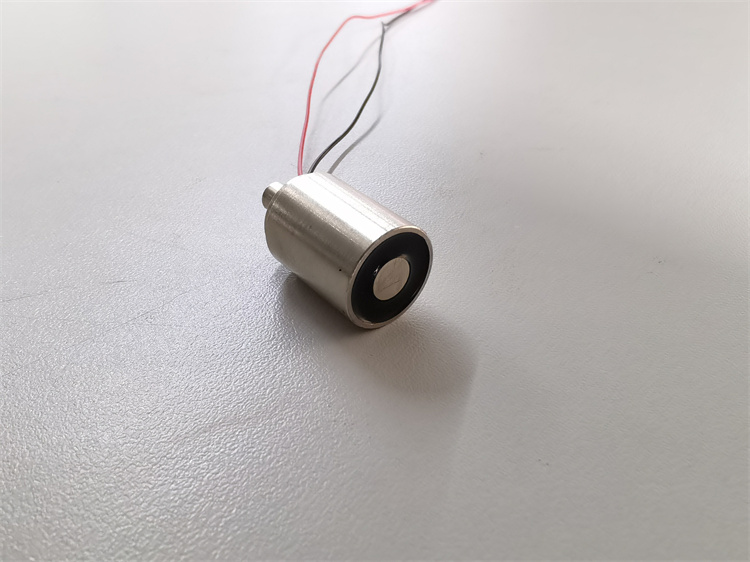

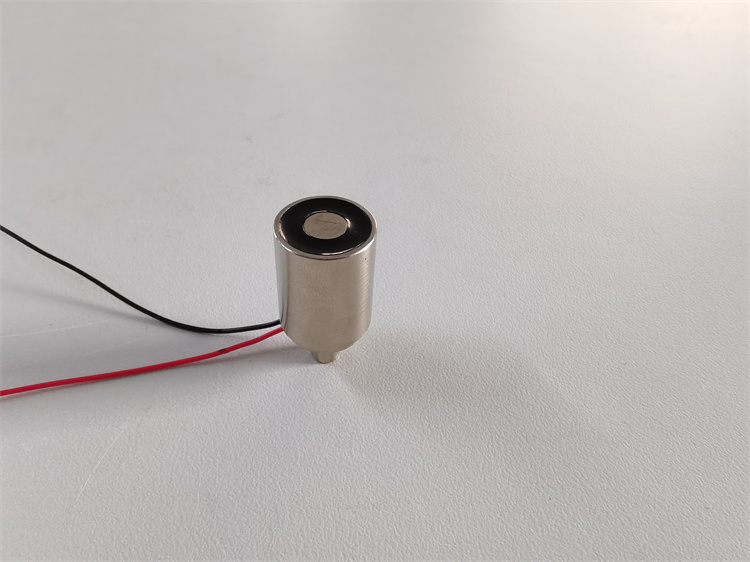

Detailed Images

Dc 24V Solenoid Electromagnet


XH1620 Permanent Electromagnet


DC Solenoid Electromagnet


Electro Permanent Magnet
