Product Name

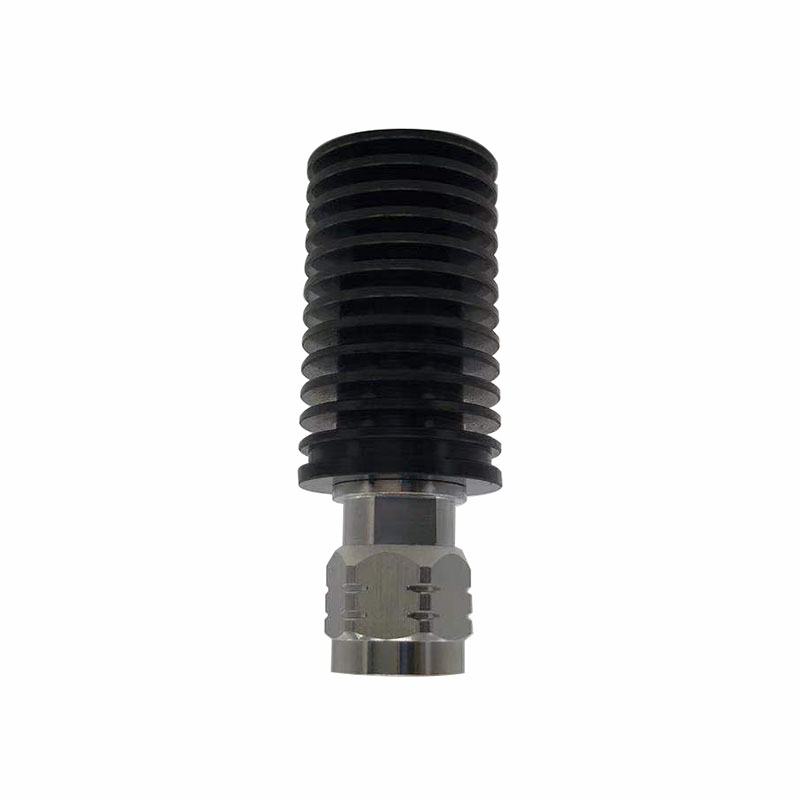

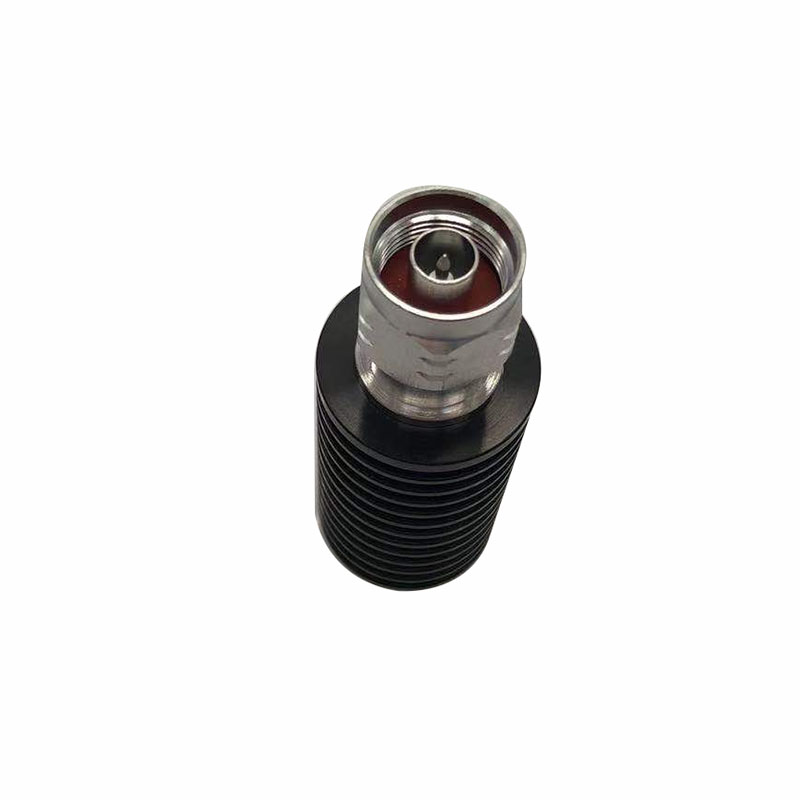

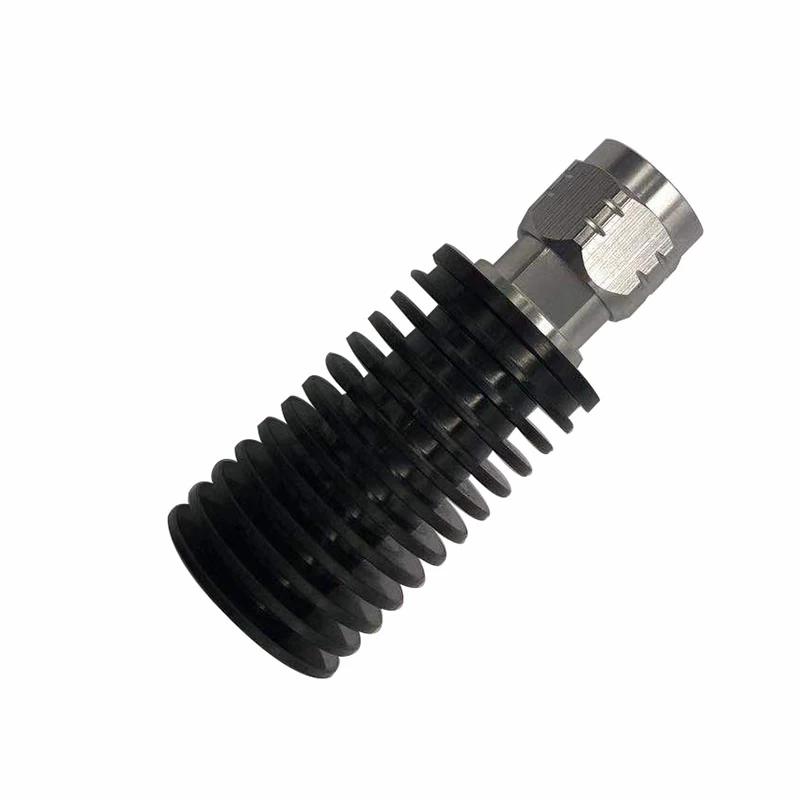

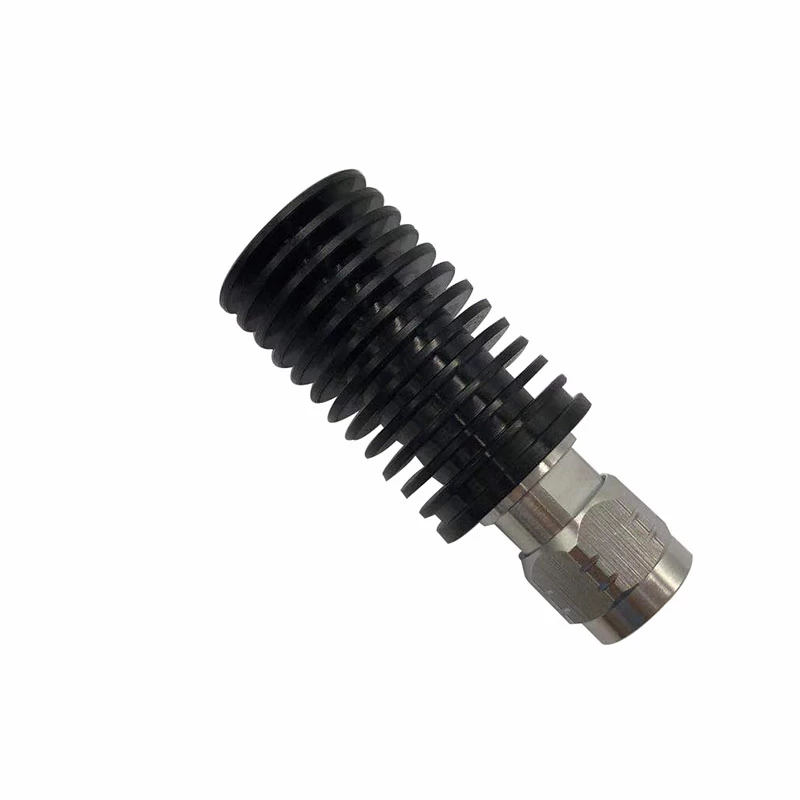

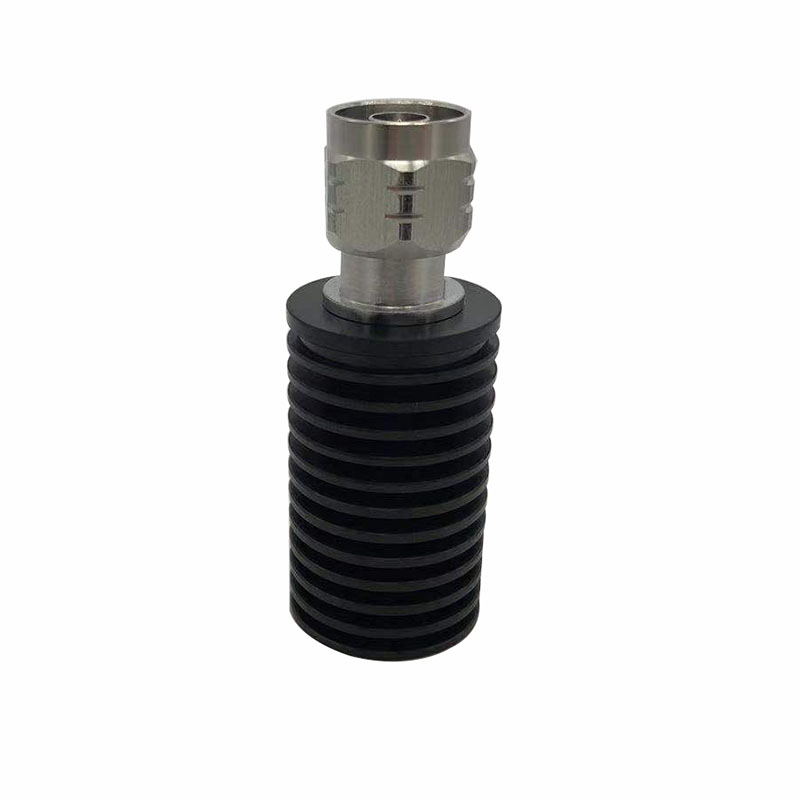

10W RF Dummy Load DC-3GHz N male RF Termination
Product Features
◆ Wide Frequency Band DC-3GHz
◆ 2G/3G/4G/LTE Coverage
◆ Low VSWR
◆ Widely used for In-building Solutions
This termination operates from DC to 3 GHz,which is matched to 50 ohms and can handle up to 10 Watts of power.
It has low VSWR and 50 Ohm.Our RF terminations varieties are RoHS and REACH compliant
Maniron has different styles to meet your requirements,please don’t hesitate to contact us if you are interested in.
Technical &Mechanical Specifications
|
Model No.
|
MRDL-10-3G-NM
|
Freq(MHz)
|
DC-3GHz
|
VSWR
|
≤1.20
|
Power(W)
|
10
|
Impedance
|
50 ohm
|
Connector
|
N-male
|
Pictures
