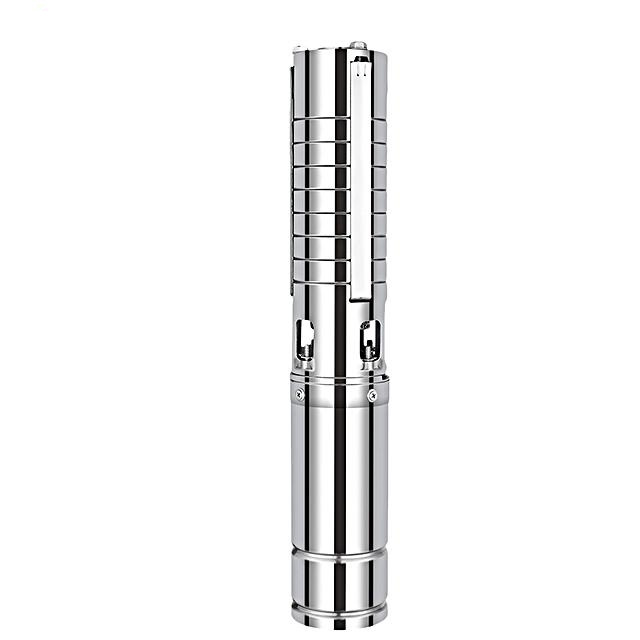

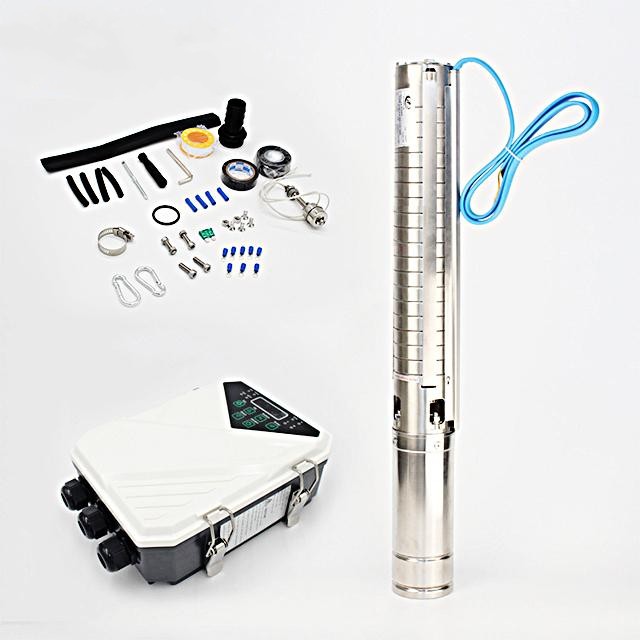

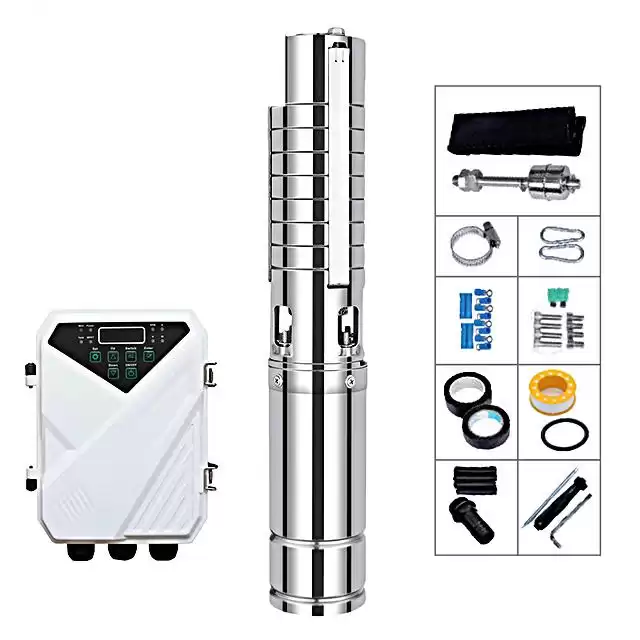

GREYSTONE DC/AC SOLAR WATER PUMP
Product Description
How to choose
How to choose the correct solar water pump?
HEAD CALCULATE:
1.Distance of "H+H2+L/10" if have a water tank
2.Distance of "H" if without water tank.
FLOW CALCULATE:
Q：How much water per hour or per day do you want?
A：Selecting the solar pump model that meets your requirements against the pump model number table.

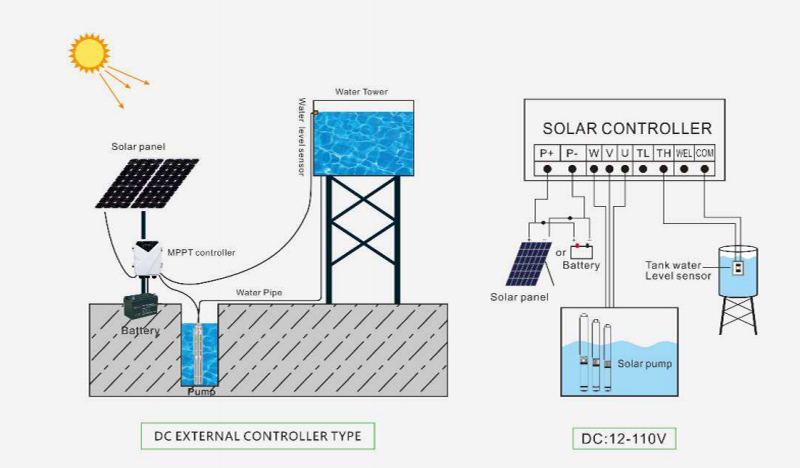

Wiring Diagram
Technical Data
Item
|
Voltage
|
Best input voltage(DC)
|
Power
|
Max.Flow
|
Max.Head
|
Outlet
|
Cable
|
Solar panel
|
|
Open circuit voltage (VOC)
|
Power
|
|
4GSP5.2-45-48-500
|
48V
|
60V-90V
|
500W
|
5.2m³/h
|
45m
|
1.25"
|
2m
|
<100V
|
≥1.3*PUMP POWER
|
|
4GSP5.2-67-48-750
|
48V
|
60V-90V
|
750W
|
5.2m³/h
|
67m
|
1.25"
|
2m
|
<100V
|
≥1.3*PUMP POWER
|
4GSP5.2-67-72-750
|
72V
|
90V-120V
|
750W
|
5.2m³/h
|
67m
|
1.25"
|
2m
|
<150V
|
≥1.3*PUMP POWER
|
4GSP5.2-101-72-1100
|
72V
|
90V-120V
|
1100W
|
5.2m³/h
|
101m
|
1.25"
|
2m
|
<150V
|
≥1.3*PUMP POWER
|
4GSP5.2-101-110-1100
|
110V
|
110V-150V
|
1100W
|
5.2m³/h
|
101m
|
1.25"
|
2m
|
<200V
|
≥1.3*PUMP POWER
|
4GSP5.2-146-110-1300
|
110V
|
110V-150V
|
1300W
|
5.2m³/h
|
146m
|
1.25"
|
2m
|
<200V
|
≥1.3*PUMP POWER
|
4GSP4.8-203-110-1500
|
110V
|
110V-150V
|
1500W
|
4.8m³/h
|
203m
|
1.25"
|
2m
|
<200V
|
≥1.3*PUMP POWER
|
4GSP7.5-80-110-1300
|
110V
|
110V-150V
|
1300W
|
7.5m³/h
|
80m
|
1.25"
|
2m
|
<200V
|
≥1.3*PUMP POWER
|
4GSP7.5-100-110-1500
|
110V
|
110V-150V
|
1500W
|
7.5m³/h
|
100m
|
1.25"
|
2m
|
<200V
|
≥1.3*PUMP POWER
|
|
More technical data details please contact GREYSTONE team,thank you!
|

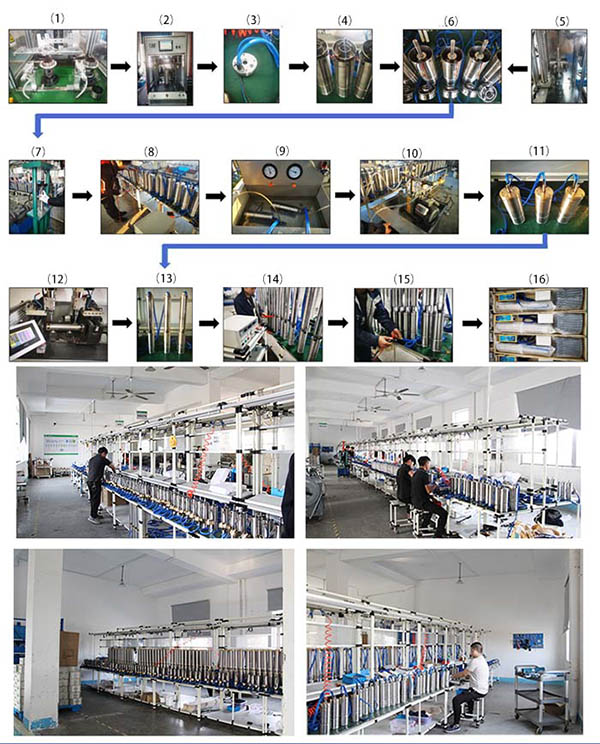

Production
|
（1） Inserted Line;
（2） Pressure machine barrel；
（3）Cable distribution；
（4）wiring；
（5）The rotor groupis assembled separately；
（6）Install rotor assembly；
（7）Pressed oil cylinder；
（8）Running test；
（9） Air tightness test；
（10）Oiling；
（11）Motor assembly；
（12）The pump body is assembled separately；
(13) Install the pump body；
（14）Pressure test;
（15）Performancetest；
（16）Packing.
|

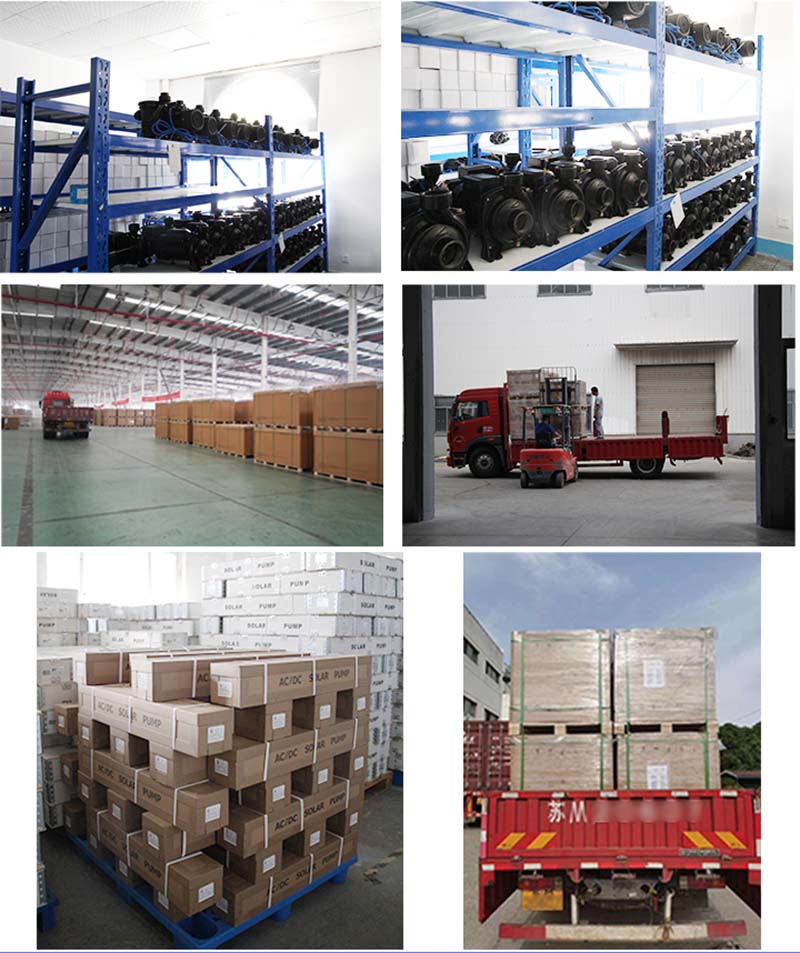

Packing&Delivery

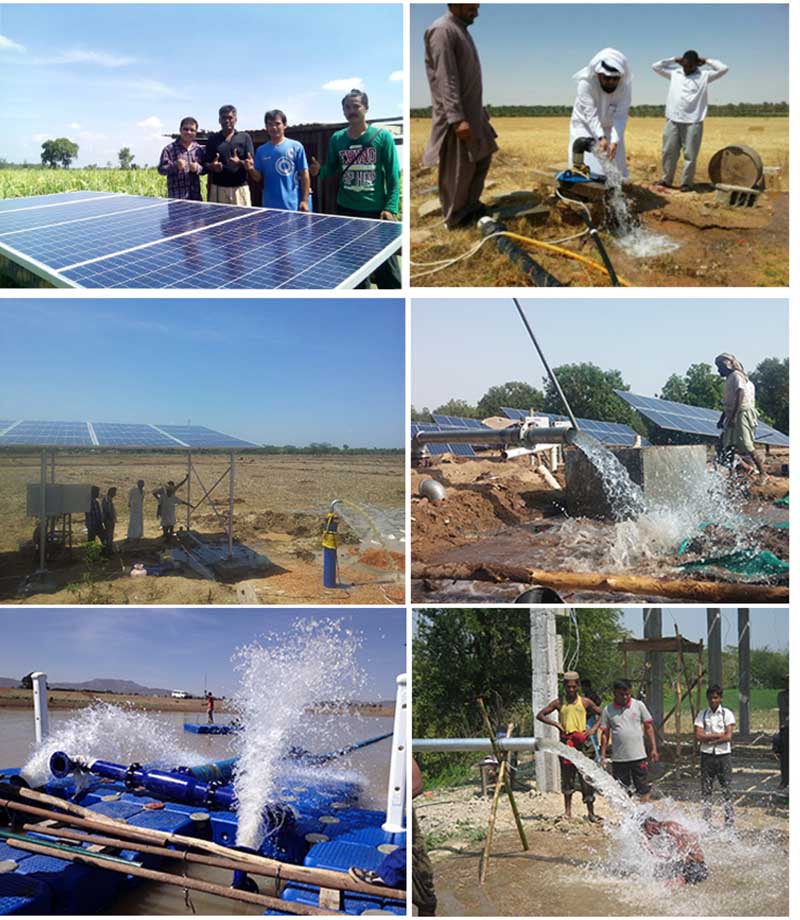

Projects
