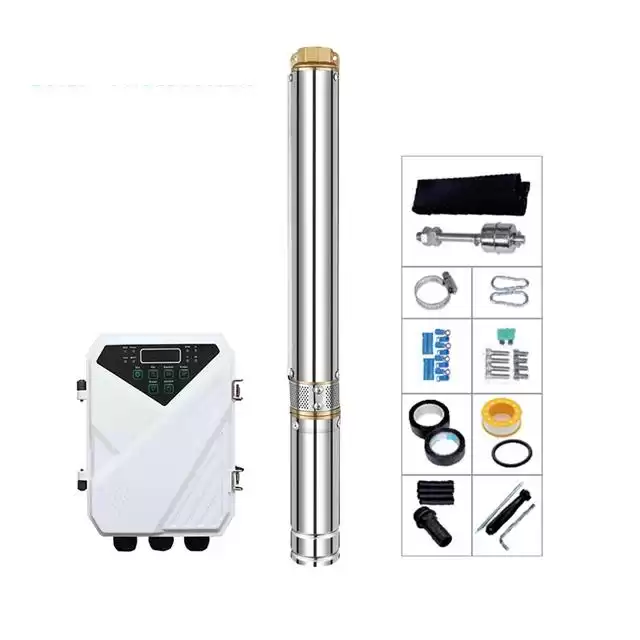

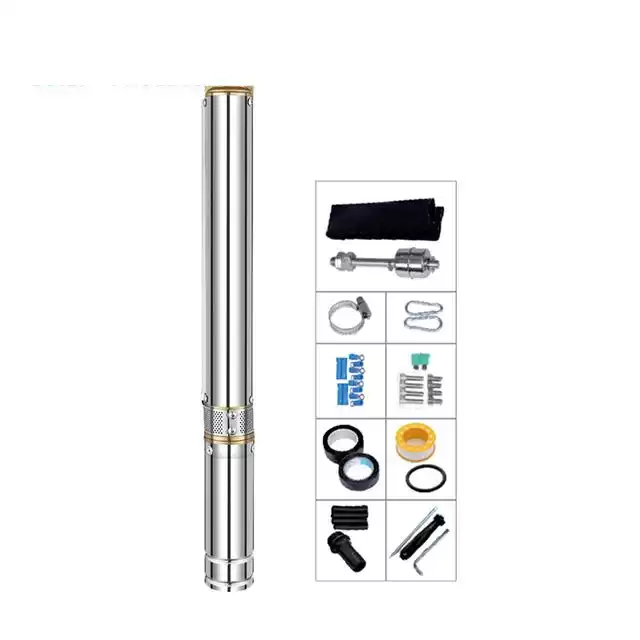

DC Plastic Impeller Solar Water Pump

Permanent magnet DC brushiess synchronous motor: The efficiency is improved by 15%-20%, Save energy, Reduce the consumptionof solar panels. Brass or stainless steel outlet/connector/oil cylinder.


  • Warranty2 YEARS

DC Plastic Impeller Solar Water Pump



Features

1.Permanent magnet DC brushless synchronous motor: The efficiency is improved by 15%~20%; Save energy;

    Reduce the consumption of solar panels.

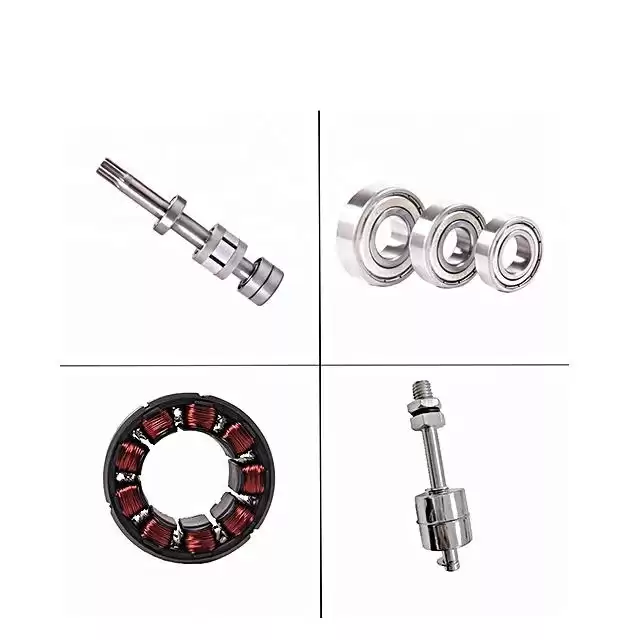

2.304 S/S pump shaft.

3.Brass or stainless steel outlet/connector/oil cylinder.

4.Japanese NSK bearing: prolong the working life.


How to choose

How to choose the correct solar water pump?

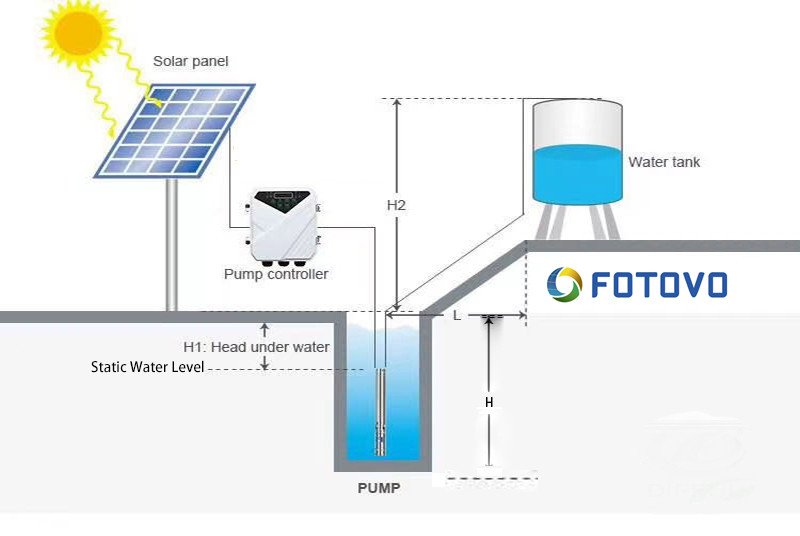

HEAD CALCULATE:

1.Distance of  "H+H2+L/10" if have a water tank

2.Distance of "H" if without water tank.


FLOW CALCULATE:

Q:How much water per hour or per day do you want?

A:Selecting the solar pump model that meets your requirements against the pump model number table.


Wiring Diagram

solar livestock water


Technical Data

Item
Voltage Best input voltage(DC) Power Max.Flow Max.Head Outlet Cable Solar panel
Open circuit voltage (VOC) Power
3DPC3-25-24-200 24V 30V-48V 200W 3.0m³/h 25m 1.25" 2m <50V ≥1.3*PUMP POWER

3DPC3-35-24-300

24V 30V-48V
300W 3.0m³/h
35m 1.25"
2m
<50V
≥1.3*PUMP POWER
3DPC3.5-47-48-400
48V 60V-90V 400W 3.5m³/h
47m 1.25"
2m
<100V
≥1.3*PUMP POWER
3DPC3.5-80-48-600
48V 60V-90V
600W 3.5m³/h
80m 1.25"
2m
<100V
≥1.3*PUMP POWER
3DPC3.5-80-72-600
72V 90V-120V 600W 3.5m³/h
80m 1.25"
2m
<150V
≥1.3*PUMP POWER
3DPC3.5-95-48-750
48V 60V-90V
750W 3.5m³/h
95m 1.25"
2m
<100V
≥1.3*PUMP POWER
3DPC3.5-95-72-750
72V 90V-120V
750W 3.5m³/h
95m 1.25"
2m
<150V
≥1.3*PUMP POWER
3DPC3.8-123-72-1100
72V 90V-120V
1100W 3.8m³/h
123m 1.25"
2m
<150V
≥1.3*PUMP POWER
3DPC3.8-123-110-1100
110V 110V-150V
1100W 3.8m³/h
123m 1.25"
2m
<200V
≥1.3*PUMP POWER
3DPC3.8-155-110-1300
110V 110V-150V
1300W 3.8m³/h
155m 1.25'' 2m <200V
≥1.3*PUMP POWER
3DPC3.8-180-110-1500
110V 110V-150V 1500W 3.8m³/h 180m 1.25'' 2m <200V
≥1.3*PUMP POWER
More technical data details please contact GREYSTONE team,thank you!


1. A: Can I have sample order for solar water pump?

   Q: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

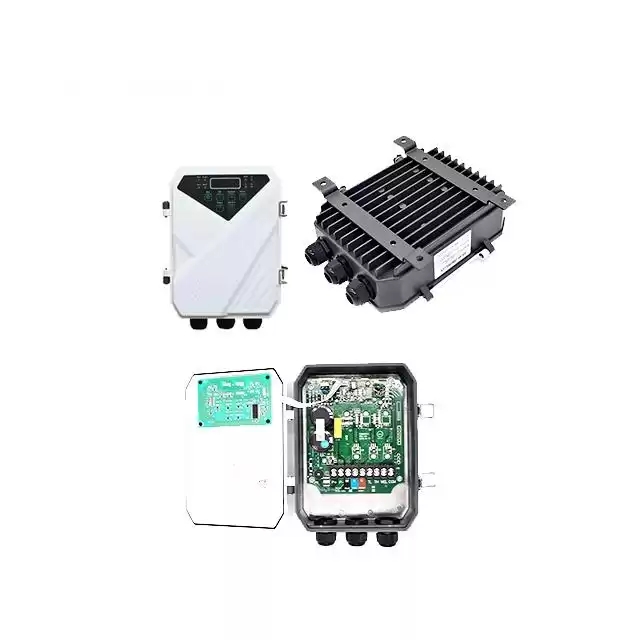

2. A: Do we need to pay attention to the connection between the controller and the pump of this product?

   Q: Yes, of course. The controller must match with the recommended solar pumps. Please do not use the controller for

       other pumps. If the pump problem is caused by this reason, we do not bare any responsibility. For the perfect

       performance and long-life working, the controller should be kept away from strike, shake, sunshine, salt mist, oil mist and etc.


3. A: What's the warranty?

    Q: 2 years.


4. A: Any contact details?

   Q: Please contact us by trade manager, Email, Whatsapp or Wechat. Surely call me when you need.


5. A: What are the uses of this solar water pump?

   Q: It can be used for irrigation of crops or for digging deep wells.
