Industrial switching power supply 4V 16A 12V 4A
Description:
K23-S150D4+12 switching power supply is a highly reliable power supply with 176~264 wide AC input voltage; it is equipped with complete protection functions to use for various industrial applications.
Features:
1, dual power supply 4V 12V with wide range of AC input voltage;
2, 100W switching power supply high efficiency and low interference;
3, Dual output power supply 4V 12V with short circuit, overload, overvoltage and overheating protection.
|
parameter
|
|
Item No.
|
K23-S150D4+12
|
|
|
CH1
|
CH2
|
|
Output
|
Output Voltage
|
+4V
|
+12V
|
|
Rated Current
|
16A
|
4A
|
|
Current Range
|
0.5-20A
|
0.1-5A
|
|
Rated power
|
112W
|
|
Ripple(p-p)
|
50mV
|
100mV
|
|
Adjustable output range
|
CH1：-5%~+10%
|
|
Output Accuracy
|
±2%
|
±6%
|
|
Line Regulation
|
±1%
|
±1%
|
|
Load Regulation
|
±1%
|
±5%
|
|
Set up,Rise,Keep up time
|
500ms,50ms,20ms
|
|
Input
|
Input Voltage range
|
176-264V AC
|
|
Input current
|
2.2A @ 220V AC
|
|
Input frequency
|
47-63 Hz
|
|
Efficiency
|
>76% @ 220V AC
|
|
Inrush current
|
|
|
Leakage Current
|
Cold start30A/230V
|
|
Input Voltage range
|
<0.5mA@240V AC
|
|
Protection
|
Over load
|
105~180%,Hiccup,automatic recovery
|
|
Output overvoltage
|
CH1:5.5-6.5V
|
|
Over Temp.
|
------
|
|
Other Function
|
|
|
|
Environment
|
Working Temp.,Humidity
|
-20~50℃，10~90% RH，No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃，10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety&EMC Standards
|
Safety standards
|
GB4943,EN60950-1
|
|
Pressure
|
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
|
Insulation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC standards
|
------
|
|
Others
|
Demension
|
160*63*48mm
|
|
Weight
|
0.6Kg
|
|
Terminals
|
---
|
|
Note
|
1. All parameters 220V AC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5.Load regulation: the measured output load from 0 to 100% load change measured, other load fixed at 60% load; Ver: 1.0
|

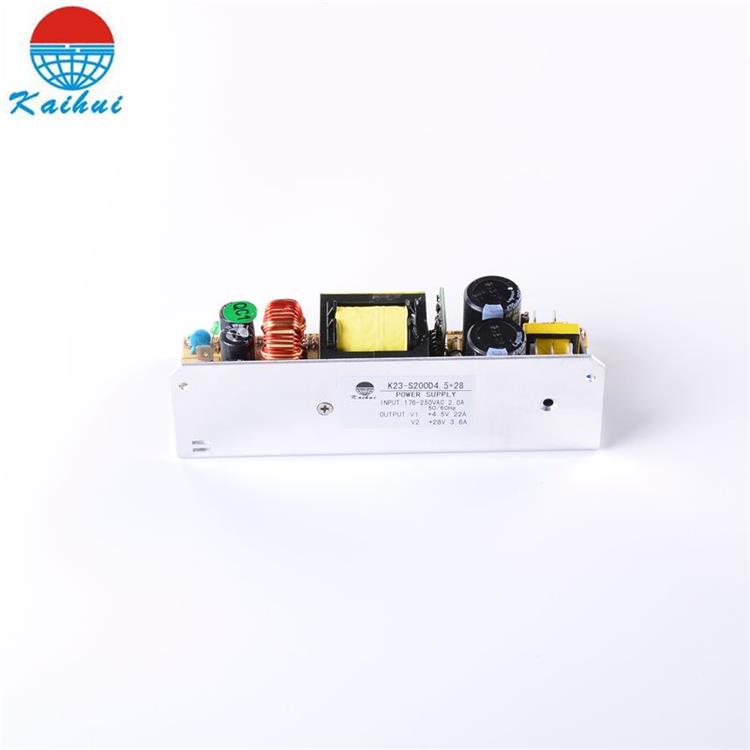

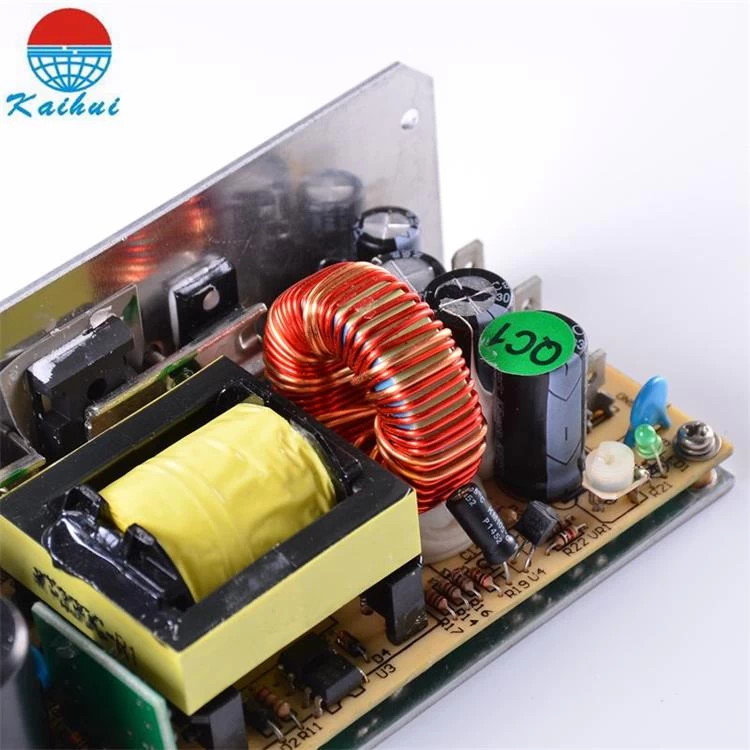

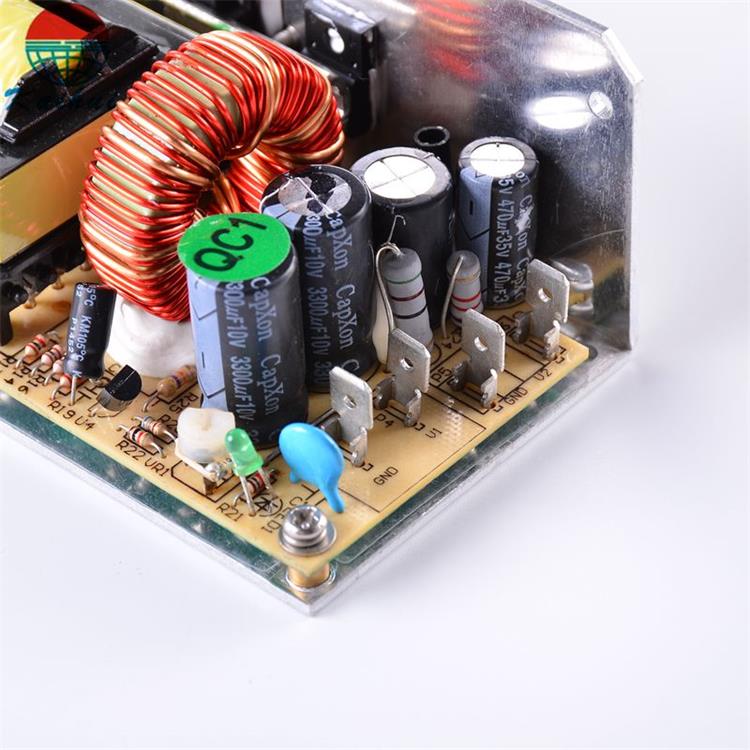

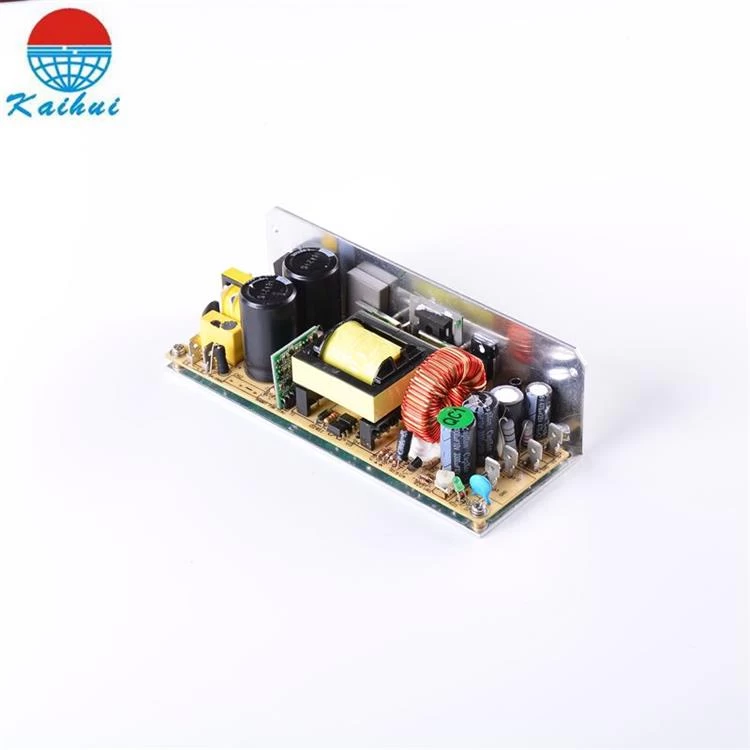

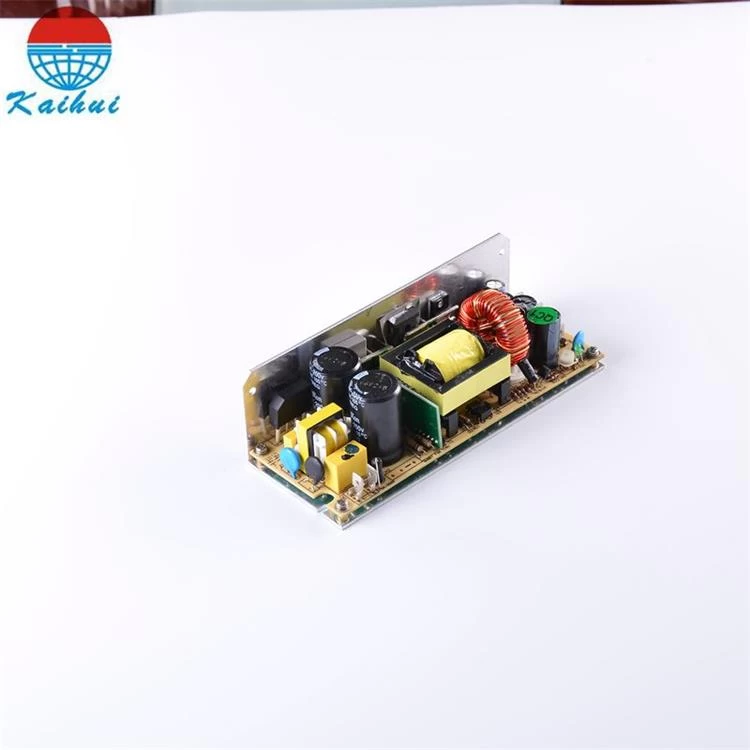

Product picture:
