350W UPS 24V 27.6 VDC switching power supply with battery charger
Description:
350W enclosed Switching power supply with battery charger with high efficiency AC/DC switching power supply, can be used for UPS systems and Central monitoring systems, Alarm systems and etc.
Features:
1, High power 350W 24V DC UPS power supply with small size;
2, 350W UPS power supply;
3, 24v 27.6v 350w power supply short circuit, overload, over voltage protection.
|
parameter
|
|
Item No.
|
KDC350-24
|
|
|
CH1
|
CH2
|
|
Output
|
Output Voltage
|
+27.6V
|
+27.6V(charging)
|
|
Rated Current
|
12A
|
1A
|
|
Current Range
|
0-12A
|
0-1A
|
|
Rated power
|
350W
|
|
Ripple
|
240mVp-p
|
200mVp-p
|
|
Adjustable output range
|
±10%,based on different battery charging requirements,rated voltage:27~27.6V
|
|
Output Accuracy
|
±5%
|
±5%
|
|
Line Regulation
|
±0.5%
|
±1%
|
|
Load Regulation
|
±0.5%
|
±4%
|
|
Set up,Rise,Keep up time
|
300ms,50ms,20ms
|
|
Input
|
InputVoltage range
|
88~132V,176~264V AC
|
|
|
Input current
|
6A/115V,3A/230V AC
|
|
Input frequency
|
47~63Hz
|
|
Efficiency
|
>85% @ 220V AC
|
|
Inrush current
|
COLD START 40A/230V
|
|
Leakage Current
|
<0.5mA/240VAC
|
|
Protection
|
Over load
|
105~150%
|
|
Output overvoltage
|
------
|
|
Other Function
|
|
|
|
Environment
|
Working Temp.,Humidity
|
-20~50℃，10~90% RH，No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃，10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety&EMC Standards
|
Safety standards
|
GB4943
|
|
Pressure
|
I/P-O/P，I/P-FG：1.5KV；O/P-FG:0.5KV AC 1min.
|
|
Insulation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC standards
|
........
|
|
Others
|
Demension
|
215×110×50mm
|
|
Weight
|
1KG
|
|
Note
|
1. All parameters 220VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 20% to 100% load change measured, other load is fixed at 60% of the load;
|

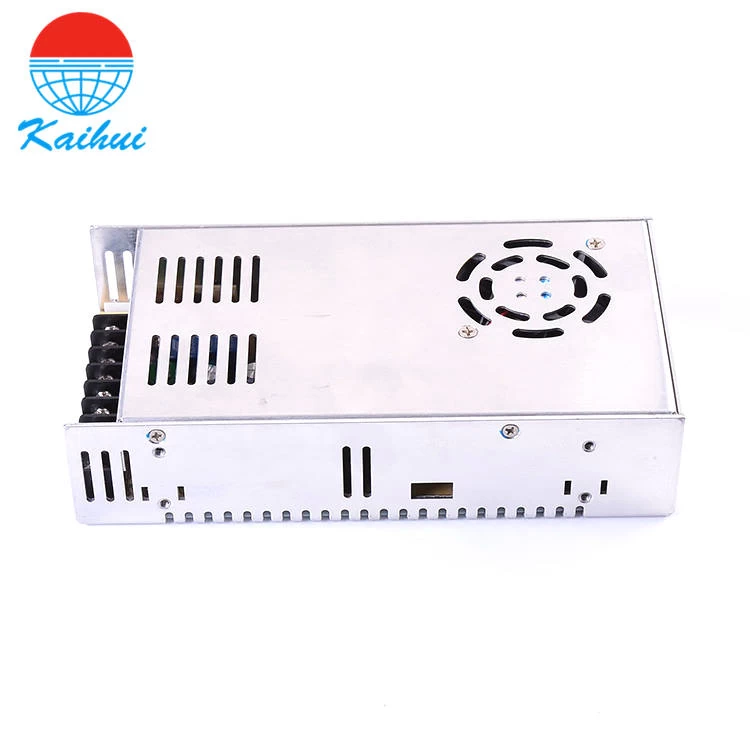

Product picture:
FAQ
Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you accept OEM/ODM for the switching power supply?
A2: Yes. we do.
Q3:How about the quality?
A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%
Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)
Real Power= Input Voltage x Input Current x Power Factor (W)
