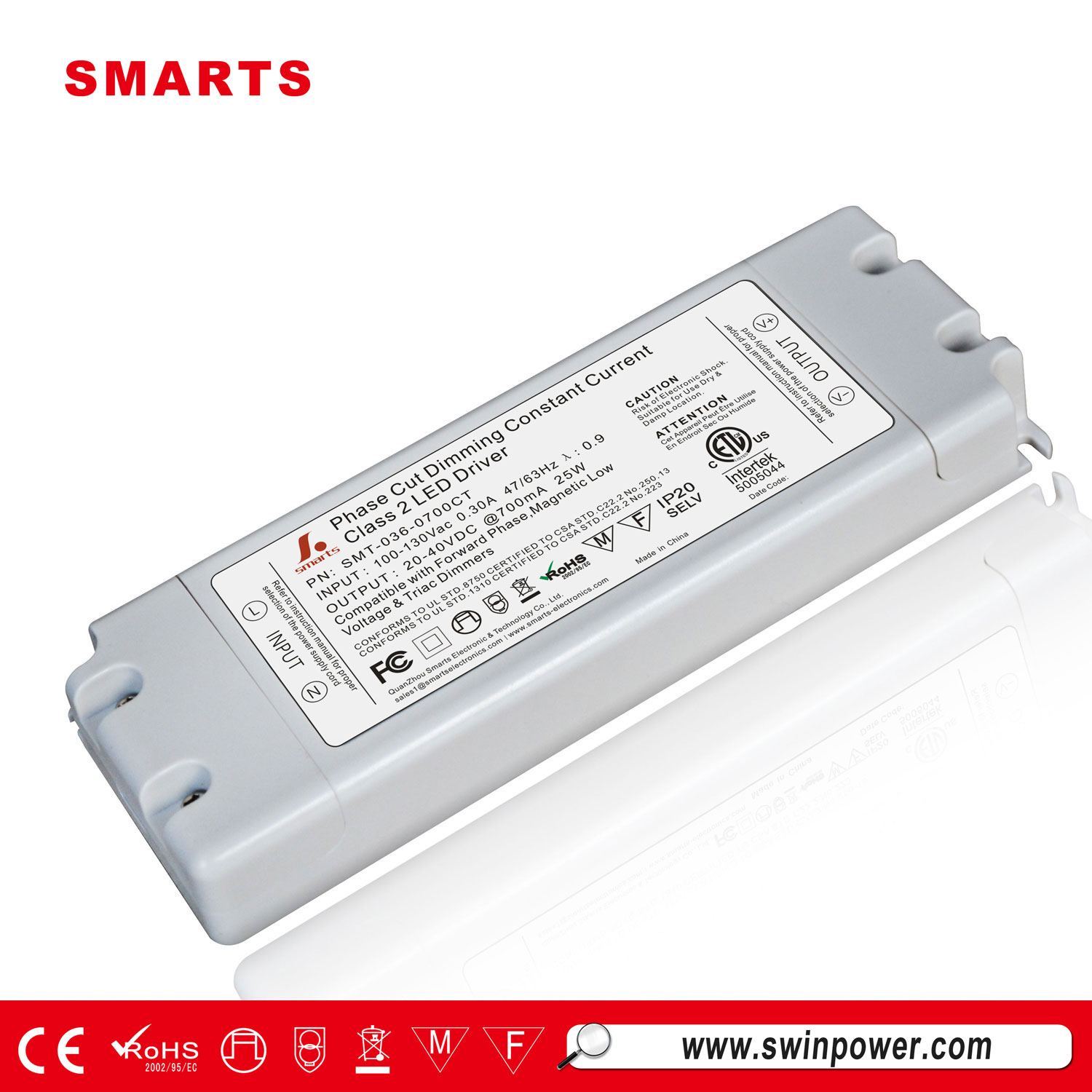

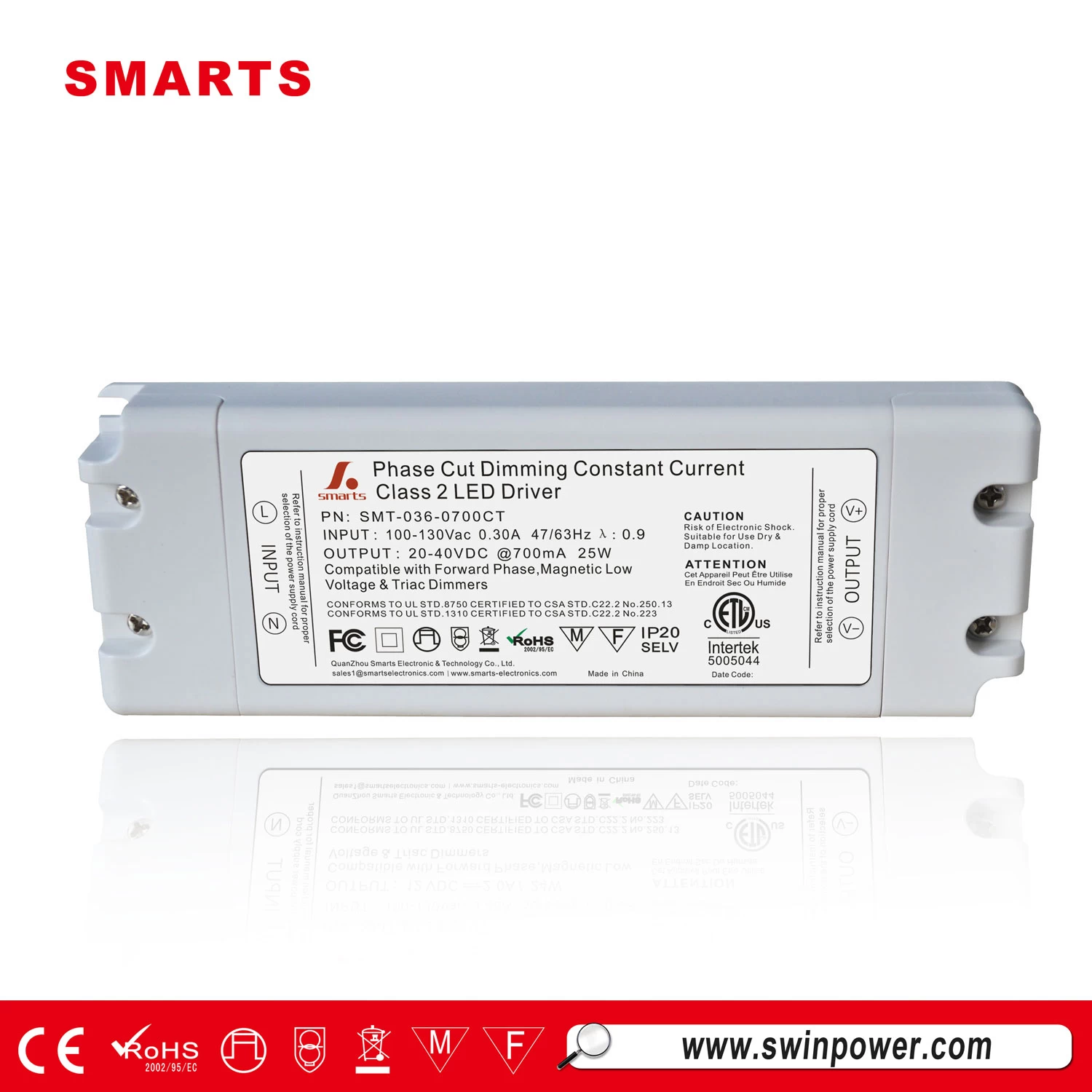

dc power supply pwm constant current 700ma triac dimmable led driver

Input range :90-135VAC / 170-265VAC, dimming type: 700ma triac dimmable led driver, w

ork with leading edge and trailing edge TRIAC dimmers.



  • CertificationCE, ETL, FCC, ROHS
  • Size180*60*34mm
  • Dimming modetriac dimmable
  • Working ModeCC
  • Output Current700ma
  • Output Voltage20-40v
  • Input Voltage100-130V/ 170-265V

dc power supply pwm constant current 700ma triac dimmable led driver



Strong compatibility, flicker-free dimming function, 20-40v output voltage, 700ma constant current  TRIAC dimmable led driver.



Specifications

  1. I/P:90-135V/170-265, 47~63Hz
  2. Ambient temp.:-20 degree~40 degree full load
  3. Efficiency > 88%
  4. PFC> 0.9
  5. size: 140*45*28mm
  6. RippleI & Noise (max.) : 150mVp-p
  7. Voltage Tolerance : ±5%
  8. Line Regulation : ±1%
  9. Load Regulation : ±2%
  10. Setup, Rise Time : 500ms, 120ms / 230VAC
  11. 3 years warranty



Product parameters


Model

SMT-090-0350CT

SMT-048-0500CT

SMT-036-0700CT

SMT-036-0900CT

Output

DC Current

350mA

500mA

700mA

900mA



Current Accuracy

±5%



Voltage Range

50-90V

30-48V

20-40V

20-36V



Rated power

30W

30W

25W

32W

Input

Voltage Range

170250VAC/(90-130VAC For North America Markets )



Frequency Range

4763HZ



Power Factor Typ.

PF≧0.93/110V ; PF≧0.95/220V ; PF≧0.94/250V



Full Load EfficiencyTyp.

85%

86%

85%

85%



AC CurrentTyp.

0.14A/110VAC  0.12 A/220VAC  0.01A/250VAC



Leakage current

<0.27mA/110VAC; 0.25mA/220VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.



Over voltage

≦270VAC

Environment

Working TEMP.

-40+60℃



Working Humidity

2090%RH,non-condensing



Storage TEM.,Humidity

-40+80℃1095%RH



TEMP.coefficient

±0.03%/℃050℃



Vibration

10500Hz2G 10min./1 cycleperiod for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

EN-60950-1, EN-61347-1-2



Withstand voltage

I/P-O/P:3.75KVAC



Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH



EMC EMISSION

Compliance toEN55015,EN61000-3-2 (≧50%load)



EMC IMMUNITY

Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry

level surge4KV

Others

Weight

0.34Kg/pcs



Size

180*60*34mm

m

mmmL*W*H



packing

324*298*176mm

Notes

1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and

25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted

 pair-wire terminated with a 0.1uf &47uf parallel capacitor.

1. 3.Tolerance:includes set us tolerance,line regulation and load regulation .



 What is the constant current led driver?

 Constant current LED drivers are designed for a designated range of output voltages and a fixed output current (mA). LEDs that are rated to operate on a constant current driver require a designated supply of current usually specified in milliamps (mA) or amps (A). These drivers vary the voltage along an electronic circuit which allows current to remain constant throughout the LED system.
