Dc12v 24v Micro Round Reverse Solenoid Opposite Electromagnet
Products Description
|
Brand
|
Landa
|
Model
|
XH6045
|
|
Place of Origin
|
Guangdong, China
|
Certification
|
CE,ROHS,ISO9001
|
|
Dimension(L*W*H)
|
60*60*45 mm
|
Rated Voltage (V)
|
DC 12/24
|
|
Rated Power(W)
|
9-19
|
Work Model
|
Holding Type
|
|
Holding Force (N)
|
500
|
Stroke(mm)
|
0
|
|
Reset Time(s)
|
0.2
|
Service Life
|
500 Thousand Times
|
|
Material
|
Iron
|
Lead Wire Length(mm)
|
300
|
|
Install Style
|
screw
|
Tolerance of Dimension
|
gb/t1804-m
|
|
Water-proof
|
IP65
|
Insulation Class
|
B
|
|
Residual Magnefism
|
/
|
Duty Cycle
|
50%-100%
|
|
Working Temperature
|
-10°C-100°C
|
Thread Size(mm)
|
M4
|
|
Thread Depth(mm)
|
4
|
Payment Term
|
TT,PAYPAL
|
|
Sample Order
|
Yes
|
Warranty
|
1 year
|
|
MOQ
|
2 pcs
|
Supply Ability
|
5000 pcs per Week
|
|
Delivery Time
|
3 Days
|
Port of Loading
|
Zhongshan
|
|
Weight
|
Packaging Details
|
Shipment Details
|
|
N.W.(KG)
|
G.W.(KG)
|
Product Size(mm)
|
Carton Box Size(mm)
|
20GP
|
40GP
|
40HQ
|
|
0.78
|
0.78
|
60*60*45
|
350*310*180
|
/
|
/
|
/
|
Product Features
Small size, high suction,with force power off and without force power on. Smooth and flat surface, saving energy, safe and reliable.

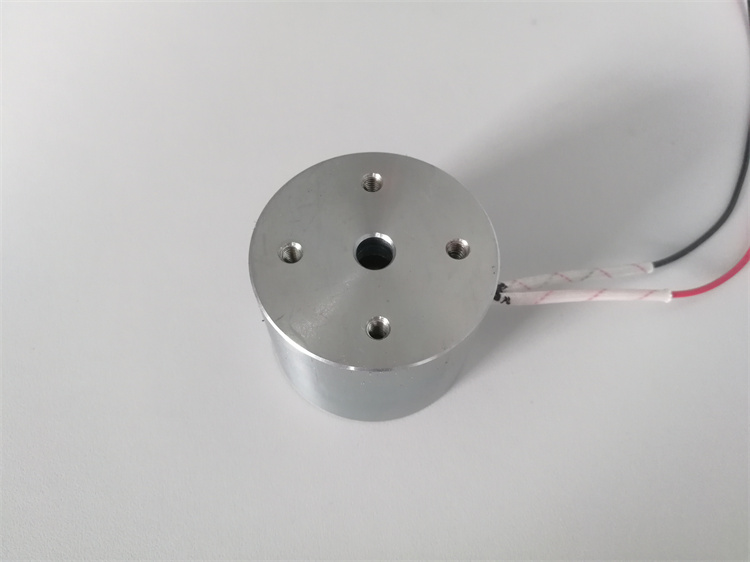

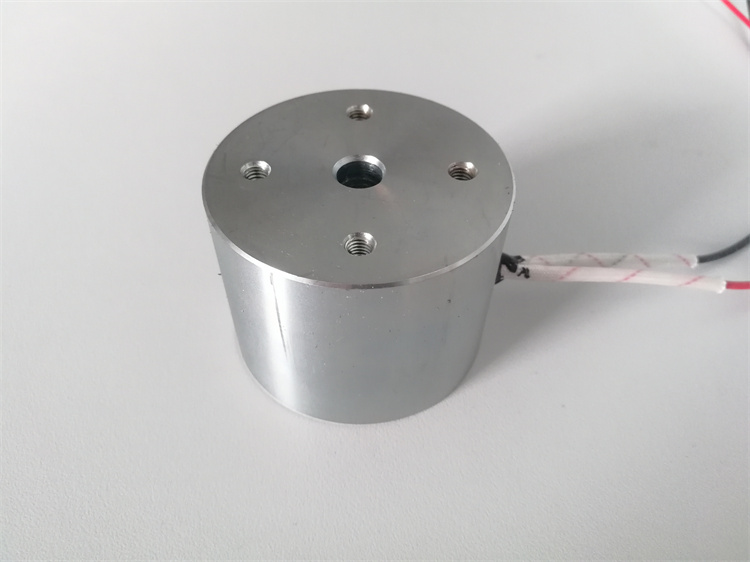

Easy to install. With a 16mm depth M8 mounting tooth and four 8mm depth M4 mounting teeth in the bottom , easy to install and operate.
Materials
High quality iron house & core. High temperature resistance lead wire and copper wire, efficient conductivity, outlet can be customized. Epoxy filled, IP65 waterproof class.
OEM/ODM is welcome
11 years of designing and producing experience. CE, ROHS, ISO9001 certification. Good quality, best service, competitive price. Welcome to our factory.
