Product Description
|
Brand
|
Landa
|
Model
|
XH4942
|
|
Rated Voltage (V)
|
DC12/24
|
Rated Power(W)
|
20
|
|
Work Model
|
Holding Type
|
Holding Force (N)
|
400
|
|
Stroke(mm)
|
0
|
Reset Time(s)
|
0.2
|
|
Service Life
|
500 Thousand Times
|
Certification
|
CE,ROHS,ISO9001
|
|
Material
|
Iron
|
Lead Wire Length(mm)
|
/
|
|
Install Style
|
screw
|
Tolerance of Dimension
|
gb/t1804-m
|
|
Water-proof
|
IP65
|
Insulation Class
|
B
|
|
Hi-Pot Test
|
AC 600V 50/60Hz 2s
|
Non-excitation Holding Force
|
/
|
|
Residual Magnefism
|
/
|
Duty Cycle
|
1-100%
|
|
Working Temperature
|
-10°C-100°C
|
Thread Size(mm)
|
M8
|
|
Thread Depth(mm)
|
10
|
Payment Term
|
TT,PAYPAL
|
|
Sample Order
|
Yes
|
Warranty
|
1 Year
|
|
MOQ
|
10 pcs
|
Supply Ability
|
5000 pcs per Week
|
|
Delivery Time
|
8 Days
|
Port of Loading
|
Zhongshan
|
|
Weight
|
Packaging Details
|
Shipment Details
|
|
N.W.(KG)
|
G.W.(KG)
|
Product Size(mm)
|
Carton Box Size(mm)
|
20GP
|
40GP
|
40HQ
|
|
0.48
|
0.5
|
49*42
|
350*310*180
|
/
|
/
|
/
|
Product Features
• Small in size
• Big in force
• With force power on and without force power off
• Easy to operate
• Epoxy filled
• IP65
• Wide range of application
• 10 years of designning and producing experience
• OEM/ODM is welcomed

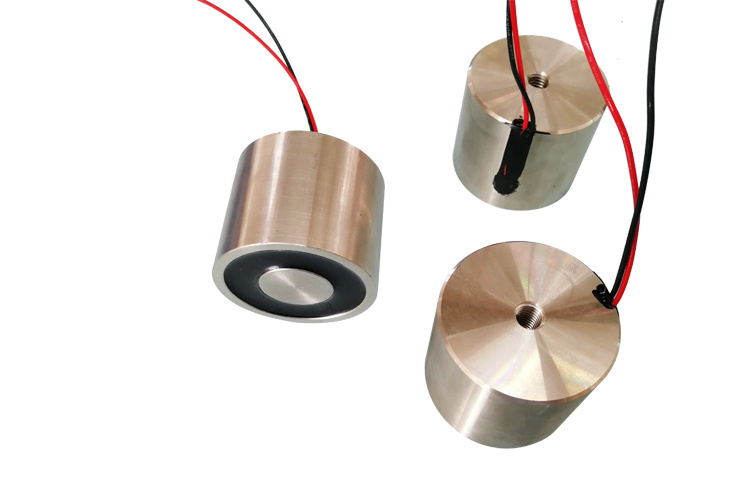

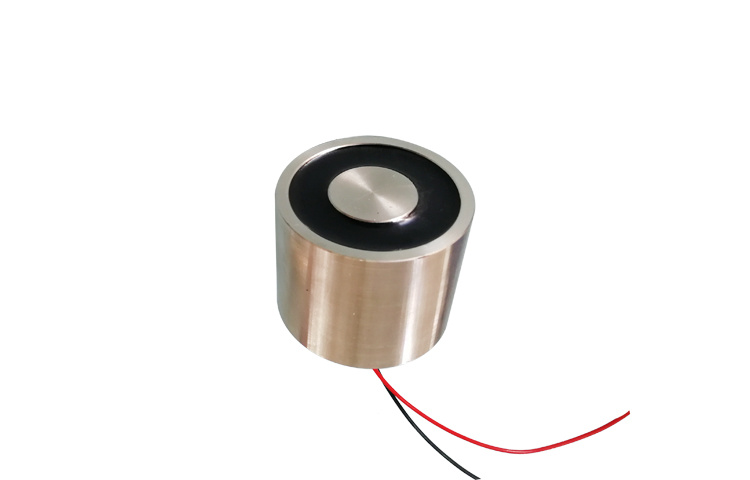

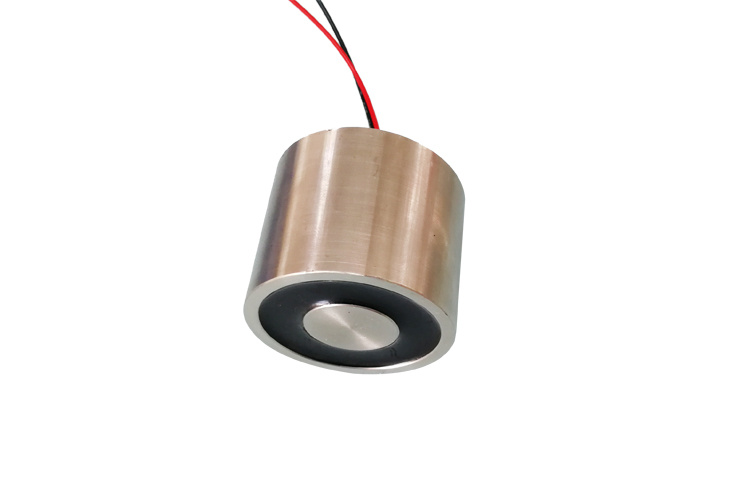

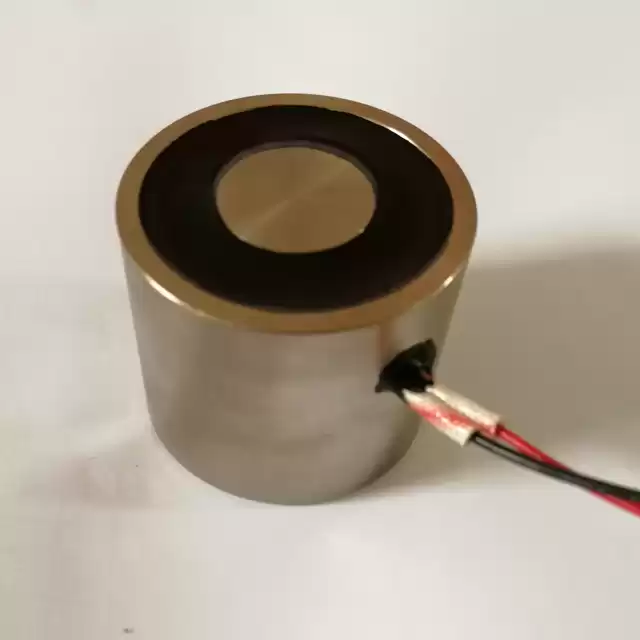

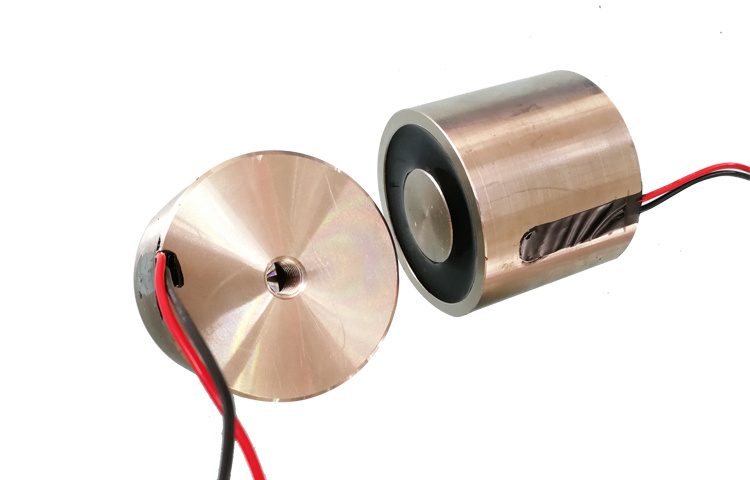

Product Details
