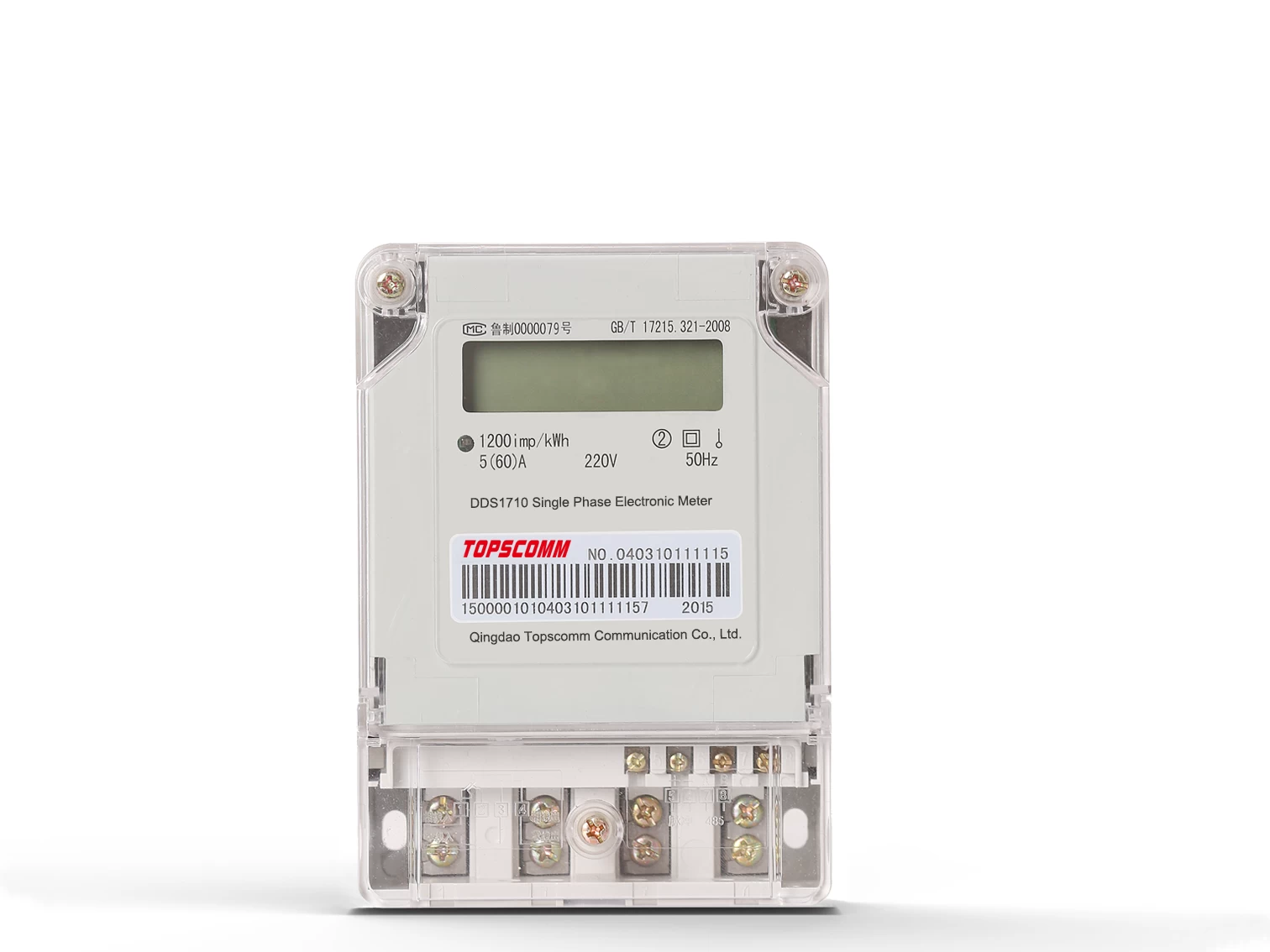

DDS1710 is produced with the latest micro-electronic and SMT technology, featured wide temperature, low power consumption, and compact size etc. This single phase electronic energy meter is equipped with RS 485 communication port, combining with AMR/AMI smart metering system, which is able to achieve remote meter reading function.
|
Accuracy
|
Class 1.0
|
Rated Voltage
|
220V
|
Operating range
|
0.8~1.2Un
|
Current
|
5(60)A
|
Frequency
|
50 Hz ±5%
|
|
Power consumption
|
＜ 0.5W, 2VA
|
RTC error
|
≤0.5s/d
|
Display
|
LCD 7+0/6+2/7+1( Optional)
|
|
Communication
|
RS 485
|
Operating temperature
|
-40℃-85℃
|
Humidity
|
≤95%
|
|
Service life
|
＞10 years
|
Dimension
|
137mm*98mm*51mm
|
