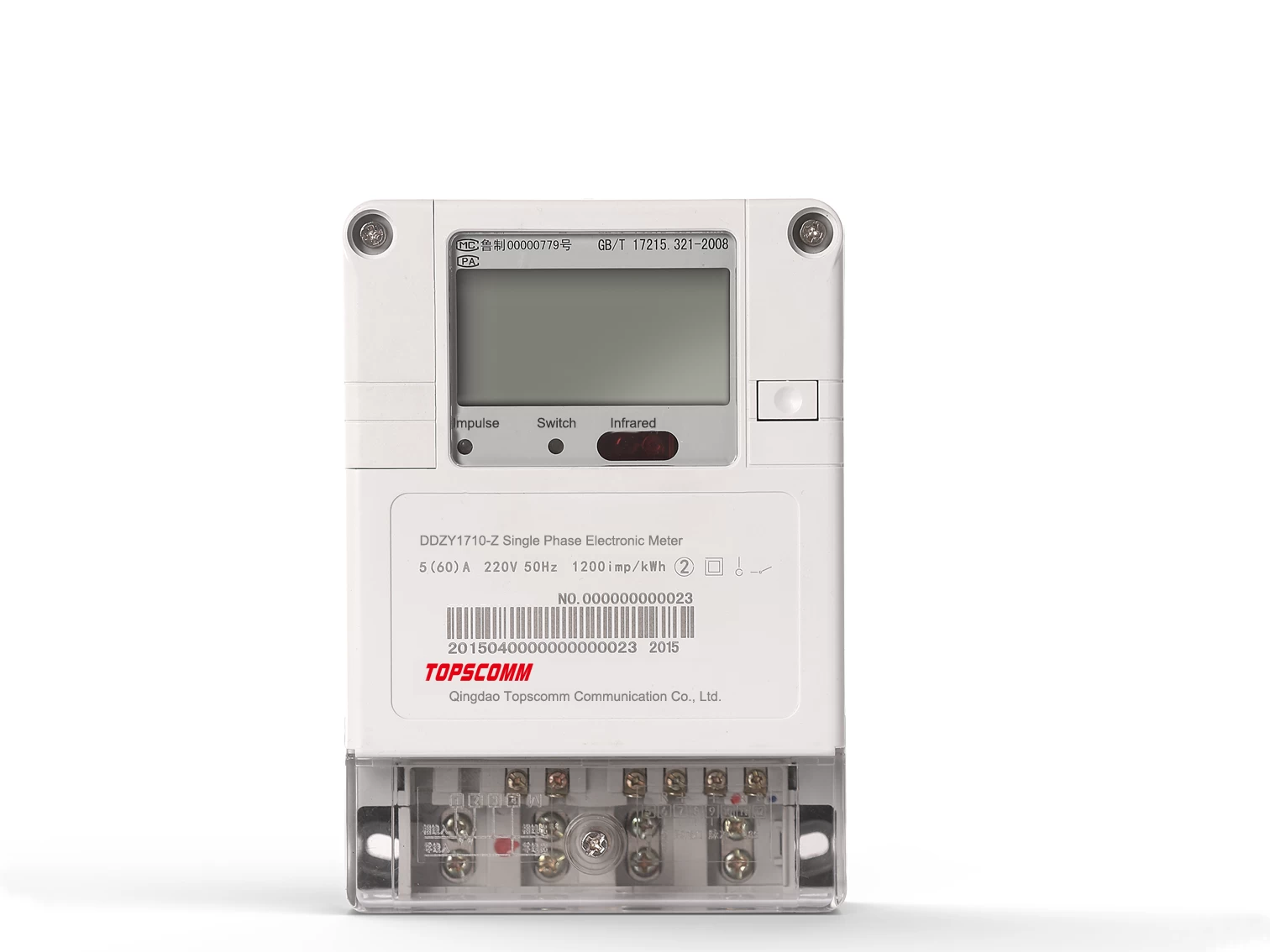

DDZY1710-Z Single Phase PLC Electronic Energy Meter is designed with built-in PLC module, and integrated with RS 485, infrared port for data reading. Combined with AMR/AMI smart metering system, it is able to achieve smart meter reading functions. The meter is featured with wide temperature, large-screen LCD display, high reliability etc. it is also equipped with replaceable backup battery to ensure long service life.
|
Accuracy
|
Class 1.0
|
Rated Voltage
|
220/230/240V
|
Operating range
|
0.6~1.7Un
|
Current
|
5(60)A
|
Frequency
|
50 Hz ±5%
|
|
Power consumption
|
＜ 0.5W, 2VA
|
RTC error
|
≤0.5s/d
|
Display
|
LCD 7+0/6+2/7+1( Optional)
|
|
Communication
|
RS 485, PLC, Infrared
|
Operating temperature
|
-45℃-85℃
|
Humidity
|
≤95%
|
|
Service life
|
＞10 years
|
