Deep Anti-glare Recessed Down Light

HDL100 series recessed down lights come complete with an external driver in a junction box, which is no housing required and commercial grade quality with architectural design.



LED Down Light with Iron Tube




    This integrated down light with remote J-box is selectable in CCT and driver and FREEPOWER optional technologies, allowing customers to choose the color temperature (3000K, 3500K, 4000K) or power that best suits their application needs before installation, with just a flick of the switch. The CRI of commercial indoor down light is above 90, and ETL-listed: provides reliable quality and safe operation.

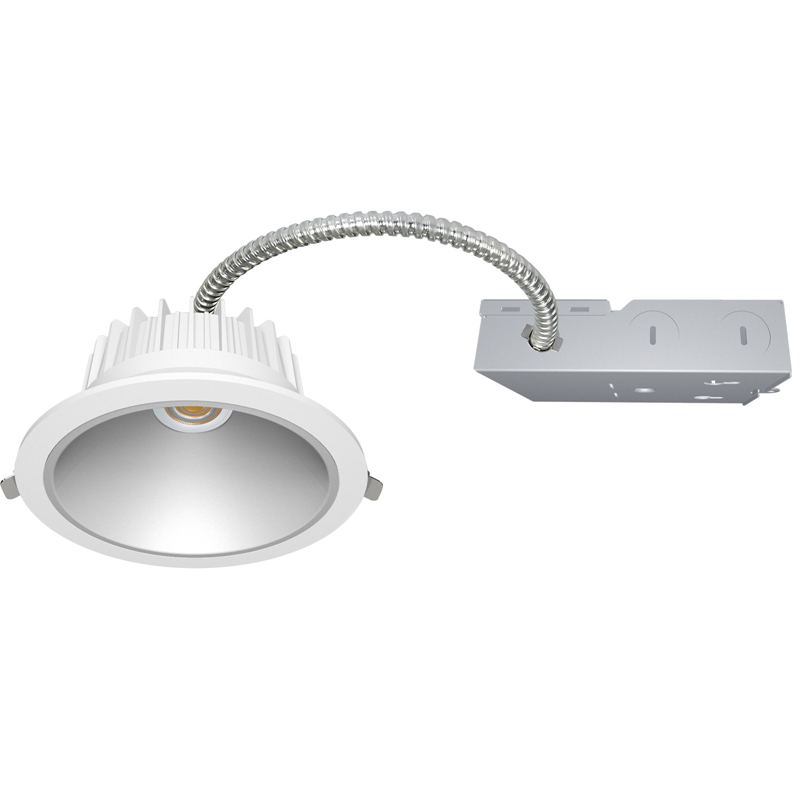

    The all in one down light is designed with a universal driver and an integrated whip, which can be directly connected to the junction box without the need for a traditional embedded enclosure. Simply connect the power supply to the light and install it to the ceiling using the built-in spring bracket-no cans, light bulbs or additional labor required. A labor-saving solution is recommended for adding recessed down lights to:


• Hospitality, Retail, Office

• Auto Dealership

• For retrofit or new construction applications


PRODUCT SPECIFICATION AND DIMENSION



CRI

>82Ra (CRI 90 for option)

Power Factor

0.95

LED Chip

COB

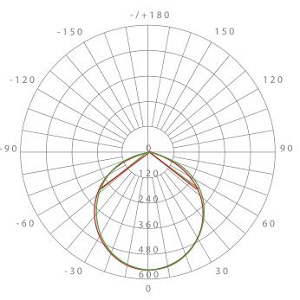

Beam Angle

110°

Color Temperature

2700K-6000K

CRI

>82Ra (CRI 90 for option)

Dimming

Triac or 0-10V dimming 10-100%

Approved Locations

Insulated ceilings

Air Tight

Yes

Lamp Life

70% light output at 50000hrs

Certification

ETL , cETL,  Energy Star

Warranty

5 years

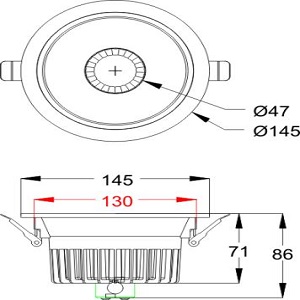

4'' Commercial LED COB Downlight



the dimension of down lightrelative info of down light

Input Power

15W

Input Voltage:

100-277 AC, 50/60HZ

Lumen

1200LM

Halogen Equivalent

120W

Efficiency

80LM/W

Dimension

Ø145X86mm

Cutout Size

 Ø130mm

Qty/ Ctn

20pcs/ ctn


6'' Commercial LED COB Downlight

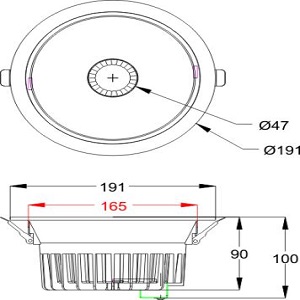

the dimension of down lightrelative info of down light


Input Power

25W /18W /15W

Input Voltage:

AC100-277V  50/60HZ

Lumen

2100LM /1500LM /1300LM

Halogen Equivalent

200W / 150W /120W

Efficiency

85LM/W

Dimension

Ø191X100mm

Cutout Size

 Ø165mm

Dimming

Triac or 0-10V dimming 10-100%

Qty/ Ctn

10pcs/ ctn

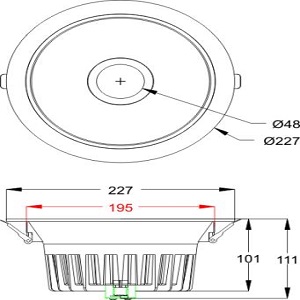

8'' Commercial LED COB Downlight

the dimension of down lightrelative info of down light

Input Power

25/18/15W

Input Voltage:

120V AC, 50/60HZ

Lumen

2000LM

Halogen Equivalent

200W

Efficiency

80LM/W

Dimension

Ø227X111mm

Cutout Size

 Ø195mm

Qty/ Ctn

20pcs/ ctn


GREAT FEATURES AND BENEFITS




  • Appearance: Patent design, with unique appearance, easier for marketing.
  • Body: Durable, die cast aluminum alloy & heavy gauge aluminum reflector allows heat dissipation.
  • Paint: White, Nickel and Black for choice--Scratch resistant and smooth finish.
  • LEDs: LM80 San'an 2835 LED ( 0.5W/pc ), which guaranteed high lumen and high quality.
  • Driver: Isolated LED driver with 5 years warranty. 100-277V AC perfect dimming of Triac or 0-10VDimming.

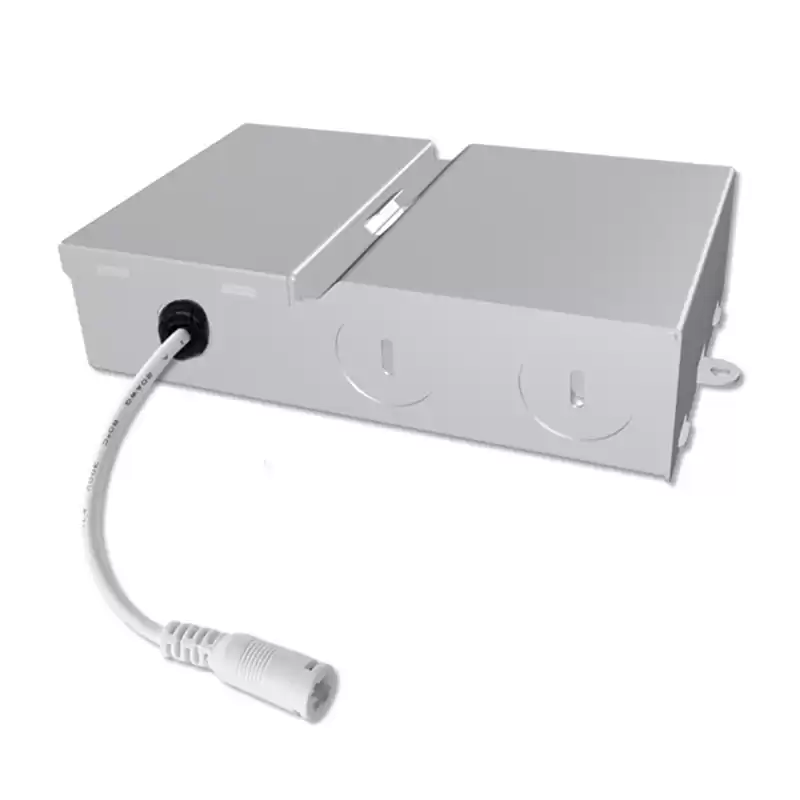

  • Junction Box: Included, install directly in Insulated Ceilings (IC) without any thermal housing.
  • Application: Designed to replace with most existing 6-1/2” – 7” aperture architectural incandescent, fluorescent and metal halide housings.
  • Power for selection:   25W | 2100Lm | 85 lm/W
  •                                   18W  | 1500Lm | 85 lm/W
  •                                   15W  | 1200Lm | 85 lm/W

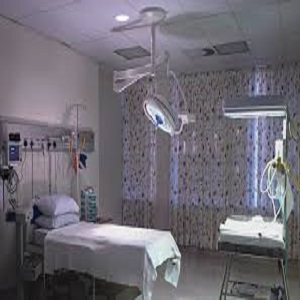

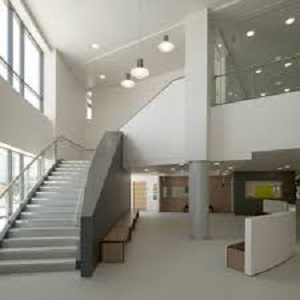

APPLICATIONS




 the application of down light the application of down light


FAQ



1. What`s the warranty of the lamp?

5-year standard warranty with labor allowance* (further details available at www.morstar.com/warranties)

*Warranty Limitations: Product must be rated for the application per the Product Data Sheet (PDS); operated <16 hrs; in ambient of -22°F~140°F.


2. What about the lead time?

--Samples can be delivered in about 1 week, and bulk orders will take about 2 to 3 weeks.


3. how can we guarantee quality?

Select high quality materials.

48 hours aging test to end defective products.

Quality control testing before shipping.

Good package to insure safety.

Always a pre-production sample before mass production;

Always final Inspection before shipment;


4. Can you design new model?

- Yes, we can open new mould according to your drawings and produce.


5.How to proceed an order for led light?

let us know your requirements or application;

We quote to you and confirm specification with you;

Customer confirm sample and place payment for formal order;

We arrange to produce goods and shipment.


6.Do you have any MOQ  limit for the led light order?

—Low MOQ, 1 pc for sample checking is available.
