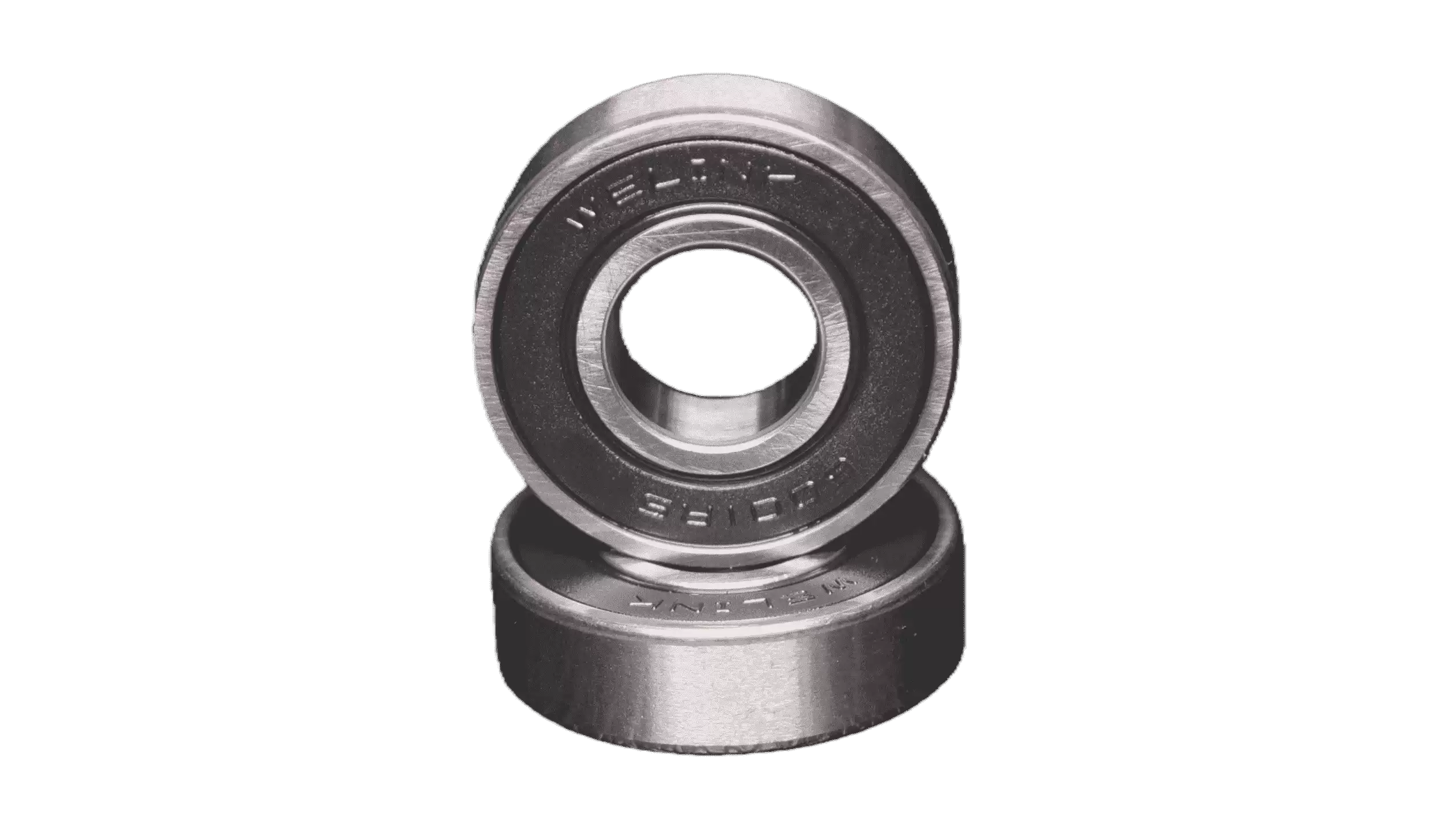

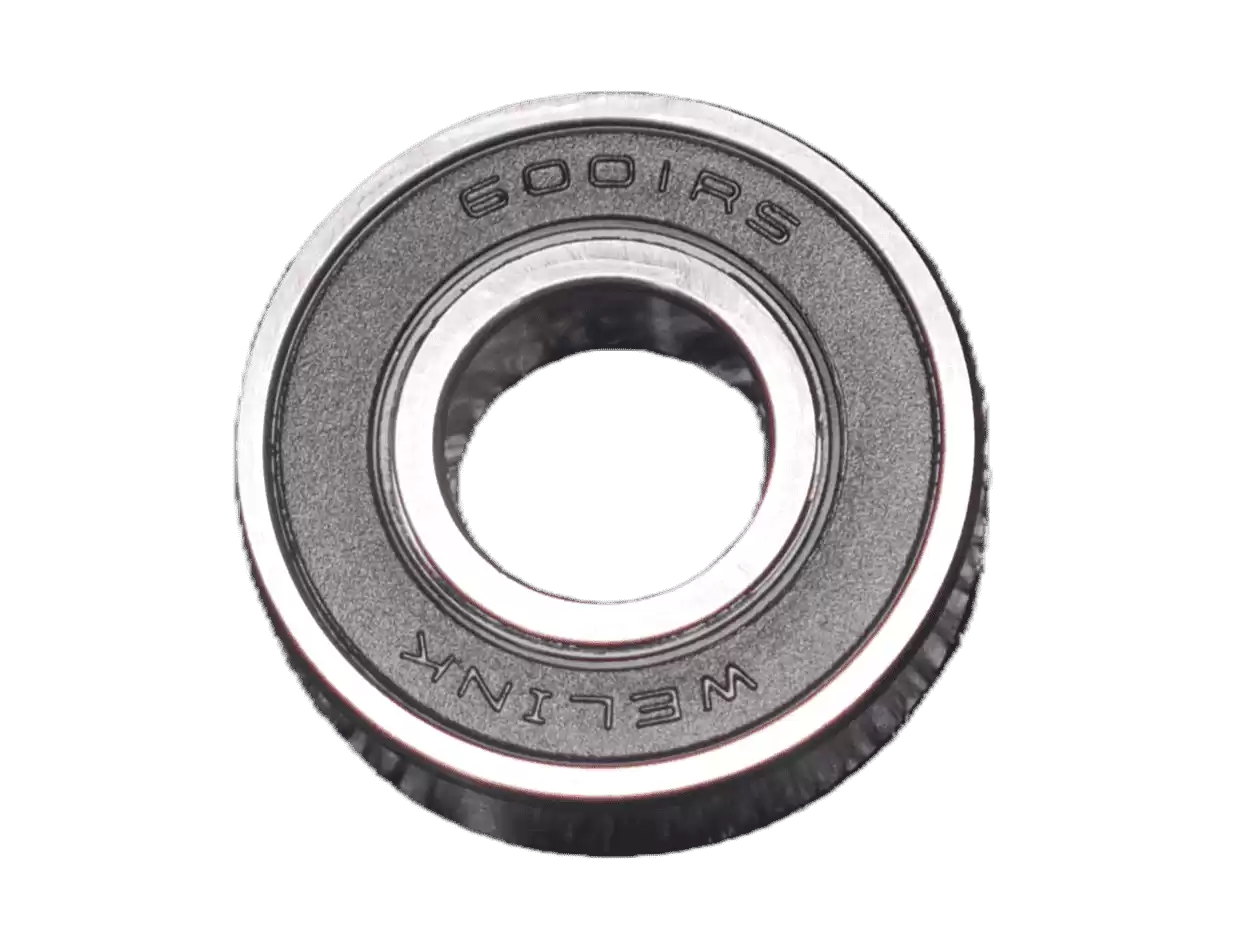

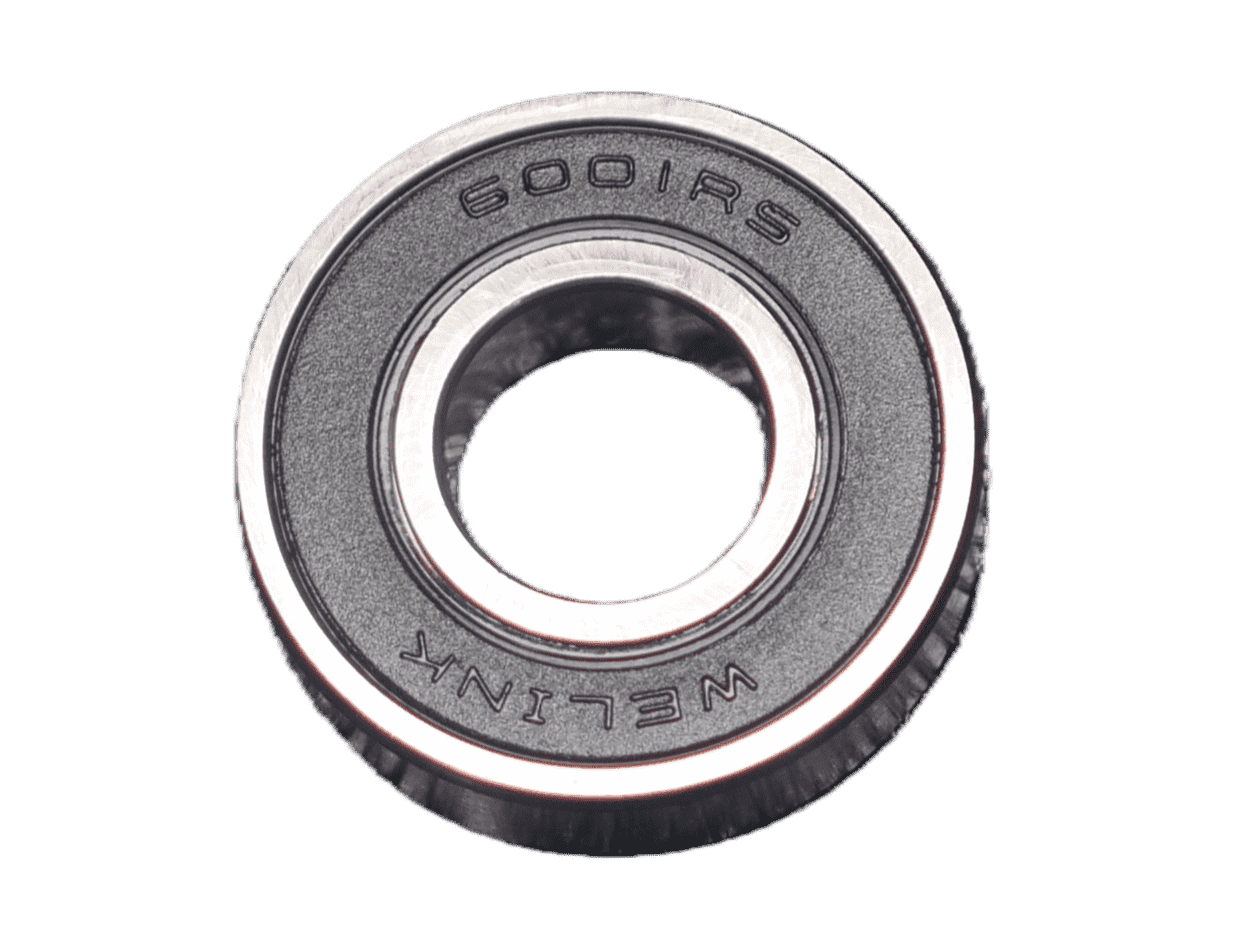

Product Overview: 6001 RS Deep Groove Ball Bearing
Key Features at a Glance:
- Effective One-Side Sealing: A synthetic rubber contact seal on one side offers enhanced protection against dust and contaminants compared to a steel shield, aiding in grease retention.
- Compact & Lightweight: The extra light cross-section provides an optimal balance between strength and minimal space/weight requirements.
- High-Speed Performance: Engineered for smooth and efficient operation at elevated rotational speeds.
- Precision Option: Available in standard tolerances, with the capability to be supplied to higher P5 precision grades for demanding applications.
Technical Specifications
| Parameter |
Specification |
| Bearing Type |
Single Row Deep Groove Ball Bearing |
| ISO Dimension Series |
60 Series – Extra Light |
| Basic Designation |
6001 |
| Suffix |
RS (One side with rubber contact seal) |
| Bore Diameter (d) |
12 mm |
| Outer Diameter (D) |
28 mm |
| Width (B) |
8 mm |
| Dynamic Load Rating (Cʳ) |
5.10 kN |
| Static Load Rating (Cₒʳ) |
2.38 kN |
| Limiting Speed (Grease) |
26,000 r/min |
| Limiting Speed (Oil) |
34,000 r/min |
| Weight (approx.) |
26.5 g |
Detailed Product Information
Design & Protection
The 6001RS features the universal deep groove raceway, suitable for carrying radial and moderate axial loads. Its defining characteristic is the synthetic rubber (NBR) contact seal on one side. This design provides a higher degree of protection against fine particulates and moisture on the sealed side compared to a steel shield (Z suffix), making it suitable for applications where one bearing face is exposed. The opposite side is typically open.
Performance Characteristics
This bearing is designed for durable performance where one-sided environmental protection is needed. The contact seal ensures effective contaminant exclusion. We produce the 6001RS to standard industrial tolerances, with the capability to provide P5 precision grades for applications requiring superior running accuracy.
Applications
The 6001RS is widely used in various machinery and devices where reliable one-sided sealing is beneficial, including:
- Electric Motors: Small to medium-sized motors, fan motors, and appliance motors.
- Power Transmission Systems: Gearboxes, pulleys, and drive units in industrial and automotive contexts.
- Pumps and Compressors: Components requiring protection from one-directional contaminant ingress.
- General Industrial Machinery: A versatile bearing for numerous applications requiring a balance of sealing, speed, and load capacity.
