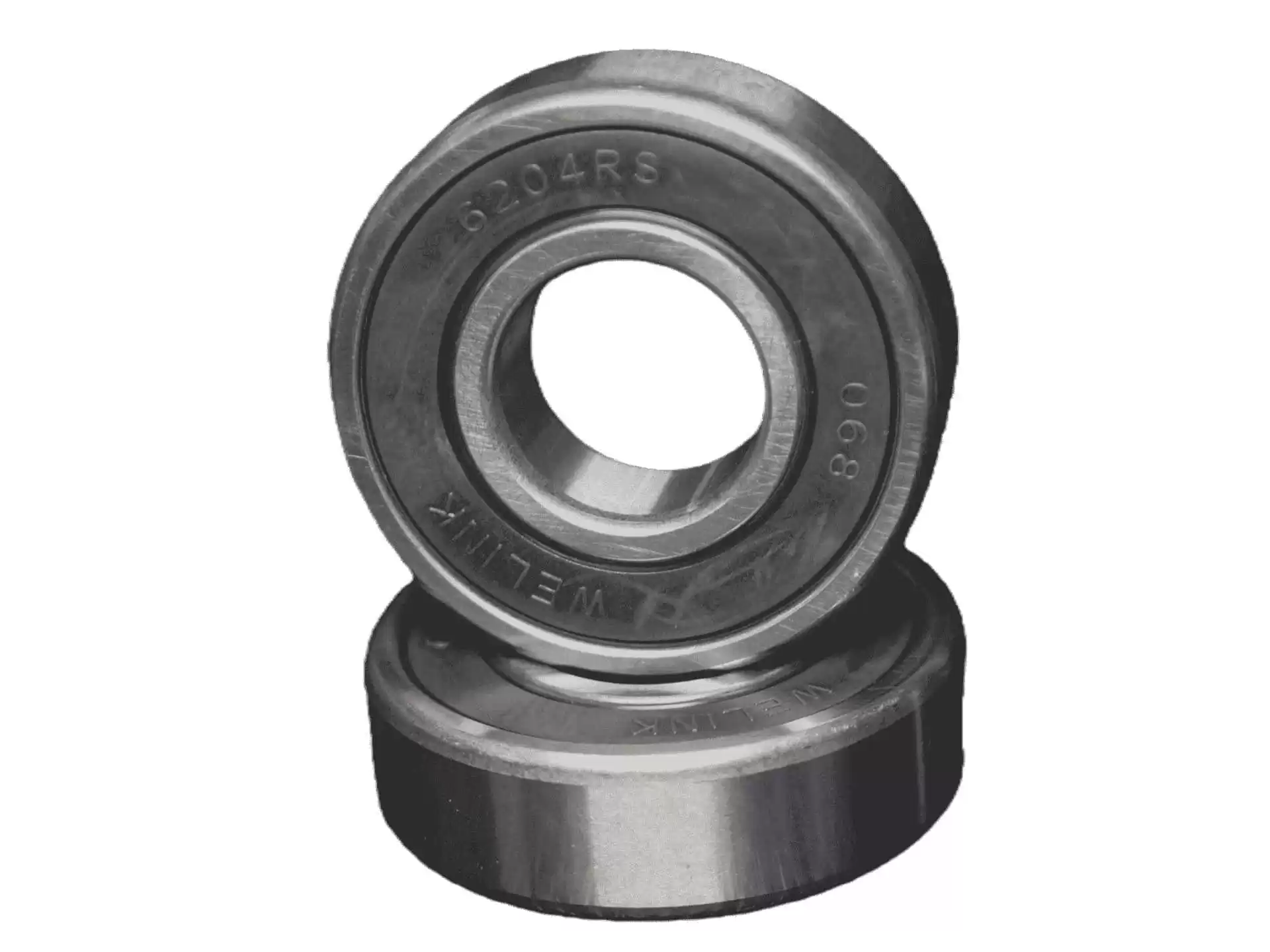

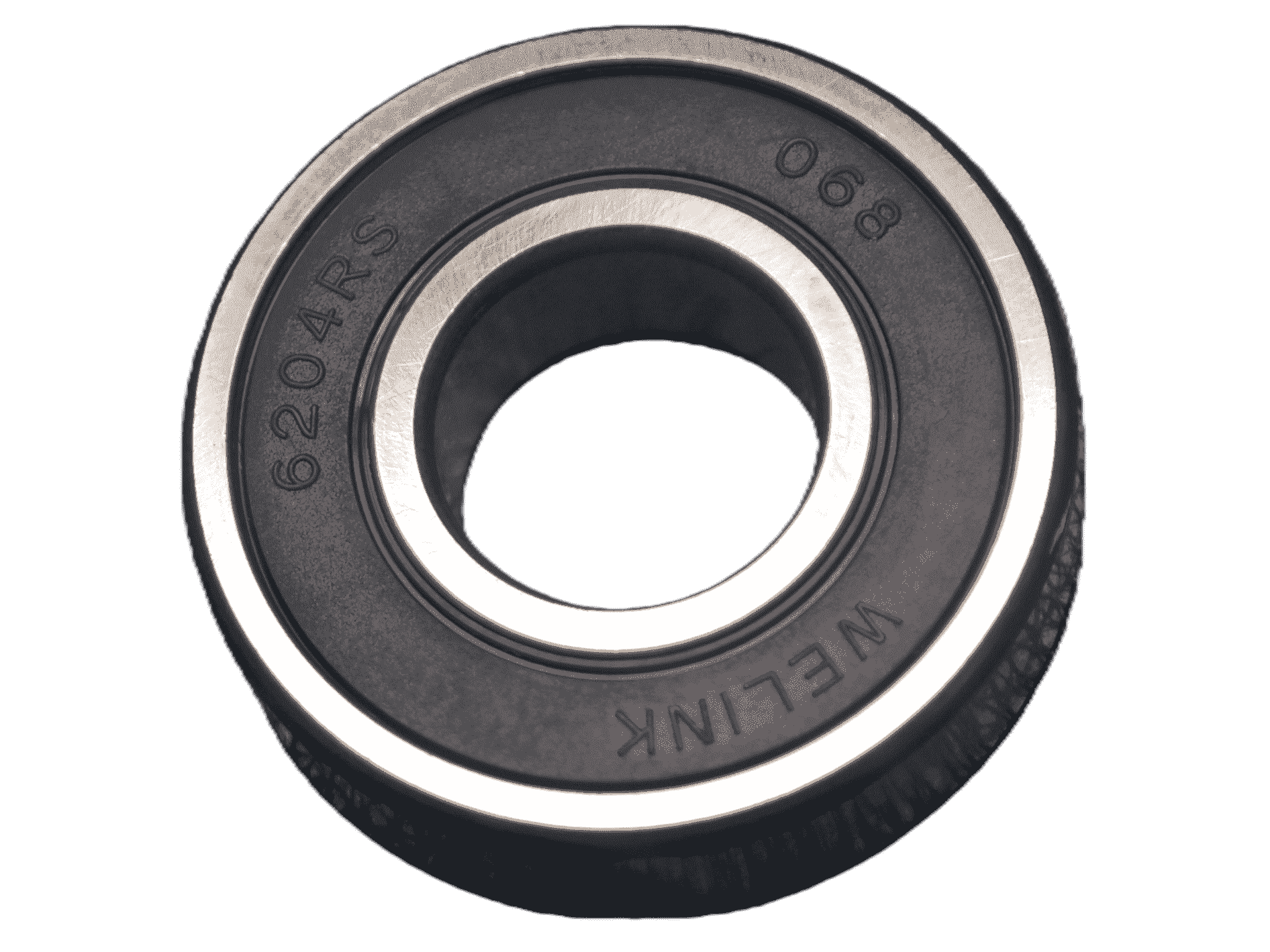

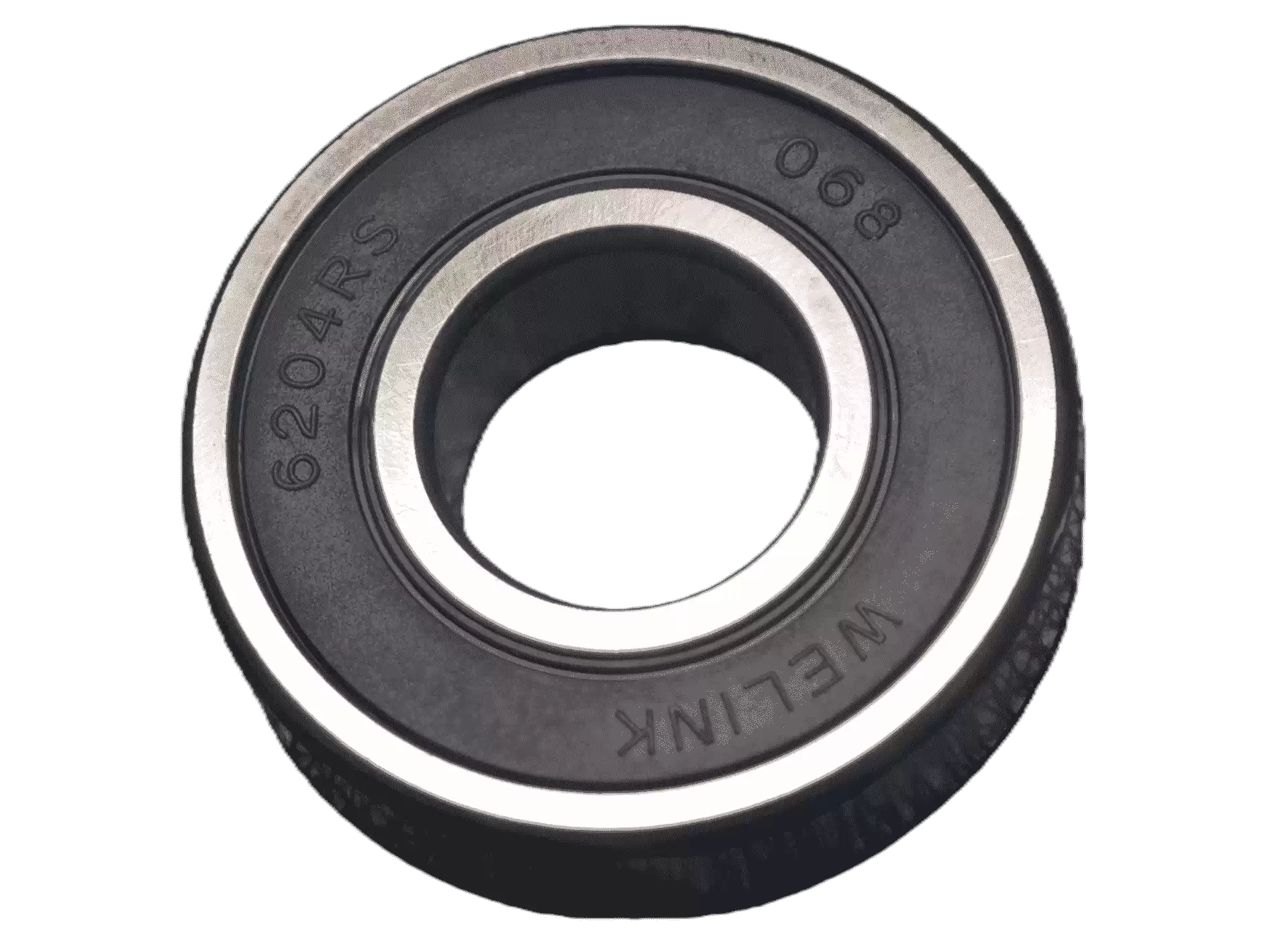

Product Overview: 6204 RS Deep Groove Ball Bearing
Key Features at a Glance:
- Effective One-Side Sealing: A synthetic rubber contact seal on one side provides superior protection against dust and moisture compared to a steel shield, ensuring excellent grease retention on the sealed side.
- High Load Capacity: The light series design delivers significant radial and moderate axial load-carrying ability for demanding applications.
- Smooth Running Performance: Engineered for quiet, stable, and efficient operation across a wide speed range.
- Precision Option: Available in standard tolerances and capable of being supplied to higher P5 precision grades for applications demanding exceptional running accuracy.
Technical Specifications
| Parameter |
Specification |
| Bearing Type |
Single Row Deep Groove Ball Bearing |
| ISO Dimension Series |
62 Series – Light |
| Basic Designation |
6204 |
| Suffix |
RS (One side with rubber contact seal) |
| Bore Diameter (d) |
20 mm |
| Outer Diameter (D) |
47 mm |
| Width (B) |
14 mm |
| Dynamic Load Rating (Cʳ) |
12.8 kN |
| Static Load Rating (Cₒʳ) |
6.65 kN |
| Limiting Speed (Grease) |
15,000 r/min |
| Limiting Speed (Oil) |
19,000 r/min |
| Weight (approx.) |
109.0 g |
Detailed Product Information
Design & Protection
The 6204 RS features the universal deep groove raceway, suitable for carrying high radial and moderate axial loads. Its key feature is the synthetic rubber (NBR) contact seal on one side. This design provides enhanced protection against fine particulates on the sealed side, making it ideal for applications where one bearing face is exposed to a harsher environment, such as in certain motor end covers or exposed gearboxes. The opposite, open side allows for design flexibility.
Performance Characteristics
This bearing is built for durable and reliable performance. The contact seal effectively excludes contaminants, contributing to extended service intervals. We produce the 6204 RS to standard industrial tolerances, with the capability to provide P5 precision grades, ensuring superior rotational accuracy and smoothness for precision mechanisms that also require environmental protection on one side.
Applications
The 6204 RS is commonly specified for a wide array of industrial applications where one-sided sealing offers the optimal solution, including:
- Electric Motors: Frequently used in industrial motors, fan motors, and pumps where one side requires protection from the internal or external environment.
- Gearboxes and Transmissions: Suitable for units where sealing is needed on the input or output side against dust or splash.
- Agricultural Machinery: Components in drives and rollers where one-sided contaminant exposure is typical.
- General Industrial Machinery: A reliable choice for various machinery requiring a balance of sealing, load capacity, and speed.
