Desk-Top 1500W Ultrasonic Metal Welder for Finished Aluminum Shell Cell Al and Pure Nickel Composite Strip Tab Welding
Product Specification

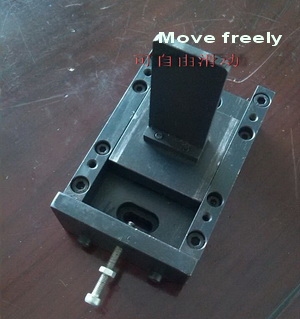

1 The TOB-USW-PC1500 ultrasonic metal welder machine is mainly used for Al can battery Al-Ni composite strip tab welding on Al shell for finished cell with New designed mould.
2 It can also weld Al can battery Al shell weld tab before battery finished with changing aluminum shell welding mould.
|
Model
|
TOB-USW-PC1500
|
|
Source voltage
|
110V AC or 240V AC 50/60Hz
|
|
Power
|
1500W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Type
|
Ultrasonic spot welding machine
|
|
Product dimension
|
450*230*160mm
|
|
Control box dimension
|
330*190*250mm
|
|
Package size
|
600*420*500mm, About 55kg
|
|
Frequency
|
24KHZ
|
|
Welding head material
|

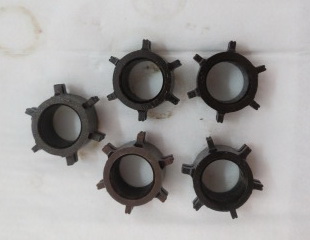

W6M5Cr4V2 high-speed steel, with six welding points in one head.
|
|
Working stroke
|
15mm
|
|
Welding time
|
0.5-2s
|
|
Control mode
|
CPU Control
|
|
Air supply
|
≥0.5MPa (≥72.5psi)
|
|
Welding ability
|
1 For copper : 0.15~2+0.15~2mm.
2 For aluminum : 0.2~3+0.2~3mm.
3 For Nickel : 0.1~1.2+0.1~1.2mm.
|
|
Main accessories
|
1 “Welding head”-6pcs, 2 “Connect line”-2pcs, 3”Foot pedal”-1pcs
4 “Power line with customized plug”-1pcs,
5 “Gas-pressure meter”-1pcs
|

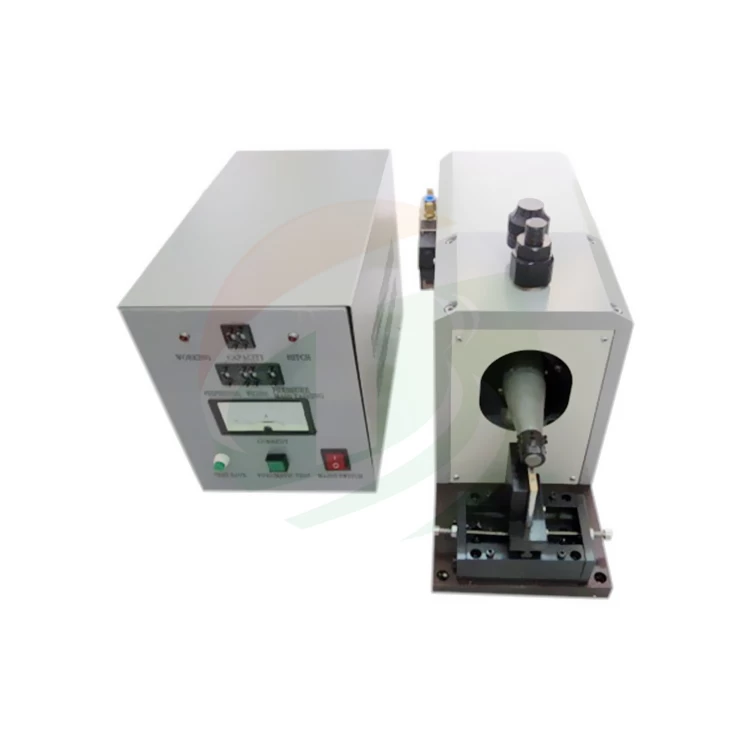

Product Image
Product Packing
