High Precision Microprocessor Control
Battery Spot Welder Machine for Lithium Battery
Product Specification
Main technical features :
l DC output.Heat concentration,the heat efficiency is increased, the welding process is stable, the welding quality is improved, and the electrode life is prolonged .
l High speed and high precision microprocessor (MCU) control, to provide highly stable repetitive welding, with current monitoring function.
l LCD display.
l High speed welding: a quick start and high polarity switching reduced the temperature effect so that make the welding surface clean and beautiful.
l Polarity switching: suppression of asymmetrical result makes the two points welding strength uniform and extends the service life of the electrode.
l The imported IBGT module full control the discharge,welding quality and welding speed , non ordinary welding machine can compared with it.
l Double pulse can reduce welding spatter, effectively improve the quality of welding.
l Data storage using EEPROM, no battery life issues, always returned to the previous use of welding procedures when you starting up.
l Welding voltage locking technology to prevent net voltage fluctuations to affect the welding current.
|
Model
|
TOB-HDP-3000S
|
|
Transformer maximum output power
|
25KVA
|
|
Two sides of the maximum welding current
|
6000A
|
|
DC energy storage capacity
|
6600uF
|
|
Welding control method
|
Imported IGBT module control, double pulse welding
|
|
Welding voltage
|
5v-330v adjustable, precision 0.5V
|
|
welding time
|
0.1ms-5.0msdjustable, precision 0.1ms
|
|
Welding mode
|
Normal / continuous
|
|
input frequency
|
AC 220V±10% 50Hz±2Hz
|
|
Maximum working pressure
|
6KG
|
|
Weight
|
65KG
|
|
Weld thickness
|
Maximum thickness of parallel welding:0.03mm~0.5mm ,Multiple welding sheet
|

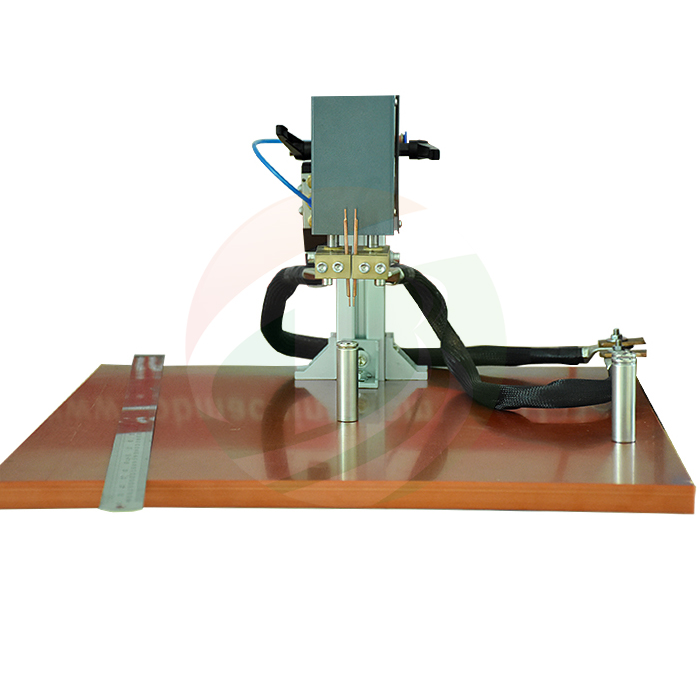

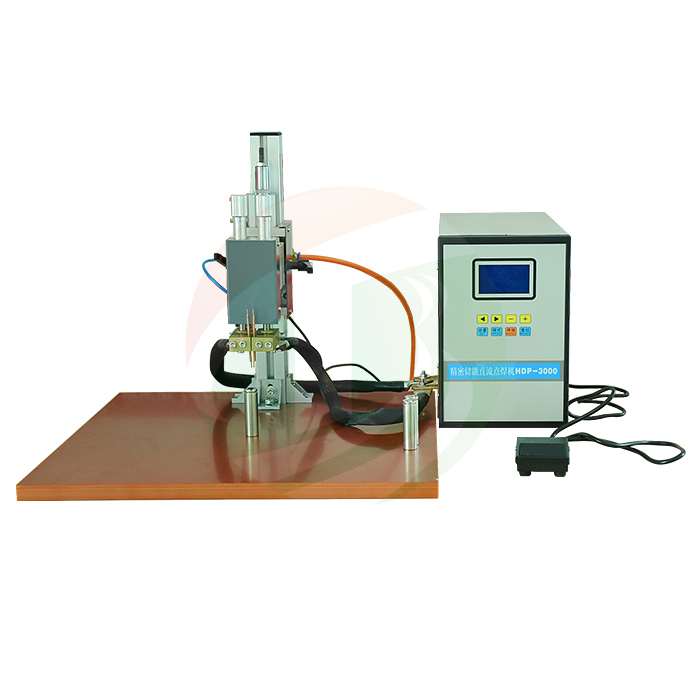

Product Image
Product Packing
