VRV dewatering screen

------For dewatering and removal of inpurities

Dewatering screens are used to dewater materials, clean or recover solid particles from liquids, muds or sludges. Higher intensity of projectile and different screen deck configuration depending on material.

The angle of vibratory agitation is optimized to reduce moisture of the solids to minimum values. The unit is supported by a screen deck inclination of +5° (rising) and +45° (declining)

Advantages

✔  Single or multi deck design

✔  Minimized final moisture

✔  High feed rates

✔  Screen body material is customized according to anticorrosive requirements（ stainless steel or VRV special whole screen body hot galvanized process）

✔  Buffer device is set at the feed port, which can effectively reduce the impact of water flow on the screen deck  and thus improve the service life

✔  Sieve bend is normally added to the front of the dewatering screen for pre-dewatering in order to increase the efficiency and cost performance

✔  Long lifetime ( screen frame up to 10 years, drive up to more than 60,000 hours)

Key Data

Nominal length                       up to 9,500 mm

Nominal width                        up to 3,000 mm

Deck                                         PU or stainless steel screen avaialbe according to the material characteristics

Mesh size                                From 0.2mm

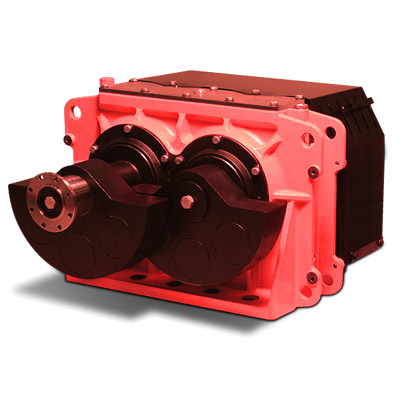

Drive                                          VRV unbalanced motor or exciter

FAQ

Q1. How to choose the right equipment ？

A: VRV suggest you provide us the information of bulk material need to be handled, including the material parameters so that our technical staff will provide the most appropriate advice

Q2. Can I buy just one equipment?

A: Yes, there is no quantity limitation. We offer not only individual equipment, but also customize production lines for enterprises.

Q3. What’s your delivery time?

A: It depends on equipment. Normally it will take 1 to 3 months.

Q4. What’s your price terms and payment terms?

A: We accept EUR and USD,

Q5. How to guarantee the quality?

A: VRV marks every equipment with unique serial number, by which design parameters can be easily traced and after-service can be ensured in years. VRV takes responsible for every equipment perpetually.

Any issues occurred during the life cycle of VRV vibratory equipment will be analyzed by our engineers thus to find out the optimal solution. Our company is also willing to assist customer’s field experts and maintenance engineers and provide our test data and advices to help them solve problems.
