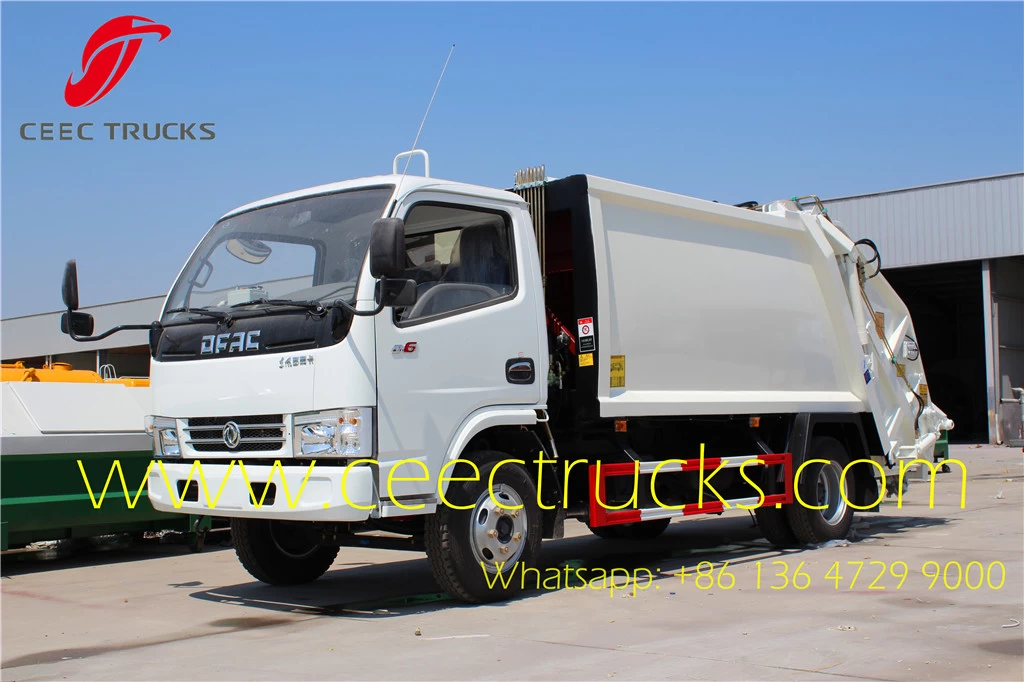

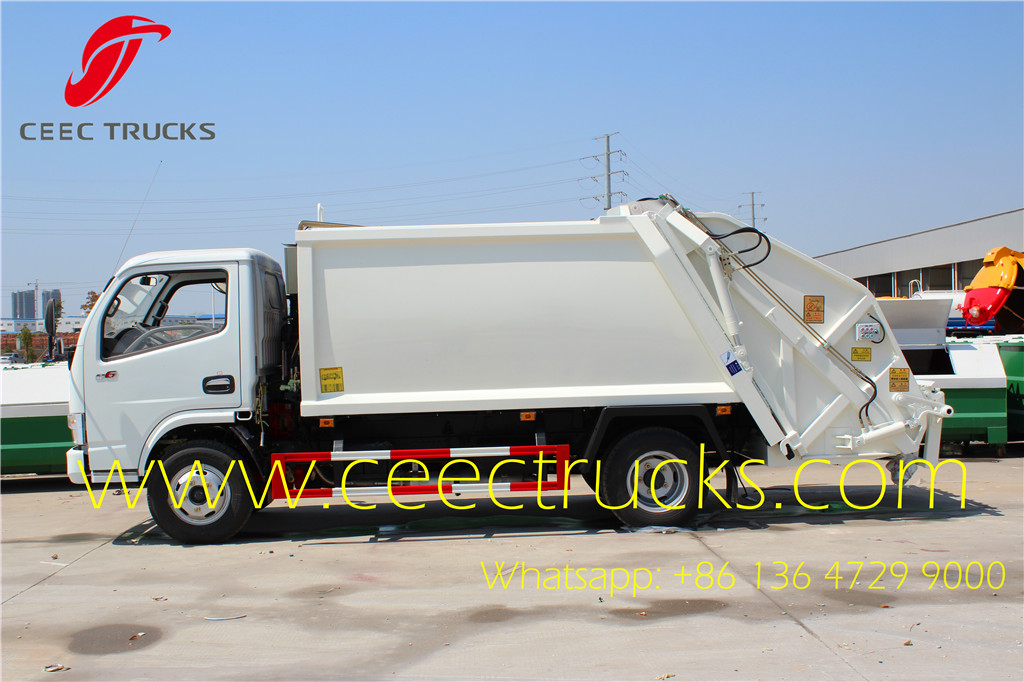

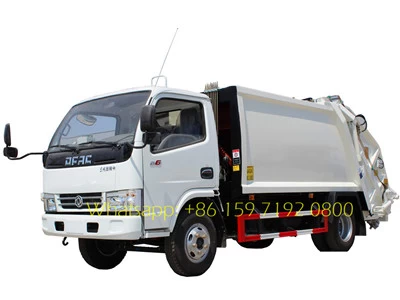

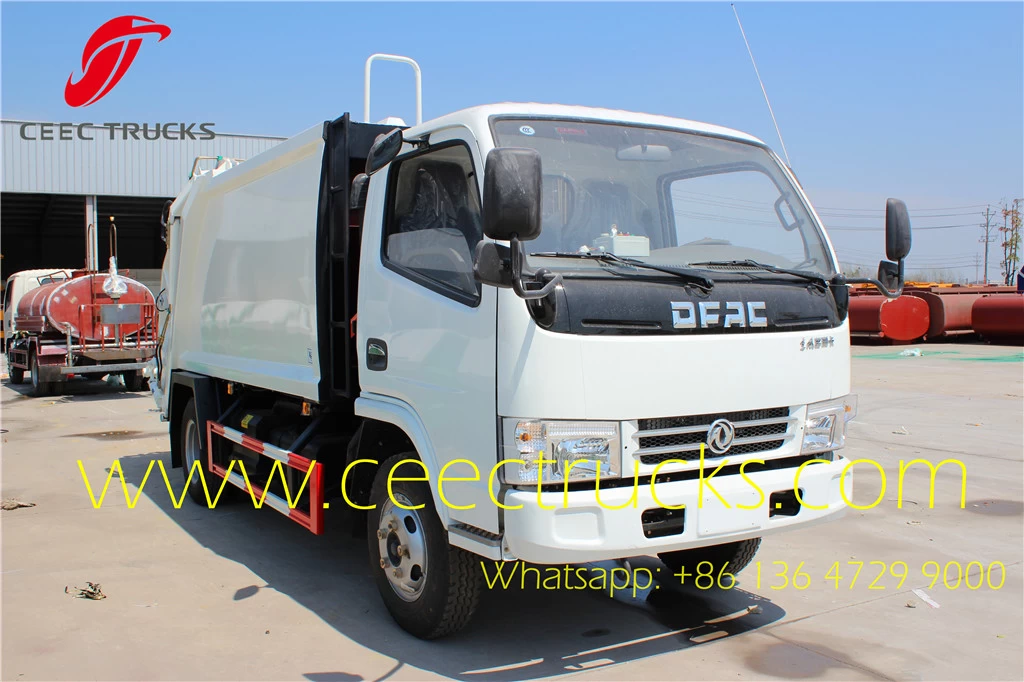

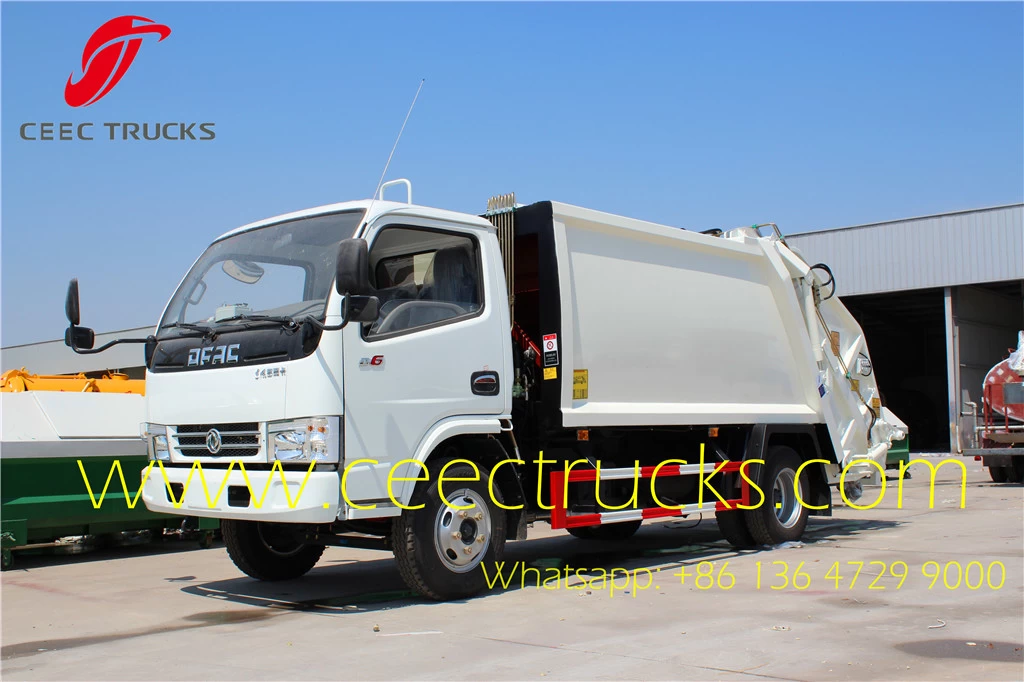

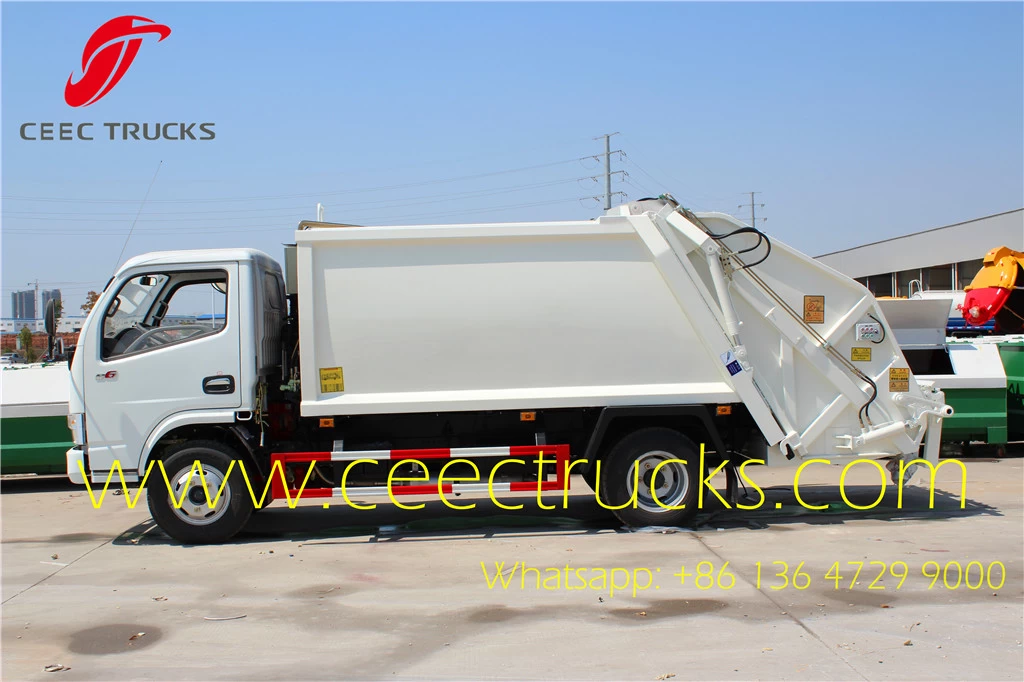

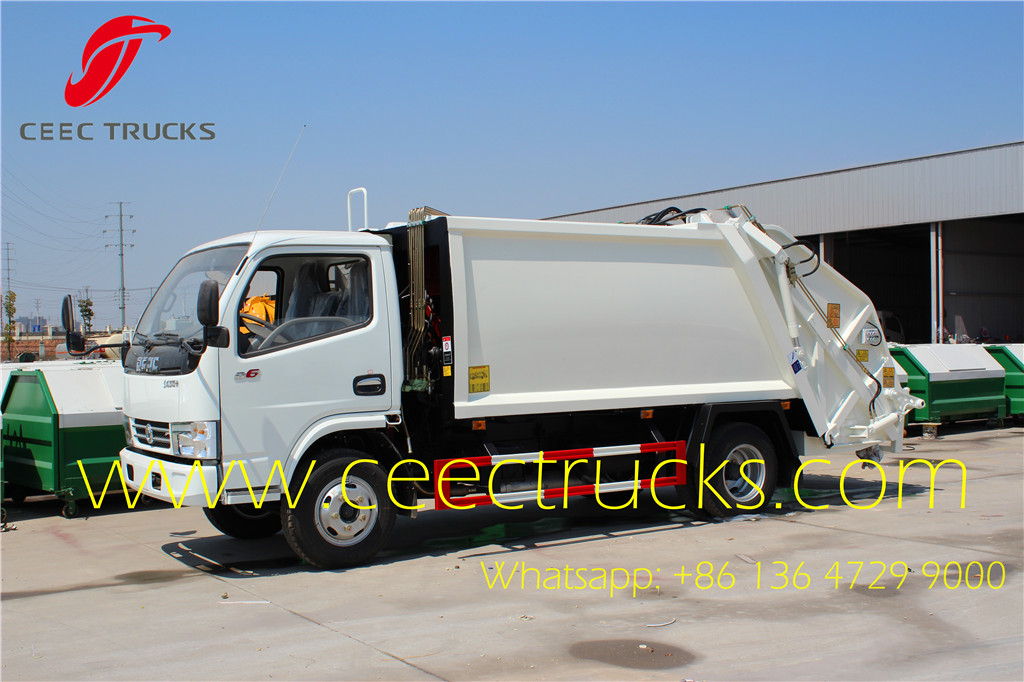

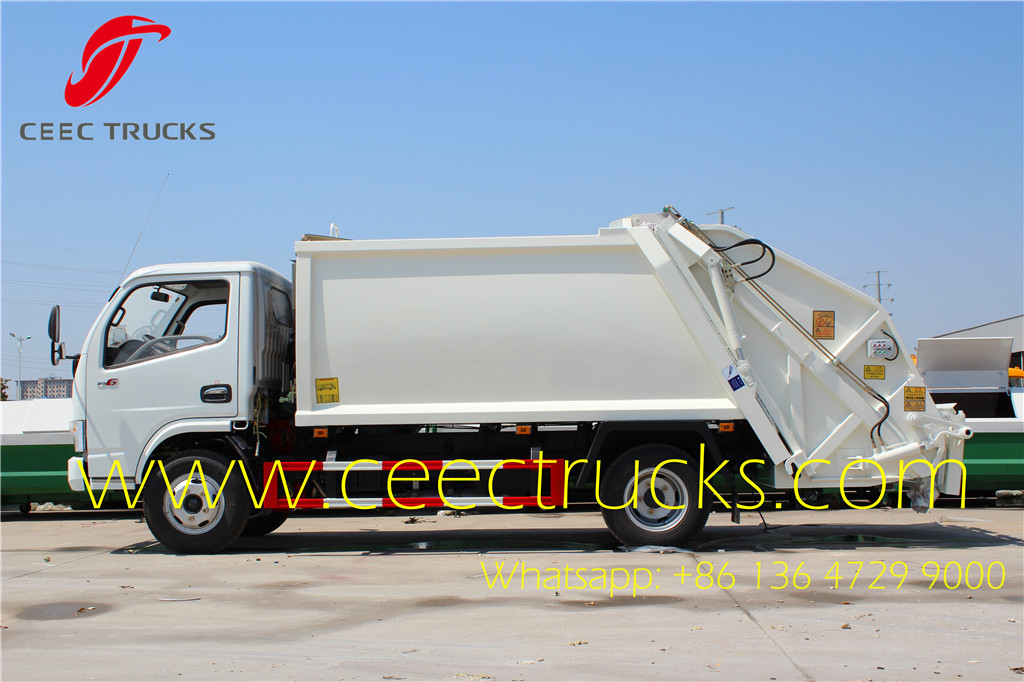

Manufacturer dongfeng 5 CBM compressed garbage truck Price
The garbage compressed truck is widely used in sanitation & municipal, industrial enterprises and residential area. The truck has several garbage tanks to avoid pollution during transporting process. The modified part can be separated from chassis, so it is easy to maintain and the mobility & readability of the truck are kept.
If you have special demand of garbage truck, please contact with us. We may design and modify it for you. We also can add power steering and A/C for you.
Below details will help know what is 5 CBM Garbage Compactor Truck:

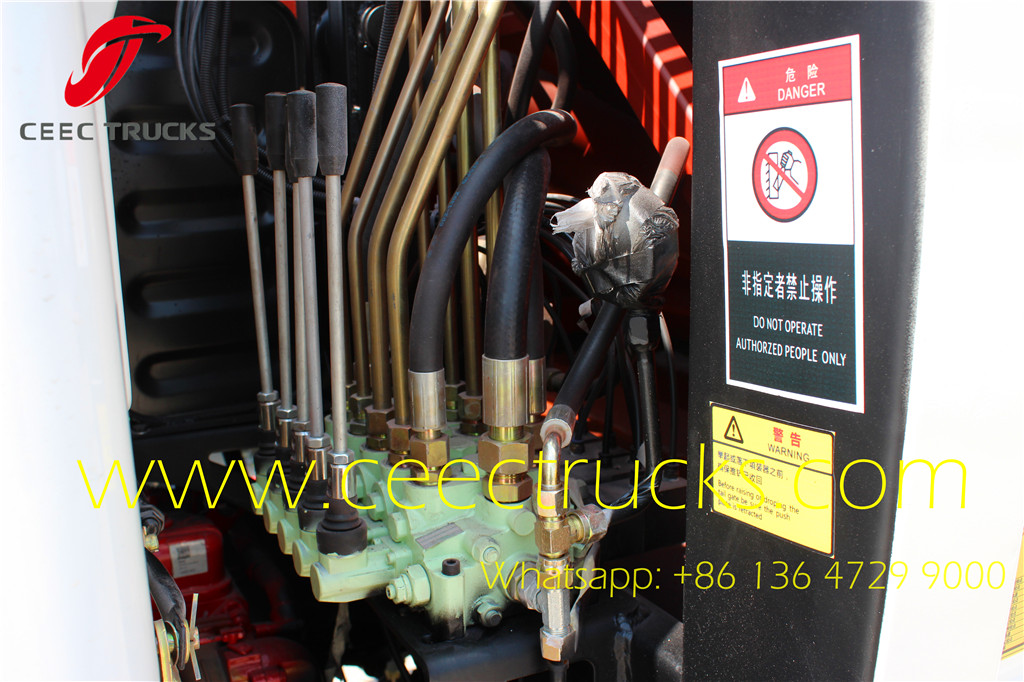

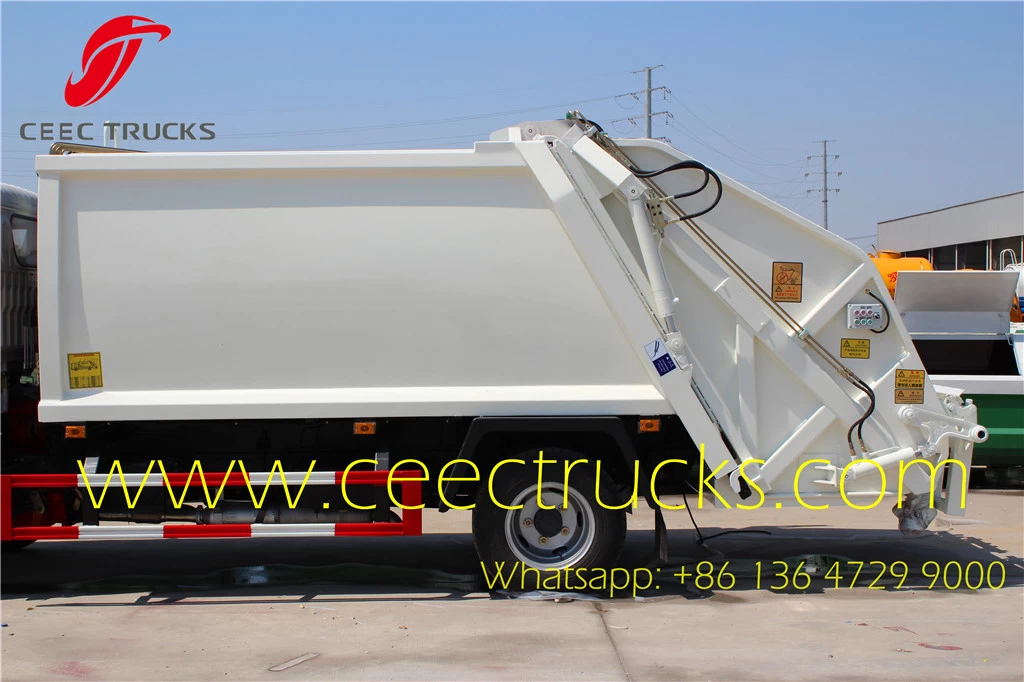

----Garbage compactor truck is composed of hermitical garbage box, hydraulic system and operating system.

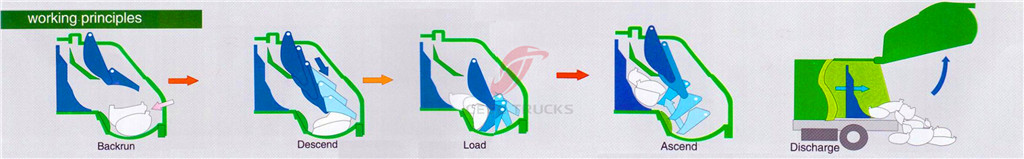

----The garbage truck could apply pressure to the waste to breakdown bulky items, to load and transport more garbage by one time.

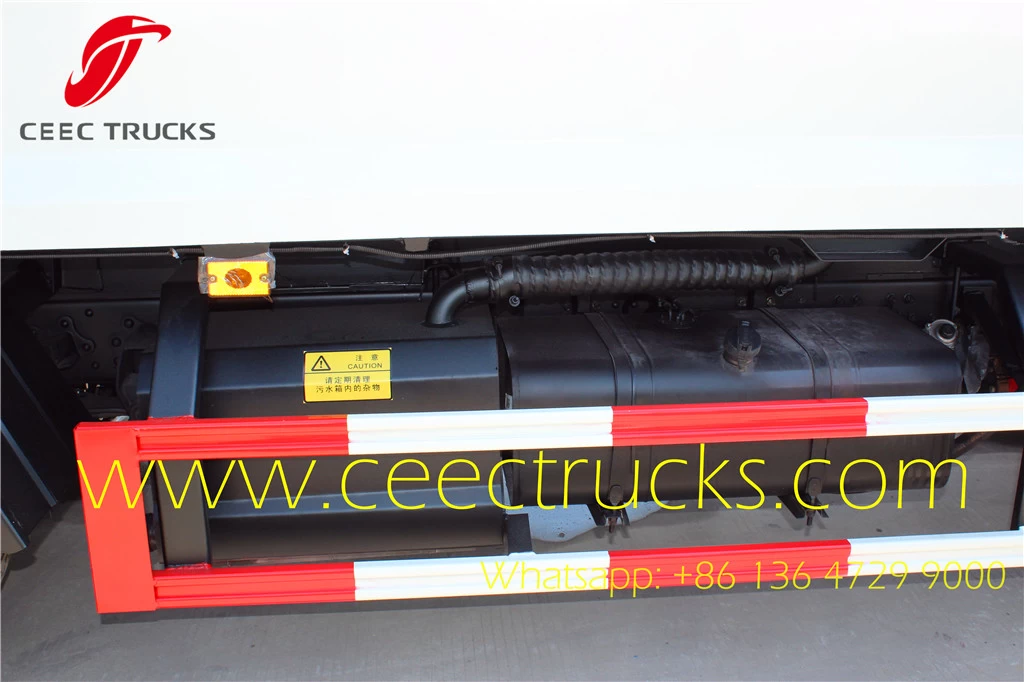

----Dirty liquid flows into waste water collection tank,perfectly preventing re-pollution. ----When arriving at destination, thegarbage can be discharged completely.

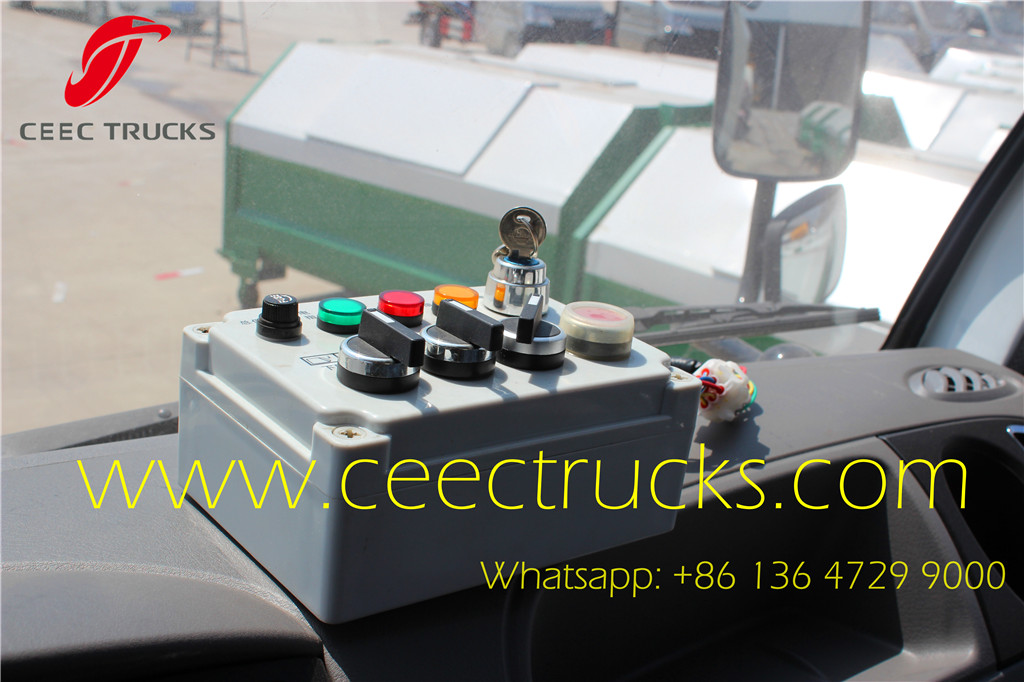

----The operation system could be manual or electrical control
----It is ideal solution for all kinds of solid wastecollection.

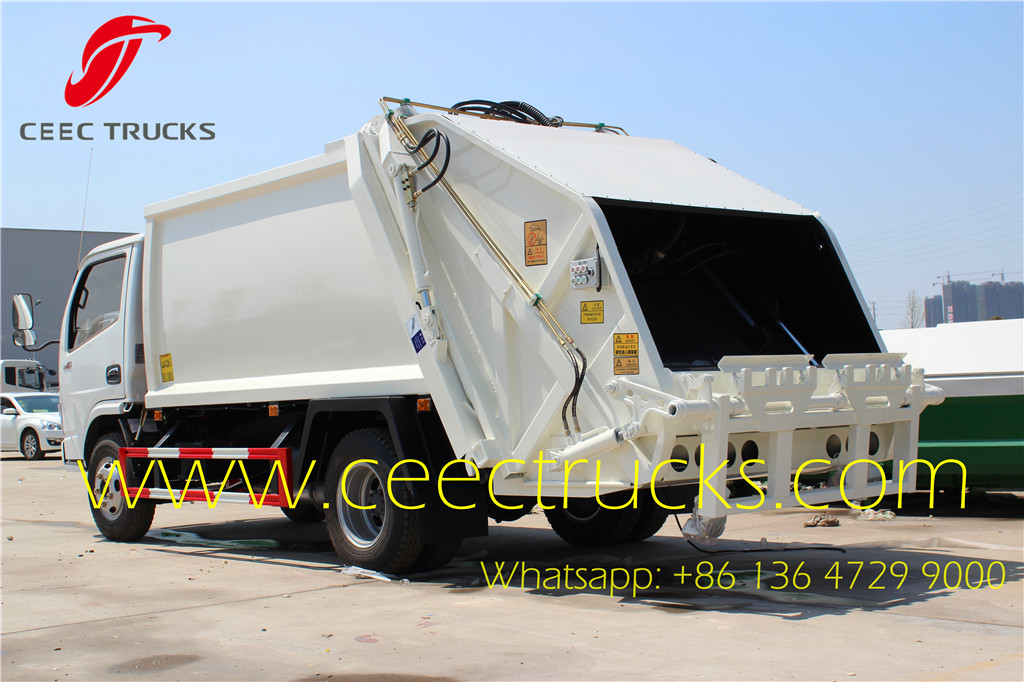

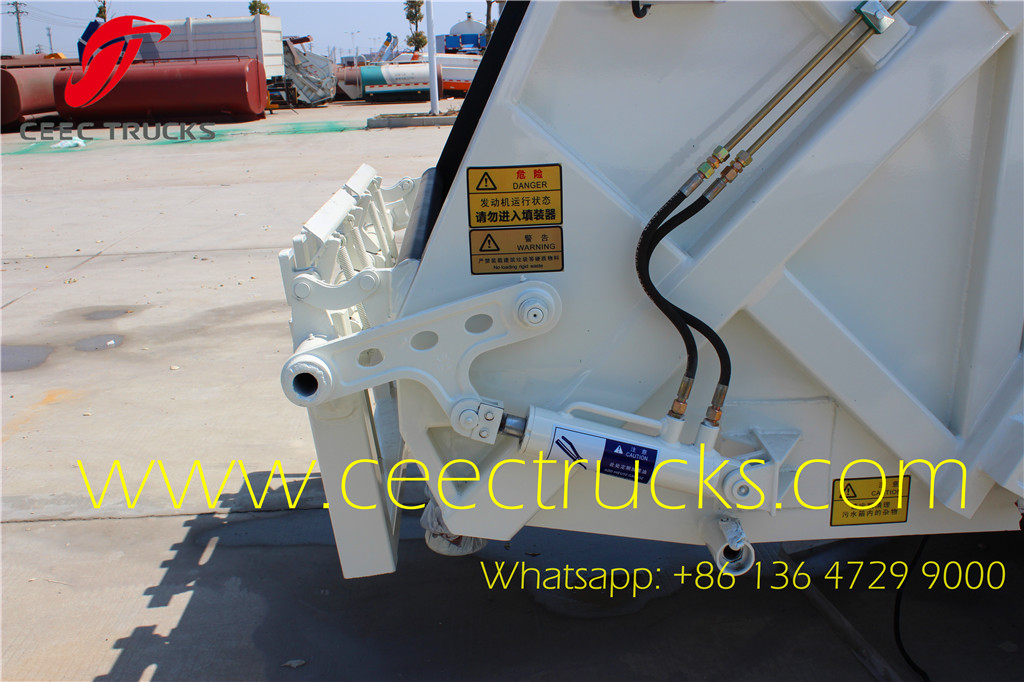

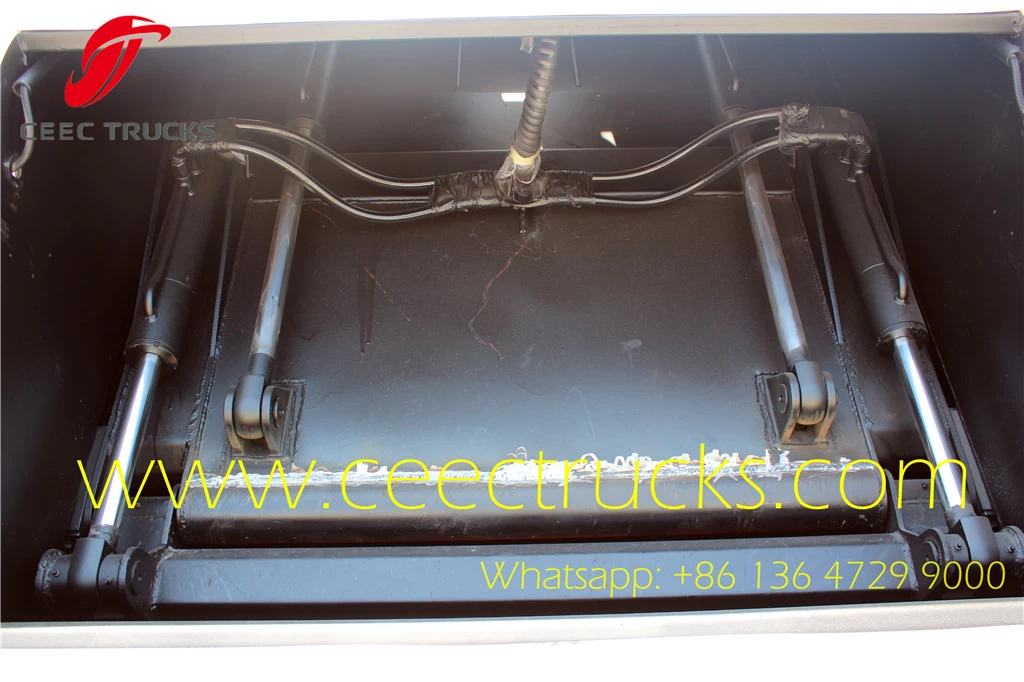

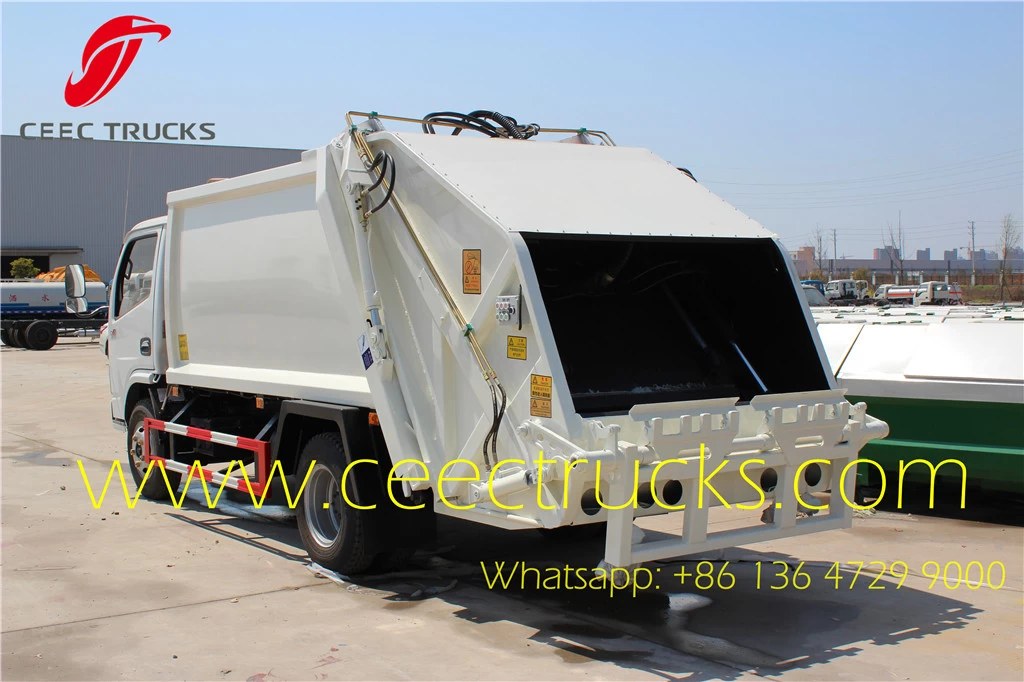

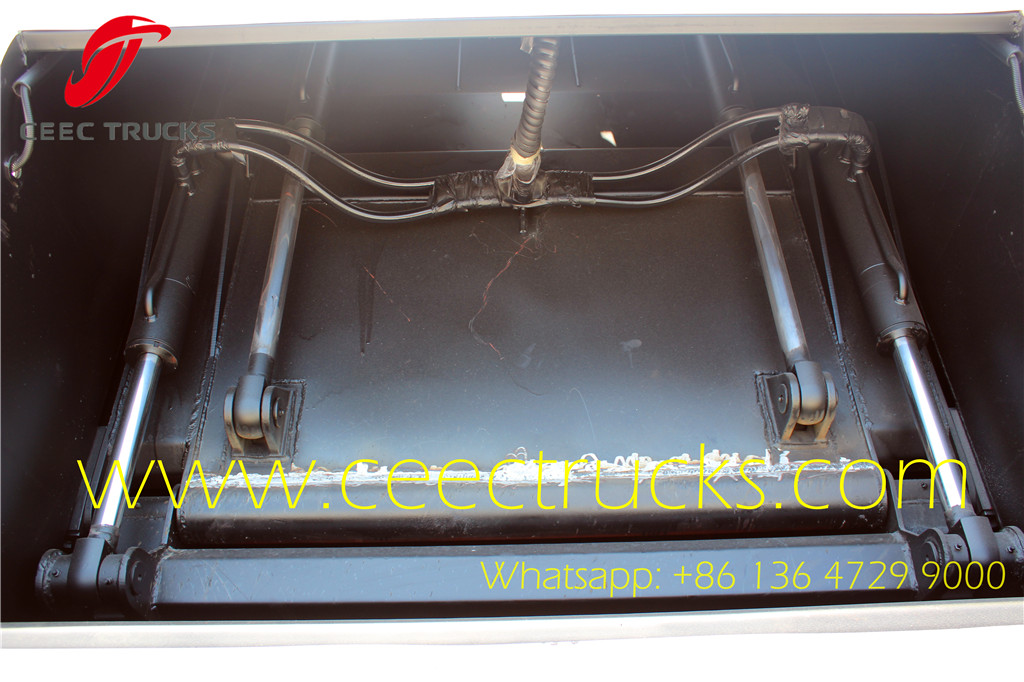

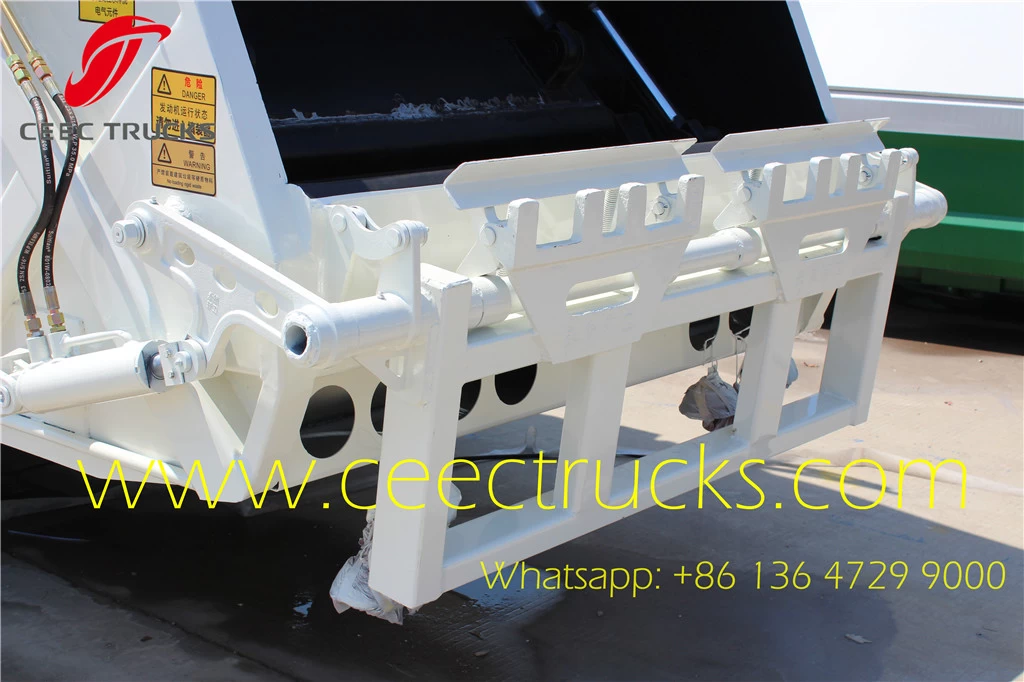

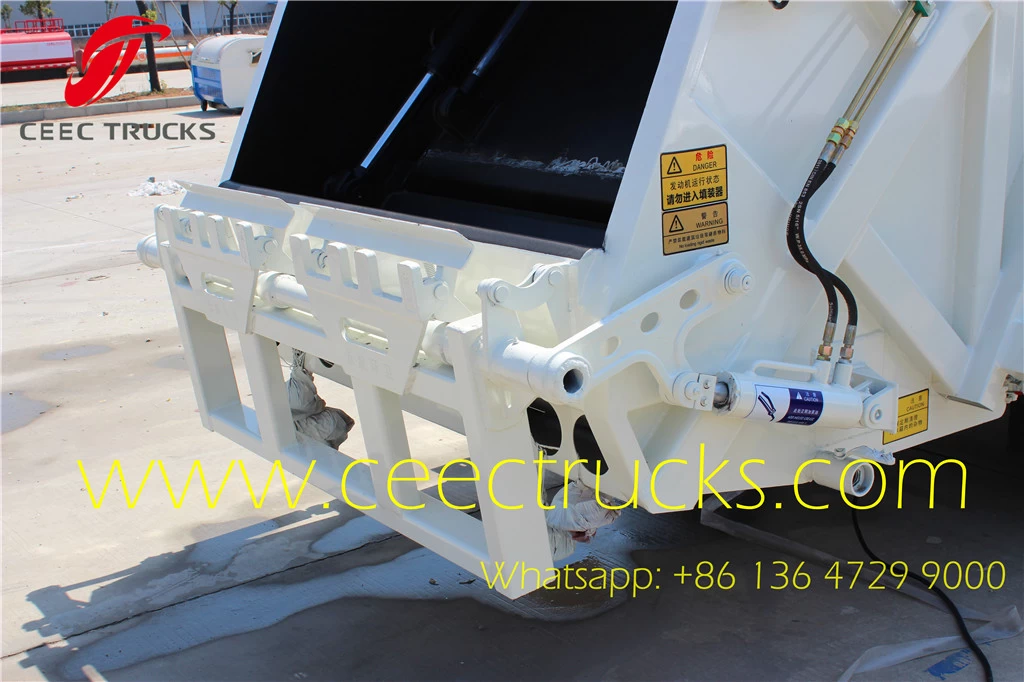

Above show CEEC produced ISUZU 4 CBM trash compressor truck Compact System, which exported MYANMAR YANGON mainly consist of Tilting Device (optional for 240L & 360L, 660L & 1100L rubbish bins); Slide Plate; Scraper; Push Plate & Rear Tail Gate. All parts are well-designed, strong structure and light self-weight.
Similar KeyWords: Garbage
compactor truck, trash compactor,waste compactor, refuse compactor,
compactor truck, rear loader, dustbin lorry,garbage compactor vehicles,
garbage compacting truck, refuse collector, waste compactor, waste
compactor truck, refuse collectiontruck, compactor garbage truck,rubbish
truck, bin wagon, dustcart, bin lorry,waste collection vehicle
| Item
|
5cbm compactor garbage truck Dongfeng / DFAC
|
| vehicle
|
Brand
|
CEEC TRUCKS
|
| Model
|
CEEC5060ZYS
|
| Dimension
|
6450*2050*2500MM
|
| G.W.
|
6495KGS
|
| Chassis
|
Brand
|
Dongfeng
|
| Model
|
EQ1060
|
| Drive Type
|
4*2
|
| Steering
|
LHD
|
| Engine
|
Brand
|
Dongfeng
|
| Model
|
CY4102-C3F
|
| Power
|
70Kw /95HP
|
| Displacement
|
3300ml
|
| Emission Level
|
EURO 3
|
| System
|
4 stroke, 6-cylinder in line, water cooled with direct injection, turbocharged, inner cooling.
|
| Performance
|
Max. Speed
|
80km/h
|
| Min. Turning circle
|
8m
|
| Min. Ground Clearance
|
255mm
|
| Max. gradeability
|
30%
|
| Wheel base
|
3300mm
|
| Tyre Specifications
|
7.00-16
|
| No. of Tyre
|
7pcs (1 spare tyre included)
|
| Axle Capacity
|
Front 1.8Tons & rear 3.2Tons
|
| Transmission
|
5forward gears & 1 reverse, Manual
|
| Brake
|
Air brake, drum brake
|
| Suspension
|
Leaf spring
|
| Fuel Tank Capacity
|
80L
|
| Electrics
|
24V
|

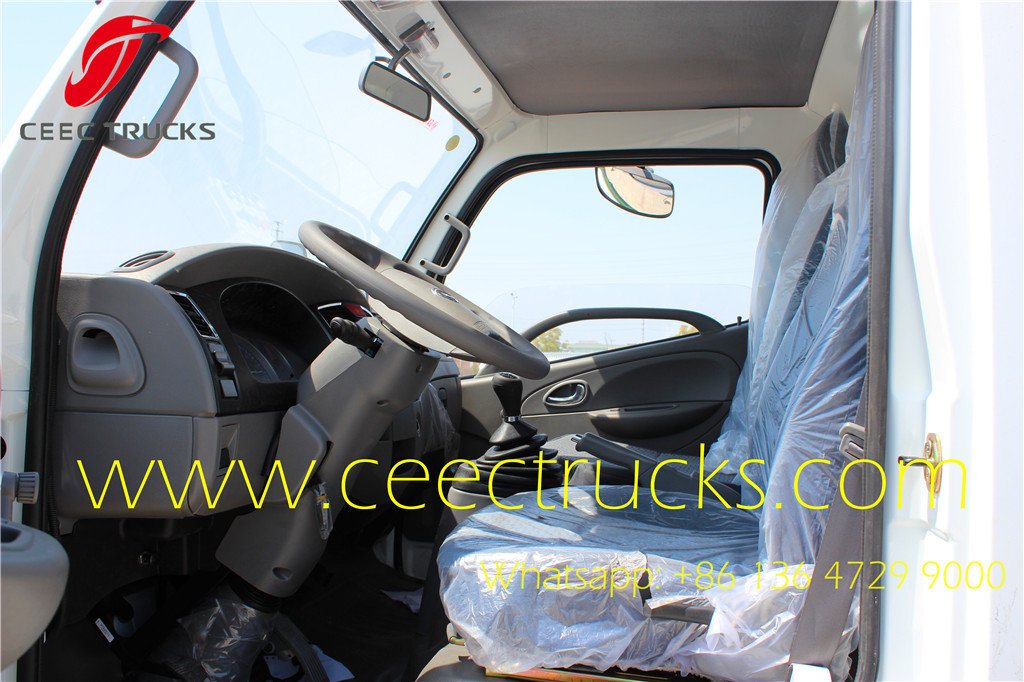

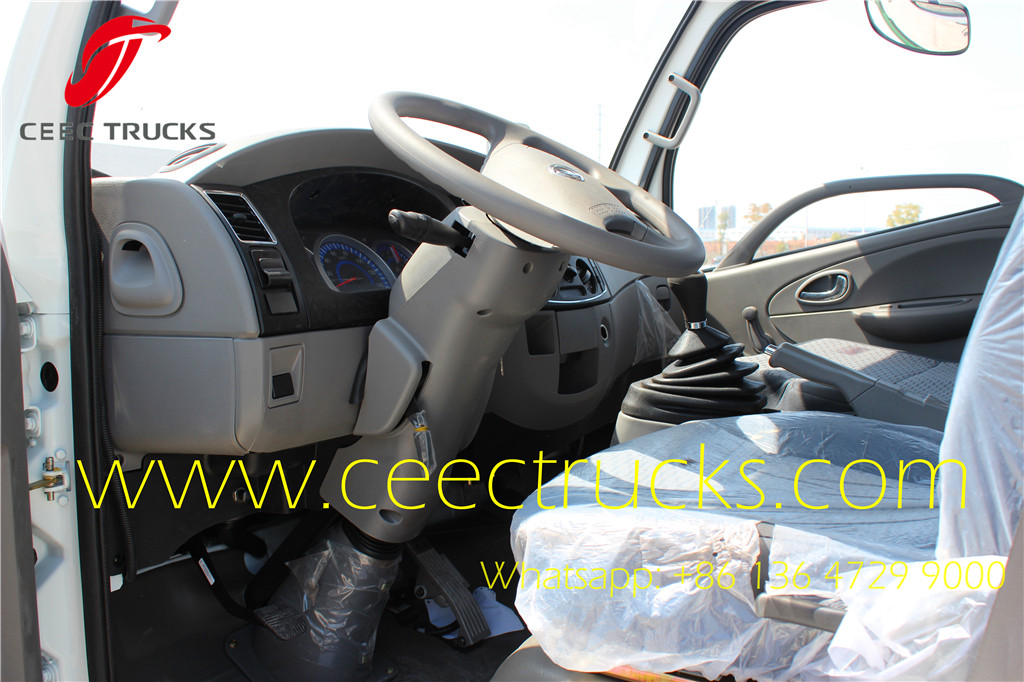

| Cab
|
Cab Capacity
|
2 persons allowed
|
| Cab Type
|
Single row Cab ,Tilting cab
|

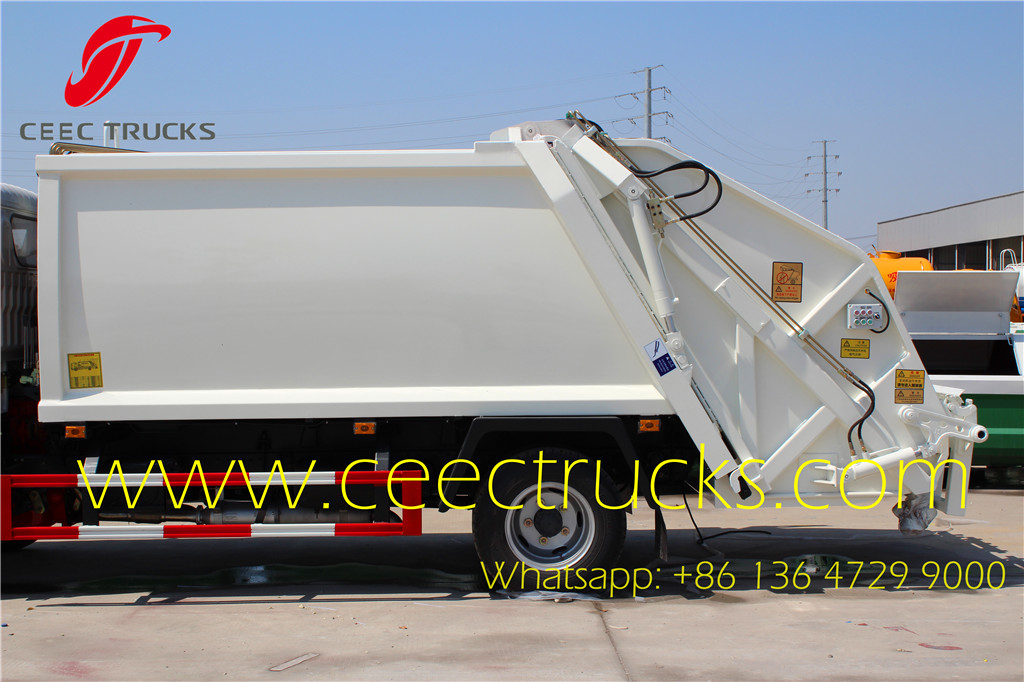

| Superstructure
|
body
|
Capacity
|
5 m³
|
| Material
|
side material is 3mm high quality carbon steel, bottom material is 4mm high quality carbon steel
|
| PTO
|
special PTO for garbage compactor truck
|
| Paint
|
Rust proofing primer + undercoat +2 finish coats = 4;
Tank color is according to client’s requirements.
|
| Optional
|
The type of the tire:7.00R16
|
| A/C, Power assisting
|
| The material of the body :Stainless steel
|
| The thickness of the material :5mm carbon steel
|
